The VMC855 CNC Vertical Milling Machine Delivers Precision Finishing With 10000 RPM BT40 Spindle For Die & Mold Machining
The VMC855 CNC Vertical Milling Machine Delivers Precision Finishing With 10000 RPM BT40 Spindle For Die & Mold Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
VMC855
Contact Us
Request A Quote
Product Details
Travel:
800/550/550
Max Spindle Speed:
10000 R/min
Max Worktable Load:
500 Kg
Standard CNC System:
FANUC Oi-MF Plus
Standard Spindle Bearings:
FAG/NSK
Optional 4th Axis:
TJR/PARKSON Rotary Table
Primary Application:
Precision Die & Mold Machining
Machine Weight:
4500 Kg
Payment & Shipping Terms
Minimum Order Quantity
1
Price
26000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
Contact Us
Product Description
The VMC855 CNC Vertical Milling Machine Delivers Precision Finishing with 10000 RPM BT40 Spindle for Die & Mold Machining
Model: VMC855 | Core Keyword: CNC Vertical Milling Machine
CNC Vertical Milling Machine Overview

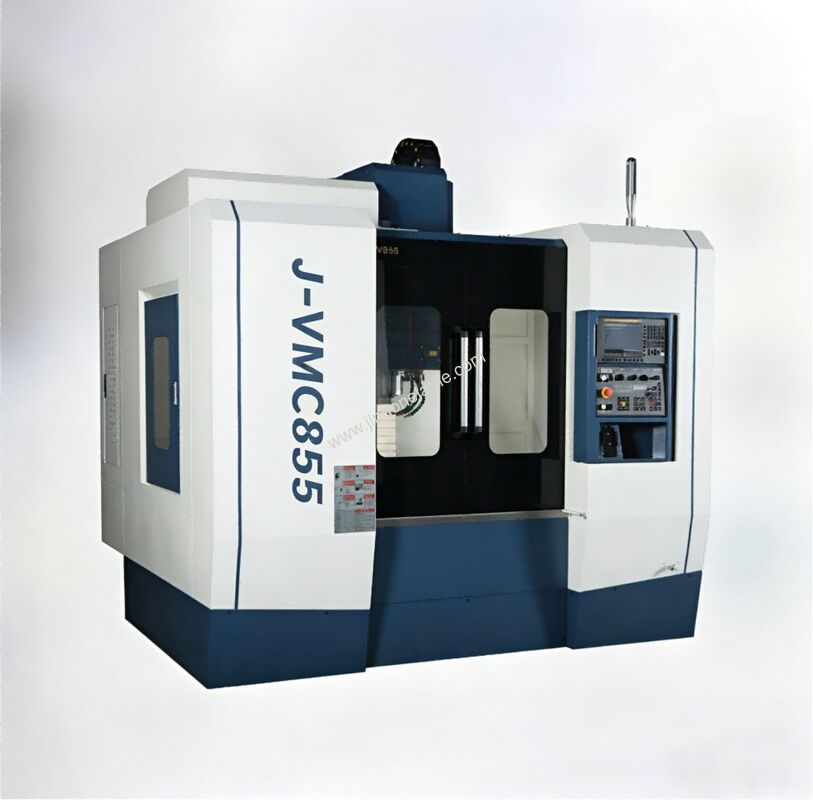

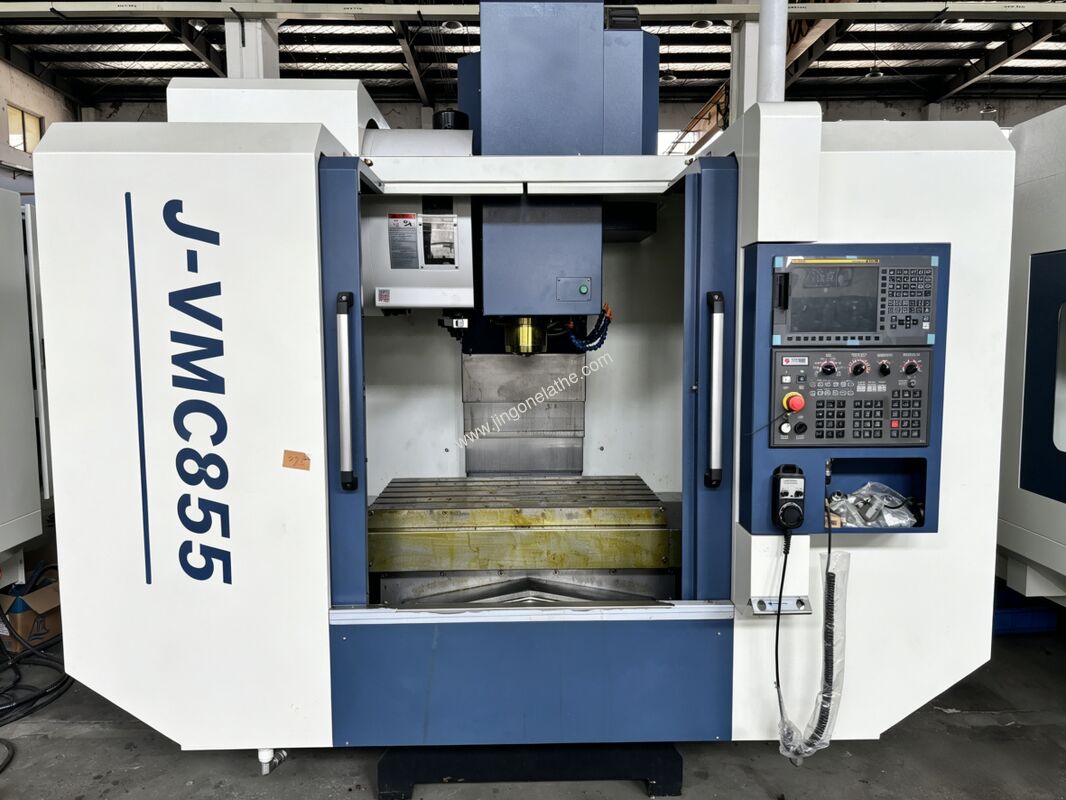

The VMC855 CNC vertical milling machine is a robust milling center built for high-precision die and mold machining, boasting a Fanuc system control, 10000 r/min spindle, 800x550x550 mm travel range, and 24-tool automatic changer. This heavy-duty CNC machining center combines rigid construction with advanced cooling to handle tight-tolerance production runs reliably.
Ideal for machining complex die cavities, mold cores, and precision mechanical parts, it excels in high-speed finishing operations. Its enclosed design and stable spindle performance eliminate thermal deformation, ensuring consistent accuracy for small-batch and high-volume production alike.
VMC855 Key Features
- Rigid Meehanite Frame: Built with finite element analysis-optimized castings and stiffeners, boosts structural rigidity to minimize cutting vibration and improve machining accuracy.

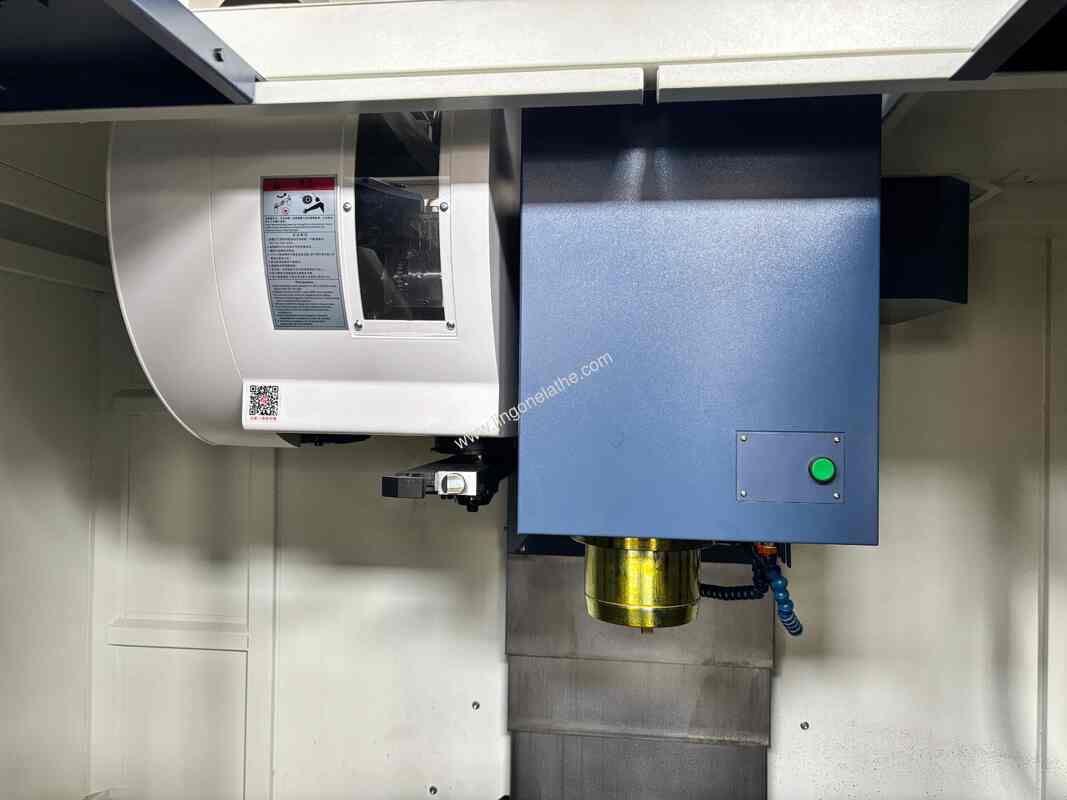

- High-Speed BT40 Spindle: **¢150 mm belt-driven spindle** with max speed **10000 r/min**, fitted with FAG/NSK bearings; reinforced structure prevents tool breakage, perfect for precision die finishing.
- Forced Spindle Cooling System: Equipped with circulation cooling and oil temperature cooler, maintains stable spindle temperature to extend component service life and reduce thermal error.
- 24-Tool Arm-Type Changer: **BT40 tool holder** with 24-tool capacity, supports adjacent tool diameter up to **75 mm** and non-adjacent up to **125 mm**, cuts tool change time for higher productivity.
- 3-Axis Direct-Drive Screws: Imported rigid couplings connect C3-grade ball screws, delivers **±0.003 mm positioning accuracy** and repeatability for tight-tolerance machining.
- Power Failure Protection: Z-axis motor with automatic brake locks the shaft during power outages, prevents workpiece damage and ensures operational safety.
- Fully Enclosed Cabinet: Dust-proof and oil mist-proof design with heat exchanger, maintains clean internal environment and stable electrical component performance.
Fanuc Motor Configurations
| Motor model | Rated power (kW) | Rated torque(N.m) | |
|---|---|---|---|
| Spindle motor | Bil 8 | 7.5 | 35.8 |
| X-axis motor | Bil 12 | 1.8 | 11 |
| Y-axis motor | Bil 12 | 1.8 | 11 |
| Z-axis motor | Bil 22B | 3 | 20 |
VMC855 Specifications
| Parameter | Value | Unit |
|---|---|---|
| X-axis travel | 800 | mm |
| Y-axis travel | 550 | mm |
| Z-axis travel | 550 | mm |
| Distance from spindle nose to worktable | 120-670 | mm |
| Distance from spindle center to column guide | 590 | mm |
| Worktable size | 1000x550 | mm |
| Max. Worktable load | 500 | kg |
| T-slot | 5-18-90 | mm |
| Spindle motor power | 7.5/11 | kW |
| Spindle taper | BT40 | mm |
| Max. spindle speed | 10000 | r/min |
| Spindle drive mode | Belt Type | - |
| Rapid feed X/Y/Z | 48/48/48 | m/min |
| Max. cutting feed | 10000 | mm/min |
| Tool capacity | 24 | tools |
| Max. tool diameter (adjacent tool) | 75 | mm |
| Max. tool diameter (non-adjacent tool) | 125 | mm |
| Max. tool length | 300 | mm |
| Max. tool weight | 7 | kg |
| Tool holder type | BT40 | - |
| Positioning accuracy | ±0.003/300 | mm |
| Repeated positioning accuracy | ±0.003 | mm |
| Power requirement | 30 | kVA |
| Air source requirement | 6 | Kgf |
| Dimensions (L x W x H) | 2600x2830x2410 | mm |
| Weight (approx) | 4500 | kg |
Standard Configurations
| Configuration | Brand | Details |
|---|---|---|

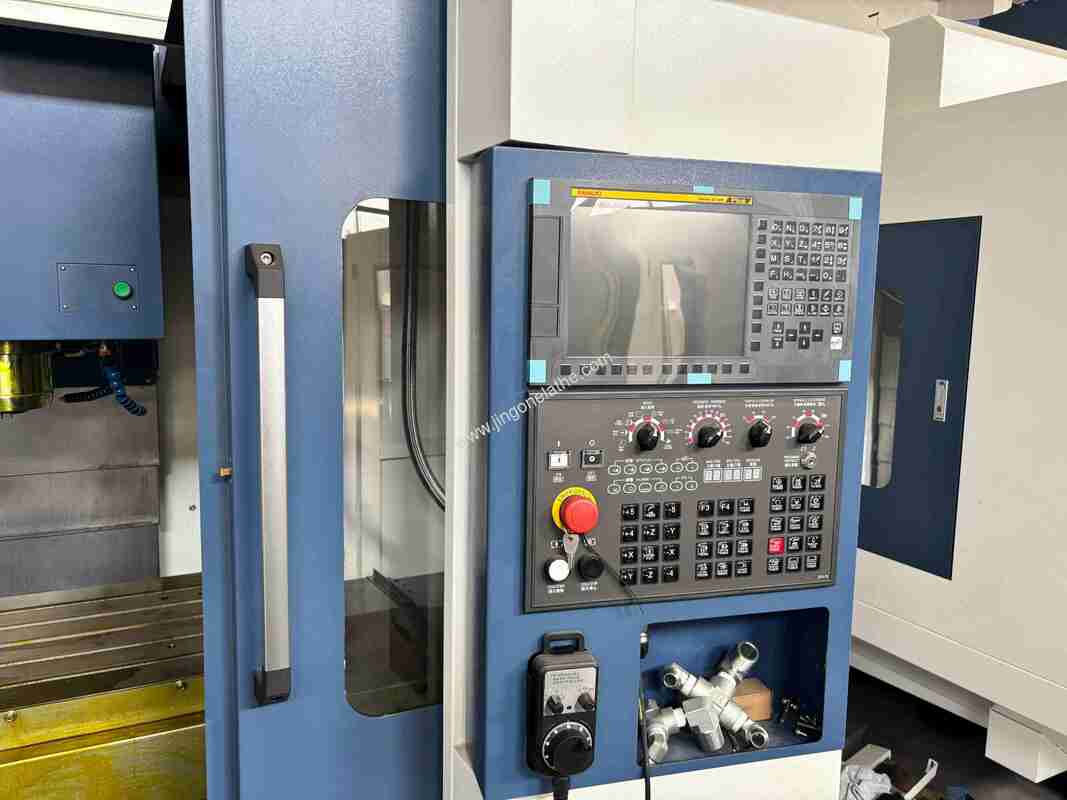

| CNC Control System | FANUC Oi-MF Plus | |
| Machine Frame | Meehanite castings, finite element analysis optimized with stiffeners for rigidity | |
| Fully Enclosed Shield |
|
Inner: Telescopic metal plate protective cover; Outer: Full protection (except top surface) |
| Spindle Unit | Royli | ¢150 mm BT40 belt-driven spindle (10000 r/min) |
| Spindle bearings | FAG/NSK bearings | Reinforced anti-tool-breakage structure |
| Spindle Oil Coolant | Rucol / ACE Pillar | Forced circulation cooling + oil temperature cooler |
| Spindle Servo Motor & Drive | FANUC | |

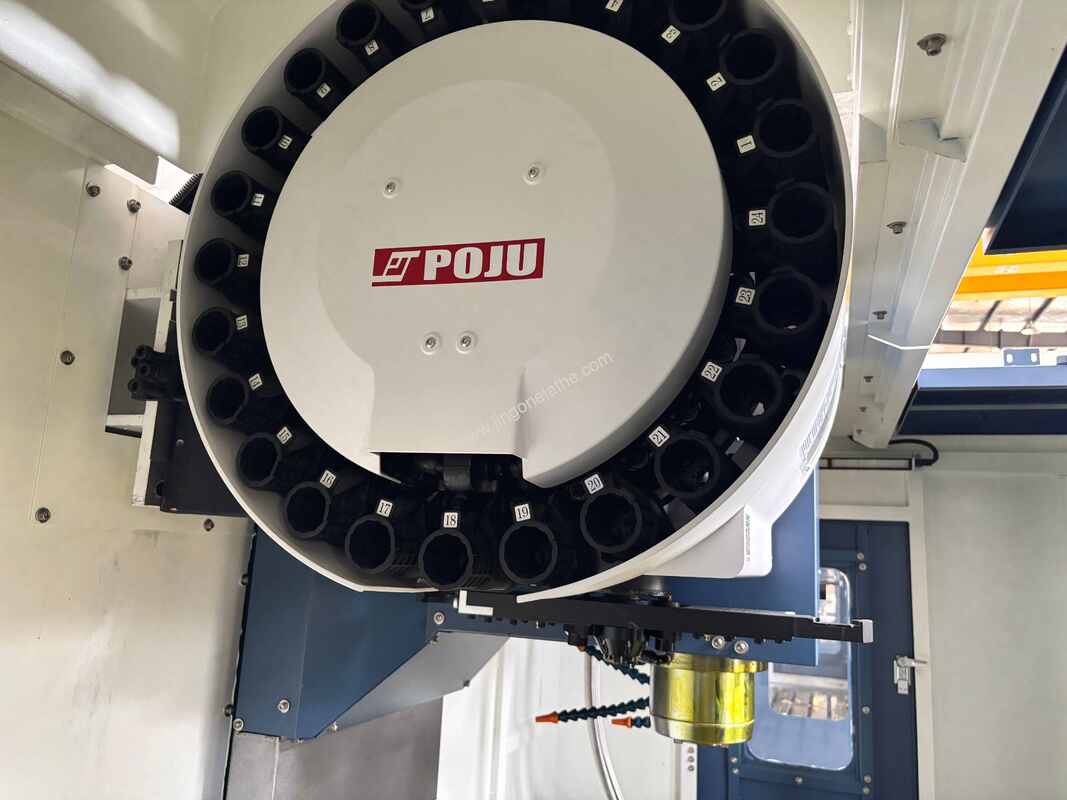

| Tool Magazine | Poju, Taiwan / OKADA | 24-tool capacity, BT40 arm-type changer |
| 3-Axis Servo Motor & Drive | FANUC | Z-axis with automatic power failure brake |
| X/Y/Z Ball Screw | THK/ HIWIN/PMI | C3 accuracy grade, 40mm diameter, 16mm pitch |
| X/Y/Z Screw Bearings | SKF / NSK | |
| X/Y/Z-Axis Couplings | BNK/ Jing Chin | Imported rigid couplings for direct drive |
| X/Y/Z Ball Linear Guide | THK/HIWIN/PMI |
48 m/min rapid speed X:2x35mm (4 sliders) Y:2x45mm (4 sliders) Z:2x45mm (6 sliders) |
| Electronic Handwheel | TOSOKU | |
| Automatic Lubrication System | HERG/iShan | Automatic thin oil lubrication |
| Pneumatic System | SMC | For tool clamping, spindle air blowing, seal air blowing |
| Flush Cooling System | HZQC | Spindle end external tool cooling (emulsion/light mineral oil compatible) |
| Working Lamp & Warning Light | HZQC | |
| High-Pressure Water Gun & Cleaning Air Gun | Carlton | |
| Electrical Components | Schneider | CE certified |
| Electrical Cabinet Heat Exchanger | Rucol / ACE Pillar | Dust-proof oil mist-proof cabinet with temperature adjustment & air purification |
| Chip Removal | Rear chip removal system | |
| System Configurations | Fourth-axis interface, CF card transfer, network transfer interface | |
| Documentation | Packing list, system disc, qualified instruction manual | |
| Installation Tools | Adjusting bolts and support tools |
Optional Accessories
| Optional Accessory | Brand | Note |
|---|---|---|
| CNC Rotary Table (4th-Axis) | TJR / PARKSON | Enables multi-sided machining |
| Plate Chain Chip Conveyor | Shenghe | Improves chip removal efficiency for high-volume production |
| Twin Screws Rear Chip Removal | Shenghe | Enhances chip handling for heavy cutting operations |
| Z-Axis Tool Setter | Metrol | Automatically sets tool length for reduced setup time |
| 3-Axis Optical Grating Scale | HEIDENHAIN / FAGOR | Full closed-loop system for ultra-high positioning accuracy |
| Oil Mist Separator | - | Reduces workshop oil mist pollution |
| Oil-Water Separator | - | Purifies coolant for extended service life |
| Electrical Cabinet Air Conditioner | - | Enhances electrical component stability in extreme temperatures |
| High-Pressure Coolant Through Spindle Center | 20 bar | Improves deep hole machining and chip evacuation |
| Automatic Workpiece Measurement | - | Automatically checks workpiece dimensions for quality control |
| Automatic Door | - | Enables automated loading/unloading integration |
FAQ
Q: Can the VMC855 CNC Vertical Milling Machine handle precision die and mold machining with tight tolerances?
A: Yes, the VMC855 CNC vertical milling machine is optimized for die and mold finishing. Its **10000 r/min BT40 spindle** delivers high-speed precision cutting, while **±0.003 mm positioning accuracy** ensures tight tolerance control. The rigid Meehanite frame and spindle cooling system eliminate vibration and thermal error, producing consistent, high-quality die cavities and mold cores to reduce post-machining finishing work.
Q: What makes the VMC855's spindle more reliable for long production runs?
A: The VMC855 features a reinforced BT40 spindle with FAG/NSK bearings and a forced circulation cooling system. The cooling system maintains stable spindle temperature, reducing thermal deformation and extending bearing service life. The reinforced structure also prevents tool breakage during heavy cutting, minimizing downtime and lowering maintenance costs for continuous production.
Q: What after-sales support and component access do I get with the JingOne VMC855?
A: As a direct manufacturer, JingOne provides a 12-month warranty for the VMC855, plus global access to genuine OEM components (including FANUC, THK, and Schneider parts). We offer technical support for setup and troubleshooting, and our factory-direct supply chain ensures fast replacement parts delivery to minimize production downtime.
