JingOne TC600 Compact CNC Milling Machine, 20000rpm BT30 Spindle, 48m/min Rapid Feed, Ideal for High-Volume Small Part & Multi-Hole Machining
JingOne TC600 Compact CNC Milling Machine, 20000rpm BT30 Spindle, 48m/min Rapid Feed, Ideal for High-Volume Small Part & Multi-Hole Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TC600
Contact Us
Request A Quote
Product Details
Spindle Speed:
20000rpm (standard), 12000rpm (optional)
Spindle Taper:
BT30
X/Y/Z Travel:
600/450/300 Mm
Rapid Feed Rate:
48/48/48 M/min
Tool Magazine Capacity:
21 Tools
Max Worktable Load:
250 Kg
CNC System:
Fanuc Standard, Siemens Optional
Capacity:
Drilling, Tapping, Milling
Payment & Shipping Terms
Minimum Order Quantity
1
Price
24000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
Contact Us
Product Description
The TC600 Compact Machining Center Delivers 20%-40% Faster Cycle Times for Small Part Production
Model: TC600 | Core Keyword: Compact machining center
TC600 Compact machining center Overview

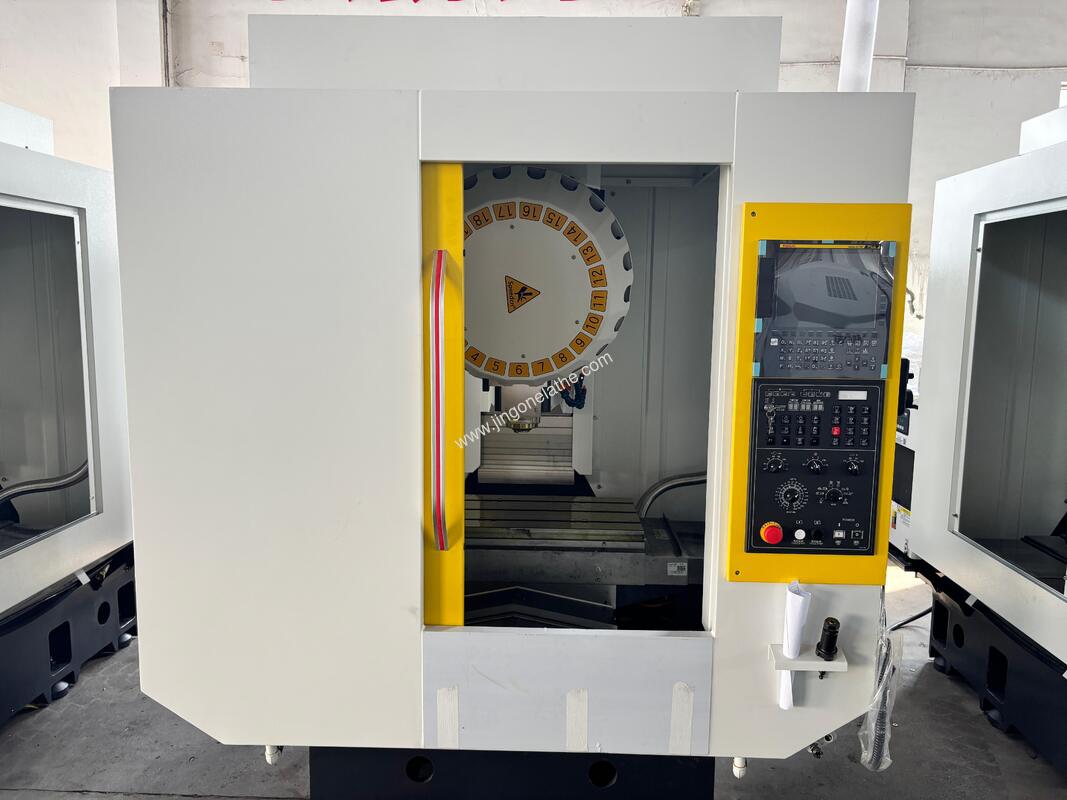

As a compact machining center, the JingOne TC600 combines a 600/450/300 mm X/Y/Z travel range and 21-tool turret type automatic tool changer (ATC) to slash non-cutting time by 20%-40% vs. larger VMC machines. Its 48 m/min rapid feed and sub-1.5s tool changes make it ideal for drilling and tapping work on high-volume small-part jobs.
This rigid milling machine excels at machining complex small components like precision sensor housings, miniature gear blanks, and intricate electronic connectors. It handles tight-tolerance drilling, milling, and tapping tasks with consistent accuracy, even during extended production runs.
TC600 Key Features
- Meehanite Cast Frame: Entire bed, column, and headstock use stabilized Meehanite castings, FEA-optimized for uniform rigidity, eliminating vibration during high-speed 20000 rpm cutting.
- BT-30 High-Speed Spindle: Direct-drive BT-30 spindle reaches 20000 rpm with FAG/NSK bearings; oil cooling system maintains ±0.5°C temperature stability for 2x longer bearing life.

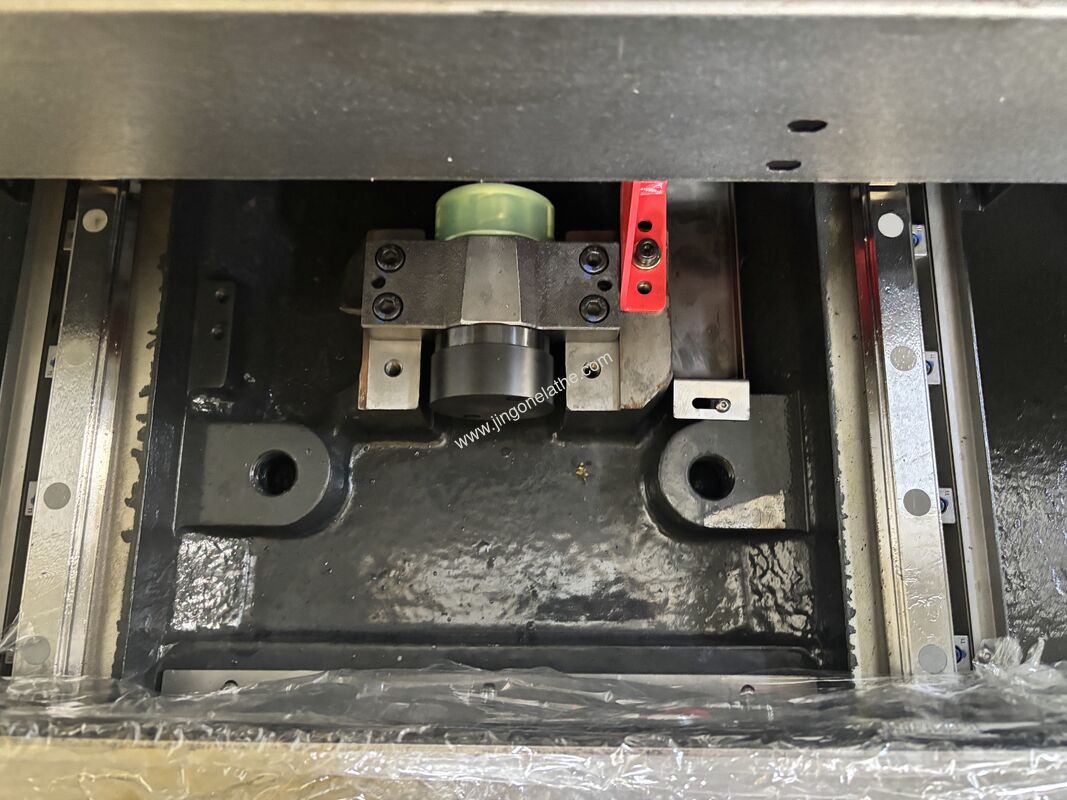

- 48 m/min Rapid Feed: All three axes feature 30 mm wide linear guides and C3-grade ball screws, delivering 48 m/min rapid traverse to cut non-cutting travel time by 30%.

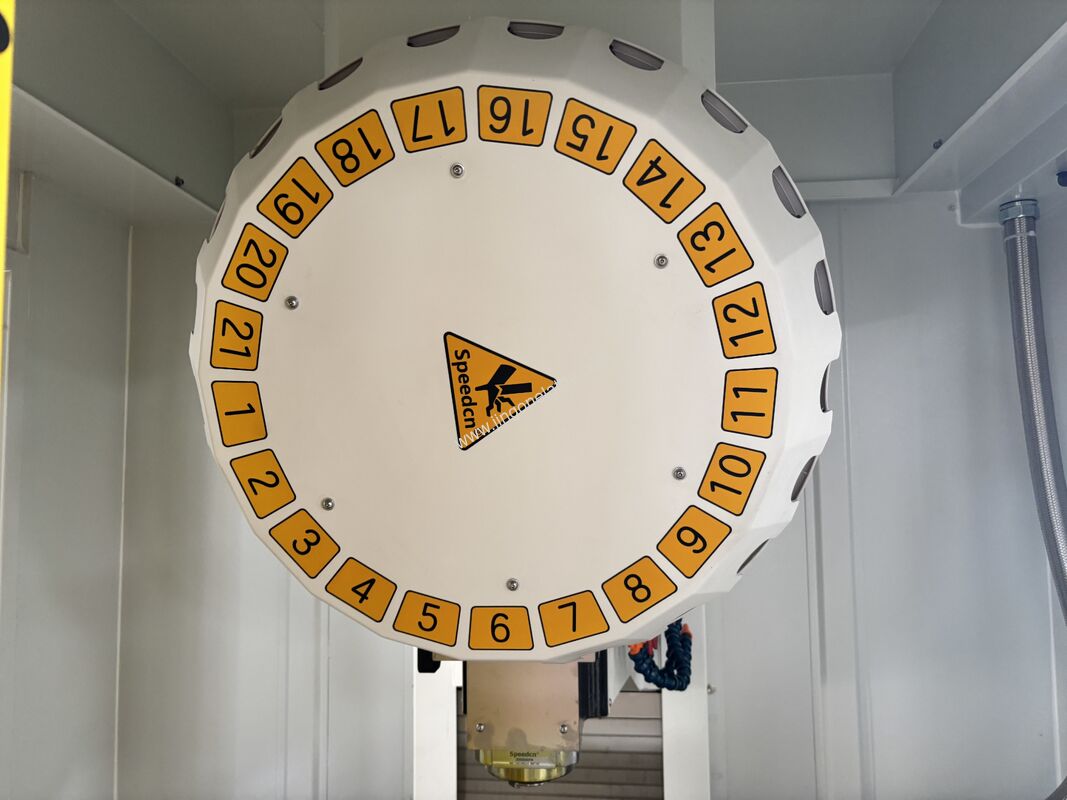

- 1.5s Ultra-Fast ATC: 21-tool servo-driven flip-style magazine completes tool swaps in <1.5s, reducing idle time for multi-operation small-part batches.
- Full Enclosure & Thermal Stability: Sealed machine enclosure prevents chip intrusion; cabinet heat exchanger and spindle oil cooling maintain constant thermal conditions for ±2 μm positioning accuracy.
- Zero-Backlash Couplings: GND/SpeedCN rigid couplings connect servo motors to ball screws, eliminating backlash and ensuring precise, repeatable positioning for tight-tolerance features.
- Dual Cooling Systems: Spindle external coolant and high-pressure water gun clear chips instantly, while spindle center through-coolant (optional) handles deep-hole drilling tasks.
Specifications
| Specification | Value | Unit |
|---|---|---|
| X/Y/Z-axis travel | 600/450/300 | mm |
| Spindle Nose to Worktable Distance | 150-450 | mm |
| Spindle Center to Column Guide Distance | 464 | mm |

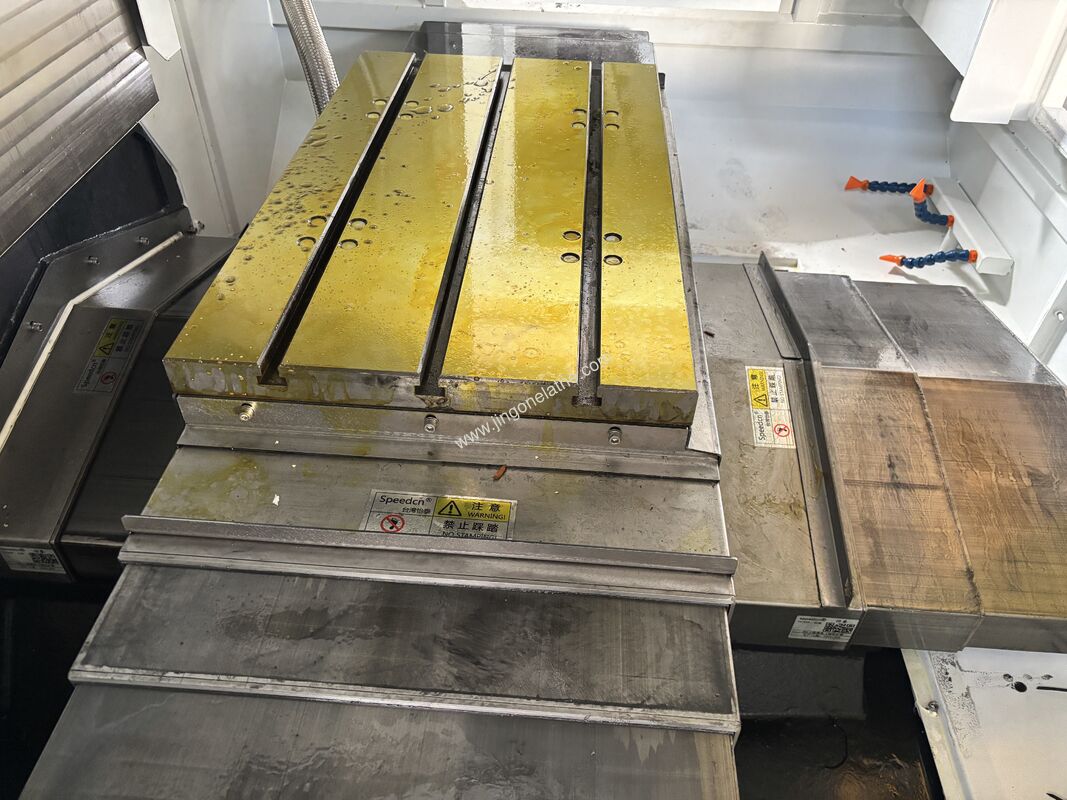

| Worktable size | 700x420 | mm |
| Max Load of worktable | 250 | kg |
| T-slot Specification | 3-14x125 | mm |
| Spindle Taper | BT30 | mm |
| Spindle Speed Range |
Standard: 20000; Optional: 12000 |
rpm |
| Spindle Drive Power | 3.7/5.5 | kW |
| Rapid Feed (X/Y/Z) | 48/48/48 | m/min |
| Max Cutting Feed | 1-10000 | mm/min |
| Linear Guide Width (X/Y/Z) | 30/30/30 | mm |
| Ball Screw Diameter (X/Y/Z) | 28/28/32 | mm |
| Tool Capacity | 21 | tools |
| Max Full-Tool Diameter | 60 | mm |
| Max Adjacent-Empty Diameter | 80 | mm |
| Max Tool Length | 200 | mm |
| Max Tool Weight | 2 | kg |
| Max Eccentric Tool Load | 12 | kg |
| Tool Holder Type | BT30 | — |
| Power Requirement | 30 | KVA |
| Air Pressure Requirement | 6 | kg/cm³ |
| Length x Width x Height | 1760X2360X2200 | mm |
| Approx. Weight | 3000 | kg |
Standard Configurations
| Configuration | Brand / Details |
|---|---|
| CNC System | FANUC / Siemens |
| Spindle Motor & Drive | FANUC / Siemens |
| 3-Axis Servo Motor & Drive | FANUC / Siemens |
| Spindle Unit |
Spinder/ SpeedCN Standard 20000 rpm BT30 DD spindle |
| X/Y/Z Screw Bearings | SKF / NSK |
| X/Y/Z Axis Couplings | GND/SpeedCN rigid couplings |
| X/Y/Z Ball Screws (C3 Grade) | NSK / THK |
| X/Y/Z Linear Guides (P Grade) | PMI / THK |
| 21-Tool Servo Magazine | Deta / SpeedCN swing armless ATC |
| Spindle Oil Cooling System | Rucol temperature-controlled unit |
| Automatic Lubrication System | BAOTN centralized oil lubrication |
| Electronic Handwheel | Zhehong precision handwheel |
| Industrial Lighting | Zhehong sealed fluorescent light |
| Three-Color Warning Light | Zhehong status indicator |
| Air Blowing Cooling | Zhehong spindle air purge |
| Water Flushing System | Zhehong chip cleaning system |
| High-Pressure Water Gun | Kaerdun heavy-duty cleaning gun |
| Cleaning Air Gun | Kaerdun compressed air gun |
| Leveling Shims | Precision alignment shims |
| Fourth-Axis Interface | Pre-wired for rotary axis installation |
| Data Transmission | CF card + network interface |
| Machine Base Frame | JingOne heavy-duty welded frame |
| Full Enclosure | JingOne sealed protective cover |
Optional Accessories
| Optional Accessory | Details | Note |
|---|---|---|
| 4th Rotary Axis (170mm) | YS-CNC precision rotary table | Enables 4-axis simultaneous machining |
| Chain Chip Conveyor | Shenghe continuous chip removal system | Ideal for high-volume production runs |
| Spindle Center Through-Coolant | JiuYe Stream high-pressure coolant system | Improves deep-hole drilling performance |
| Z-Axis Tool Setter | Metrol-sensor automatic tool length setter | Eliminates manual tool setup errors |
| 3-Axis Linear Encoders | HEIDENHAIN/FAGOR full closed-loop system | Boosts positioning accuracy to ±1 μm |
FAQ
Q: Can the TC600 compact machining center handle high-volume small-part production with multiple operations?
A: Yes. With its 21-tool <1.5s ATC and 48 m/min rapid feed, the TC600 cuts non-cutting time by 20%-40% vs. standard machines. Its 600x450mm worktable supports 250 kg loads, making it perfect for batch production of multi-feature small components like connector housings and gear blanks.
Q: What makes the TC600's spindle more reliable for high-speed cutting?
A: The TC600 uses FAG/NSK precision bearings and a Rucol oil cooling system that maintains ±0.5°C spindle temperature stability. This reduces thermal expansion by 70%, extending bearing life by 2x and ensuring consistent 20000 rpm cutting performance over 8+ hour shifts.
Q: Does JingOne offer post-purchase support and spare parts for the TC600?
A: Yes. As a direct manufacturer, JingOne provides 12-month warranty coverage and factory-direct spare parts for all TC600 components. We also offer remote troubleshooting via the machine's network interface and on-site service for 50+ countries worldwide.
