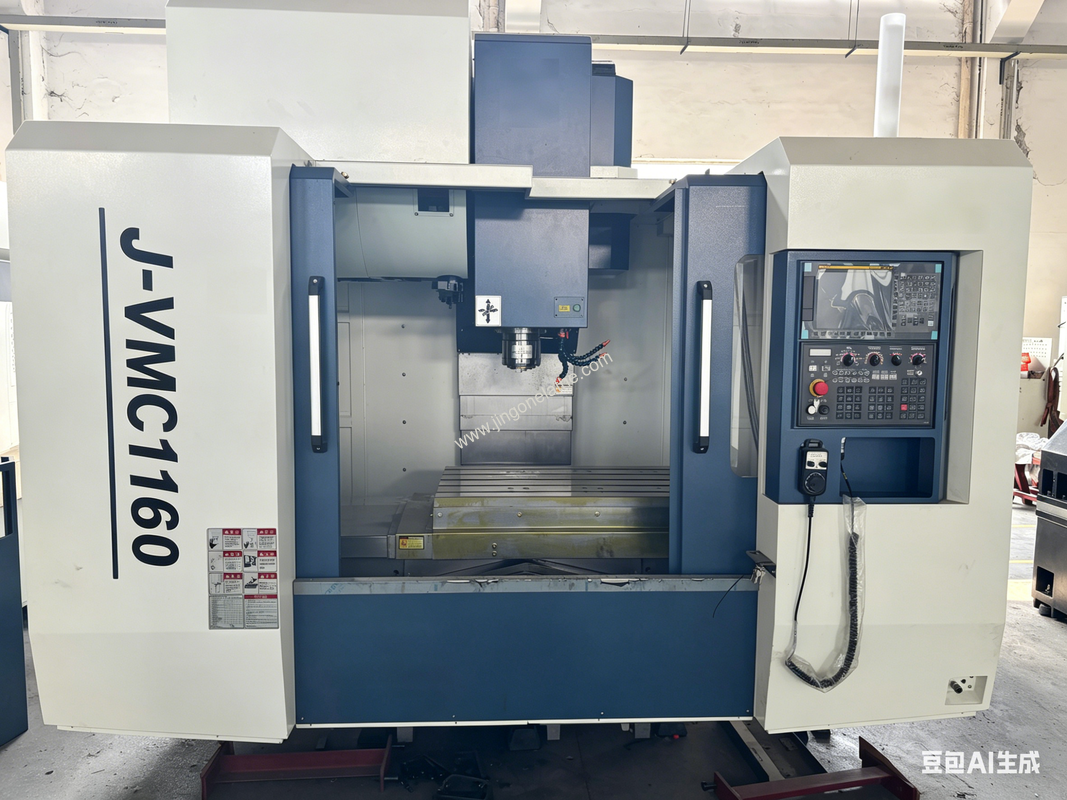

This VMC1160 CNC Vertical Milling Center delivers consistent precision for high-demand applications like aerospace parts and industrial mold machining. With a 1200x600mm worktable supporting up to 800kg, it handles heavy-duty components while maintaining ±0.003mm repeat positioning accuracy.

Equipped with an 11/15kW spindle (8000 RPM standard, 10000 RPM optional) and 24-arm type tool magazine, it minimizes tool change downtime and adapts to diverse cutting tasks. Its 36m/min rapid feed rate across X/Y/Z axes reduces non-cutting time, boosting overall production efficiency for metal fabrication and tapping operations.

• High-Precision Spindle System: BT40 taper spindle with 11/15kW continuous/30min power, standard 8000 RPM (10000 RPM optional) for versatile milling and tapping
• Heavy-Duty Worktable: 1200x600mm table with 5 T-slots, supporting up to 800kg load for large or dense components
• Efficient Tool Management: 24-arm type tool magazine, accommodating tools up to 150mm (non-adjacent) diameter and 300mm length for uninterrupted machining
• Fast Traverse Performance: 36m/min rapid feed rate on X/Y/Z axes, cutting feed range of 1-10000mm/min for optimized cycle times
• Consistent Accuracy: ±0.003mm repeat positioning and positioning accuracy for tight-tolerance aerospace and mold applications
• Flexible Chip Removal: Rear (220L) or front (250L) chip removal water tank options to match production environment needs
