JingOne TC540 Small CNC Milling Machine With 500x400x330mm Travel, 20000rpm Spindle, Ideal For Aluminum Precision Parts Processing In Compact Workshops
JingOne TC540 Small CNC Milling Machine With 500x400x330mm Travel, 20000rpm Spindle, Ideal For Aluminum Precision Parts Processing In Compact Workshops
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TC540
Contact Us
Request A Quote
Product Details
X/Y/Z Travel:
500/400/330 Mm
Spindle Speed:
20000 Rpm (standard), 12000 Rpm (optional)
Tool Capacity:
21 Tools
ATC Type:
Turret Type Tool Changer
Max Table Load:
250 Kg
CNC System:
Fanuc Oi-Mf Standard
Application:
Aluminum Precision Parts Processing
Payment & Shipping Terms
Minimum Order Quantity
1
Price
23000
Packaging Details
Plywood Case
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
Contact Us
Product Description
JingOne TC540 Small CNC Mill for Aluminum Delivers High-Speed Precision in Compact Footprint
Model: TC540 | Core Keyword: Small CNC Mill for aluminum
TC540 Small CNC Mill Overview
The JingOne TC540 small CNC mill is a robust compact machining solution built for high-volume precision parts production especially for aluminum parts. Boasting a 500x400x330 mm work envelope and 20000 rpm BT30 spindle, it outperforms comparable machines in tight workshop spaces.
Ideal for machining aluminum brackets, heat sinks, and complex prototype components, this compact CNC milling machine maximizes floorspace efficiency. It leaves room for robotic loaders or additional workstations, making it a top Fanuc Robodrill alternative for lean manufacturing setups.
TC540 Key Features
- Meehanite Cast Frame: Key components (bed, column, spindle box) use vibration-dampening Meehanite castings, FEA-optimized for 250 kg max worktable load and consistent ±2 μm machining accuracy

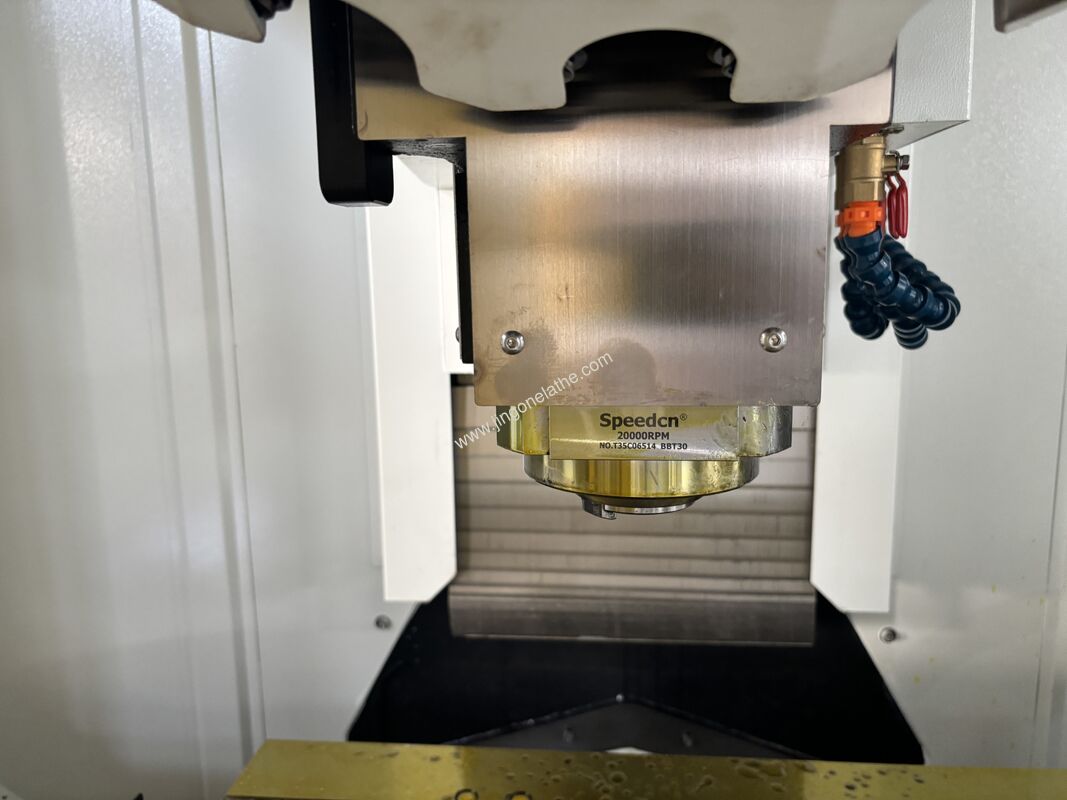

- 20000 rpm BT30 Spindle: Direct-drive high-rigidity spindle with FAG/NSK bearings and forced oil cooling, tested to 10000+ tool changes without performance loss

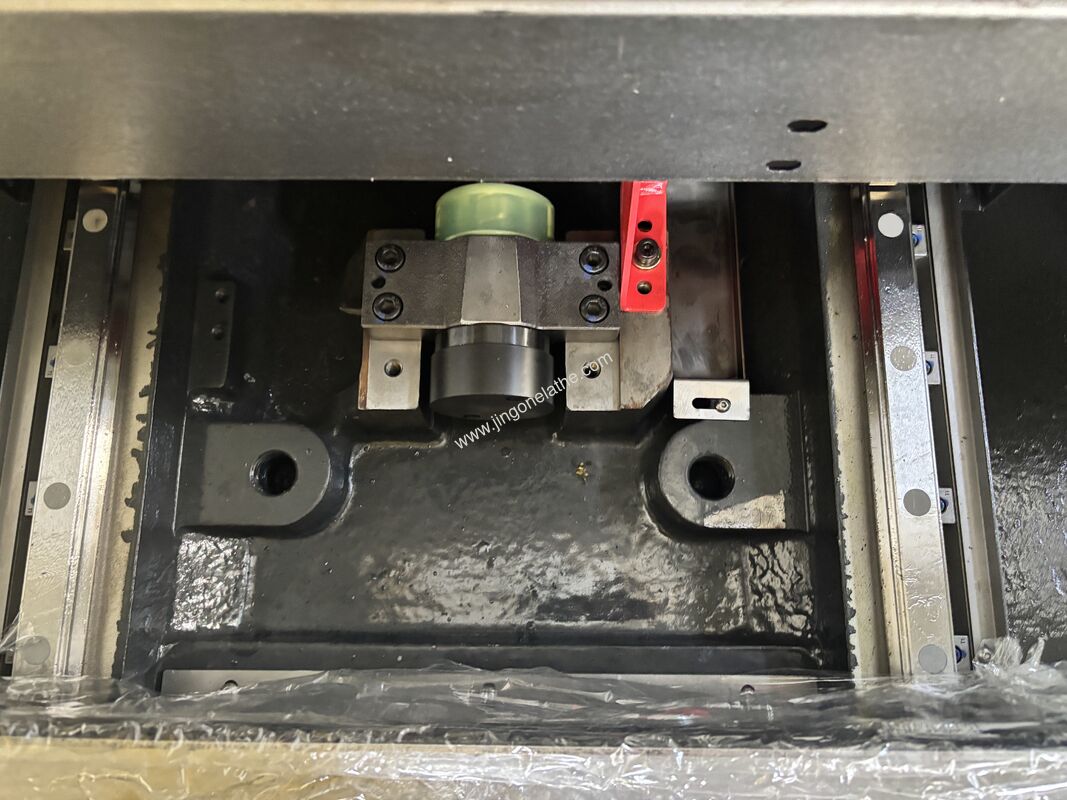

- Triple Linear Guide Design: X/Y axes use 25 mm heavy-duty linear rails; Z-axis features 30 mm roller rails, all with auto-lubrication for 48 m/min rapid feed speeds

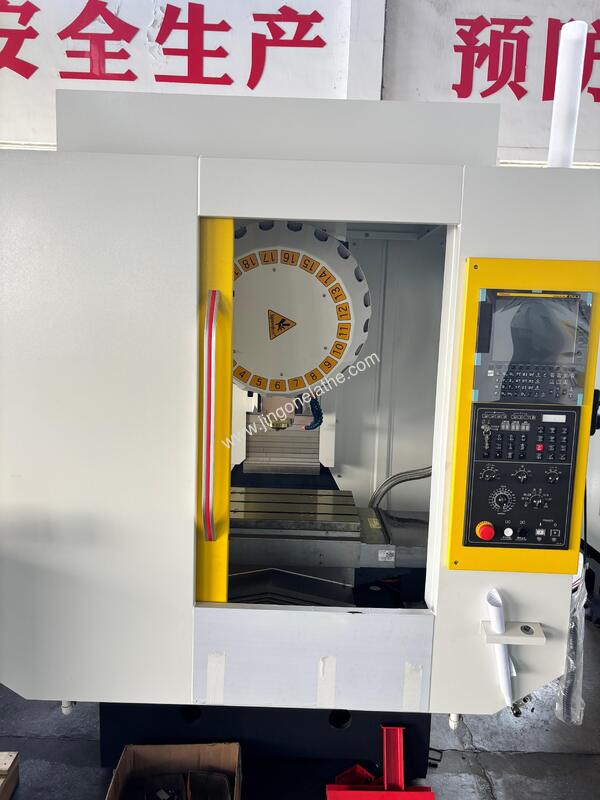

- 21-Tool Servo ATC: Random-position servo-driven tool magazine swaps tools in <1.2s, supports 80 mm diameter cutters (with adjacent slot empty) for uninterrupted aluminum cutting
- Zero-Footprint Optimization: 1760x2360x2200 mm overall dimensions free up 30% more floorspace than standard VMCs, enabling automated cell integration
- Dual Cooling Systems: Spindle oil cooling and spindle-end external coolant delivery eliminate thermal distortion for tight-tolerance aluminum parts
Specifications

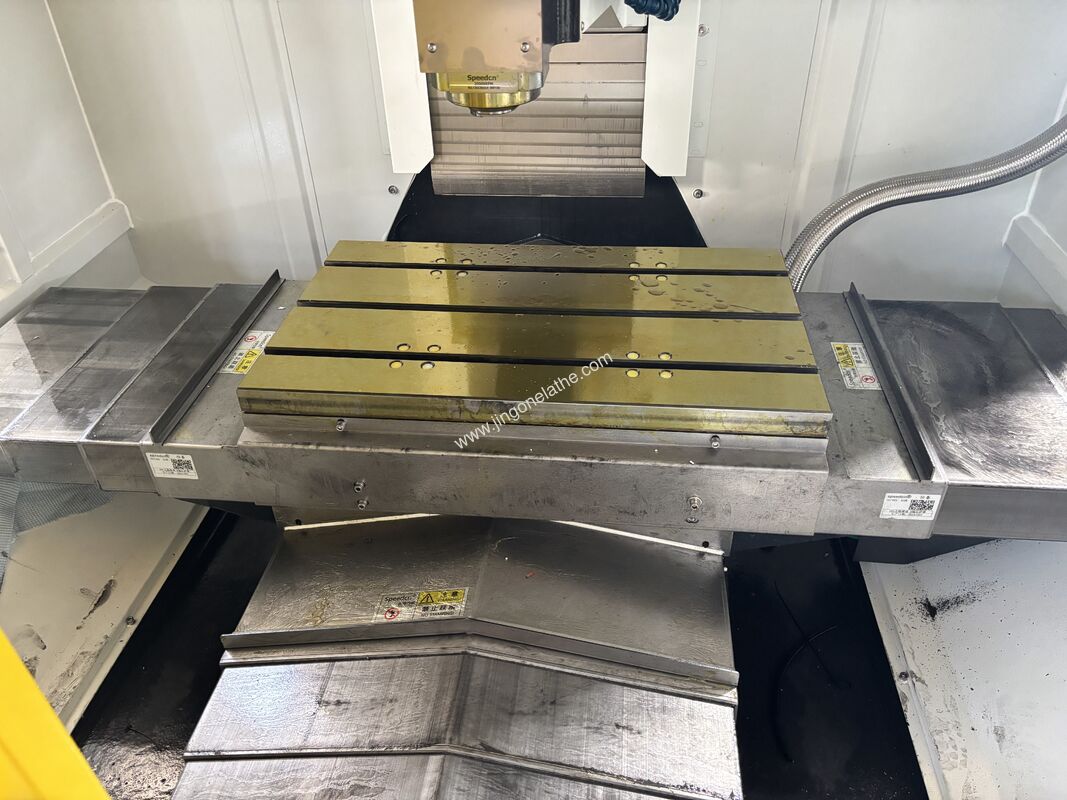

| Parameter | Value | Unit |
|---|---|---|
| X/Y/Z-axis Travel | 500/400/330 | mm |
| Distance from Spindle Nose to Worktable | 150-480 / 250-580 | mm |
| Distance from Spindle Center to Column Guide | 450 | mm |
| Worktable Size | 650x400 | mm |
| Max. Worktable Load | 250 | kg |
| T-slot | 3-14x125 | mm |
| Spindle Taper | BT30 | mm |
| Spindle Speed (Standard/Optional) | 20000 / 12000 | rpm |
| Spindle Drive Power | 3.7/5.5 | kW |
| Rapid Feed X/Y/Z | 48/48/48 | m/min |
| Max. Cutting Feed | 1-10000 | mm/min |
| Linear Guide Width (X/Y/Z) | 25/25/30 | mm |
| Screw Diameter (X/Y/Z) | 25/25/25 | mm |
| Tool Capacity | 21 | tools |
| ATC Cutter Size (Full Tools) | 60 | mm |
| Max. Cutter Size (Adjacent Empty) | 80 | mm |
| Max. Cutter Length | 200 | mm |
| Max. Cutter Weight | 2 | kg |
| Max. Cutter Eccentric Load | 12 | kg |
| Tool Holder Type | BT30 | - |
| Power Requirement | 30 | KVA |
| Air Source Requirement | 6 | Kg/cm³ |
| Dimensions (LxWxH) | 1760x2360x2200 | mm |
| Approx. Weight | 2700 | kg |
Standard Configurations
| Configuration | Details |
|---|---|
| CNC System | FANUC / Siemens |
| Spindle Motor & Drive | FANUC / Siemens |
| 3-Axis Servo Motor & Drive | FANUC / Siemens |
| Spindle | Spinder/ SpeedCN |
| X/Y/Z Screw Bearings | SKF / NSK |
| X/Y/Z Axis Couplings | GND/SpeedCN |
| X/Y/Z Screw (C3 Grade) | NSK/ THK |
| X/Y/Z Linear Guide Rail (P Grade) | PMI/ THK |
| 21T Servo Tool Magazine | Deta /SpeedCN |
| Spindle Oil Coolant | Rucol |
| Automatic Lubrication System | BAOTN |
| Electronic Handwheel | Zhehong |
| Industrial Sealed Lighting | Zhehong |
| Three-Color Warning Light | Zhehong |
| Air Blowing Cooling | Zhehong |
| Water Flushing Cooling | Zhehong |
| High-Pressure Water Gun | Kaerdun |
| Cleaning Air Gun | Kaerdun |
| Leveling Shim | Standard |
| Fourth-Axis Interface | Pre-wired |
| CF Card Transmission | Enabled |
| Network Transmission Interface | Ethernet |
| Machine Iron Frame | Self-made |
| Fully Enclosed Protective Cover | Self-made |
Optional Accessories
| Optional Accessory | Details | Note |
|---|---|---|
| 4th-axis (170mm) | YS-CNC Rotary Table | For multi-sided aluminum machining |
| Chain Chip Conveyor | Shenghe Automatic System | Reduces manual cleanup time |
| Spindle Center Through-Coolant | JiuYe Stream High-Pressure System | For deep-hole aluminum drilling |
| Z-axis Tool Setter | Metrol-sensor Automatic Setter | Cuts tool setup time by 70% |
| 3-Axis Linear Encoder | HEIDENHAIN/FAGOR Full Closed-Loop | Boosts positioning accuracy to ±0.5 μm |
FAQ
Q: Can the TC540 small CNC mill for aluminum handle 250 kg aluminum workpieces?
A: Yes. This robust compact CNC mill supports a **250 kg max worktable load**, with an FEA-optimized Meehanite frame that eliminates vibration during heavy aluminum cutting. This lets you machine large aluminum castings without sacrificing accuracy.
Q: What makes the TC540 a reliable Fanuc Robodrill alternative?
A: As a top Fanuc Robodrill alternative, the TC540 uses identical FANUC controls and components. Its 20000 rpm BT30 spindle and 21-tool ATC match high-speed aluminum machining performance, while its lower cost and lean layout deliver better ROI for small-batch production.
Q: Does the TC540 support automated integration for aluminum production?
A: Absolutely. The mill’s compact 1760x2360 mm footprint leaves dedicated space for robotic loaders, and it includes a pre-wired fourth-axis interface. Its sealed cabinet and 24/7-rated components ensure reliable operation in lights-out aluminum machining cells, reducing labor costs by 40%.
