CA6150x1000 Conventional Lathe: Ultra-Rigid HT300 Bed for Long-Term Precision Stability
CA6150x1000 Conventional Lathe: Ultra-Rigid HT300 Bed for Long-Term Precision Stability
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CA6150x1000
Contact Us
Request A Quote
Product Details
Max.swing Over Bed:
500mm
Max.workpiece Length:
1000mm
Max. Output Torque Of The Spindle:
1400 Nm
Spindle Bore Diameter:
52mm
Thread Capacity:
Metric, Inch, Imperial, Pitch
Voltage:
Standard 380V, Can Be Customized
Roughness:
Ra 1.6μm
Processing Precision:
IT6-7
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 8000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

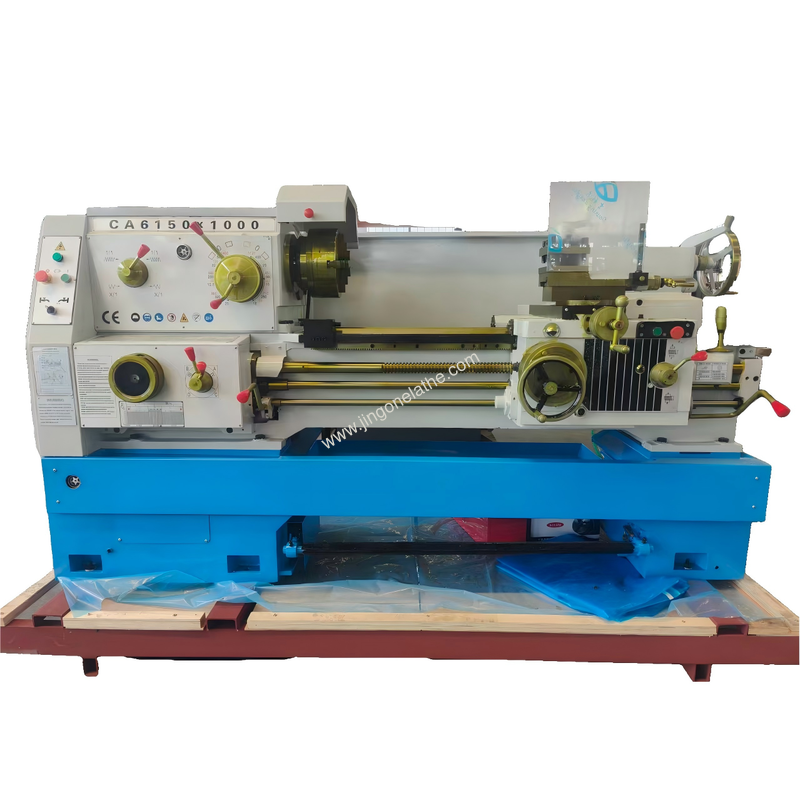

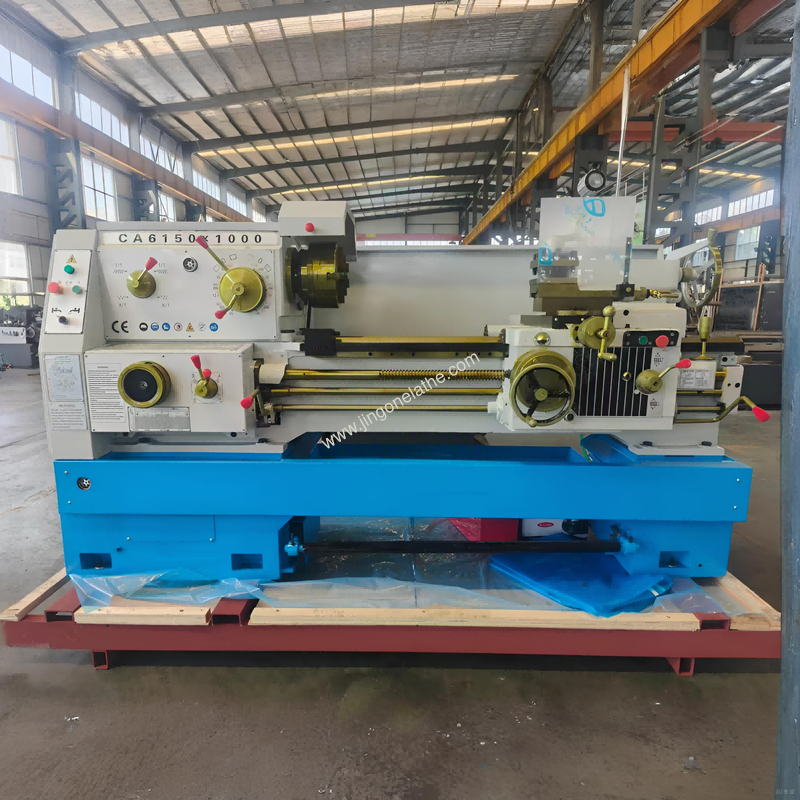

CA6150x1000 Conventional Lathe: Ultra-Rigid HT300 Bed for Long-Term Precision Stability
Model: CA6150x1000 | Core Keyword: Conventional Lathe Machine
Summary
CA6150x1000 conventional lathe delivers consistent heavy cutting performance with its HT300 monoblock bed and HRC52 induction hardened guideways. Its 500mm swing over bed and 1000mm workpiece length suit automotive shaft and small mold component machining.
Equipped with a 52mm spindle bore and precision-ground gearbox, this lathe handles metric/imperial thread cutting and supports up to 300kg workpiece capacity, ideal for high-mix production workshops.
Trusted by thousands of global automotive clients, it features Schneider Electric core components and full CE certification, ensuring smooth local inspections and minimal unplanned downtime.
Features
- HT300 monoblock bed with 400mm width and HRC52 induction hardened guideways for zero-vibration heavy cutting

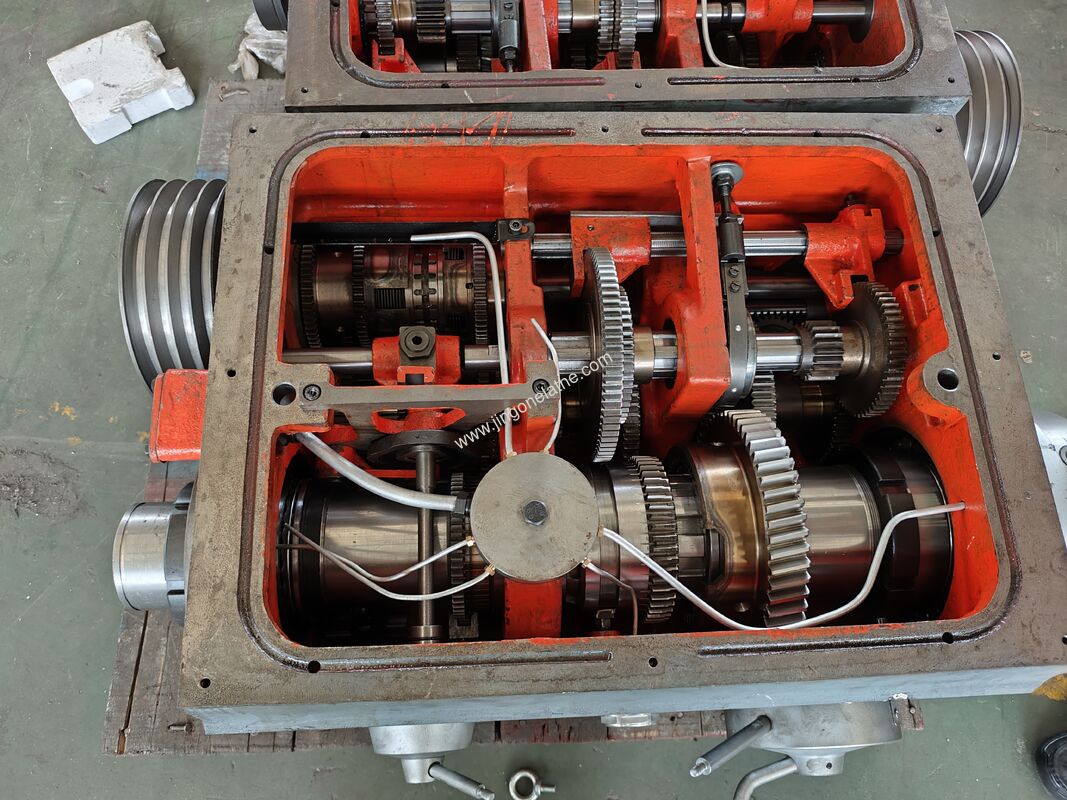

- 52mm spindle bore and precision-ground gearbox with 24 forward spindle speeds (10-1400 RPM)
- 300kg workpiece capacity with rapid traverse, supporting metric/imperial/module/diameter pitch thread cutting
- Schneider Electric core components and full CE certification for compliance with international standards
- Multilingual manuals and high-clarity circuit diagrams enable zero-language-barrier maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing over bed | 500 mm |
| Max.swing over carriage | 300 mm |
| Max.workpiece length | 1000 mm |
| Bed width | 400 mm |
| Spindle taper | M.T.6 |
| Spindle speed range (forward) | (24 types) 10-1400 rpm |
| Spindle speed range (reverse) | (12 types) 2.5-1400 rpm |
| Spindle bore diameter | 52 mm |
| Metric threads | 44 Types, 1-192 mm |
| Imperial threads | 21 Types,2/24 T.P.I |
| Module threads | 39 Types, 0.25-48 mm |
| Diameter pitch threads | 37 Types,1-96 D.P |
| Lower tool holder travel | 320 mm |
| Upper tool holder travel | 140 mm |
| Tool holder turntable rotation | ±90° |
| Tool bar cross-section size | 25X25 mm |
| Tailstock spindle diameter | 75 mm |
| Tailstock spindle travel | 150 mm |
| Tailstock spindle taper | M.T.5 |
| Main motor power | 7.5 Kw |
| Cooling pump power | 90 W |
| Cooling pump flow rate | 25 L/Min |
| weight | 2260 Kg |
| Dimensions | 2700x1140x1750 mm |
Accessory Configurations
| Accessory Type | Details |
|---|---|
| Standard Accessories |
Cooling device, Lighting device, 3-Jaw Chuck, Center, Center Sleeve, Anchor bolts, Tool Post Wrench, Double-ended Wrench, Allen Wrench, Screwdriver, Oil Gun, Cam lock wrench, Operation manual, Qualified instructions, Packing list |
| Optional Accessories |
2-axis DRO (Brand: SINO), Steady rest (¢20-125mm/¢100-250mm), Follow rest (¢20-80mm), Drilling chuck (M.T.5), Live center (M.T.5), Quick-change tool post (EU type: 1 main part + 4 tool posts), Taper turning attachment (±15°), Protection (tool post protective shield, chuck guard, fixed splash guard, screw guard), Foot brake, Grinding attachment |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining and reinforced steel bands, optimized for 2260kg unit weight
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What maximum workpiece weight can the CA6150x1000 conventional lathe handle?
A: The CA6150x1000 conventional lathe supports up to 300kg workpiece capacity, suitable for automotive shaft machining.
Q: Does the CA6150x1000 lathe include CE certification for international sales?
A: Yes, the CA6150x1000 conventional lathe uses Schneider Electric components and comes with full CE certification.
Q: How do I maintain the CA6150x1000 lathe without language barriers?
A: The CA6150x1000 conventional lathe includes multilingual manuals and high-clarity circuit diagrams for easy maintenance.
