Precision Universal Lathe CA6166: High Accuracy Turning With Precision-Ground Gearbox
Precision Universal Lathe CA6166: High Accuracy Turning With Precision-Ground Gearbox
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CA6166B
Contact Us
Request A Quote
Product Details
Max.swing Over Bed:
660mm
Max.workpiece Length:
1500mm
Spindle Bore Diameter:
80mm
Bed Width:
400mm
Max. Load:
300Kg
Chuck Size:
250mm Standard
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 8000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

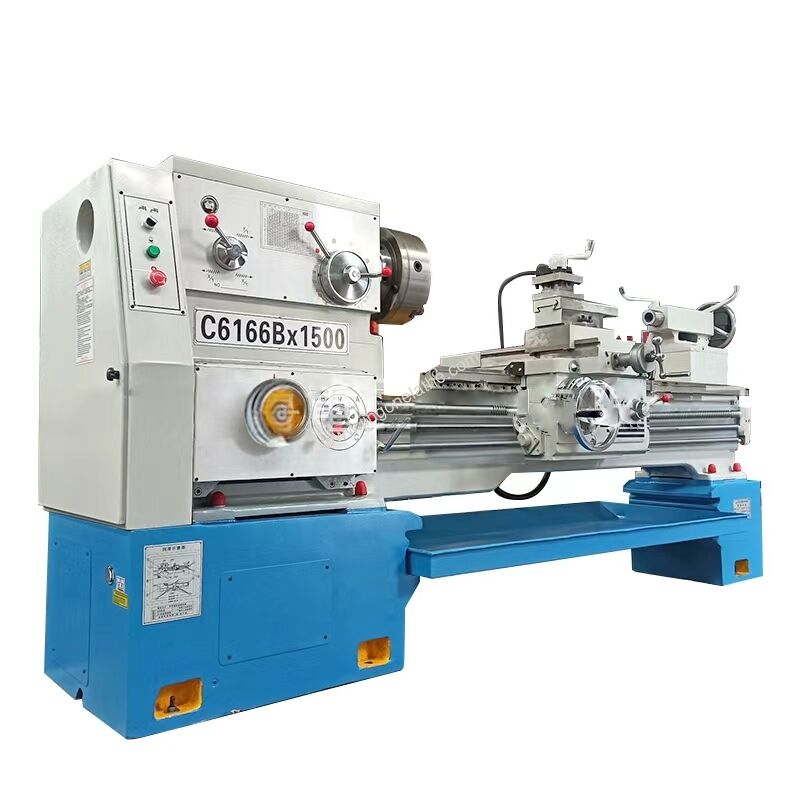

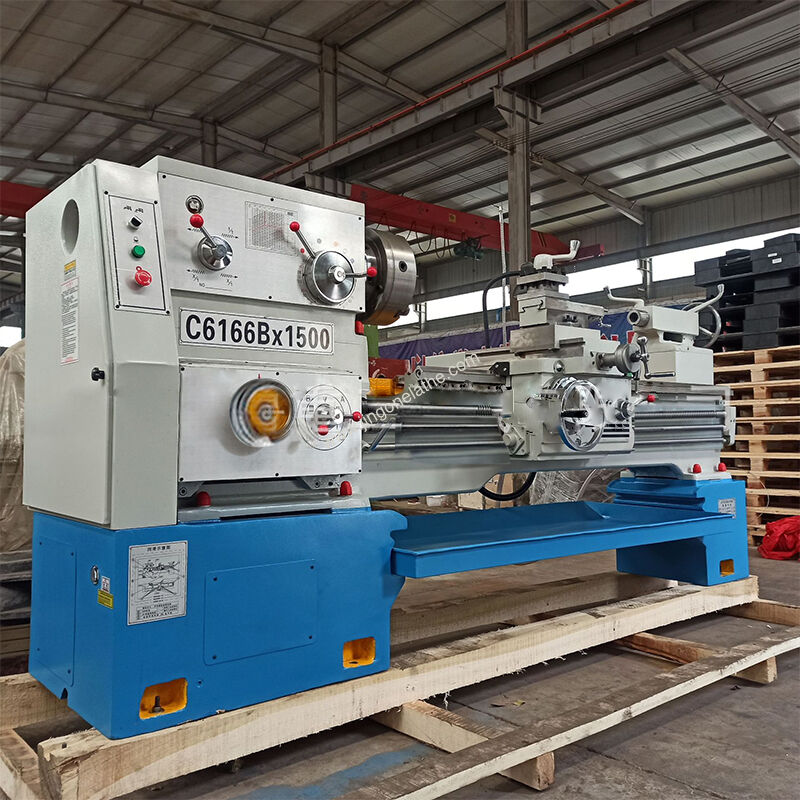

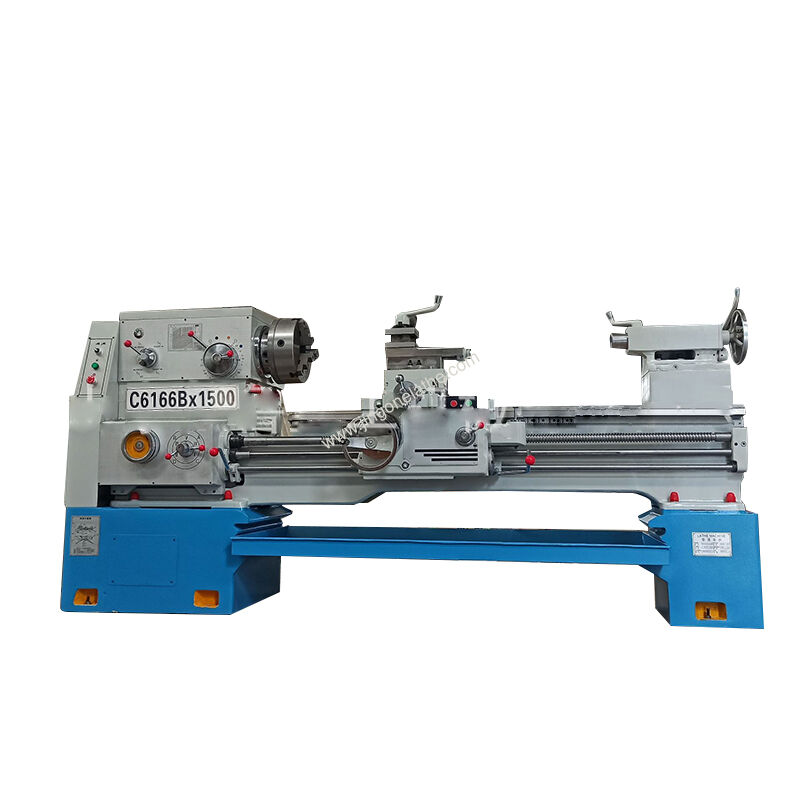

Precision Universal Lathe CA6166: High Accuracy Turning with Precision-Ground Gearbox
Model: CA6166 | Core Keyword: Precision Universal Lathe
Summary
Precision Universal Lathe CA6166 is a versatile turning machine designed for high-accuracy mold and automotive component machining. Its precision-ground gearbox ensures consistent spindle speed control, while the 660mm swing over bed accommodates medium-sized workpieces.
Equipped with HRC52 induction-hardened guideways and M.T.6 spindle taper, this lathe delivers tight spindle runout tolerance and supports 39 module thread types and 37 diameter pitch threads for complex machining tasks. It offers rapid traverse to reduce non-cutting time in high-mix workshops.
Ideal for mold makers and automotive parts manufacturers, the CA6166 precision universal lathe includes multilingual manuals and high-clarity circuit diagrams for zero-language-barrier maintenance.
Features
- Precision-ground gearbox for consistent spindle speed control and low backlash operation
- 660mm swing over bed, 400mm swing over carriage for medium-sized workpiece turning
- 24 forward spindle speeds (16-1400 RPM) and 12 reverse speeds for versatile cutting operations
- Metric/imperial/module/diameter pitch thread cutting to meet diverse machining requirements

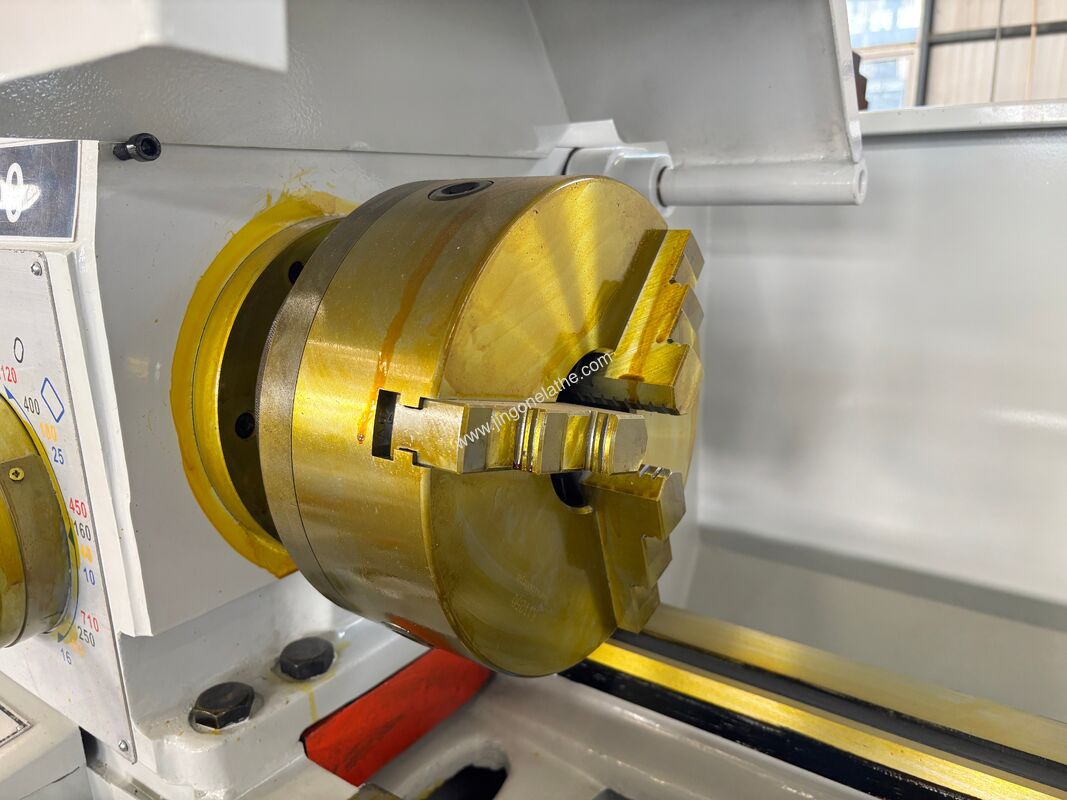

- Standard accessories include cooling device, 3-jaw chuck, and operation manual; optional SINO DRO for enhanced precision
- Schneider Electric core components, full CE certification for global market compliance
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing over bed | 660 mm |
| Max.swing over carriage | 400 mm |
| Max.workpiece length | 1500 mm |
| Bed width | 400 mm |
| Spindle taper | M.T.6 |
| Spindle speed range (forward) | 24 types, 16-1400 rpm |
| Spindle speed range (reverse) | 12 types, 20-1400 rpm |
| Spindle bore diameter | 80 mm |
| Metric threads | 44 Types, 1-192 mm |
| Imperial threads (T.P.I) | 21 Types, 2/24 |
| Module threads | 39 Types, 0.25-48 mm |
| Diameter pitch threads (D.P) | 37 Types, 1-96 |
| Lower tool holder travel | 320 mm |
| Upper tool holder travel | 140 mm |
| Tool holder turntable rotation | ±90° |
| Tool bar cross-section size | 25X25 mm |
| Tailstock spindle diameter | 75 mm |
| Tailstock spindle travel | 150 mm |
| Tailstock spindle taper | M.T.5 |
| Main motor power | 7.5 Kw |
| Cooling pump power | 90 W |
| Cooling pump flow rate | 25 L/Min |
Accessory Configurations
| Category | Accessories |
|---|---|
| Standard Accessories |
Cooling device, Lighting device, 3-Jaw Chuck, Center, Center Sleeve, Anchor bolts, Tool Post Wrench, Double-ended Wrench, Allen Wrench, Screwdriver, Oil Gun, Cam lock wrench, Operation manual, Qualified instructions, Packing list |
| Optional Accessories |
2-axis DRO (Brand: SINO), 4-jaw chuck (¢400mm), Face plate (¢500mm), Steady rest (¢20-125mm/¢100-250mm), Follow rest (¢20-80mm), Drilling chuck (M.T.5), Live center (M.T.5), Quick-change tool post (EU type: 1 main part + 4 tool posts), Taper turning attachment (±15°), Protection (tool post protective shield, chuck guard, fixed splash guard, screw guard), Foot brake, Grinding attachment |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What thread types does the CA6166 precision universal lathe support?
A: The CA6166 precision universal lathe supports metric, imperial, module, and diameter pitch threads for complex mold and auto component machining.
Q: How does the CA6166 lathe ensure high turning accuracy?
A: The CA6166 precision universal lathe uses a precision-ground gearbox and HRC52 hardened guideways to maintain tight spindle runout tolerance.
Q: Does the CA6166 lathe offer multilingual maintenance support?
A: Yes, the CA6166 precision universal lathe includes multilingual manuals and high-clarity circuit diagrams for zero-language-barrier maintenance.
