Big Bore Manual Lathe CA6161: Heavy Cutting Stability With HT300 Monoblock Bed
Big Bore Manual Lathe CA6161: Heavy Cutting Stability With HT300 Monoblock Bed
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CA6161C
Contact Us
Request A Quote
Product Details
Max.swing Over Bed:
610mm
Max.workpiece Length:
2000mm
Spindle Bore Diameter:
105mm
Bed Width:
400mm
Max. Load:
300Kg
Main Motor Power:
7.5Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 11000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

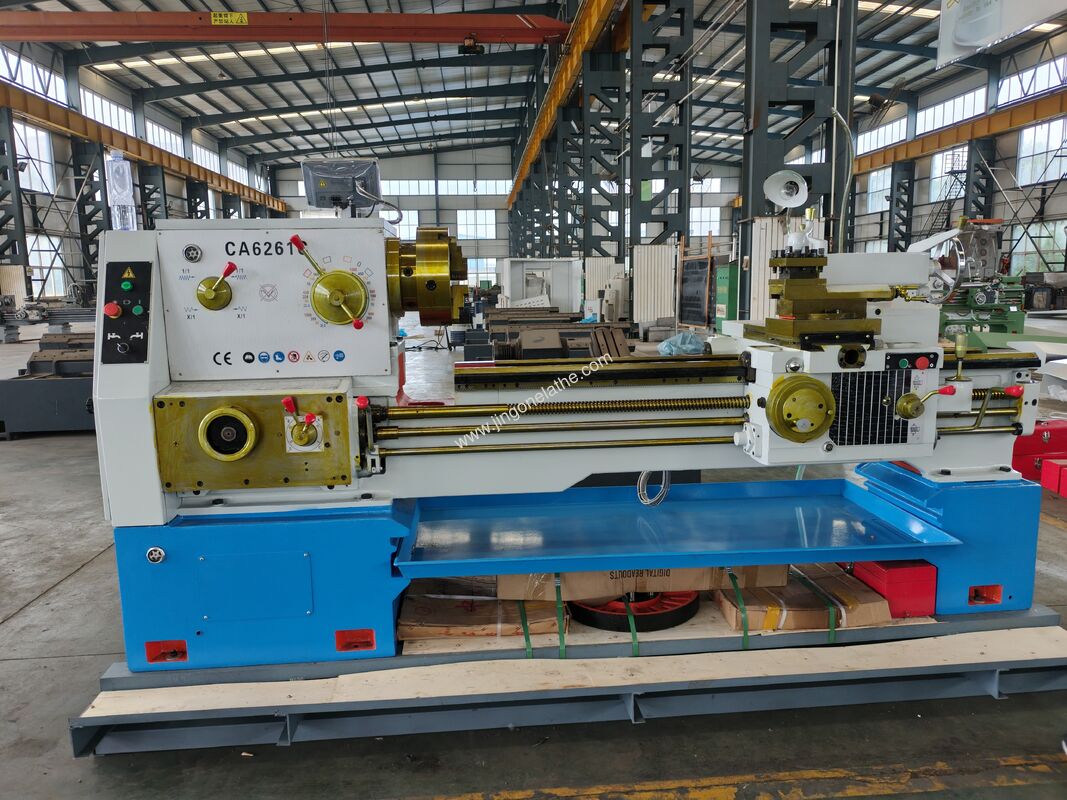

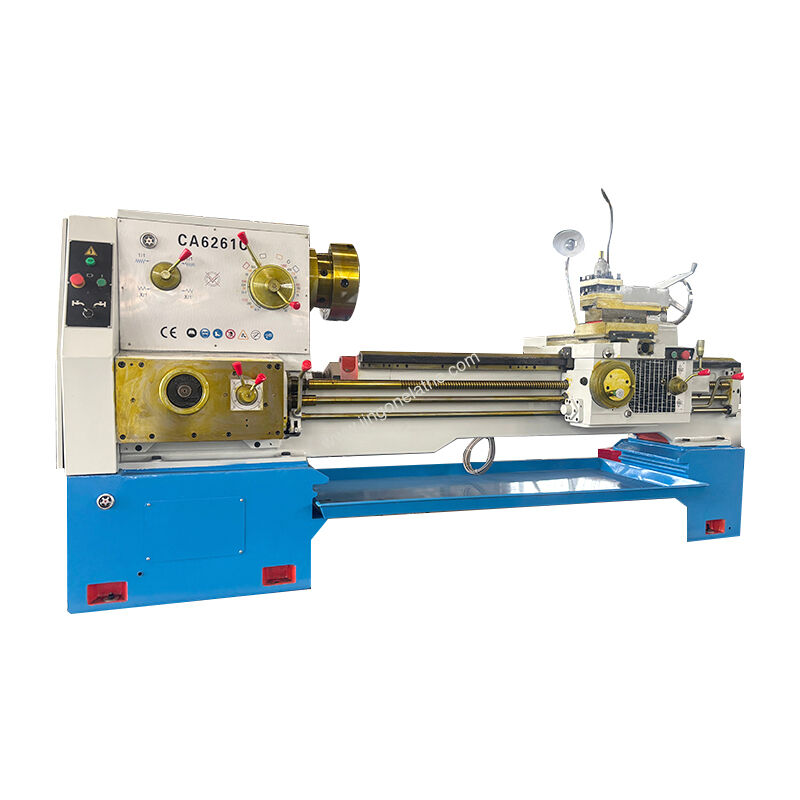

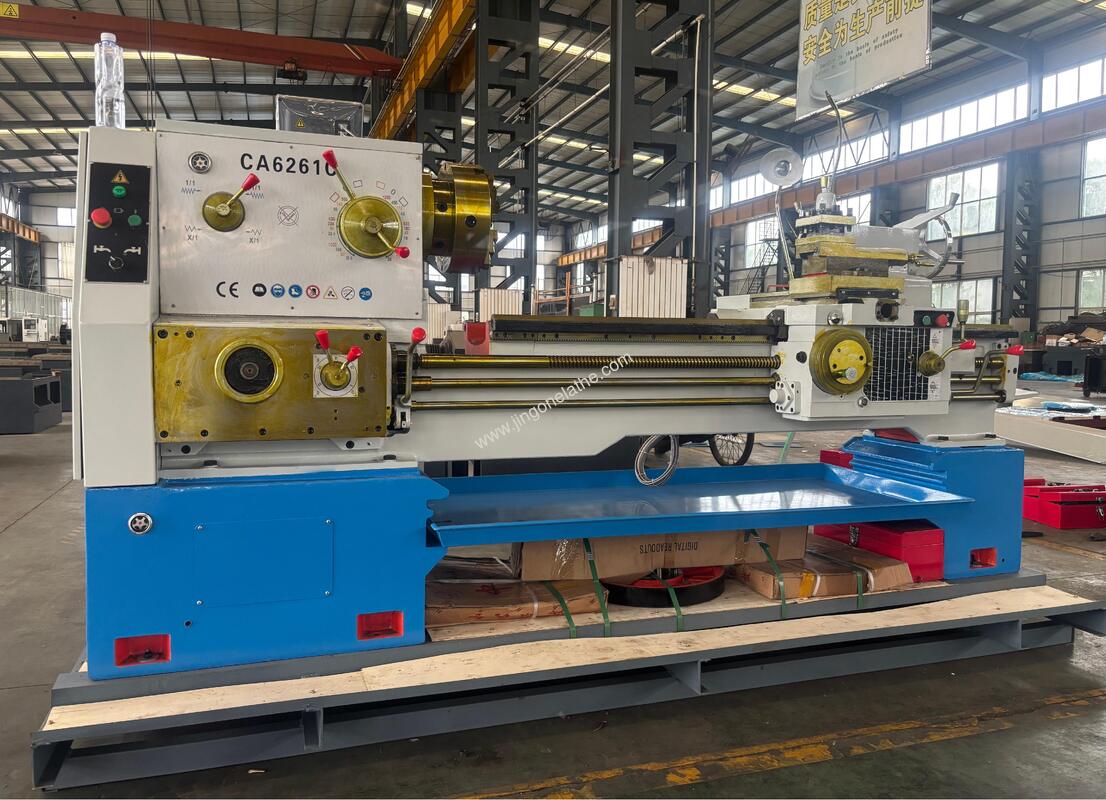

Big Bore Manual Lathe CA6161: Heavy Cutting Stability with HT300 Monoblock Bed
Model: CA6161 | Core Keyword: Big Bore Manual Lathe
Summary
Big Bore Manual Lathe CA6161 is a medium-duty turning machine optimized for oil country and heavy shaft machining. Its 105mm spindle bore accommodates large-diameter workpieces, while the HT300 monoblock bed ensures zero-vibration cutting during long production runs.
Equipped with a precision-ground gearbox and HRC52 induction-hardened guideways, this lathe delivers consistent spindle runout control and rapid traverse for high-mix workshop tasks. It supports 44 metric thread types and 21 imperial thread types to meet diverse machining needs.
Ideal for automotive component manufacturers and oilfield equipment suppliers, the CA6161 big bore manual lathe meets CE standards and integrates with existing tooling systems for seamless production transitions.
Features

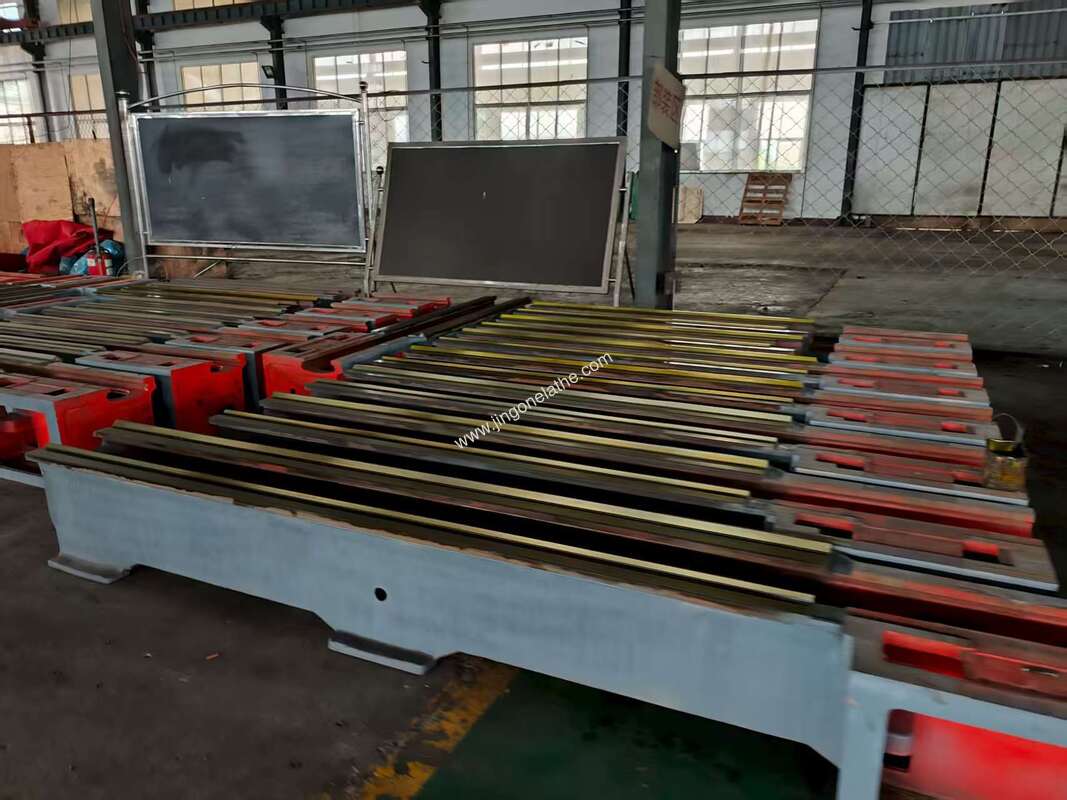

- HT300 monoblock bed with 400mm width, HRC52 induction hardening for rigid, long-term stability

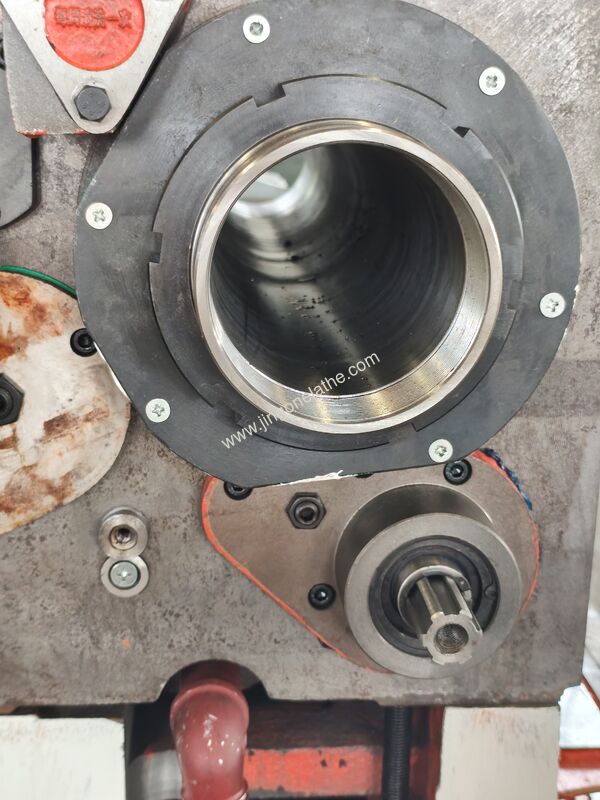

- 105mm spindle bore, M.T.6 spindle taper for large-diameter workpiece clamping
- 24 forward spindle speeds (10-1400 RPM) and 12 reverse speeds for versatile cutting operations
- Standard accessories include cooling device, 3-jaw chuck, center, and operation manual
- Optional 2-axis SINO DRO, 4-jaw chuck, or steady rest for enhanced precision and flexibility
- Schneider Electric core components, full CE certification for smooth local inspections
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing over bed | 610 mm |
| Max.swing over carriage | 370 mm |
| Max.workpiece length | 2000 mm |
| Bed width | 400 mm |
| Spindle taper | M.T.6 |
| Spindle speed range (forward) | 24 types, 10-1400 rpm |
| Spindle speed range (reverse) | 12 types, 2.5-1400 rpm |
| Spindle bore diameter | 105 mm |
| Metric threads | 44 Types, 1-192 mm |
| Imperial threads (T.P.I) | 21 Types, 2/24 |
| Module threads | 39 Types, 0.25-48 mm |
| Diameter pitch threads (D.P) | 37 Types, 1-96 |
| Lower tool holder travel | 320 mm |
| Upper tool holder travel | 140 mm |
| Tool holder turntable rotation | ±90° |
| Tool bar cross-section size | 25X25 mm |
| Tailstock spindle diameter | 75 mm |
| Tailstock spindle travel | 150 mm |
| Tailstock spindle taper | M.T.5 |
| Main motor power | 7.5 Kw |
| Cooling pump power | 90 W |
| Cooling pump flow rate | 25 L/Min |
Accessory Configurations
| Category | Accessories |
|---|---|
| Standard Accessories |
Cooling device, Lighting device, 3-Jaw Chuck, Center, Center Sleeve, Anchor bolts, Tool Post Wrench, Double-ended Wrench, Allen Wrench, Screwdriver, Oil Gun, Cam lock wrench, Operation manual, Qualified instructions, Packing list |
| Optional Accessories |
2-axis DRO (Brand: SINO), 4-jaw chuck (¢400mm), Face plate (¢500mm), Steady rest (¢20-125mm/¢100-250mm), Follow rest (¢20-80mm), Drilling chuck (M.T.5), Live center (M.T.5), Quick-change tool post (EU type: 1 main part + 4 tool posts), Taper turning attachment (±15°), Protection (tool post protective shield, chuck guard, fixed splash guard, screw guard), Foot brake, Grinding attachment |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What spindle bore size does the CA6161 big bore manual lathe have?
A: The CA6161 big bore manual lathe features a 52mm spindle bore, ideal for oil country and heavy shaft machining tasks.
Q: How does the CA6161 lathe maintain cutting stability?
A: The CA6161 big bore manual lathe uses an HT300 monoblock bed with HRC52 hardened guideways to eliminate vibration during heavy cutting.
Q: Can the CA6161 lathe integrate with existing workshop tooling?
A: Yes, the CA6161 big bore manual lathe supports interchangeable tool post systems, compatible with most standard workshop tooling.
