CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed

Place of Origin:

Tengzhou, Shandong

Brand Name:

JingOne Machine

Certification:

CE Certifications

Model Number:

CA6140

Contact Us
Request A Quote
Product Details
Max Swing Over Bed:
400 Mm
Max Workpiece Length:
2000 Mm
Spindle Bore Diameter:
52 Mm
Max Workpiece Capacity:
300 Kg
Guiderail Hardness:
HRC52+
Main Frame:
HT300
Tool Holder Turntable Rotation:
±90°
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 7600 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
Product Description

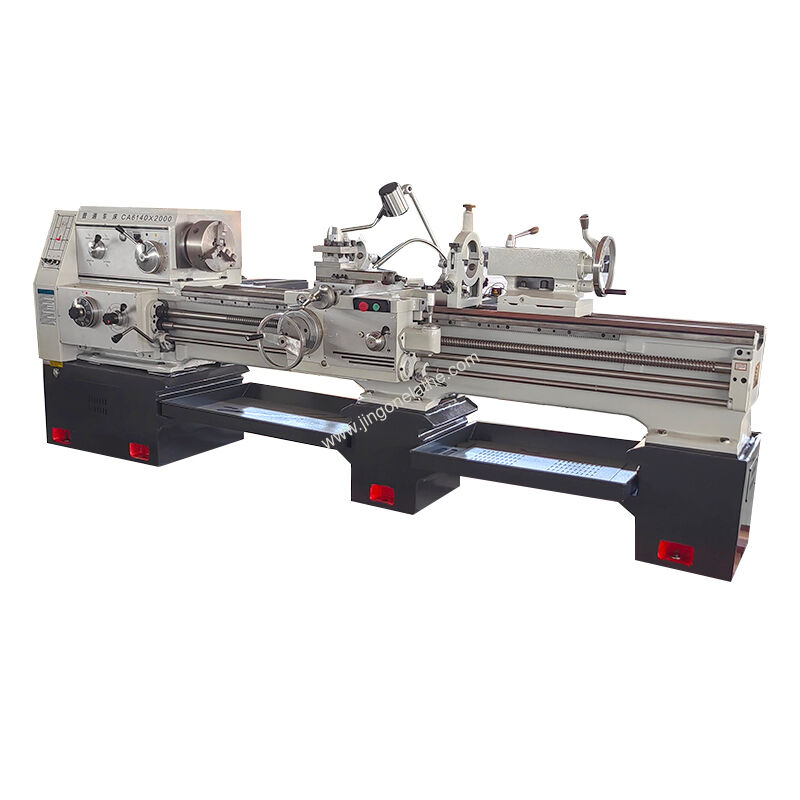

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed

Beijing JingOne Machine Tool Equipment Co., Ltd. | Tengzhou, Shandong

Industrial-Grade Structure & Thermal Stability

The JingOne CA6140 series is engineered for heavy metal removal without compromising surface finish. The CA6140 utilizes a 400mm wide bed cast from HT300 gray iron, providing superior dampening characteristics and torsional rigidity. The induction-hardened guideways (HRC52+) significantly reduce wear, maintaining a 300kg workpiece capacity even at maximum extension.

Versatile Machining Capabilities

Equipped with a 7.5kW main motor and a 24-speed spindle range (10-1400 rpm), this machine handles everything from high-torque roughing to precision finishing.

Technical Specifications

Parameter Value Unit
Max.swing over bed 400 mm
Max.swing over carriage 210 mm
Max.workpiece length 2000 mm
Bed width 400 mm
Spindle taper M.T.6 -
Spindle speed range (forward) 10-1400/16-1400 rpm (24 types)
Spindle speed range (reverse) 2.5-1400/20-1400 rpm (12 types)
Spindle bore diameter 52 mm
Metric threads 1-192 mm (44 Types)
Imperial threads 2/24 T.P.I (21 Types)
Module threads 0.25-48 mm (39 Types)
Diameter pitch threads 1-96 D.P (37 Types)
Lower tool holder travel 320 mm
Upper tool holder travel 140 mm
Tool holder turntable rotation ±90° -
Tool bar cross-section size 25X25 mm
Tailstock spindle diameter 75 mm
Tailstock spindle travel 150 mm
Tailstock spindle taper M.T.5 -
Main motor power 7.5 Kw
Cooling pump power 90 W
Cooling pump flow rate 25 L/Min
Weight (Net/Gross) 2570/2720 Kg
Dimensions 3700x1140x1750 mm

Accessory Configurations

Standard Accessories

Accessory Name
Cooling device
Lighting device

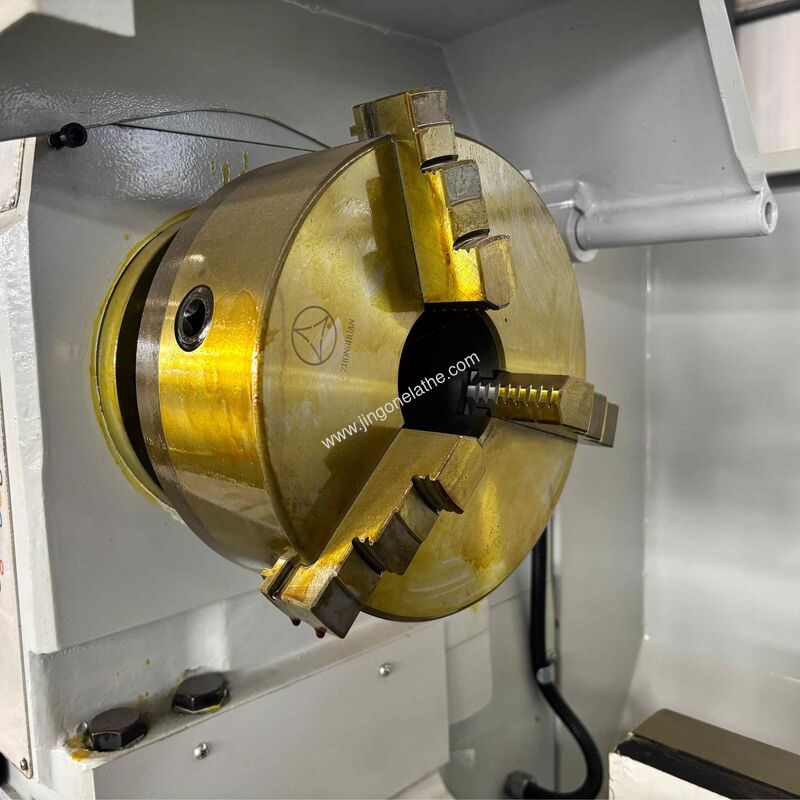

3-jaw chuck
Center&Center sleeve
Tool box& Supporting tools
Oil gun
Operation manual
Qualified instructions
Packing list

Optional Accessories

Accessory Name Picture
2-axis DRO

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed 0

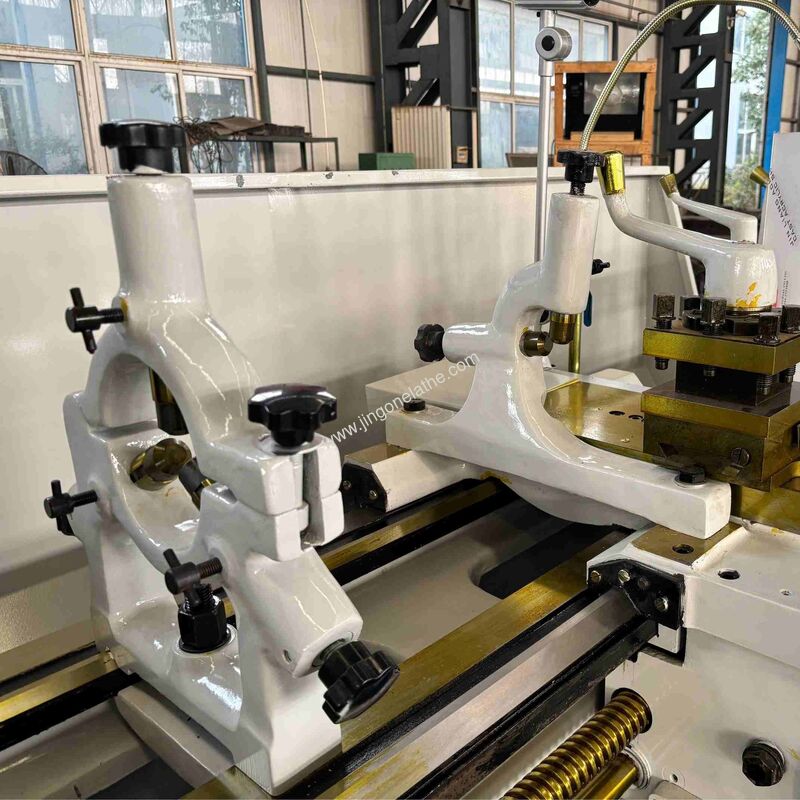

Steady rest

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed 1

Follow rest
Drilling chuck
Live center

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed 2

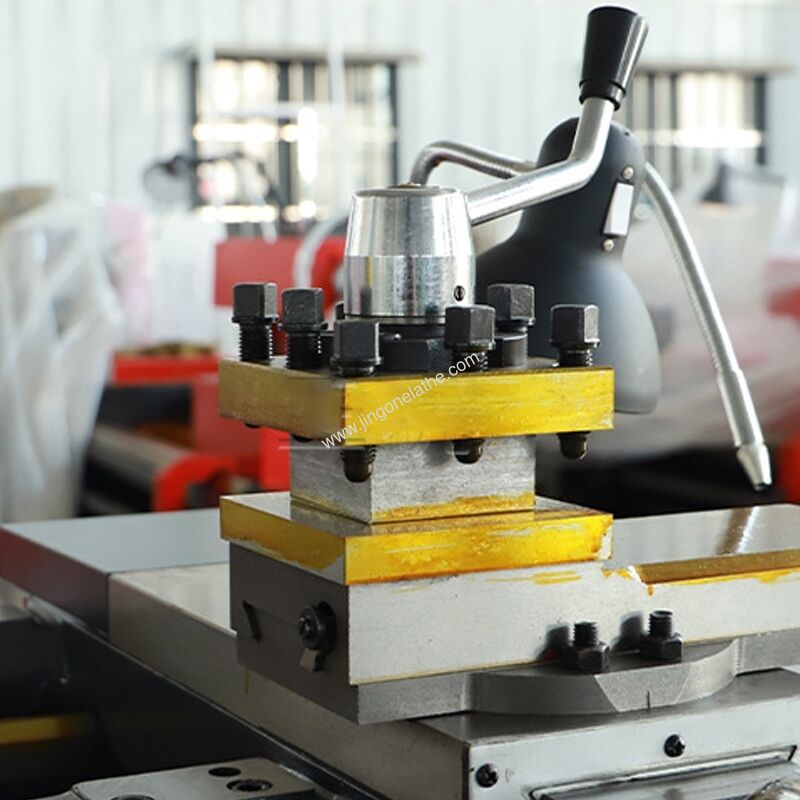

Quick-change tool post

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed 3

Taper turning attachment

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed 4

Protection

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed 5

Foot brake

CA6140 High-Precision Manual Lathe - 400mm Swing Over Bed 6

International Shipping & Support

International Shipping & Support:

Sea-worthy plywood case packing included. Full 12 months warranty with lifetime technical support. Exported to 30+ countries including Germany, Turkey, and Brazil.

FAQ

Q: Why does JingOne use HT300 cast iron for the CA6140 frame?

A: HT300 (Gray Iron) offers much higher tensile strength and vibration absorption compared to the standard HT200/250 used in lighter lathes. For a 2000mm length machine, this prevents the bed from twisting under a 300kg load, ensuring the spindle and tailstock remain perfectly aligned.

Q: How do you achieve the HRC52+ hardness on the guiderails?

A: We utilize high-frequency induction hardening followed by precision grinding. This depth of hardening allows for multiple regrinds over the machine's lifespan, significantly extending its operational life in industrial environments.

Q: Is the CA6140 suitable for cutting both Metric and Imperial threads without changing gears?

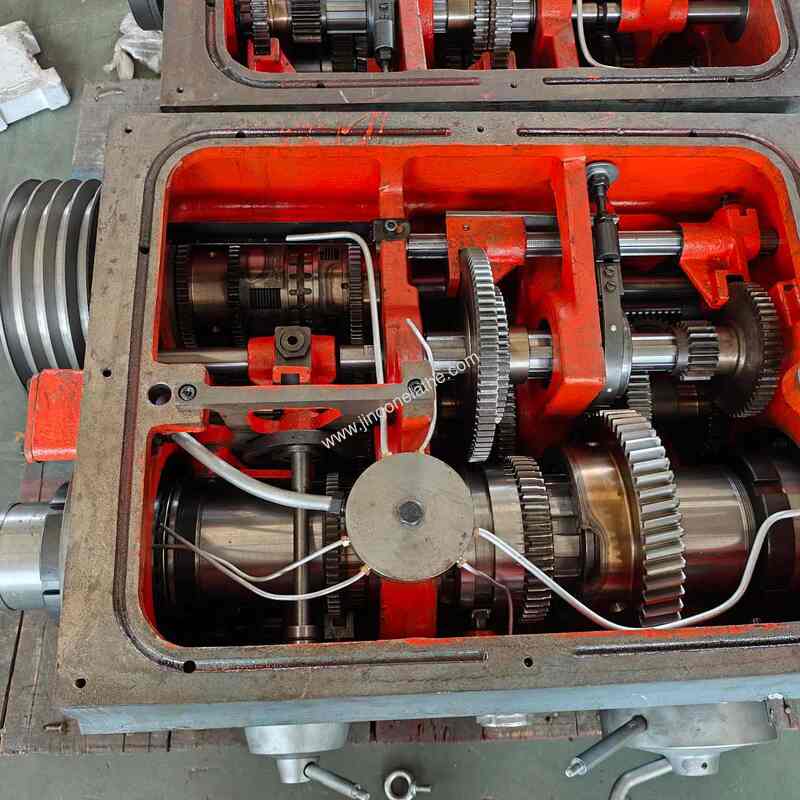

A: Yes, the universal gearbox design allows for a wide range of threading (Metric, Imperial, Module, and D.P.) directly through lever selection, which is a major efficiency advantage for handling international machining needs.

Q: What are the shipping dimensions for international logistics?

A: The CA6140-2000mm model is packed in a sea-worthy plywood case measuring approximately 3700x1140x1750 mm. We ensure moisture-proof packaging and secure bolting to the base to prevent movement during sea transit to markets like Turkey or Brazil.
