Heavy Duty Manual Lathe CA6180: 300kg Workpiece Capacity With 800mm Swing Over Bed
Heavy Duty Manual Lathe CA6180: 300kg Workpiece Capacity With 800mm Swing Over Bed
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CA6180B
Contact Us
Request A Quote
Product Details
Max.swing Over Bed:
800mm
Max.workpiece Length:
2000mm
Spindle Bore Diameter:
80mm
Max.load:
300Kg
Threading Capacities:
Metric, Imperial, Module, Diameter
Attachment:
Taper Attachment, Grinding Attachment Optional
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 11000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Heavy Duty Manual Lathe CA6180: 300kg Workpiece Capacity with 800mm Swing Over Bed
Model: CA6180 | Core Keyword: Heavy Duty Manual Lathe
Summary
Heavy Duty Manual Lathe CA6180 is a high-capacity turning machine built for heavy automotive shaft and large component machining. Its 800mm swing over bed and 300kg workpiece capacity accommodate oversized workpieces, while the HT300 monoblock bed ensures rigid cutting stability.
Equipped with a 7.5Kw main motor and HRC52 induction-hardened guideways, this lathe delivers high-torque cutting and supports rapid traverse to reduce non-cutting time. It offers 24 forward spindle speeds (10-1400 RPM) for versatile heavy-duty cutting operations.
Trusted by thousands of global automotive manufacturers, the CA6180 heavy duty manual lathe meets CE standards and provides lifetime technical support for uninterrupted production.
Features
- HT300 monoblock bed with 400mm width, HRC52 induction hardening for extreme rigidness during heavy cutting
- 800mm swing over bed, 540mm swing over carriage for oversized workpiece turning
- 300kg workpiece capacity, 7.5Kw main motor for high-torque heavy cutting operations
- 24 forward spindle speeds (10-1400 RPM) and 12 reverse speeds for versatile machining tasks
- Standard accessories include cooling device, 3-jaw chuck, and operation manual; optional steady rest for long workpiece support
- Schneider Electric core components, full CE certification for global heavy-duty manufacturing applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing over bed | 800 mm |
| Max.swing over carriage | 540 mm |
| Max.workpiece length | 2000 mm |
| Bed width | 400 mm |
| Spindle taper | M.T.6 |
| Spindle speed range (forward) | 24 types, 10-1400 rpm |
| Spindle speed range (reverse) | 12 types, 2.5-1400 rpm |
| Spindle bore diameter | 80 mm |
| Metric threads | 44 Types, 1-192 mm |
| Imperial threads (T.P.I) | 21 Types, 2/24 |
| Module threads | 39 Types, 0.25-48 mm |
| Diameter pitch threads (D.P) | 37 Types, 1-96 |
| Lower tool holder travel | 320 mm |
| Upper tool holder travel | 140 mm |
| Tool holder turntable rotation | ±90° |
| Tool bar cross-section size | 25X25 mm |
| Tailstock spindle diameter | 75 mm |
| Tailstock spindle travel | 150 mm |
| Tailstock spindle taper | M.T.5 |
| Main motor power | 7.5 Kw |
| Cooling pump power | 90 W |
| Cooling pump flow rate | 25 L/Min |
Accessory Configurations
| Category | Accessories |
|---|---|
| Standard Accessories | Cooling device, Lighting device, 3-Jaw Chuck, Center, Center Sleeve, Anchor bolts, Tool Post Wrench, Double-ended Wrench, Allen Wrench, Screwdriver, Oil Gun, Cam lock wrench, Operation manual, Qualified instructions, Packing list |
| Optional Accessories |

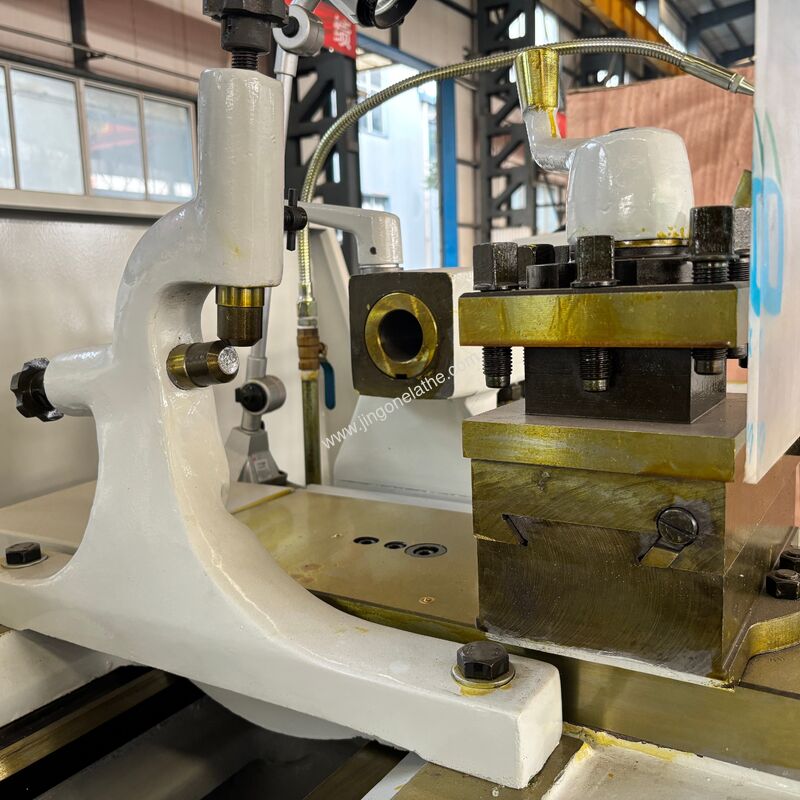

2-axis DRO (Brand: SINO), 4-jaw chuck (¢400mm), Face plate (¢500mm), Steady rest (¢20-125mm/¢100-250mm), Follow rest (¢20-80mm), Drilling chuck (M.T.5), Live center (M.T.5), Quick-change tool post (EU type: 1 main part + 4 tool posts), Taper turning attachment (±15°), Protection (tool post protective shield, chuck guard, fixed splash guard, screw guard), Foot brake, Grinding attachment |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum workpiece capacity of the CA6180 heavy duty manual lathe?
A: The CA6180 heavy duty manual lathe supports up to 300kg workpiece capacity, ideal for heavy automotive shaft and large component machining.
Q: How does the CA6180 lathe handle heavy cutting operations?
A: The CA6180 heavy duty manual lathe uses an HT300 monoblock bed and 7.5Kw main motor to deliver high-torque, vibration-free heavy cutting.
Q: What is the maximum swing over bed size of the CA6180 lathe?
A: The CA6180 heavy duty manual lathe features an 800mm swing over bed, accommodating oversized workpieces for heavy-duty manufacturing tasks.
