CA6150 Conventional Engine Lathe: 500mm Swing 400mm Bed Width High-Rigid HT300 Bed for Long-Term Precision Stability
Model: CA6150x1000 | Core Keyword: Conventional Lathe Machine | Manual Lathe Machine | Engine Lathe Machine

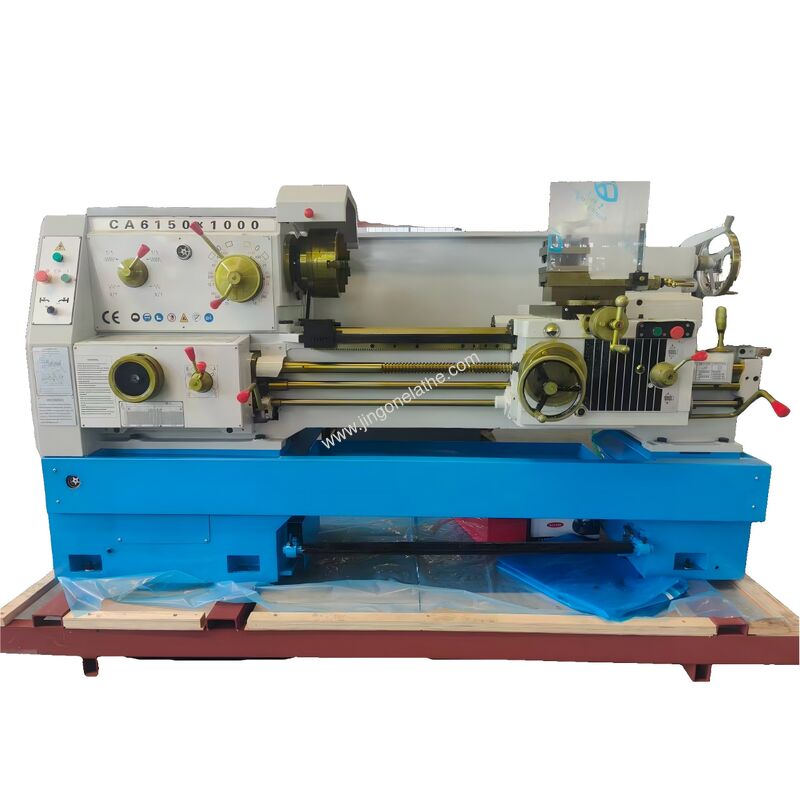

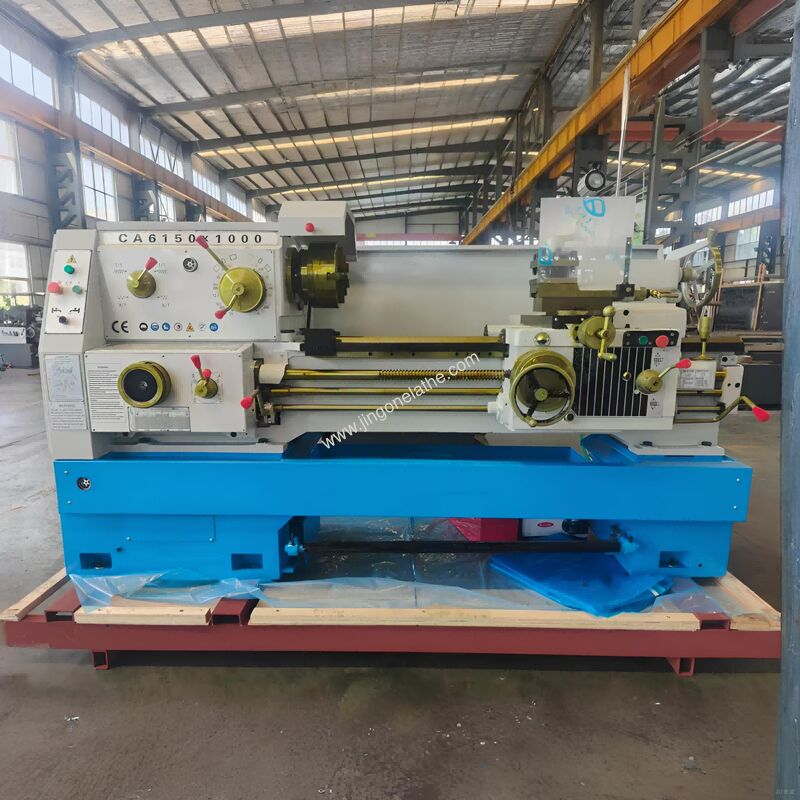

Conventional Lathe Overview
The JingOne CA6150-1000 is a medium-duty conventional lathe engineered for cylindrical turning, facing, conical machining, and multi-standard thread cutting. Built upon a 2,260 kg cast iron frame with a 400 mm bed width, this manual lathe provides the structural dampening required for high-load machining in maintenance facilities, toolrooms, and small-batch production environments.
The machine is powered by a 7.5 kW main motor driving a geared headstock that delivers 24 forward speeds ranging from 10 to 1400 rpm and 12 reverse speeds from 2.5 to 1400 rpm. With a 1000 mm maximum workpiece length capacity, a 500 mm swing over the bed, and a 52/80/105 mm spindle bore diameter, this engine lathe accommodates large shaft and disc components while retaining mechanical precision and thermal stability.
CA6150 Features
- Rigid 400 mm Wide Bed Structure: The machine frame utilizes heavy-grade HT300 cast iron with a 400 mm induction-hardened bed width, distributing cutting forces evenly and reducing vibration during heavy-duty roughing cuts.

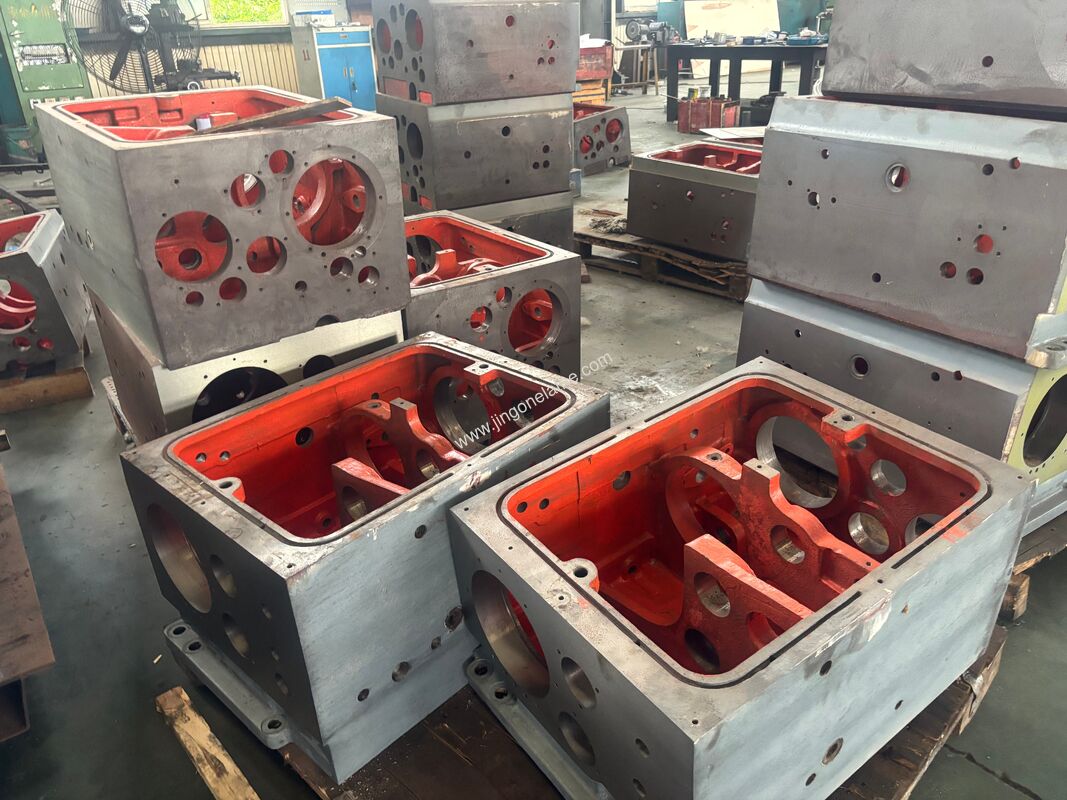

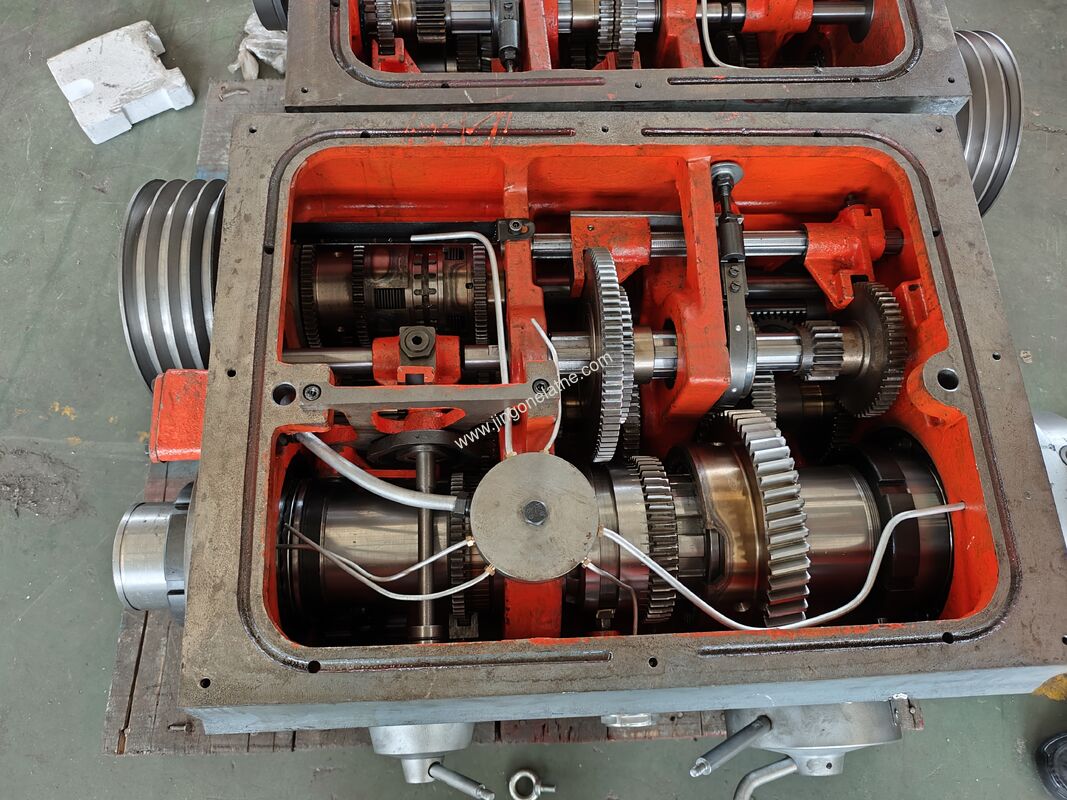

- Geared Headstock with Wide Speed Range: Features 24 forward speed selections (10–1400 rpm) and 12 reverse speeds (2.5–1400 rpm), enabling optimal surface cutting speeds for various metals, including steel, cast iron, and non-ferrous alloys.

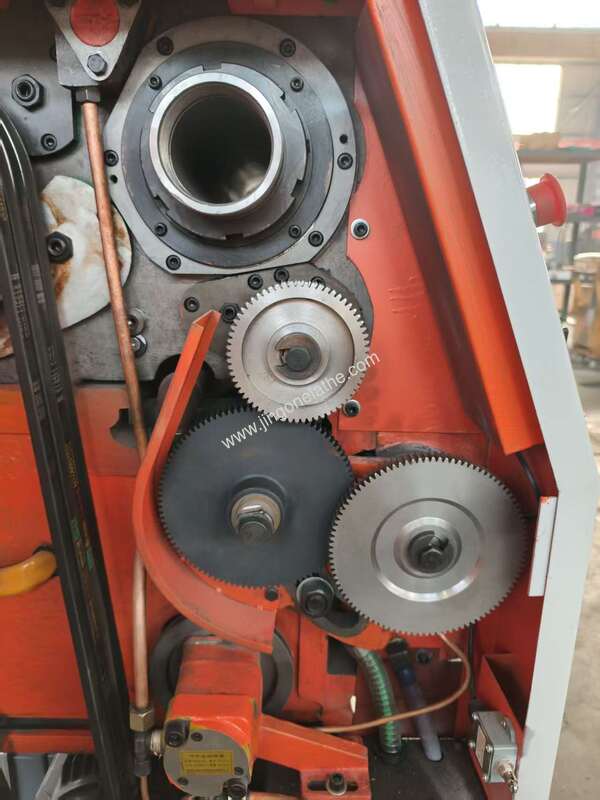

- Direct Multi-Standard Thread Cutting: The feed gearbox supports direct cutting of 44 types of Metric threads (1–192 mm), 21 types of Imperial threads (2/24 T.P.I.), 39 types of Module threads (0.25–48 mm), and 37 types of Diameter Pitch threads (1–96 D.P.) without requiring loose gear changes.
- Dual-Axis Compound Slide and Turntable: Configured with a 320 mm lower tool holder travel and a 140 mm upper tool holder travel. The tool holder turntable supports a ±90° rotation for precise manual taper turning and beveling operations.
- Industrial Spindle and Tailstock Interface: Equipped with an MT6 spindle taper and an independent MT5 manual tailstock featuring a 75 mm quill diameter and 150 mm quill travel, providing rigid coaxial support for shaft workpieces.
- Upgrade Options: Supports functional expansions including a SINO 2-axis DRO, a ±15° taper turning attachment, a carriage-mounted grinding attachment, an EU-type quick-change tool post, and a mechanical foot brake.
CA6150 Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing over bed | 500 mm |
| Max.swing over carriage | 300 mm |
| Max.workpiece length | 1000 mm |
| Bed width | 400 mm |
| Spindle taper | M.T.6 |
| Spindle speed range (forward) | (24 types) 10-1400 rpm |
| Spindle speed range (reverse) | (12 types) 2.5-1400 rpm |
| Spindle bore diameter | 52/80/105 mm |
| Metric threads | 44 Types, 1-192 mm |
| Imperial threads | 21 Types,2/24 T.P.I |
| Module threads | 39 Types, 0.25-48 mm |
| Diameter pitch threads | 37 Types,1-96 D.P |
| Lower tool holder travel | 320 mm |
| Upper tool holder travel | 140 mm |
| Tool holder turntable rotation | ±90° |
| Tool bar cross-section size | 25X25 mm |
| Tailstock quill diameter | 75 mm |
| Tailstock quill travel | 150 mm |
| Tailstock quill taper | M.T.5 |
| Main motor power | 7.5 Kw |
| Cooling pump power | 90 W |
| Cooling pump flow rate | 25 L/Min |
| weight | 2260 Kg |
| Dimensions | 2700x1140x1750 mm |
Accessories
| Accessory Type | Details |
|---|---|
| Standard Accessories |
Cooling device, Lighting device, 3-Jaw Chuck, Center, Center Sleeve, Anchor bolts, Tool Post Wrench, Double-ended Wrench, Allen Wrench, Screwdriver, Oil Gun, Cam lock wrench, Operation manual, Qualified instructions, Packing list |
| Optional Accessories |
2-axis DRO (Brand: SINO), Steady rest (¢20-125mm/¢100-250mm), Follow rest (¢20-80mm), Drilling chuck (M.T.5), Live center (M.T.5), Quick-change tool post (EU type: 1 main part + 4 tool posts), Taper turning attachment (±15°), Protection (tool post protective shield, chuck guard, fixed splash guard, screw guard), Foot brake, Grinding attachment |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining and reinforced steel bands, optimized for 2260kg unit weight
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What are the maximum workpiece dimensions and weight capacities supported by the CA6150-1000 conventional lathe?
A: The conventional lathe machine CA6150-1000 provides a maximum workpiece length of 1000 mm between centers, a 500 mm maximum swing diameter over the bed and a 300 mm maximum swing diameter over the cross-slide carriage. The 400 mm bed guide span and solid casting allow it to support 300kg workpiece weights, provided the part is correctly balanced and supported by the tailstock or optional steady rests.
Q: What type of tooling and taper attachments can be integrated into the tool post system?
A: The standard configuration accepts a maximum tool shank cross-section size of 25x25 mm on a 4-way tool post. For shops requiring rapid tool orientation updates, an optional EU-type or American type quick-change tool post system (comprising 1 main block and 4 interchangeable tool holders) is available. For turning long, consistent external or internal tapers beyond the standard upper slide travel, an optional mechanical taper turning attachment can be mounted to the back of the bed.
Q: How does the headstock spindle configuration facilitate bar stock feeding and raw material processing?
A: The spindle is engineered with an MT6 internal taper and a 52/80/105 mm through-hole bore diameter. This allows standard raw bar stock with diameters up to 105 mm to pass completely through the spindle assembly for batch component parting and turning operations, utilizing the standard 3-jaw chuck or optional 4-jaw chuck variants.
