CA6250x1500 Horizontal Gap Bed Lathe: 720mm Gap Swing For Large Workpiece Machining
CA6250x1500 Horizontal Gap Bed Lathe: 720mm Gap Swing For Large Workpiece Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CA6250x1500
Contact Us
Request A Quote
Product Details
Max.swing Over Bed:
500mm
Max.swing In Gap:
720mm
Effective Gap Length:
210mm
Spindle Taper:
M.T.6
Spindle Bore Diameter:
52mm
Threading Capacities:
Metric, Inch, Imperial, Pitch
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 8000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
CA6250x1500 Horizontal Gap Bed Lathe: 720mm Gap Swing for Large Workpiece Machining
Model: CA6250x1500 | Core Keyword: Horizontal Gap Bed Lathe
Summary
CA6250x1500 horizontal gap bed lathe offers extended machining capacity with 720mm gap swing and 1500mm workpiece length, perfect for large mold parts and oil country components.
Its HT300 monoblock bed, 400mm width with HRC52 induction hardening, ensures zero-vibration heavy cutting, while the 52mm spindle bore and precision gearbox support diverse thread cutting needs.
With interchangeable tool post systems and full CE certification, this lathe serves global clients in mold and automotive sectors, providing uninterrupted production with lifetime technical support.
Features
- Gap bed design with 720mm maximum swing in gap and 210mm effective gap length for oversize workpiece machining
- HT300 monoblock bed with 400mm width and HRC52 induction hardened guideways for long-term precision stability
- 52mm spindle bore and precision-ground gearbox with 24 forward spindle speeds (16-1400 RPM)
- Interchangeable tool post systems compatible with existing tooling, reducing setup time and operational costs
- Multilingual manuals and high-clarity circuit diagrams enable zero-language-barrier maintenance for global users
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing over bed | 500 mm |
| Max.swing over carriage | 300 mm |
| Max.swing in gap | 720 mm |
| Effective gap length | 210 mm |
| Max.workpiece length | 1500 mm |
| Bed width | 400 mm |
| Spindle taper | M.T.6 |
| Spindle speed range (forward) | (24 types) 16-1400 rpm |
| Spindle speed range (reverse) | (12 types) 20-1400 rpm |
| Spindle bore diameter | 52 mm |
| Metric threads | 44 Types,1-192 mm |
| Imperial threads | 21 Types, 2/24 T.P.I |
| Module threads | 39 Types,0.25-48 mm |
| Diameter pitch threads | 37 Types, 1-96 D.P |
| Lower tool holder travel | 320 mm |
| Upper tool holder travel | 140 mm |
| Tool holder turntable rotation | ±90° |
| Tool bar cross-section size | 25X25 mm |
| Tailstock spindle diameter | 75 mm |
| Tailstock spindle travel | 150 mm |
| Tailstock spindle taper | M.T.5 |
| Main motor power | 7.5 Kw |
| Cooling pump power | 90 W |
| Cooling pump flow rate | 25 L/Min |
| weight | 2420 Kg |
| Dimensions | 3200x1140x1750 mm |
Accessory Configurations
| Accessory Type | Details |
|---|---|
| Standard Accessories |
Cooling device, Lighting device, 3-Jaw Chuck, Center, Center Sleeve, Anchor bolts, Tool Post Wrench, Double-ended Wrench, Allen Wrench, Screwdriver, Oil Gun, Cam lock wrench, Operation manual, Qualified instructions, Packing list |
| Optional Accessories |

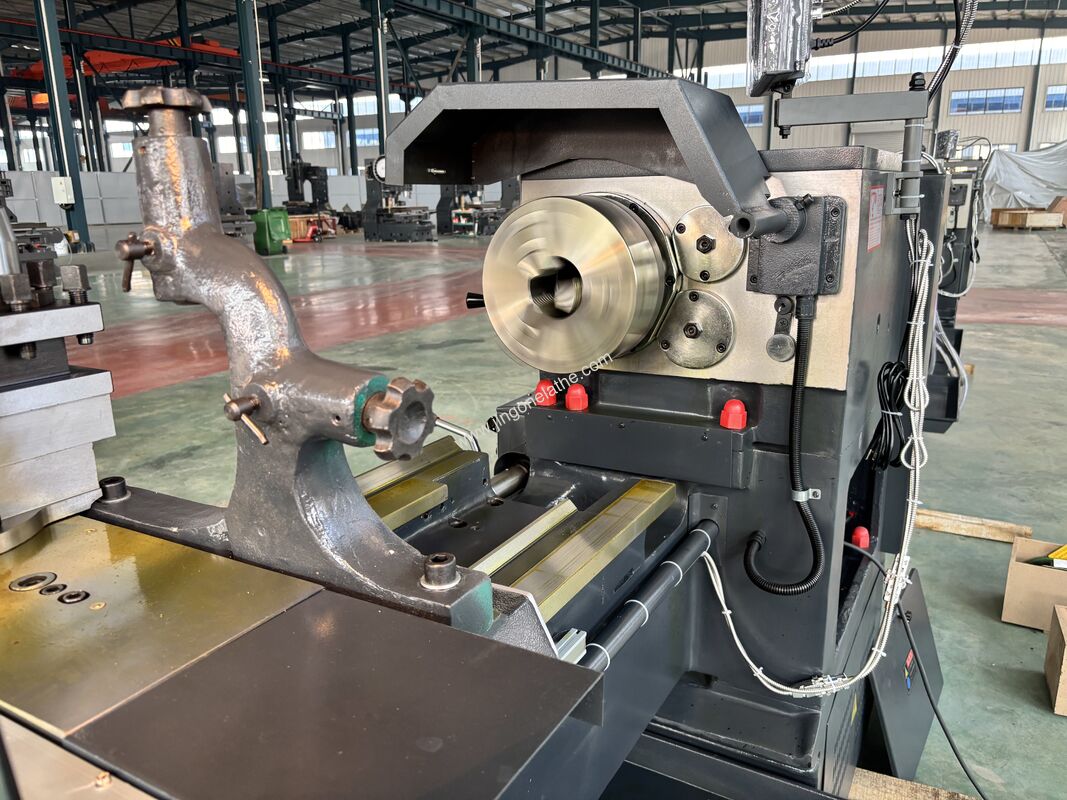

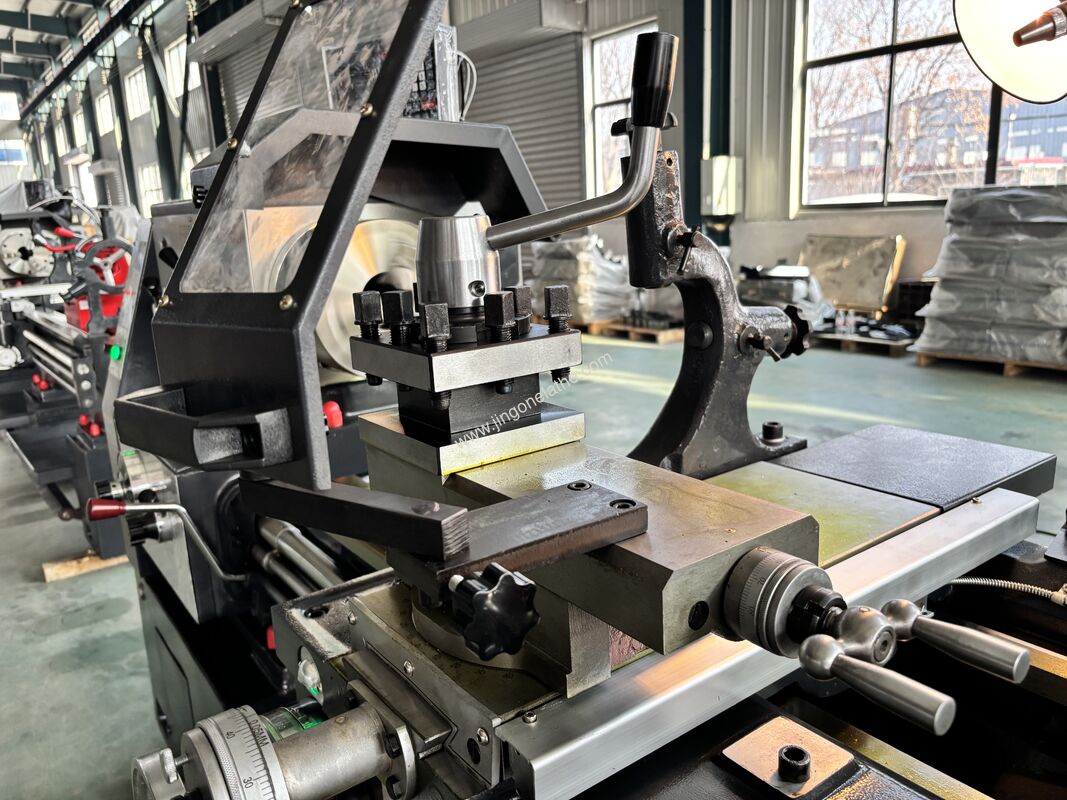

2-axis DRO (Brand: SINO), 4-jaw chuck (¢400mm), Face plate (¢500mm), Steady rest (¢20-125mm/¢100-250mm), Follow rest (¢20-80mm), Drilling chuck (M.T.5), Live center (M.T.5), Quick-change tool post (EU type: 1 main part + 4 tool posts), Taper turning attachment (±15°), Protection (tool post protective shield, chuck guard, fixed splash guard, screw guard), Foot brake, Grinding attachment |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced steel framing and bands, designed for 2420kg heavy unit weight
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum swing in gap for the CA6250x1500 horizontal gap bed lathe?
A: The CA6250x1500 horizontal gap bed lathe offers a 720mm maximum swing in gap for oversize workpiece machining.
Q: Can the CA6250x1500 lathe be fitted with existing tooling from my workshop?
A: Yes, the CA6250x1500 horizontal gap bed lathe features interchangeable tool post systems compatible with most standard tooling.
Q: What warranty coverage comes with the CA6250x1500 gap bed lathe?
A: The CA6250x1500 horizontal gap bed lathe includes a 12-month warranty for core mechanical systems like spindle and guideways.
