Manual Engine Lathe CA6140x2000: 400mm HT300 Bed For Stable Heavy Cutting
Manual Engine Lathe CA6140x2000: 400mm HT300 Bed For Stable Heavy Cutting
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CA6140x2000
Contact Us
Request A Quote
Product Details
Max.swing Over Bed:
400mm
Max.swing Over Carriage:
210mm
Max.workpiece Length:
2000mm
Spindle Bore Diameter:
52mm
Bed Width:
400mm
Max. Load:
300Kg
Thread:
Metric, Imperial, Module, Diameter Threads
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 9000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

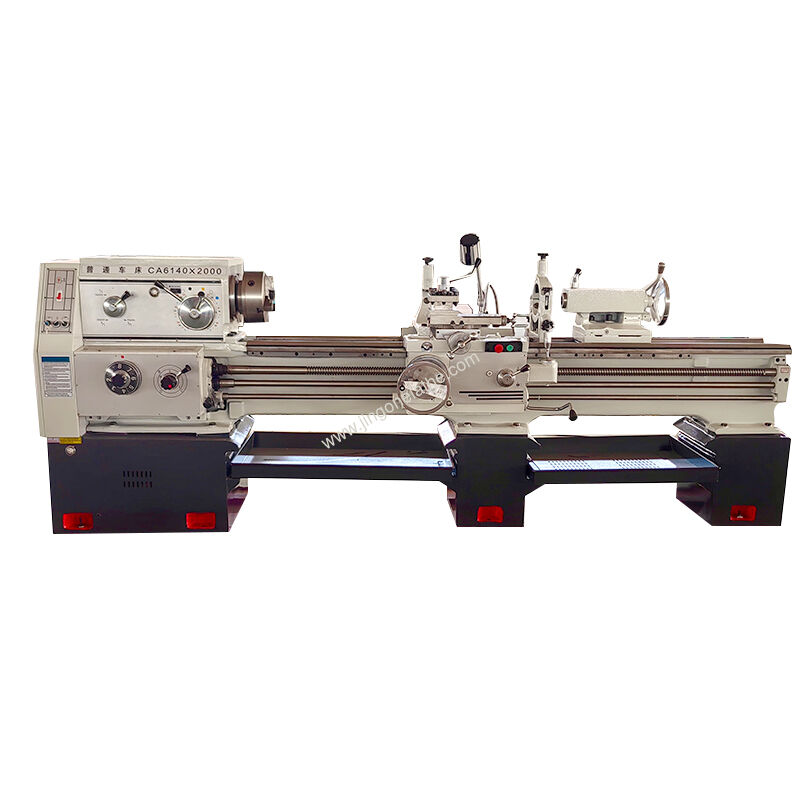

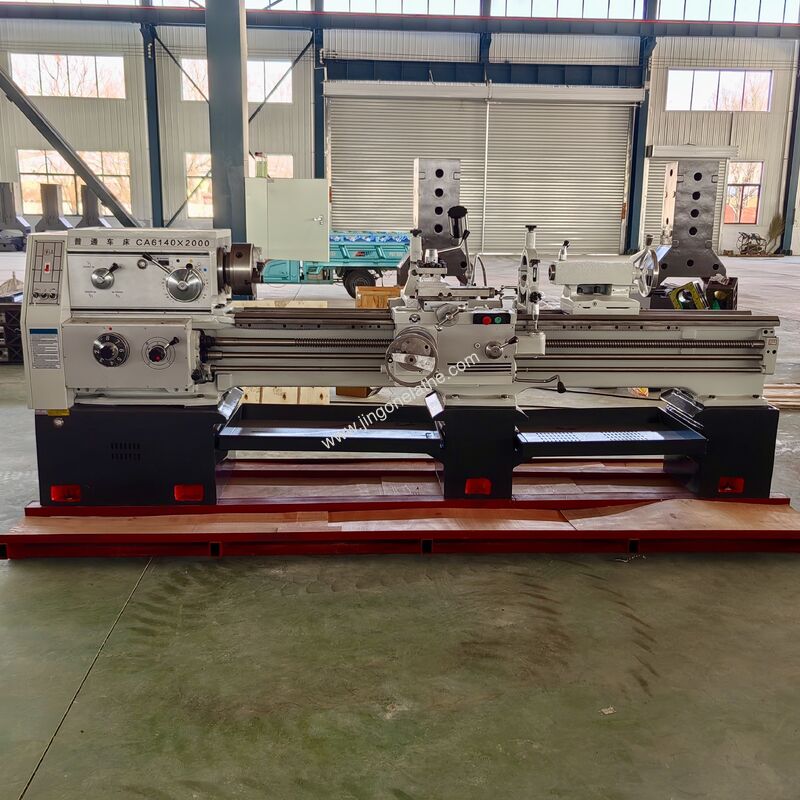

Manual Engine Lathe CA6140x2000: 400mm HT300 Bed for Stable Heavy Cutting
Model: CA6140x2000 | Core Keyword: manual engine lathe
Summary
Manual engine lathe CA6140x2000 is a reliable all-rounder for high-mix automotive and mold machining workshops.
With a 400mm wide HT300 monoblock bed, 7.5kW main motor, and spindle speed range of 10-1400rpm, this 2000mm lathe handles heavy cutting, shaft machining and metric/imperial thread cutting with minimal spindle runout. Its hardened guideways ensure long-term precision, reducing unplanned downtime.
Designed for 300kg workpiece capacity and rapid traverse, it integrates Schneider Electric components for smooth local inspections, backed by thousands of global client testimonials for critical machining tasks.
Features
- HT300 monoblock bed with 400mm width and HRC52 induction hardening for zero-vibration heavy cutting
- 2000mm maximum workpiece length and 300kg capacity, supporting high-mix, high-efficiency workshop operations
- Precision-ground gearbox with 52mm spindle bore and M.T.6 spindle taper for consistent rotational accuracy

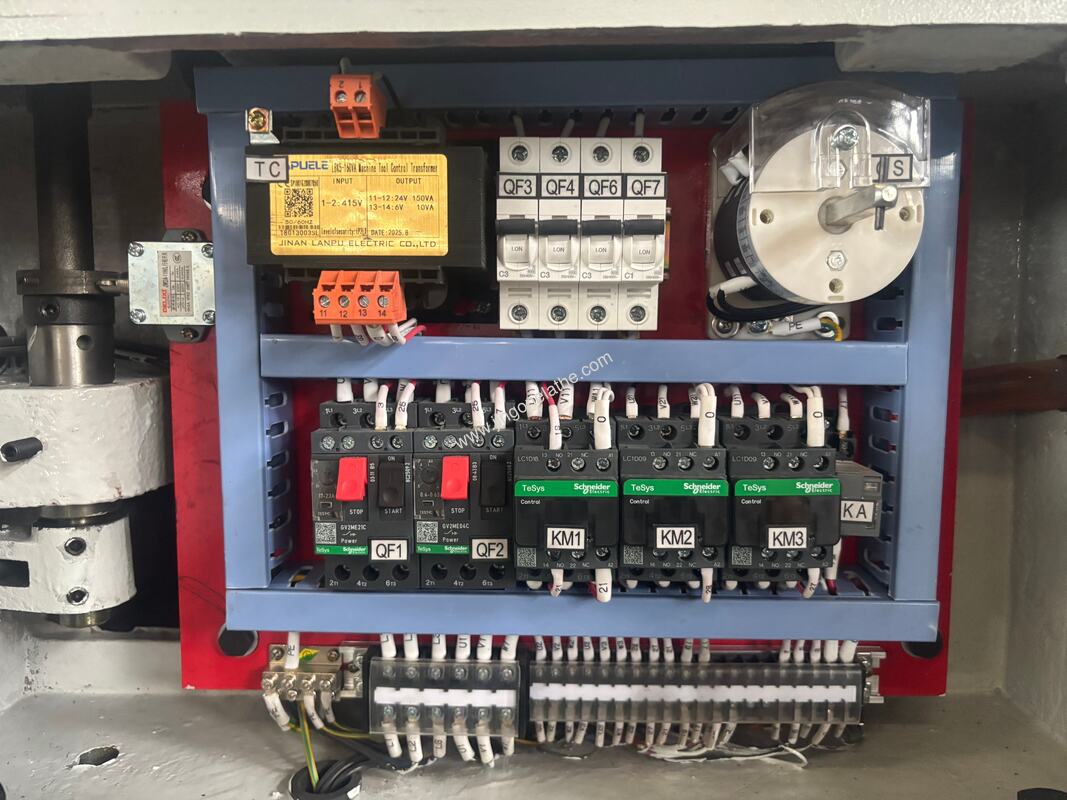

- Schneider Electric core components and full CE certification, ensuring compliance with global safety standards
- Interchangeable tool post systems, compatible with existing workshop tooling to reduce setup time
- Multilingual manuals and high-clarity circuit diagrams for zero-language-barrier maintenance support
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing over bed | 400 mm |
| Max.swing over carriage | 210 mm |
| Max.workpiece length | 2000 mm |
| Bed width | 400 mm |
| Spindle taper | M.T.6 |
| Spindle speed range (forward) | (24 types) 10-1400 rpm |
| Spindle speed range (reverse) | (12 types) 2.5-1400 rpm |
| Spindle bore diameter | 52 mm |
| Metric threads | 44 Types, 1-192 mm |
| Imperial threads | 21 Types, 2/24 T.P.I |
| Module threads | 39 Types, 0.25-48 mm |
| Diameter pitch threads | 37 Types, 1-96 D.P |
| Lower tool holder travel | 320 mm |
| Upper tool holder travel | 140 mm |
| Tool holder turntable rotation | ±90° |
| Tool bar cross-section size | 25X25 mm |
| Tailstock spindle diameter | 75 mm |

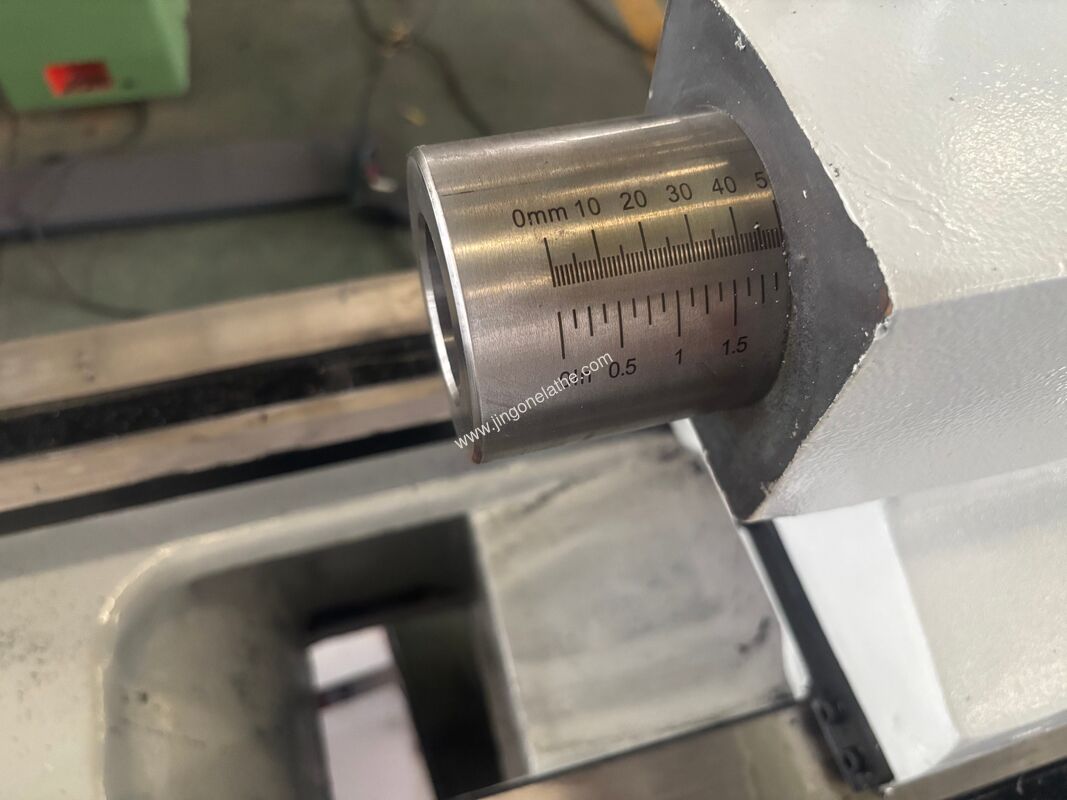

| Tailstock spindle travel | 150 mm |
| Tailstock spindle taper | M.T.5 |
| Main motor power | 7.5 Kw |
| Cooling pump power | 90 W |
| Cooling pump flow rate | 25 L/Min |
| weight | 2720 Kg |
| Dimensions | 3700x1140x1750 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| 2-axis DRO | Brand: SINO |
| 4-jaw chuck | ¢400mm |
| Face plate | ¢500mm |
| Steady rest | ¢20-125mm/¢100-250mm |
| Follow rest | ¢20-80mm |
| Drilling chuck | M.T.5 |
| Live center | M.T.5 |
| Quick-change tool post | EU type: 1 main part + 4 tool posts |
| Taper turning attachment | ±15° |
| Protection | Include: tool post shield, chuck guard, splash guard, screw guard |
| Foot brake | Included |
| Grinding attachment | Available as optional accessory |
Logistics & Support

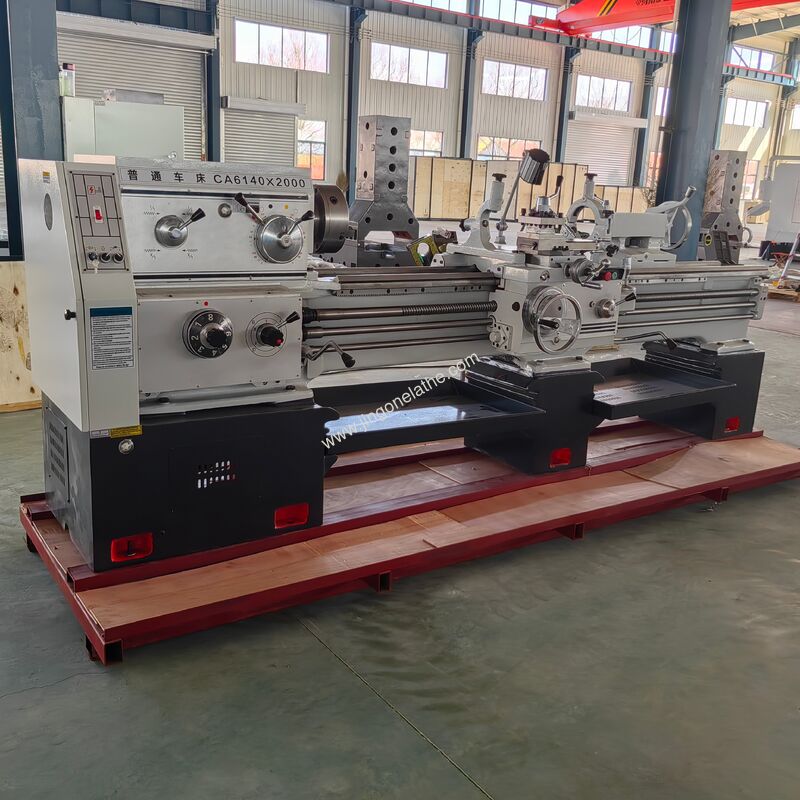

Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for 2720kg lathe long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA and Southeast Asian markets
Customs Documentation: Complete export documentation provided including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What maximum workpiece weight can CA6140x2000 handle?
A: The manual engine lathe CA6140x2000 supports a 300kg workpiece capacity, ideal for high-mix workshop machining tasks.
Q: Does CA6140x2000 support both metric and imperial thread cutting?
A: Yes, this manual engine lathe offers 44 metric thread types and 21 imperial thread types for versatile machining needs.
Q: What maintenance support is provided for CA6140x2000?
A: CA6140x2000 includes multilingual manuals and high-clarity circuit diagrams, with lifetime free technical support via email.
