Compact CNC Flat Bed Lathe CK6140x1000: 0.005mm Spindle Runout For Space-Saving Precision Machining
Compact CNC Flat Bed Lathe CK6140x1000: 0.005mm Spindle Runout For Space-Saving Precision Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6140x1000
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
400mm
Distance Between Centers:
1000mm
Spindle Through-hole Diameter:
65mm
Bar Stock Passage Diameter:
63mm
Chuck:
200mm
Spindle Nose Type:
A2-6
Spindle Speed Range:
150-2000rpm, Stepless
Main Motor Power:
5.5Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 8000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

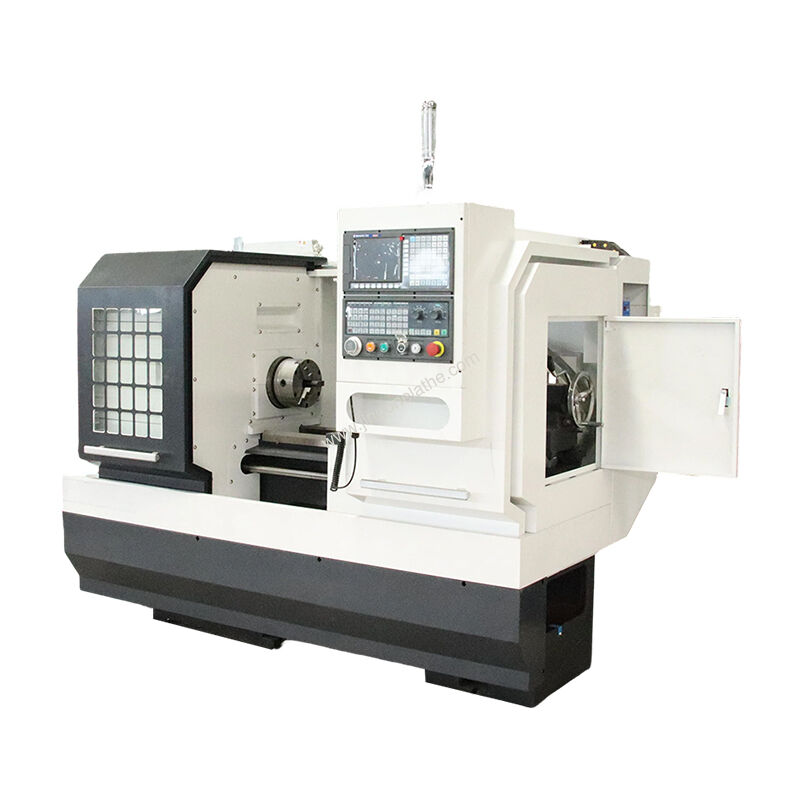

Compact CNC Flat Bed Lathe CK6140x1000: 0.005mm Spindle Runout for Space-Saving Precision Machining
Model: CK6140x1000 | Core Keyword: Compact CNC Flat Bed Lathe
Summary
Compact CNC Flat Bed Lathe CK6140x1000 is optimized for space-constrained production environments.
With 1000mm center distance, box way guide rails, and 0.005mm spindle runout, it handles cylindrical, conical, and special-shaped surface turning, grooving, threading, and drilling tasks efficiently.
Ideal for small job shops, automotive component manufacturers, and precision parts processors requiring a compact, high-accuracy machining solution.
Features
- Rugged box way guide rails with 180mm X-axis span and 300mm Z-axis span for stable, low-wear operation
- 150-2000RPM stepless spindle speed change to match diverse machining requirements
- 0.005mm radial spindle runout and 0.01mm diameter consistency for tight-tolerance parts

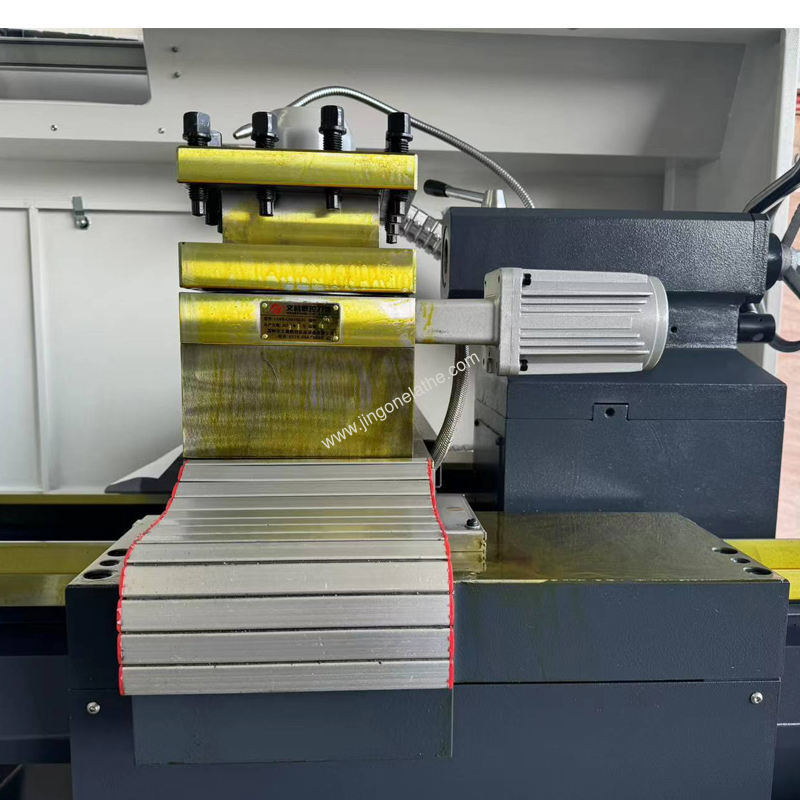

- 4-station electric tool turret with fast indexing for multi-operation machining
- Optional hydraulic chuck, automatic door, and tool setter to boost operational efficiency
- Space-saving design with 1020mm ground-to-center height for easy integration into small workshops
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter over bed | Φ400mm |
| Max. swing diameter over the cross slide | Φ240mm |
| Distance between centers | 1000mm |
| Max.turning diameter for plate | 400mm |
| Max. turning length | 870mm |
| X-axis guide rail span | 180mm |
| Z-axis guide rail span | 300mm |
| Guide type | Box way |
| Center height From the bed | 230mm |
| Center height From the ground | 1020mm |
| Spindle through-hole diameter | Φ65mm |
| Bar stock passage diameter | Φ63mm |
| Optional through-hole diameter of hollow chuck drawbar | Φ50mm |
| Spindle nose type | A2-6 |
| Chuck | Φ200mm |
| Taper of spindle taper hole | Metric 70 |
| Spindle speed change | Stepless |
| Spindle speed range | 150-2000rpm |
| Tailstock quill diameter | Φ60mm |
| Taper of tailstock quill bore | MT4# |
| Tailstock quill travel | 100mm |
| Tailstock type | Manual |
| Tool positions of electric tool turret | 4 |
| Tool shank size | 20×20mm |
| Rapid traverse speed of X/Z axis | 6 / 8m/min |
| Torque of X/Z-axis servo motors | 4 / 6 N.m |
| X-axis travel | 220mm |
| Z-axis travel | 750mm |
| Min. setting unit | 0.001mm |
| Main motor power | 5.5 Kw |
| Total power supply | 8 Kw |
| Periodic axial movement of the spindle | 0.005mm |
| Radial runout of the positioning cone surface of the spindle chuck | 0.005mm |
| Repeatability positioning accuracy | X:±0.005mm；Z:±0.007mm |
| Diameter consistency | 0.01/150mm |
| Flatness | 0.025/φ300mm |
| Cumulative error of thread pitch | 0.025/50mm |
| Surface roughness | Ra1.6μm |
Accessory Configurations
| Accessory | Optional Configuration |
|---|---|
| 1 | 6-station/8-station turret tool |
| 2 | Hydraulic chuck |
| 3 | Automatic door |
| 4 | Safety device for automatic door |
| 5 | Oil-water separator |
| 6 | Oil mist collection |
| 7 | Tool setter |
| 8 | Workpiece measurement |
| 9 | Blowling device (Air gun) |
| 10 | Water Gun |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What makes CK6140x1000 suitable for small workshops?
A: Compact CNC Flat Bed Lathe CK6140x1000 has a small footprint, 1000mm center distance, and 0.005mm spindle runout, fitting space-constrained small workshops perfectly.
Q: What is the max turning length of CK6140x1000?
A: Compact CNC Flat Bed Lathe CK6140x1000 offers 870mm max turning length, accommodating most medium-sized precision workpieces.
Q: How does CK6140x1000 ensure machining accuracy?
A: Compact CNC Flat Bed Lathe CK6140x1000 features 0.005mm spindle runout and ±0.005mm X-axis repeatability for consistent tight-tolerance results.
