CNC Horizontal Metal Lathe CK6160: High Load Capacity For Stable Heavy Workpiece Machining
CNC Horizontal Metal Lathe CK6160: High Load Capacity For Stable Heavy Workpiece Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6160
Contact Us
Request A Quote
Product Details
Max.swing Over Bed：:
600mm
Max. Swing Diameter Over Cross Slide:
395 Mm
Width Of The Bed Guide Rail：:
400mm
Spindle Speed Change:
Stepless
Spindle Nose Type:
A2-8
Spindle Through Hole:
82mm
Distance Between Centers:
2000 Mm
Max. Turning Length:
1850 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 10800 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

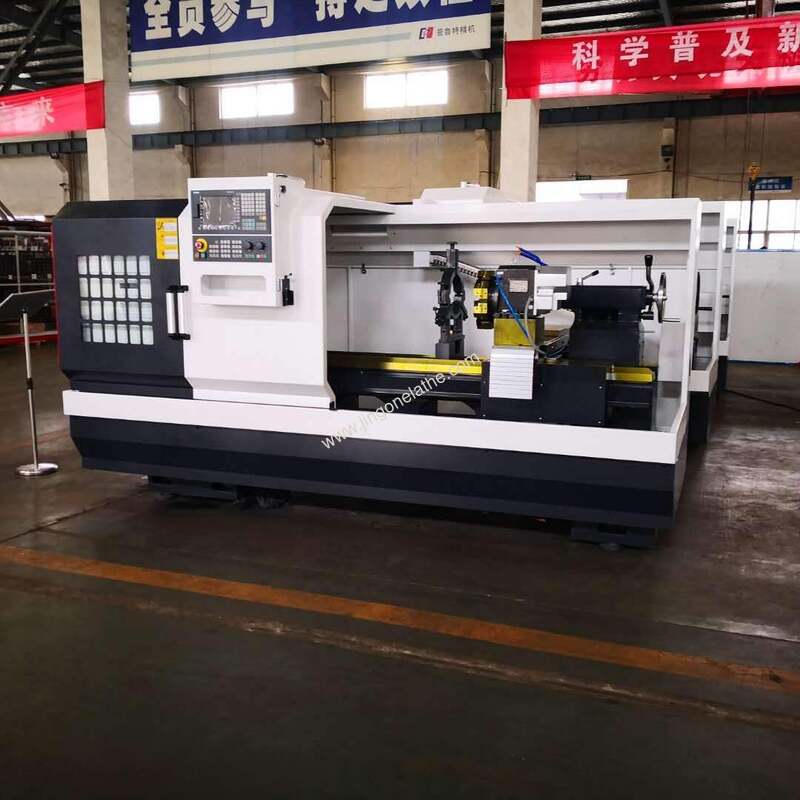

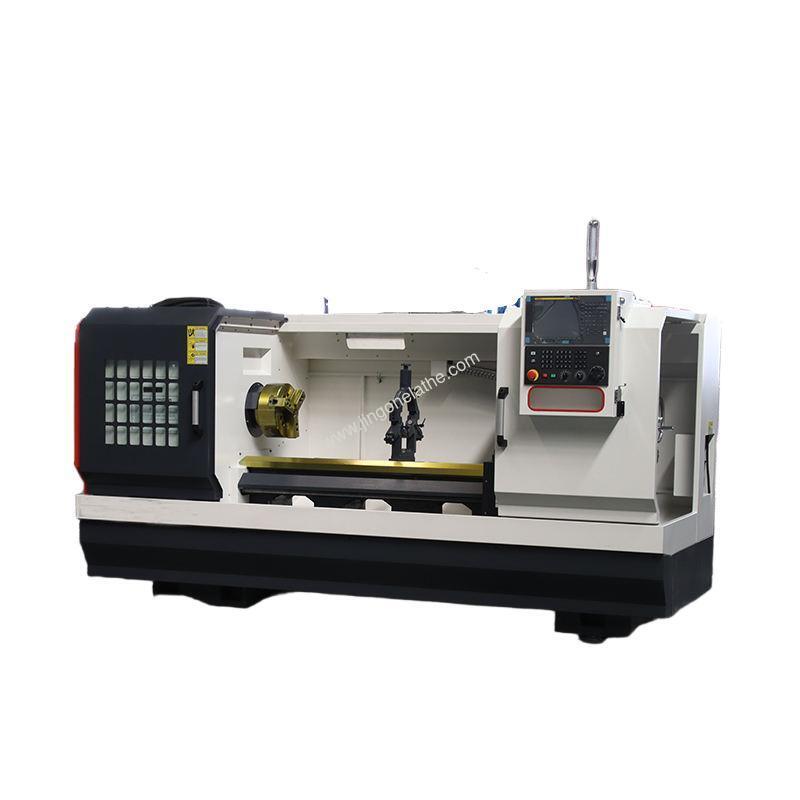

CNC Horizontal Metal Lathe CK6160: High Load Capacity for Stable Heavy Workpiece Machining
Model: CK6160 | Core Keyword: cnc horizontal metal lathe
Summary
CNC horizontal metal lathe CK6160 is engineered for consistent heavy workpiece machining. Its rigid box guideway reduces spindle runout, ensuring long-term precision even under high-load conditions.
With a maximum swing over bed of 600mm and center distances up to 2000mm, this lathe supports large part processing. It features an A2-8 spindle nose and MT5# tailstock taper for secure workpiece clamping and stable support.
Compatible with GSK 980TC3, Fanuc 0i-TF, or Siemens 828D systems, it meets diverse precision and budget needs for automotive, aerospace, and heavy equipment manufacturing clients.
Features
- Rigid box guideway structure minimizes spindle runout and vibration, ensuring stable machining for heavy workpieces
- Semi-enclosed solid shield contains metal chips and high-pressure coolant, reducing floor maintenance and enhancing operator safety
- MT5# tailstock taper and robust quill diameter provide strong load-bearing capacity for high-load workpiece support
- Standard GSK 980TC3 CNC system, with optional Fanuc 0i-TF and Siemens 828D systems to match precision and budget requirements
- Stepless spindle speed range (150-1800 rpm) and Z-axis rapid traverse of 8 m/min optimize machining cycle efficiency
- Standard 3-jaw manual chuck, with optional hydraulic station and hydraulic tailstock for automated operations
- Automatic lubrication system ensures consistent guideway and spindle bearing performance, reducing downtime
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. swing diameter over bed | Φ600 mm |
| Max. swing diameter over cross slide | 395 mm |
| Distance between centers | 2000 mm |
| Max. turning diameter for plate | 600 mm |
| Max. turning length | 1850 mm |
| X-axis travel | 325 mm |
| Z-axis travel | 2000 mm |
| Rapid traverse: X-axis | 6 m/min |
| Rapid traverse: Z-axis | 8 m/min |
| X-axis motor torque | 7.5 N.m |
| Z-axis motor torque | 15 N.m |
| Min. setting unit | 0.001 mm |
| Spindle nose type | A2-8 |
| Spindle through hole | 82 mm |
| Spindle taper | Metric 90 |
| Chuck | Φ250 mm |
| Hole through draw tube | 65 mm |
| Spindle speed change | Stepless |
| Spindle speed range | 150-1800 rpm |
| Tailstock quill diameter | Φ75 mm |
| Taper of tailstock quill bore | MT5# |
| Tailstock quill travel | 150 mm |
| Tailstock type | Manual (optional hydraulic) |

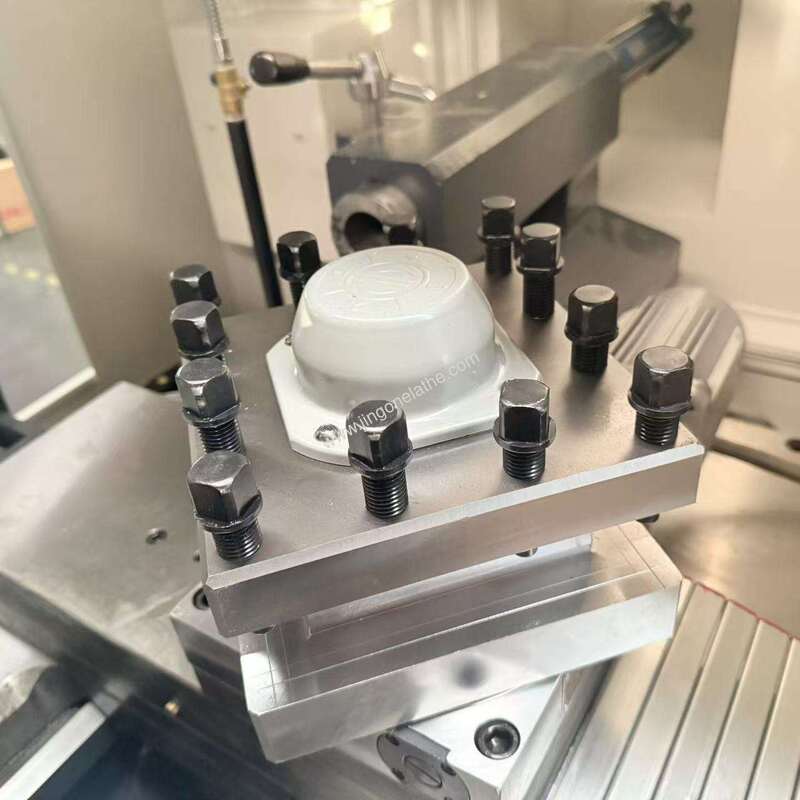

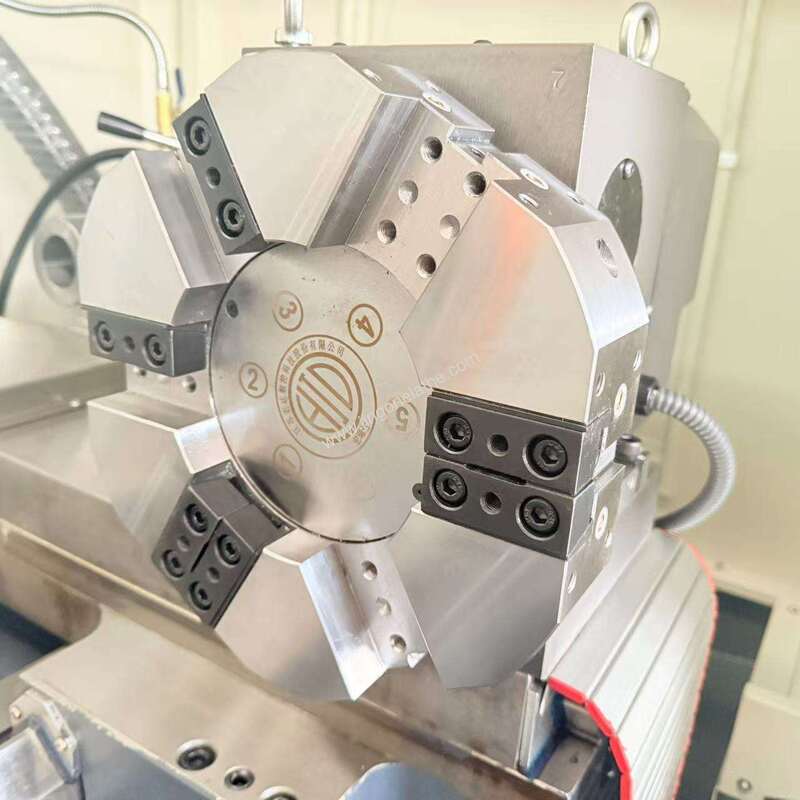

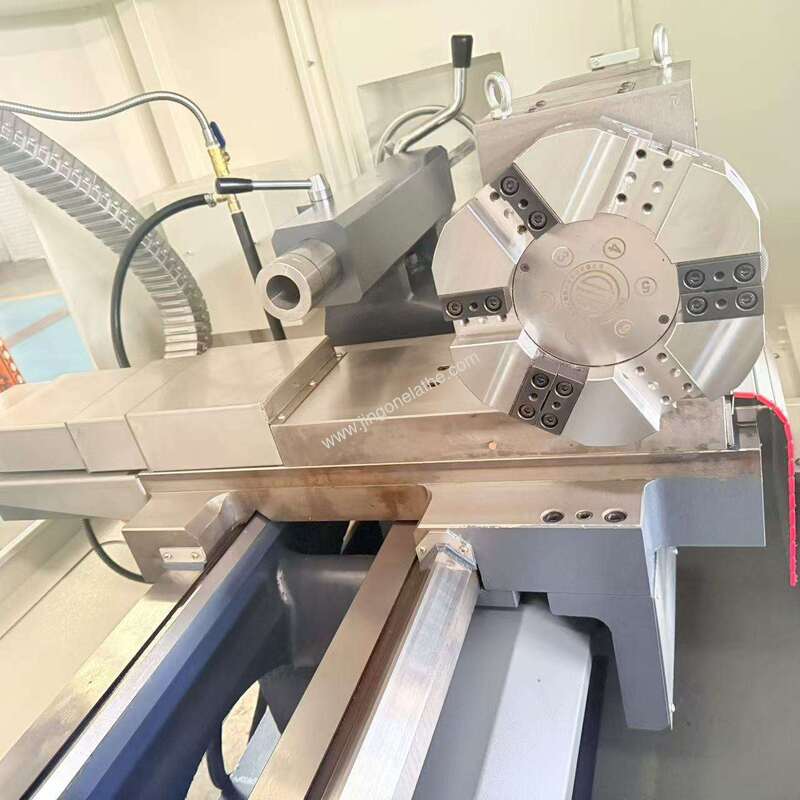

| Tool positions of electric tool turret | 4 T |
| Tool shank size | 25x25 mm |
| Guide rail type | Box guide way |
| X-axis rail width | 210 mm |
| Z-axis rail width | 400 mm |
| Center height: from bed / ground | 276/1110 mm |
| Main motor power | 7.5 KW |
| Cooling pump motor | 150/250 W |
| Lubrication pump | 2ZK(2L) |
| Net weight | 3600 Kg |
| Dimensions (LxWxH) | 3750x1700x1820 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine Frame | Standard |
| CNC System | Standard (GSK 980TC3); Optional (Fanuc 0i-TF, Siemens 828D) |
| Spindle Motor | Standard |
| Spindle Structure | Standard |
| Spindle Bearings | Standard |
| Guide Rail | Standard |
| Ball Screw | Standard |
| Screw Bearings | Standard |
| Tool Post | Standard |
| Automatic Lubrication | Standard |
| 3-jaw Manual Chuck | Standard |
| Coolant Pump | Standard |
| Tailstock | Standard (Manual); Optional (Hydraulic) |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: Which CNC systems are offered with the CK6160 CNC horizontal metal lathe?
A: The CK6160 CNC horizontal metal lathe comes standard with GSK 980TC3, with optional Fanuc 0i-TF and Siemens 828D systems to meet diverse precision needs.
Q: What is the maximum workpiece size the CK6160 lathe can machine?
A: The CK6160 CNC horizontal metal lathe supports workpieces up to 600mm swing over bed and 2000mm center distance, ideal for large heavy components.
Q: How does the box guideway improve the CK6160’s machining performance?
A: The box guideway on the CK6160 CNC horizontal metal lathe reduces spindle runout and vibration, ensuring consistent precision during long-term heavy workpiece machining.
