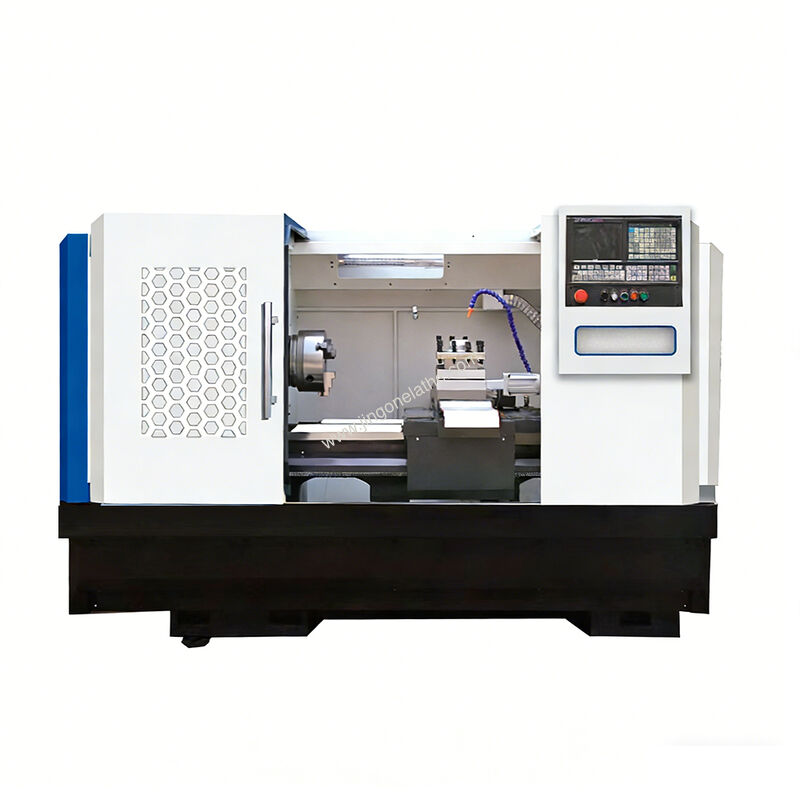

CK6160 CNC Flat Bed Metal Lathe: High-Precision Machining With 130mm Spindle Bore
CK6160 CNC Flat Bed Metal Lathe: High-Precision Machining With 130mm Spindle Bore
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6160
Contact Us
Request A Quote
Product Details
Spindle Through Hole::
130mm
Max.swing Over Bed：:
600mm
Width Of The Bed Guide Rail：:
400mm
Spindle Speed Change:
Stepless
Tool Positions Of Electric Tool Turret:
4
X-axis Travel:
325mm
Z-axis Travel:
1000mm
Tailstock Type:
Manual (optional Hydraulic)
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 10800 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
CK6160 CNC Flat Bed Metal Lathe: High-Precision Machining with 130mm Spindle Bore
Model: CK6160 | Core Keyword: cnc flat bed metal lathe machine
Summary
CK6160 CNC Flat Bed Metal Lathe delivers consistent precision for heavy-duty metal machining tasks. With a maximum swing over bed of 600mm and 130mm spindle bore, it accommodates large-diameter bar stock and pipe components, aligning with the needs of high-volume production workshops.
Equipped with box guide ways and centralized lubrication, this lathe maintains long-term accuracy while reducing wear on critical components. Its stepless spindle speed control (150-1800 rpm) supports versatile machining operations from roughing to finishing, covering a wide range of metalworking applications.
Ideal for automotive, oil and gas, and general engineering facilities, the CK6160 CNC flat bed metal lathe combines robust construction with smart design to minimize downtime and maximize machining efficiency.
Features
- Heavy-duty box guide ways with hardened surfaces for minimal wear and long-term precision retention
- 130mm spindle bore to accommodate large-diameter bar stock and heavy pipe components
- Centralized automatic lubrication system that maintains guideway and ball screw health without manual intervention
- Semi-enclosed solid shield contains metal chips and high-pressure coolant, ensuring operator safety and reducing floor maintenance
- Stepless spindle speed range (150-800 rpm) for seamless transition between roughing and finishing operations

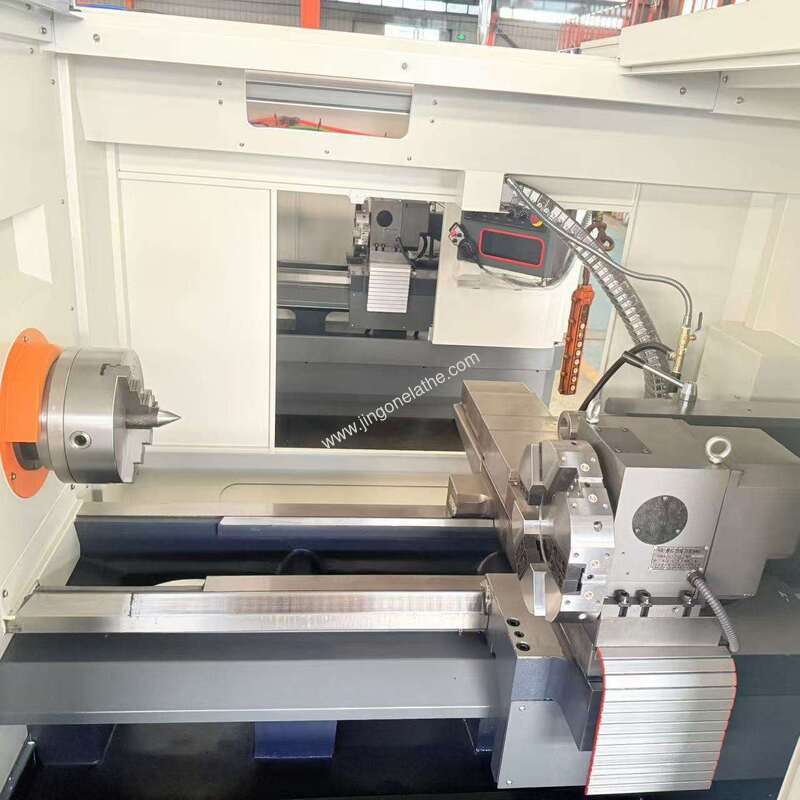

- 4-position electric tool turret with 25x25mm tool shank size for quick tool changes
- Optional hydraulic tailstock and 250mm chuck for enhanced productivity and versatility
Technical Specifications
| ### Capacity | ||
|---|---|---|
| Max.swing diameter over bed | mm | Φ600 |
| Max.swing diameter over cross slide | mm | 395 |
| Distance between centers | mm | 1000 |
| Max.turning diameter for plate | mm | 600 |
| Max. turning length | mm | 850 |
| ### Travel & Feed | ||
| X-axis travel | mm | 325 |
| Z-axis travel | mm | 1000 |
| Rapid traverse: X-axis | m/min | 6 |
| Rapid traverse: Z-axis | m/min | 8 |
| X-axis motor torque | N.m | 7.5 |
| Z-axis motor torque | N.m | 7.5 |
| Min.setting unit | mm | 0.001 |
| ### Spindle | ||
| Spindle nose type | A2-11 | |
| Spindle through hole | mm | 130 |
| Spindle taper | Metric 90, Metric 140 | |
| Chuck | mm | Φ250 |
| Hole through draw tube | No | 65 |
| Spindle speed change | Stepless | |
| Spindle speed range | rpm | 150-800 |
| ### Tailstock | ||
| Tailstock quill diameter | mm | Φ75 |
| Taper of tailstock quill bore | No | MT5# |
| Tailstock quill travel | mm | 150 |
| Tailstock type | Manual | |
| ### Tool Post | ||
| Tool positions of electric tool turret | T | 4 |
| Tool shank size | mm | 25x25 |
| ### Structure& Transmission | ||
| Guide rail type | Box guide way | |
| X-axis rail width | mm | 210 |
| Z-axis rail width | mm | 400 |
| Center height: from bed /ground | mm | 276/1110 |
| X-axis ball screw | mm | 2506 |
| Z-axis ball screw | mm | 4008 |
| ### Power | ||
| Main motor power | KW | 11 |
| Cooling pump motor | W | 250 |
| ### Others | ||
| Lubrication pump | L | 2ZK(2L) |
| Net weight | Kg | 2800 |
| Dimensions(LxWxH) | mm | 2650x1700x1820 |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine Frame | Standard |

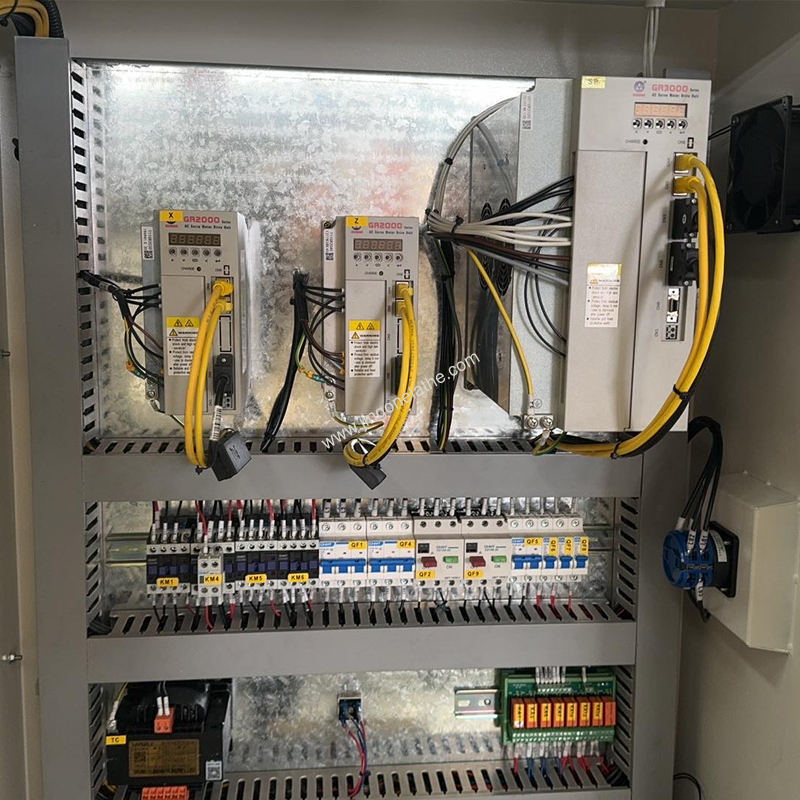

| CNC system | Standard GSK system |
| Spindle motor | Standard |
| Spindle structure | Standard |
| Spindle bearings | Standard |
| Guide rail | Standard |
| Ball Screw | Standard |
| Screw bearings | Standard |
| Tool post | Standard |
| Automatic lubrication | Standard |

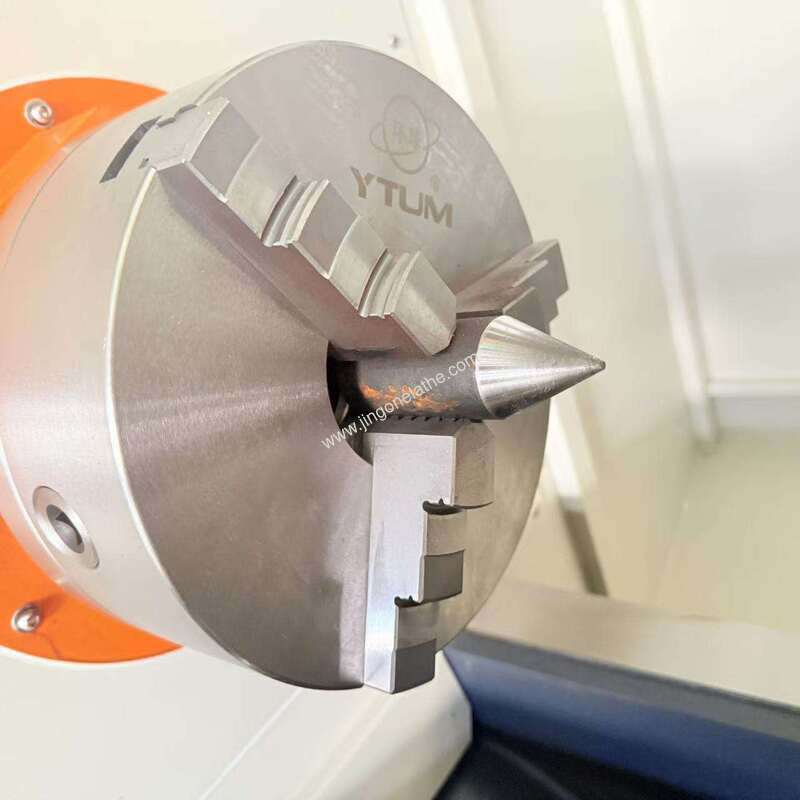

| 3-jaw manual chuck | Standard |
| Coolant pump | Standard |
| Tailstock | Standard (manual; optional hydraulic) |
| Hydraulic chuck | Optional |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum bar stock diameter the CK6160 CNC flat bed lathe can handle?
A: The CK6160 CNC flat bed metal lathe accommodates bar stock up to 130mm in diameter via its large spindle bore, ideal for pipe machining.
Q: How does the CK6160 maintain long-term precision during heavy use?
A: The CK6160 CNC flat bed lathe uses centralized automatic lubrication to reduce wear on box guide ways and ball screws, preserving precision over time.
Q: What optional upgrades are available for the CK6160 CNC flat bed lathe?
A: The CK6160 CNC flat bed metal lathe offers optional hydraulic tailstock and 250mm chuck to enhance productivity for high-volume machining tasks.
