Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6150x1000

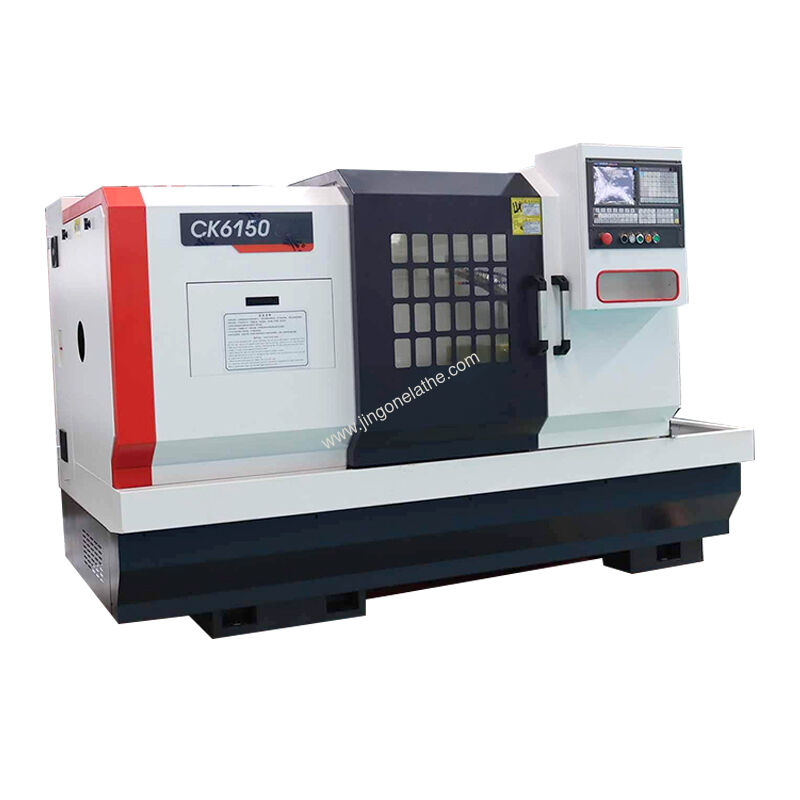

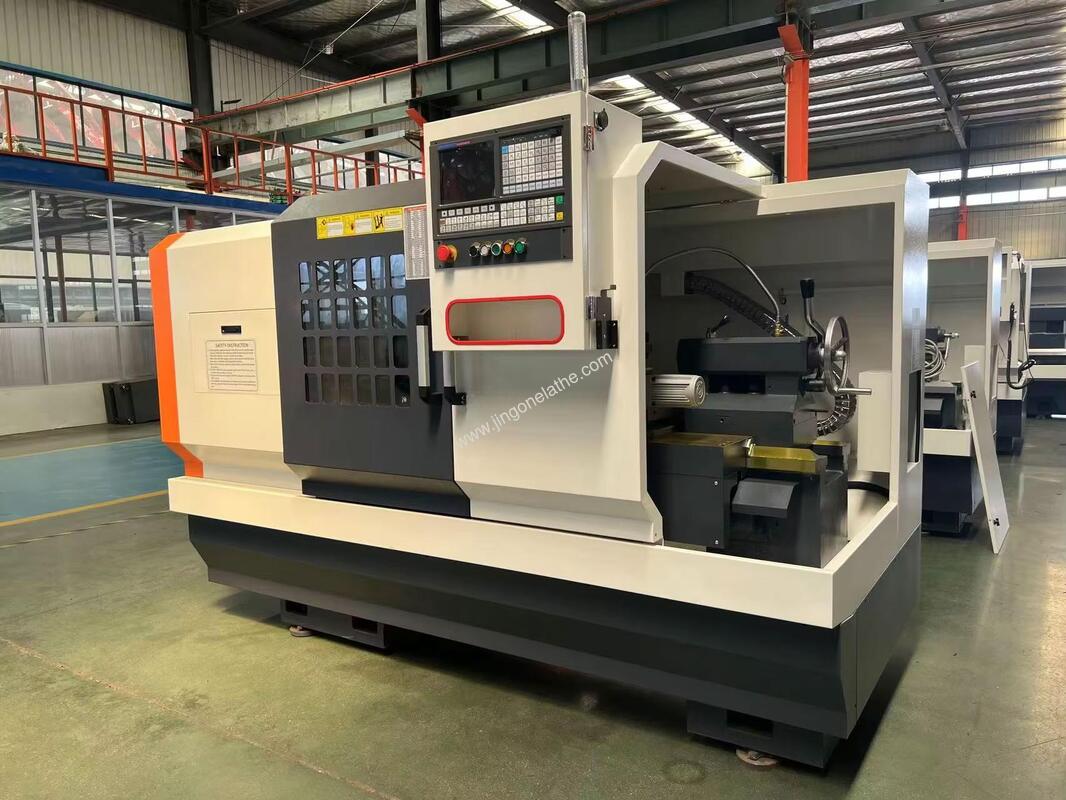

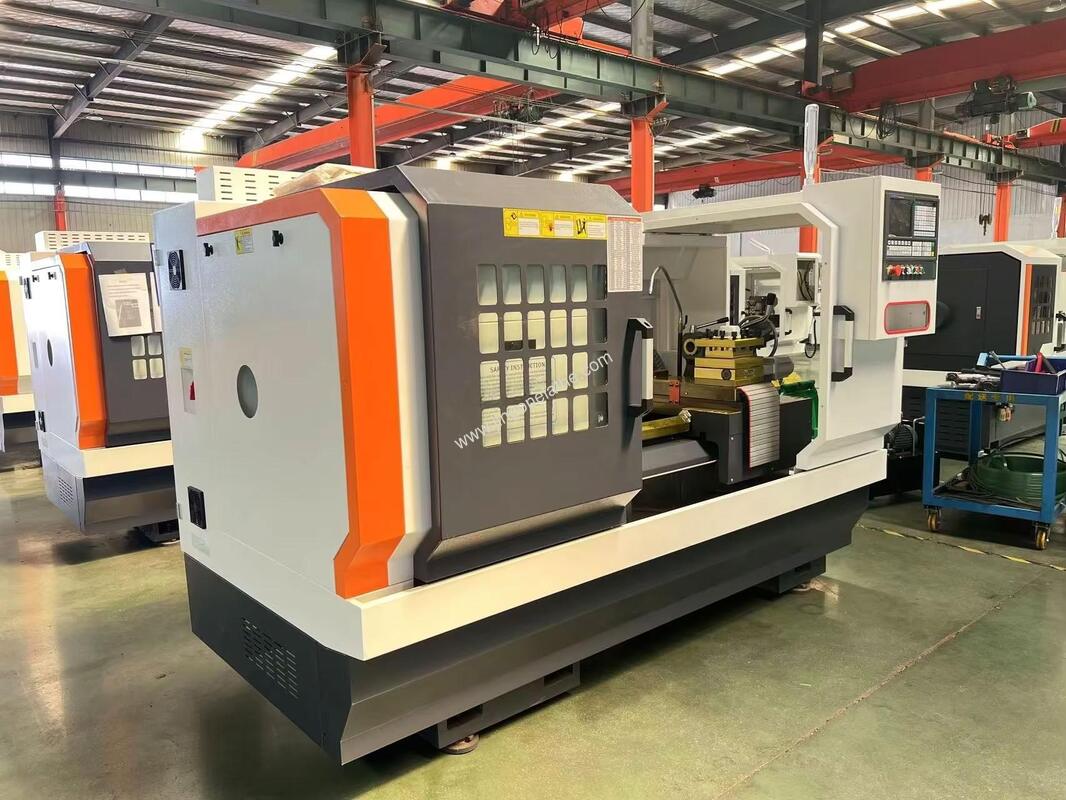

The JingOne CK6150 is a highly rigid, heavy-duty CNC flat bed lathe engineered for the multi-tasking machining of medium-length shafts and large-diameter disc components.
As a benchmark model in the classic CK Series Lathe lineup, it balances robust cutting torque with exceptional positional stability, making it a reliable workhorse for general metal fabrication shops, heavy machinery maintenance, and batch manufacturing lines.
Built upon a massive 2700 kg solid casting base(1000mm), this CNC metal lathe features an ultra-wide 400mm Z-axis box guideway (hard guideway) and an A2-8 heavy-duty spindle with an 82mm through-hole. Driven by a powerful 7.5 kW main motor, it delivers a stepless speed range of 150 to 1800 rpm to easily handle stubborn alloys.
With a 1000/1500/2000mm distance between centers and a generous 500mm maximum swing diameter, the CK6150 provides standard-setting structural stability and component flexibility.
| Parameter | Specification |
|---|---|
| Max. swing diameter over bed | Φ500 mm |
| Distance between centers | 1000/1500/2000 mm |
| Max. turning diameter for plate | 500 mm |
| Max. turning length | 850/1350/1850 mm |
| X-axis travel | 280 mm |
| Z-axis travel | 1000/1500/2000 mm |
| Rapid feed: X-axis | 6 m/min |
| Rapid feed: Z-axis | 8 m/min |
| Spindle nose type | A2-8 |
| Spindle through hole | 82 mm |
| Chuck | Φ250 mm |
| Hole through draw tube | 65 mm |
| Spindle speed change | Stepless |
| Spindle speed range | 150-1800 rpm |
| Tailstock quill diameter | Φ75 mm |
| Taper of tailstock quill bore | MT5# |
| Tailstock quill travel | 150 mm |
| Tailstock type | Manual |
| Tool positions of electric tool turret | 4 |
| Tool shank size | 25x25 mm |
| Guide rail type | Box guide way |
| X-axis rail width | 210 mm |
| Z-axis rail width | 400 mm |
| X-axis ball screw | 2506 mm |
| Z-axis ball screw | 4008/5010/5010 mm |
| Positioning accuracy (X-axis) | 0.01 mm |
| Positioning accuracy (Z-axis) | 0.015 mm |
| Repeatability (X-axis) | 0.009 mm |
| Repeatability (Z-axis) | 0.01 mm |
| X-axis motor torque | 5 N.m |
| Z-axis motor torque | 7.5 N.m |
| Main motor power | 7.5 KW |
| Cooling pump motor | 150 W |
| Lubrication pump | 2ZK(2L) |
| Net weight | 2700/3100/3500 Kg |
| Dimensions (LxWxH) |
2650x1700x1820 mm 3250x1700x1820mm 3750x1700x1820mm |
| Accessory | Configuration |
|---|---|
| Tool Turret | 6-station/8-station optional |
| Chuck | Hydraulic chuck optional |
| Safety System | Automatic door + safety device optional |
| Fluid Management | Oil-water separator optional |
| Air Quality | Oil mist collection optional |
| Machining Precision | Tool setter optional |
| Workpiece Control | Workpiece measurement optional |
| Maintenance Tools | Blowling device (Air gun) optional |
| Cleaning | Water Gun optional |
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
Q: What are the maximum workpiece sizing and structural layouts for the CK6150 CNC flat bed lathe?
A: The JingOne CK6150 is specialized for medium-to-large universal parts. It offers a 1000/1500/2000mm distance between centers, a 500mm maximum swing diameter over bed, and a 500mm maximum turning diameter for plate (disc) parts. It utilizes a traditional CNC flat bed lathe configuration paired with a 400mm ultra-wide Z-axis box guideway (hard rail), which yields maximum geometric stability and vibration resistance compared to lighter linear-guided machines when processing heavy, dense metal parts.
For larger machining capacity, please view CK6160 and other series.
Q: What is the bar capacity and spindle speed range of the CK6150 CNC Metal lathe?
A: The powertrain of the CK6150 CNC metal lathe is built for roughing torque and smooth finishing:

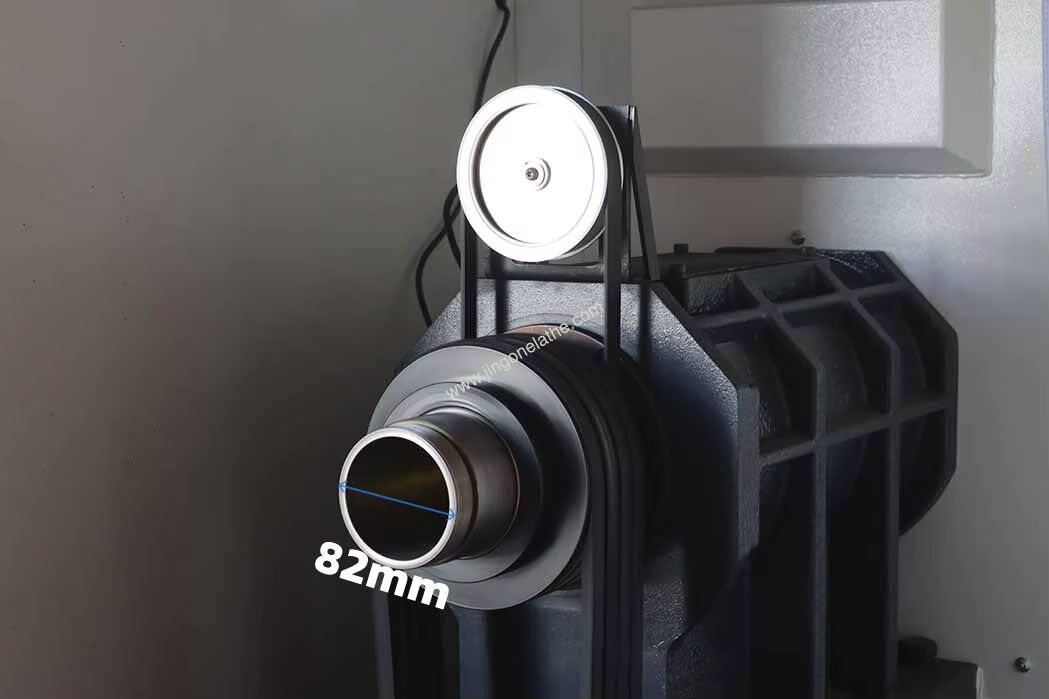

Spindle Structure: It is engineered with an A2-8 spindle nose holding a large 82mm spindle through-hole and a 65mm through-hole for the draw tube, ideal for oversized bar material operations.
Speed & Power: Driven by a 7.5 kW high-torque main motor, it supports a stepless, flexible speed range of 150 to 1800 rpm, enabling optimal cutting feed rates for steel, iron, copper, and aluminum alloys.
Q: How does the CK6150 CNC lathe adapt to universal workshops looking to upgrade to automated production?
A: The JingOne CK6150-1000 serves as an ideal, cost-effective gateway for traditional metalworking job shops transitioning into smart automation. Thanks to its highly adaptable, modular CNC flat bed lathe architecture, it can be easily configured to scale up workshop automation through the following optional integrations:

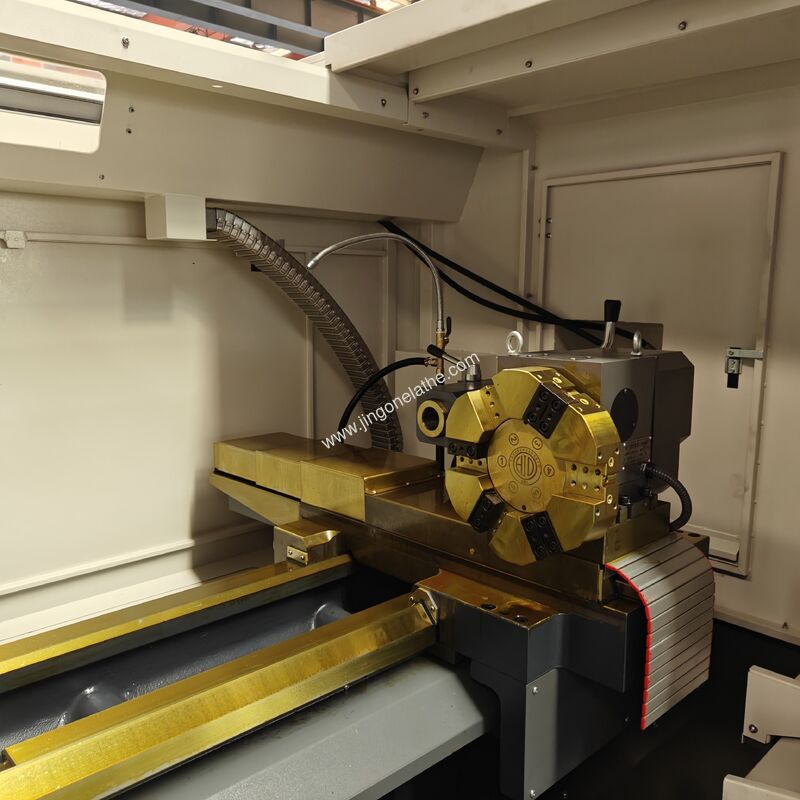

Automated Workholding & Tooling: By upgrading from the standard manual setup to an optional hydraulic chuck and a high-capacity 6-station or 8-station electric tool turret, the machine drastically eliminates operator manual intervention and shortens tool change cycle times.
Smart Parts Inspection: The inclusion of an optional automatic tool setter and workpiece measurement probe enables the lathe to execute real-time tool wear compensation and inline quality control without stopping production.
Unmanned Cell Integration: The CK6150 can be outfitted with an automatic safety door with safety devices, making it fully compatible with automated gantry loaders or robotic arm interfaces for 24/7 continuous, unmanned batch production of shafts and disc parts.
