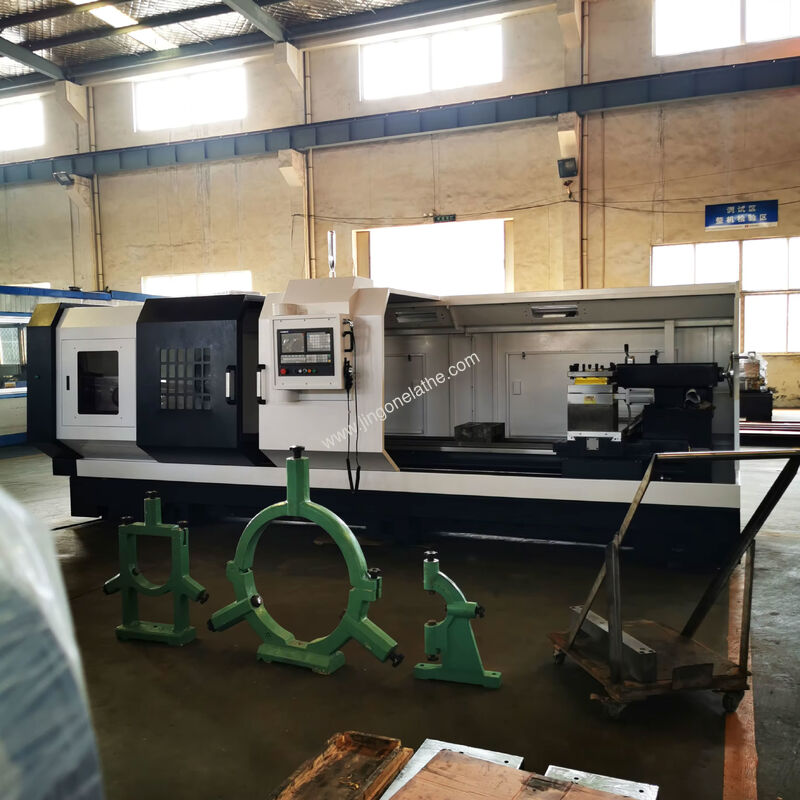

Big Bore Flat Bed CNC Lathe CK6185Ex2000: High-Precision For 2000mm Medium-Length Component Machining
Big Bore Flat Bed CNC Lathe CK6185Ex2000: High-Precision For 2000mm Medium-Length Component Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6185Ex2000
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
850mm
Distance Between Centers:
2000mm
Spindle Through-hole Diameter:
105mm
Spindle Speed Range:
10-850mm
Main Motor Power:
11Kw
Flatness:
0.025/φ300mm
Surface Roughness:
Ra1.6μm
Repeat Positioning Accuracy:
±0.01/150
Payment & Shipping Terms
Minimum Order Quantity
1
Price
25000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Big Bore Flat Bed CNC Lathe CK6185Ex2000: High-Precision for 2000mm Medium-Length Component Machining
Model: CK6185Ex2000 | Core Keyword: Big Bore Flat Bed CNC Lathe
Summary
Big Bore Flat Bed CNC Lathe CK6185Ex2000 provides reliable precision for medium-length disk, sleeve, and bar workpiece machining. Its high-strength integrated bed and widened slide carriage minimize vibration during heavy cuts.
Featuring a 105mm spindle through-hole, 2000mm center distance, and 3-stage spindle gear shift with stepless variable speed, this lathe handles turning, drilling, and threading operations with consistent accuracy.
Ideal for general machinery, aerospace, and automotive parts production, it meets diverse process requirements for external circles, inner holes, and threads, with optional hydraulic chuck to reduce manual clamping time.
Features
- High-strength integrated cast bed to reduce vibration and maintain long-term precision
- 105mm spindle through-hole for accommodating oversized bar workpieces and reducing material waste
- 3-stage manual gear shifting spindle with stepless variable speed in each range (10-85, 40-350, 100-850 rpm)
- Box way guideways for enhanced load capacity and wear resistance during frequent tool changes
- Automatic centralized lubrication system to extend component service life and reduce maintenance
- Standard 4-station tool turret; optional 6/8-station turret, hydraulic chuck, or tailstock available
- GSK 988TA standard control; optional FANUC Oi-TF or SIEMENS systems for advanced operation
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter over bed | ¢850 mm |
| Max. swing diameter over cross slide | ¢500 mm |
| Max. diameter for machining disc parts | ¢850 mm |
| Distance between centers | 2000 mm |
| Max. turning length | 1900 mm |
| **Spindle** | |
| Spindle nose type | C11 |
| Spindle through-hole diameter | ¢105 mm |
| Spindle taper | Metric 120 1:20 |
| Spindle speed change | 3 step speed with manual gear shifting, stepless in step |
| Spindle speed range | 10-85 rpm, 40-350 rpm, 100-850 rpm |
| **Chuck** | |
| Chuck type | Manual chuck |
| Chuck size | 400 mm |
| **Feed & Travel** | |
| X/Z-axis rapid traverse | 4 / 5 m/min |
| X/Z-axis servo motor torque | X:10 N.m, Z:15 N.m |
| X/Z-axis travel | X:450 mm, Z:2100 mm |
| Guideway type | Box way |
| Minimum setting unit | 0.001 mm |

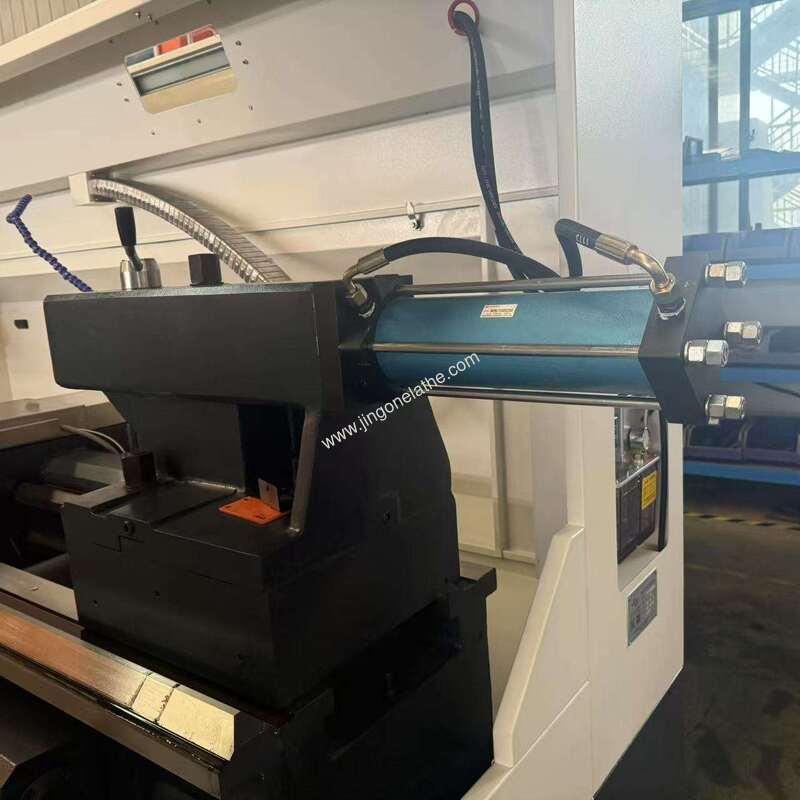

| **Tailstock** | |
| Tailstock quill diameter | ¢100 mm |
| Tailstock quill bore taper | MT.6 |
| Tailstock quill travel | 250 mm |
| Tailstock type | Manual |
| **Tool station** | |
| Tool stations | 4 |
| Tool shank size | 32x32 mm |
| **Power** | |
| Main motor power | 11 Kw |
| Total rated power | 16/16 Kw |
| Total rated current | 36/36 A |
| **Others** | |
| Net weight | 5800 Kg |
| Dimensions (L × W × H) | 4500x2000x2000 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| 1 | 6-station/8-station turret tool |
| 2 | Hydraulic chuck |
| 3 | Automatic door |
| 4 | Safety device for automatic door |
| 5 | Oil-water separator |
| 6 | Oil mist collection |
| 7 | Tool setter |
| 8 | Workpiece measurement |
| 9 | Blowling device (Air gun) |
| 10 | Water Gun |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the spindle through-hole diameter of the CK6185Ex2000?
A: The Big Bore Flat Bed CNC Lathe CK6185Ex2000 has a 105mm spindle through-hole for large bar and sleeve workpieces.
Q: Can this lathe be equipped with an automatic workpiece clamping system?
A: Yes, the Big Bore Flat Bed CNC Lathe CK6185Ex2000 offers an optional hydraulic chuck for automatic workpiece clamping, reducing setup time.
Q: What industries is the CK6185Ex2000 suitable for?
A: The Big Bore Flat Bed CNC Lathe CK6185Ex2000 is ideal for general machinery, aerospace, and automotive parts production, handling disks and sleeves.
