Rigid Box Way Turn-Mill TCK63Y-2000 | Off-Center Machining
Rigid Box Way Turn-Mill TCK63Y-2000 | Off-Center Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK63Y-2000
Contact Us
Request A Quote
Product Details
CNC System:
Fanuc Oi-Tf Srandard, GSK/Syntec/Siemens Optional
Chuck:
15 Inch Hollow Hydraulic Chuck
Turret:
BMT65-12T-420
Y-axis Travel:
±65 Mm
Tailstock Type:
Hydraulic Tailstock
Tailstock Sleeve:
MT.5 140mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
70000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Rigid Box Way Turn-Mill TCK63Y-2000 | ±65mm Y-Axis for Precision Off-Center Machining
Model: TCK63Y-2000 | Core Keyword: Rigid Box Way Turn-Mill for Off-Center Machining
Summary
Rigid Box Way Turn-Mill for Off-Center Machining (TCK63Y-2000) delivers exceptional precision for off-center operations with ±65mm Y-axis travel.
Featuring a BMT65 live turret and HRC55 hardened box guideways, it supports heavy-duty cutting with its 15-inch hollow hydraulic chuck and 18.5Kw main motor.
Designed for aerospace, defense, and precision machinery manufacturers processing long workpieces up to 2000mm with complex off-center features.
Features
-

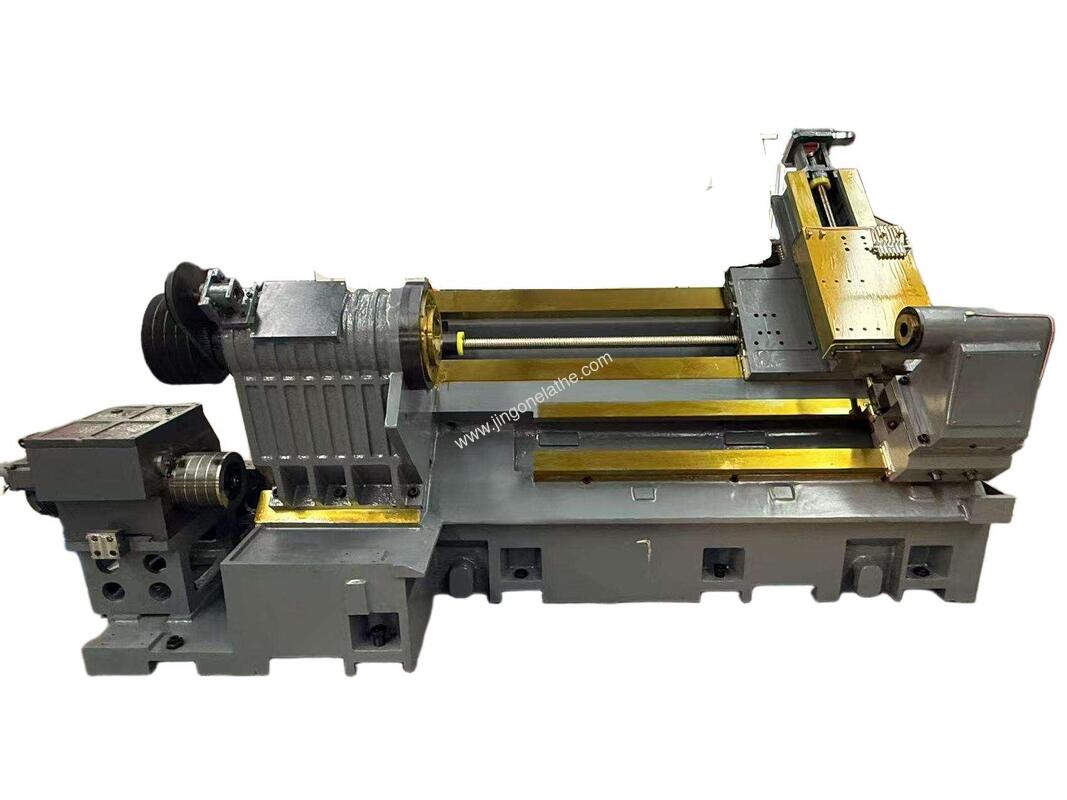

Maximum Rigidity: A 30° high-strength cast iron slant bed provides the ultra-stable foundation required for complex off-center machining.
-

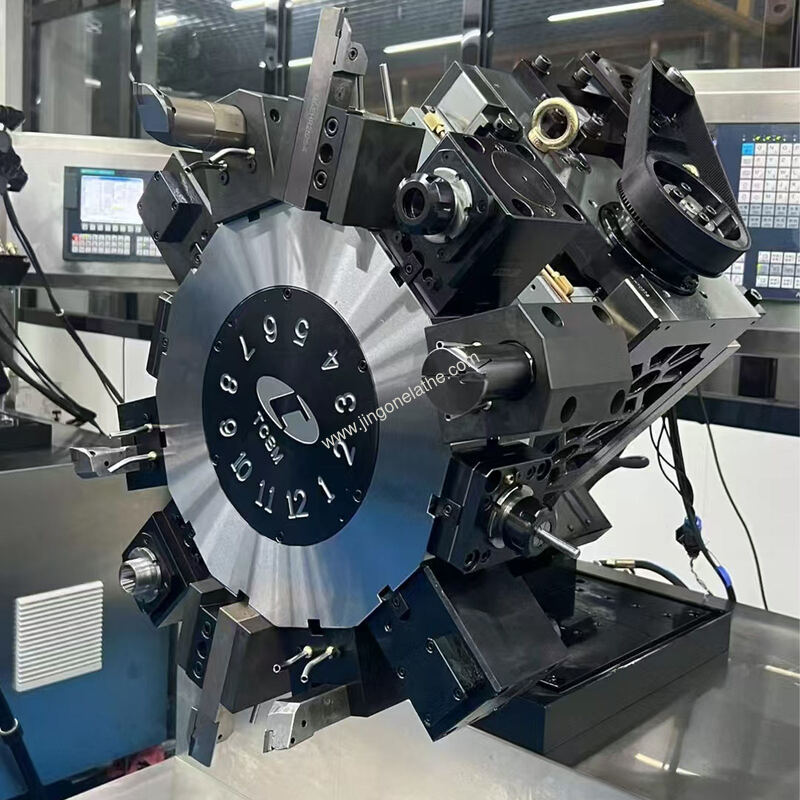

True Y-Axis Capability: Features ±65mm Y-axis travel and a BMT65 live turret for precision milling, drilling, and tapping in a single setup.
-
Heavy-Duty Box Ways: HRC55 hardened guideways deliver superior dampening and rigidity to handle aggressive cutting forces.
-
Large-Bore Spindle: A2-11 spindle nose with a 103mm bore (90mm bar capacity) allows for the heavy-duty processing of oversized workpieces.
-
Optimized Throughput: The 12-station quick-indexing live turret slashes non-cutting time, significantly boosting daily production output.
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Max.swing diameter | mm | 780 |
| Max.turning diameter | mm | 530 |
| Max.turning length | mm | 1950 |
| Spindle nose type | - | A2-11 |
| Spindle bore diameter | mm | 103 |
| Bar capacity | mm | 90 |
| Spindle speed | rpm | 1800 |
| Spindle speed change | - | Stepless |
| Main motor power | Kw | 18.5 |
| Chuck size | inch | 15'' |
| Chuck type | - | Hollow Hydraulic |
| Turret type | - | BMT65 Live Turret |
| Tool stations | T | 12-station |
| Turret disc diameter | mm | ¢420 |
| Tool size(square shank) | mm | 25x25/32x32 |
| Tool size(round shank) | mm | ¢40 |
| Cutting tools | - | 4 (2 square 2 round) |
| Live tool speed | rpm | 3000 |
| X-axis travel | mm | 350 |
| Z-axis travel | mm | 2000 |
| Y-axis travel | mm | ±65 |
| X-axis rapid feed | m/min | 16 |
| Z-axis rapid feed | m/min | 16 |
| Y-axis rapid feed | m/min | 6 |
| X-axis motor torque | N.m | 22 |
| Z-axis motor torque | N.m | 22 |
| Y-axis motor torque | N.m | 10 |
| Live tool motor torque | N.m | 30 |
| Main motor power | Kw | 18.5 |
| Machine bed tilt angle | - | 30° |
| Guideway type | - | Box guideway |
| X-axis ball screw | mm | 4010 |
| Z-axis ball screw | mm | 5512 |
| Tailstock type | - | Hydraulic tailstock |
| Movement | - | Manual |
| Sleeve diameter | mm | 140 |
| Sleeve travel | mm | 140 |
| Sleeve taper | - | M.T.5 |
| Positioning accuracy | mm | X: 0.012, Z: 0.02, Y: 0.01 |
| Repeatability | mm | X: 0.008, Z: 0.012, Y: 0.006 |
| Lubrication pump | L | 3ZK (3L) |
| Cooling pump | W | 450 |
| Power supply | KVA | 45 |
| Net weight | Kg | 8800 |
| Dimensions (L × W × H) | mm | 4900x2400x2300 |
Accessory Configurations
| ### Standard Configurations | |
|---|---|
| Machine frame | Integral Slant Bed High-Strength Cast Iron |
| CNC system | Fanuc, GSK, Syntec, Siemens optional |
| Spindle motor | Included |
| Spindle | With hydraulic brake |
| Ball screw | HIWIN/PMI, Taiwan |
| Screw bearings | KOYO, Japan |
| Hydraulic chuck | 10/15 inch hollow hydraulic chuck |
| Hydraulic station | Included |
| Servo turret | BMT65-12-420 |
| Lubrication pump | Included |
| Cooling pump | Included |
| Heat exchanger | Included |
| Low-Voltage Apparatus | Included |
| Triple alarm light | Included |
| ### Optional Configurations | |
| Chip conveyor | Side discharge |
| Tool setter | Folding arm tool setter |
| Automatic door | Included |
| Automatic door safety device | Included |
| Oil mist collector | Included |
| Oil/coolant separator | Included |
| Robot interface | Included |
| Bar material feeder | Included |
| Blowing device | Included |
| Water gun | Included |
| Soft jaws for chuck | Included |
| Live tool holders | 90°, 0°, others |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What makes TCK63Y-2000 suitable for off-center machining applications?
