Product Description
Heavy-Duty Box Way Turning Center: 1500mm Length for High-Torque Heavy Stock Removal
Model: TCK63M-1500 | Core Keyword: Heavy-Duty Box Way Turning Center
Summary
Heavy-Duty Box Way Turning Center delivers reliable high-torque performance for long heavy metal components. Its built-in 3-speed gearbox boosts low-rpm cutting torque, making it suitable for thick stock removal tasks that demand consistent power.

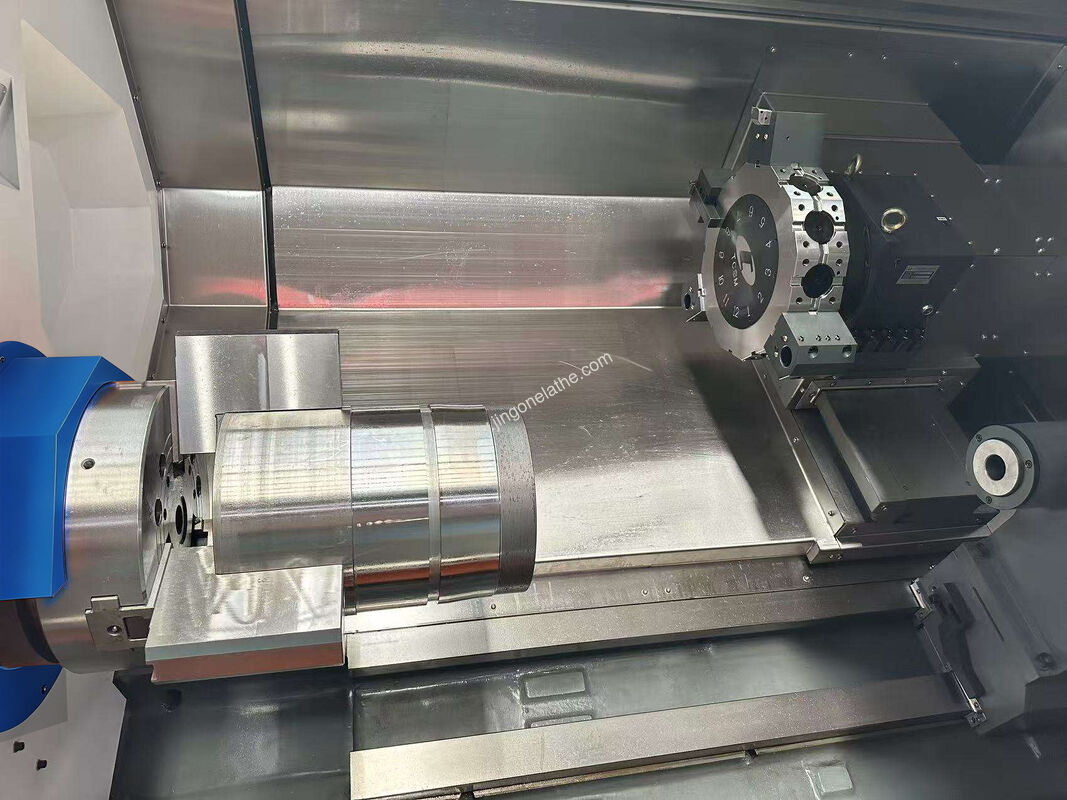

Constructed with HRC55 hardened box guideways and a 45° slant bed machined on a German gantry mill, this TCK63M-1500 maintains precision even during extended production runs. The hydraulic tailstock ensures stable workpiece support for 1500mm length turning, minimizing deflection errors.
Ideal for energy equipment, heavy machinery, and structural metal fabrication shops requiring durable turning solutions for large, heavy workpieces.
Features

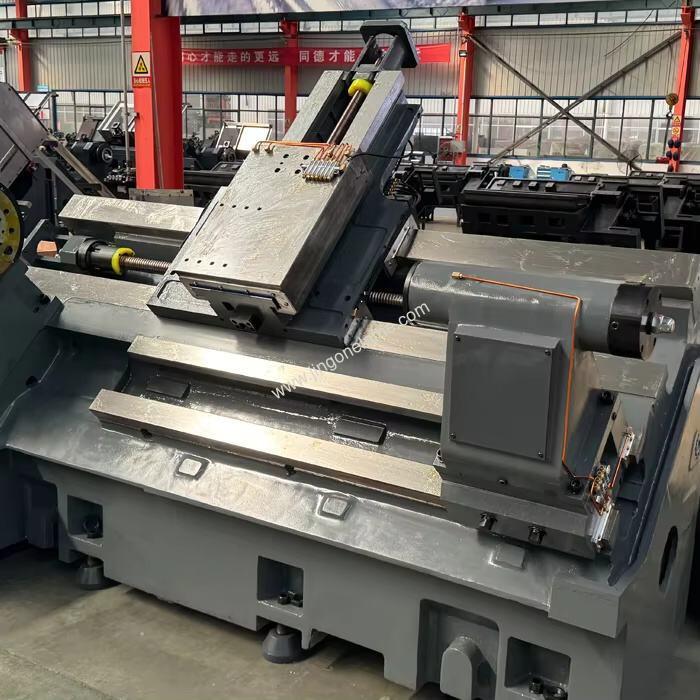

- High-strength 45° slant bed cast iron frame, precision-machined on a German-imported gantry milling machine
- Full-length HRC55 hardened box guideways for exceptional wear resistance during heavy cutting operations
- Built-in 3-speed gearbox enhances low-rpm torque by 30% for efficient thick stock removal
- 18.5kW main motor with stepless spindle speed adjustment up to 1200 RPM
- Hydraulic tailstock with 140mm sleeve diameter, providing stable support for 1500mm workpieces

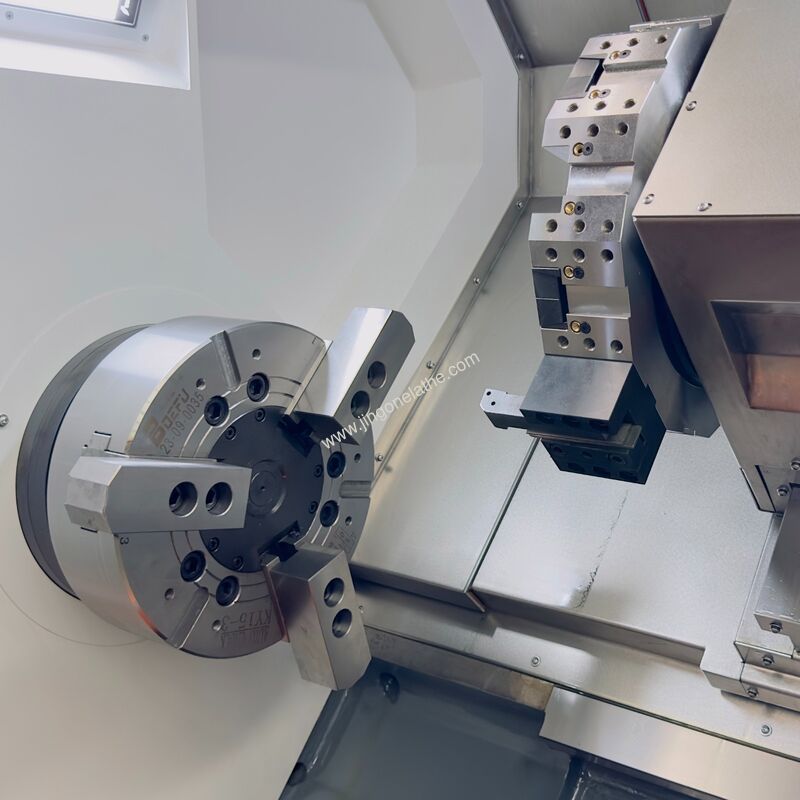

- A2-11 spindle nose with 103mm bore, accommodating large bar stock for long-length turning
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter | 650 mm |
| Max.turning diameter | 610 mm |
| Max.turning length | 1500 mm |
| Spindle nose type | A2-11 |
| Spindle bore diameter | 103 mm |
| Spindle speed | 1200 rpm |
| Spindle speed change | Stepless |
| Main motor power | 18.5 Kw |
| Chuck size | 15’’ |
| Chuck type | Solid Hydraulic |
| Turret type | BMT65 Live Turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢420 mm |
| Tool size(square shank) | 32x32 mm |
| Tool size(round shank) | ¢40 mm |
| Cutting tools | 6 (3 square 3 round) |
| X-axis travel | 350 mm |
| Z-axis travel | 1600 mm |
| X-axis rapid feed | 12 m/min |
| Z-axis rapid feed | 10 m/min |
| X-axis motor torque | 18 N.m |
| Z-axis motor torque | 18 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Box guideway |
| X-axis ball screw | 4005 mm |
| Z-axis ball screw | 5010 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 140 mm |
| Sleeve travel | 140 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.015 mm |
| Repeatability | X: 0.008 mm, Z: 0.012 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 750 W |
| Power supply | 32 KVA |
| Net weight | 8800 Kg |
| Dimensions (L × W × H) | 4200x2100x2400 mm |
Accessory Configurations
| ### Standard Configurations | |
|---|---|
| Machine frame | Integral Slant Bed High-Strength Cast Iron |
| CNC system | Fanuc, GSK, Syntec, Siemens optional |
| Spindle motor | Included |
| Spindle | With hydraulic brake |
| Ball screw | HIWIN/PMI, Taiwan |
| Screw bearings | KOYO, Japan |
| Hydraulic chuck | 10/15 inch hollow hydraulic chuck |
| Hydraulic station | Included |
| Servo turret | BMT65-12-420 |
| Lubrication pump | Included |
| Cooling pump | Included |
| Heat exchanger | Included |
| Low-Voltage Apparatus | Included |
| Triple alarm light | Included |
| ### Optional Configurations | |
| Chip conveyor | Side discharge type |
| Tool setter | Folding arm tool setter |
| Automatic door | Available |
| Automatic door safety device | Available |
| Oil mist collector | Available |
| Oil/coolant separator | Available |
| Robot interface | Available |
| Bar material feeder | Available |
| Blowing device | Available |
| Water gun | Available |
| Soft jaws for chuck | Available |
| Live tool holders | 90°, 0°, and other custom angles |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: Why is the 3-speed gearbox critical for heavy-duty cutting?
A: The 3-speed gearbox on this Heavy-Duty Box Way Turning Center increases low-rpm torque, enabling efficient thick stock removal without spindle stall.
Q: What workpiece support features does this turning center offer?
A: This TCK63M-1500 uses a hydraulic tailstock with 140mm sleeve diameter, providing stable support for 1500mm long heavy workpieces.
Q: Can I add live tooling to this turning center?
A: Yes, the BMT65 live turret on this Heavy-Duty Box Way Turning Center supports live tooling for mill-turn operations on long components.
