Precision Box Way Turn Mill Machine | TCK63M-2000 | Large Diameter Turning
Precision Box Way Turn Mill Machine | TCK63M-2000 | Large Diameter Turning
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK63M-2000
Contact Us
Request A Quote
Product Details
Max. Diameter For Plates:
610 Mm
Max. Bar Capacity:
88mm
Turret Type:
BMT65 Live Turret
Tool Stations:
12-station
Cutting Tools:
6 (3 Square 3 Round)
Live Tools:
90°, 0°, And Other Custom Angles Optional
Payment & Shipping Terms
Minimum Order Quantity
1
Price
56000 USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

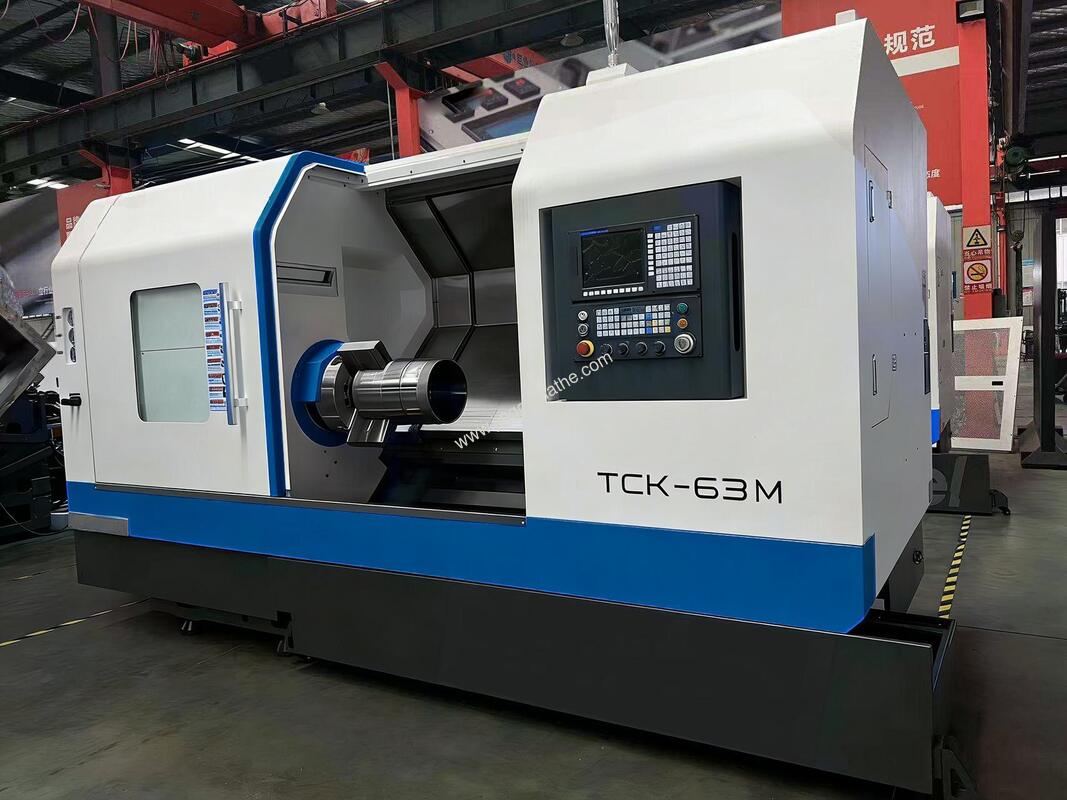

Precision Box Way Turn Mill Machine for Large Diameter Turning: 2000mm Length for High-Accuracy Component Machining
Model: TCK63M-2000 | Core Keyword: Precision Box Way Turn Mill Machine for Large Diameter Turning
Summary
Precision Box Way Turn Mill Machine for Large Diameter Turning delivers consistent high-accuracy performance for extra-long large-diameter metal components. Its 50mm Z-axis ballscrew reduces deflection, maintaining tight tolerances during 2000mm length turning operations.
Built with HRC55 hardened box guideways and a 45° slant bed machined on a German gantry mill, this TCK63M-2000 handles heavy large-diameter components with minimal spindle runout. The hydraulic tailstock provides stable support for extended workpieces, ensuring repeatable results across long production runs.
Ideal for wind turbine components, structural steel parts, and large machinery fabrication shops requiring precision in large diameter and long-length turning operations.
Features

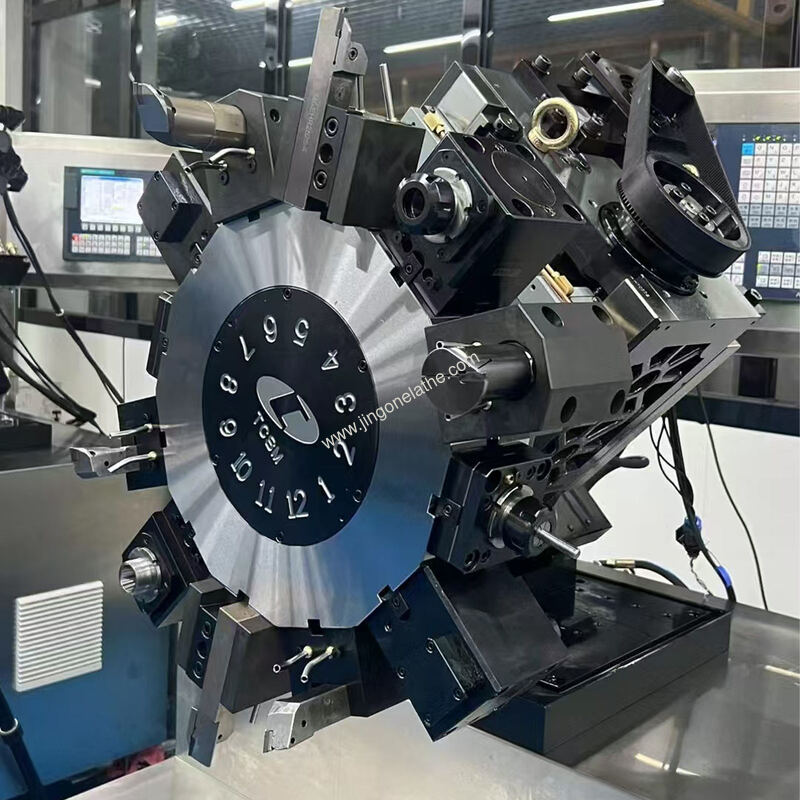

- BMT65 12 station live turret offers heavy duty turning milling integrated capacity

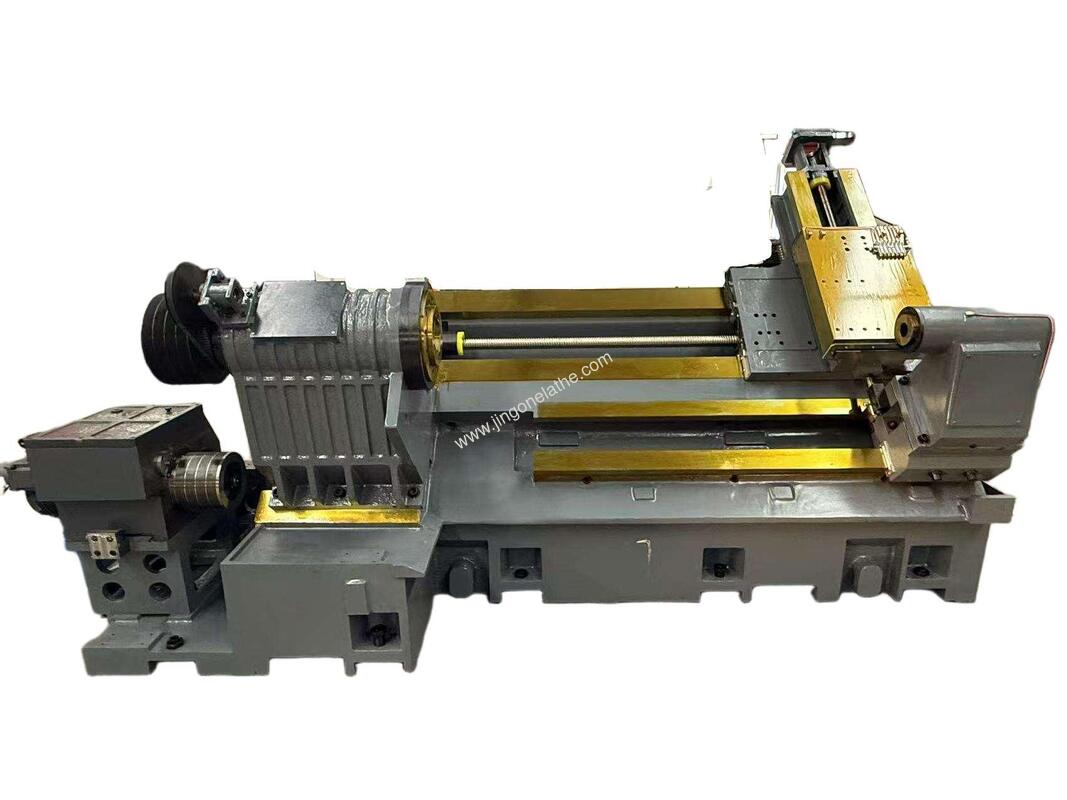

- High-strength integral 45° slant bed cast iron, machined on a German-imported gantry milling machine for flatness and rigidity
- Full-length HRC55 hardened box guideways for exceptional wear resistance and long-term dimensional stability
- 50mm diameter Z-axis ballscrew with preload, minimizing deflection during long-length large-diameter turning
- 18.5kW main motor with stepless spindle speed adjustment up to 1200 RPM, handling high-torque cutting tasks
- Hydraulic tailstock with 140mm sleeve diameter, providing stable support for 2000mm workpieces
- 103mm spindle bore diameter, accommodating large bar stock for long-length large-diameter turning
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter | 650 mm |
| Max.turning diameter | 610 mm |
| Max.turning length | 2000 mm |
| Spindle nose type | A2-11 |
| Spindle bore diameter | 103 mm |
| Spindle speed | 1200 rpm |
| Spindle speed change | Stepless |
| Main motor power | 18.5 Kw |
| Chuck size | 15’’ |
| Chuck type | Hydraulic |
| Turret type | BMT65 Live Turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢420 mm |
| Tool size(square shank) | 32x32 mm |
| Tool size(round shank) | ¢40 mm |
| Cutting tools | 6 (3 square 3 round) |
| X-axis travel | 350 mm |
| Z-axis travel | 2100 mm |
| X-axis rapid feed | 12 m/min |
| Z-axis rapid feed | 10 m/min |
| X-axis motor torque | 18 N.m |
| Z-axis motor torque | 18 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Box guideway |
| X-axis ball screw | 4005 mm |
| Z-axis ball screw | 5010 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 140 mm |
| Sleeve travel | 140 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.015 mm |
| Repeatability | X: 0.008 mm, Z: 0.012 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 750 W |
| Power supply | 32 KVA |
| Net weight | 9800 Kg |
| Dimensions (L × W × H) | 4700x2100x2400 mm |
Accessory Configurations
| ### Standard Configurations | |
|---|---|
| Machine frame | Integral Slant Bed High-Strength Cast Iron |
| CNC system | Fanuc, GSK, Syntec, Siemens optional |
| Spindle motor | Included |
| Spindle | With hydraulic brake |
| Ball screw | HIWIN/PMI, Taiwan |
| Screw bearings | KOYO, Japan |
| Hydraulic chuck | 10/15 inch hollow hydraulic chuck |
| Hydraulic station | Included |
| Servo turret | BMT65-12-420 |
| Lubrication pump | Included |
| Cooling pump | Included |
| Heat exchanger | Included |
| Low-Voltage Apparatus | Included |
| Triple alarm light | Included |
| ### Optional Configurations | |
| Chip conveyor | Side discharge type |
| Tool setter | Folding arm tool setter |
| Automatic door | Available |
| Automatic door safety device | Available |
| Oil mist collector | Available |
| Oil/coolant separator | Available |
| Robot interface | Available |
| Bar material feeder | Available |
| Blowing device | Available |
| Water gun | Available |
| Soft jaws for chuck | Available |
| Live tool holders | 90°, 0°, and other custom angles |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum workpiece diameter this lathe can handle?
A: This Precision Box Way Lathe for Large Diameter Turning supports up to 610mm max turning diameter on 2000mm length workpieces.
Q: How does the slant bed design improve precision for long workpieces?
A: The 45° slant bed on this TCK63M-2000 reduces tool tip distance to the Z-axis ballscrew, minimizing spindle runout for long-length large-diameter turning.
Q: Can this lathe accommodate large bar stock for long turning?
A: Yes, with its 103mm spindle bore diameter, this Precision Box Way Lathe can handle large bar stock for 2000mm length turning milling operations.
