Product Description

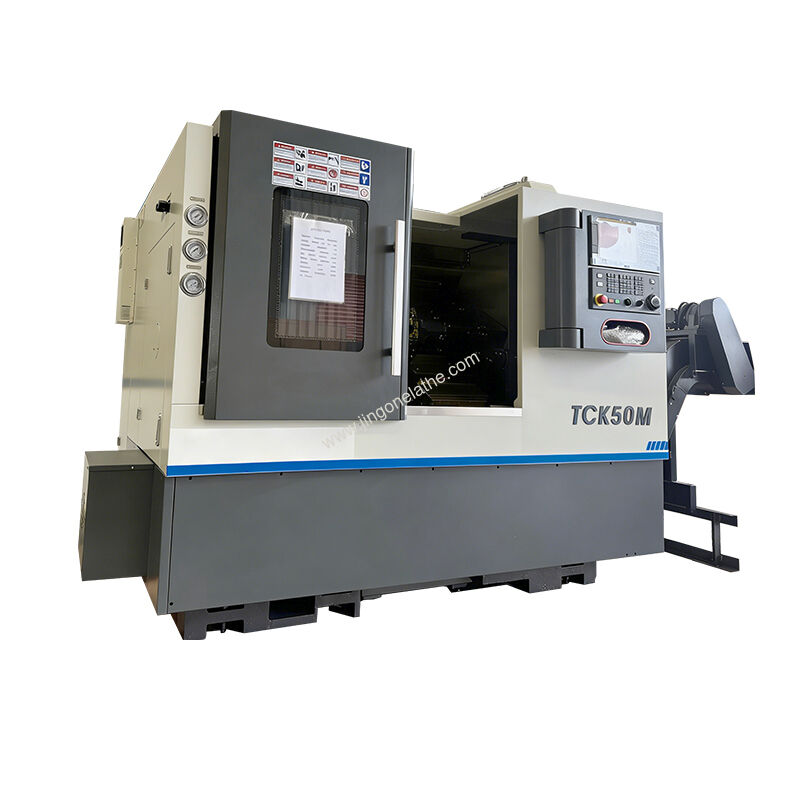

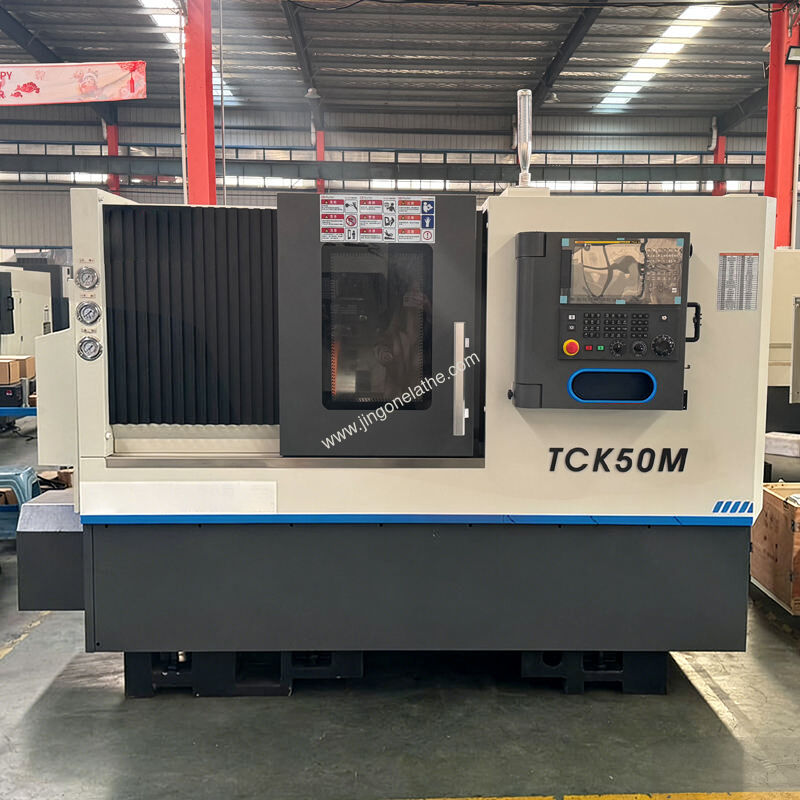

CNC Lathe with Live Tooling Turret | TCK50M-500 Delivers ±0.005mm Repeatability for High-Tolerance Machining
Model: TCK50M-500 | Core Keyword: CNC Lathe with Live Tooling Turret
Summary
CNC Lathe with Live Tooling Turret (TCK50M-500) is a new-generation high-precision turning center with a rigid, thermal-shock-resistant frame.
Equipped with an A2-6 spindle nose, 11Kw main motor, and linear guide rails, this unit supports 54mm max bar capacity and 400mm max workpiece length, delivering 3000 RPM spindle speed and ±0.005mm repeatability.
Ideal for aerospace component manufacturers, automotive precision part fabricators, and medical device producers requiring consistent, tight-tolerance machining.
Features
- Bed frame cast with high-grade ductile iron, treated for thermal stability to reduce machining drift during long runs

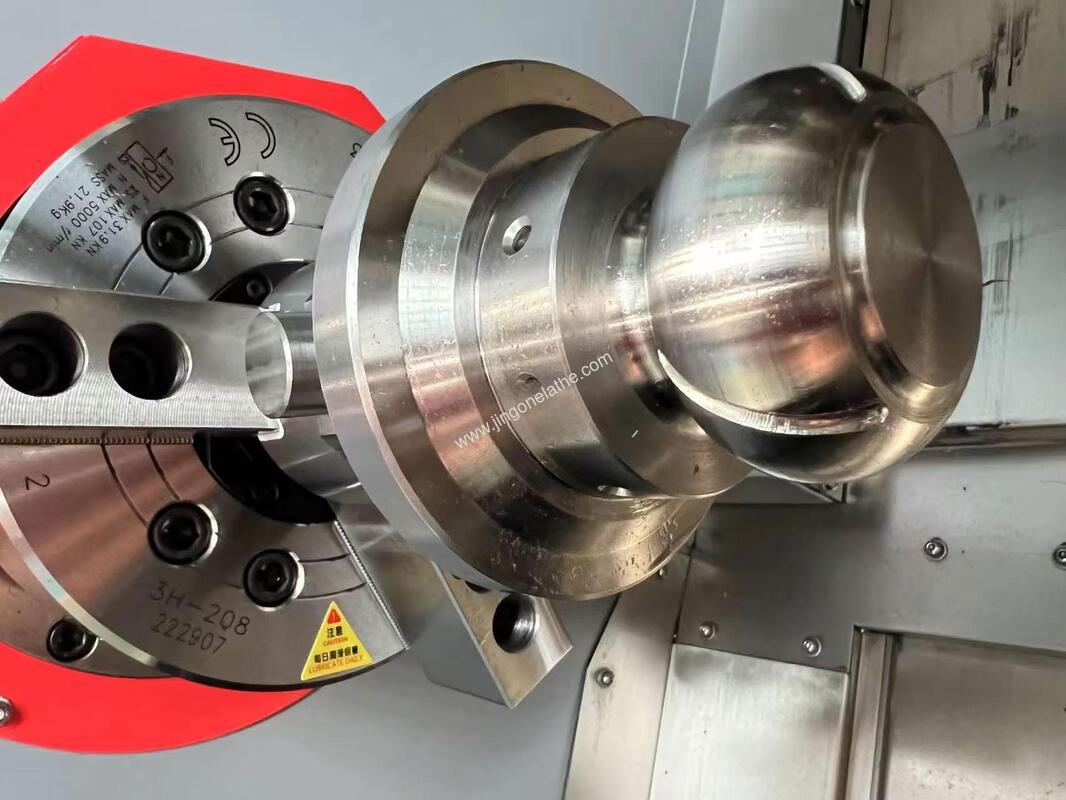

- A2-6 spindle nose with 66mm bore, 3000 RPM stepless speed change, and minimal spindle runout for precise chuck alignment
- Linear guide rails (35mm X/Z-axis) with 18m/min rapid feed, reducing cycle time while maintaining positioning accuracy

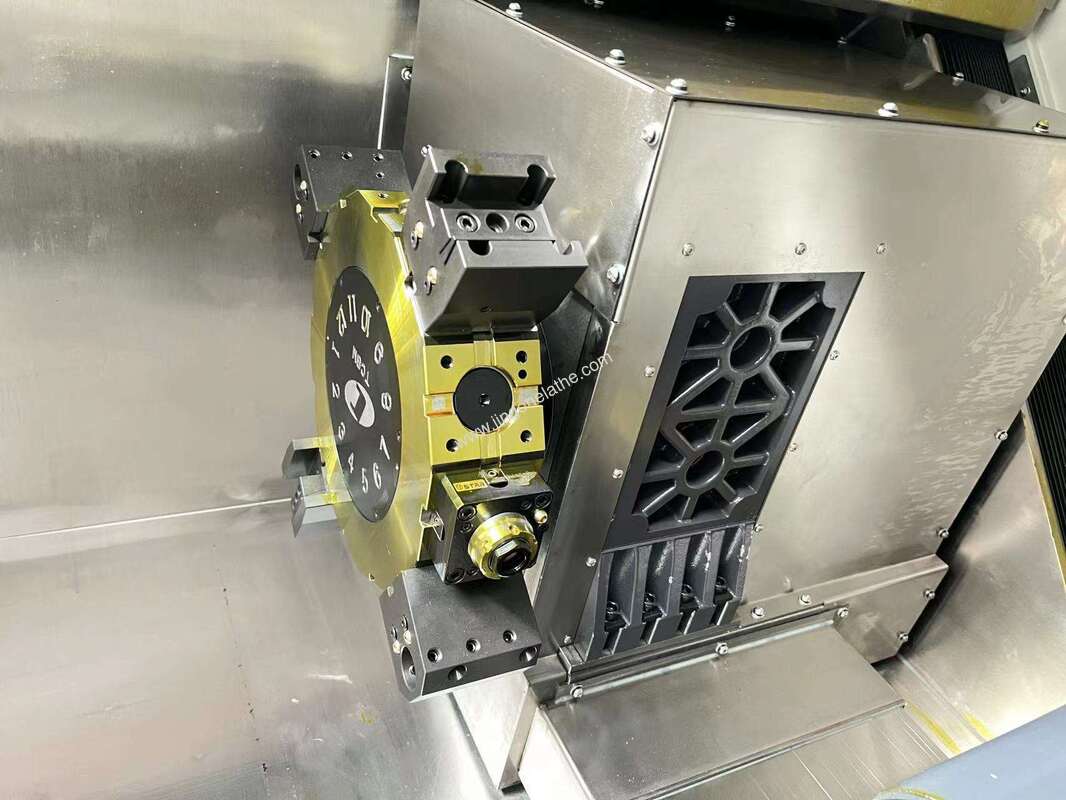

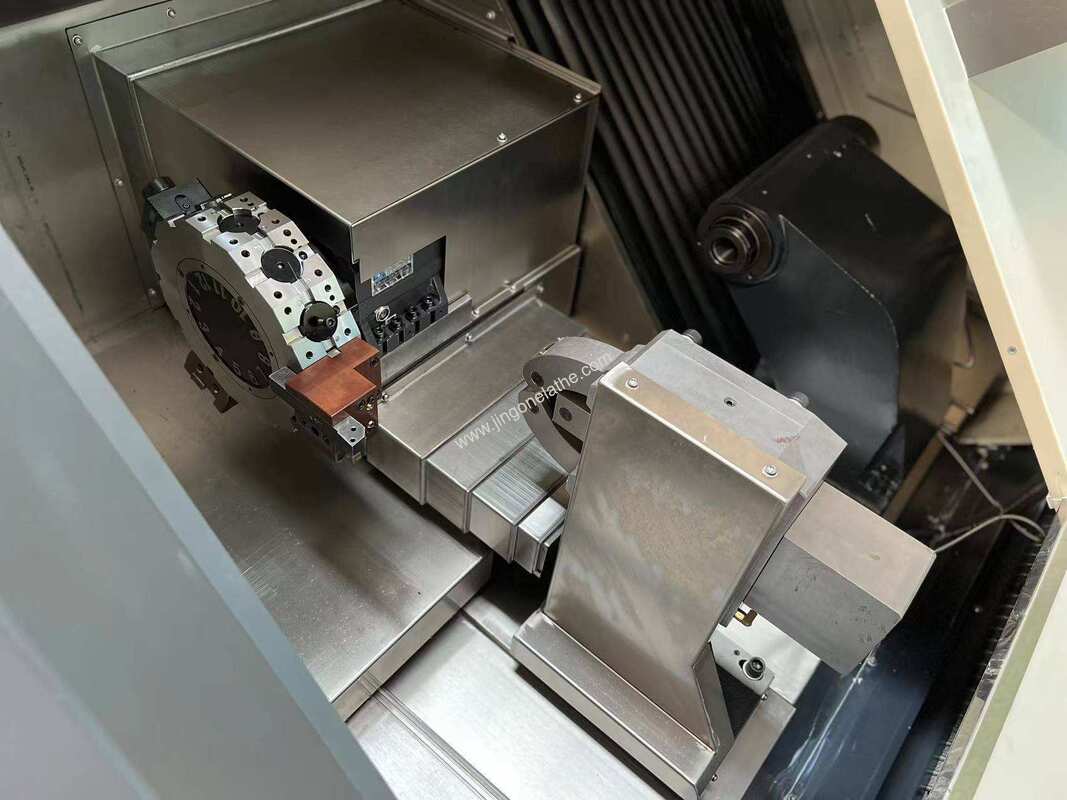

- 12-station BMT 45 live tool turret with 3000 RPM live tool speed, supporting multi-operation machining in single setup
- Hydraulic tailstock with 70mm sleeve diameter, providing stable support for 400mm max workpiece length
Technical Specifications
| Parameter | Specification | |
|---|---|---|
| Max.swing diameter over bed | mm | ¢560 |
| Max.swing diameter over cross slide | mm | ¢300 |
| Max.turning diameter | mm | ¢340 |
| Center distance | mm | 500 |
| Max.turning length | mm | 490 |
| Max.workpiece length | mm | 400 |
| Max.processing diameter(plate) | mm | 300 |
| Spindle nose type | A2-6 | |
| Spindle bore diameter | mm | ¢66 |
| Max.bar capacity | mm | ¢54 |
| Spindle speed | rpm | 3000 |
| Spindle speed change | Stepless | |
| Spindle taper | M.T.6 | |
| Chuck size | inch | 10‘’ hydraulic chuck |
| Turret type | BMT 45 live tool turret | |
| Tool stations | T | 12-station |
| Turret disc diameter | mm | ¢330 |
| Tool size(square shank) | mm | 25x25 |
| Tool size(round shank) | mm | ¢32 |
| Cutting tools | 4 (2 square 2 round) | |
| Live tool speed | rpm | 3000 |
| X-axis travel | mm | 240 |
| Z-axis travel | mm | 500 |
| X-axis rapid feed | m/min | 18 |
| Z-axis rapid feed | m/min | 18 |
| Min. setting | mm | 0.001 |
| X-axis motor torque | N.m | 15 |
| Z-axis motor torque | N.m | 15 |
| Live tool motor torque | N.m | 10 |
| Main motor power | Kw | 11 |
| Machine bed tilt angle | 30° | |
| Guideway type | Linear guide rail | |
| X-axis rail | mm | 35 |
| Z-axis rail | mm | 35 |
| X-axis ball screw | mm | 3210 |
| Z-axis ball screw | mm | 4012 |
| Tailstock type | Hydraulic tailstock | |
| Movement | Manual | |
| Sleeve diameter | mm | 70 |
| Sleeve travel | mm | 95 |
| Sleeve taper | M.T.5 | |
| Positioning accuracy | mm | X: 0.01, Z: 0.01 |
| Repeatability | mm | X: 0.005, Z: 0.005 |
| Lubrication pump | L | 3ZK (3L) |
| Cooling pump | W | 450 |
| Power supply | KVA | 25 |
| Net weight | Kg | 3500 |
| Dimensions (L × W × H) | mm | 2700x2170x2200 |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Optional Turret | 12-station servo turret (¢330 turret disc) |
| Chip Handling | Chip conveyor (side/rear discharge) |
| Tool Setting | Tool setter- folding arm tool setter |
| Safety Features | Automatic door, Automatic door safety device |
| Air Quality | Oil mist collector |
| Fluid Management | Oil/coolant separator |
| Automation | Robot interface, Bar material feeder |
| Auxiliary Tools | Blowing device, Water gun |
| Chuck Accessories | Soft jaws for chuck |
| Live Tool Holders | 90°, 0°, Custom configurations |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for 3500kg unit
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the max bar capacity of the TCK50M-500 CNC Lathe with Live Tooling Turret?
A: The TCK50M-500 CNC Lathe with Live Tooling Turret supports a 54mm max bar capacity, ideal for small to medium precision bar stock machining.
Q: How does the TCK50M-500 ensure long-term machining precision?
A: The TCK50M-500 CNC Lathe with Live Tooling Turret uses a thermal-shock-resistant cast bed and linear guide rails to minimize drift and maintain ±0.005mm repeatability.
Q: Can the TCK50M-500 support multi-operation machining in one setup?
A: Yes, the TCK50M-500 CNC Lathe with Live Tooling Turret features a 12-station BMT 45 live tool turret, enabling drilling, milling, and turning in a single setup.
