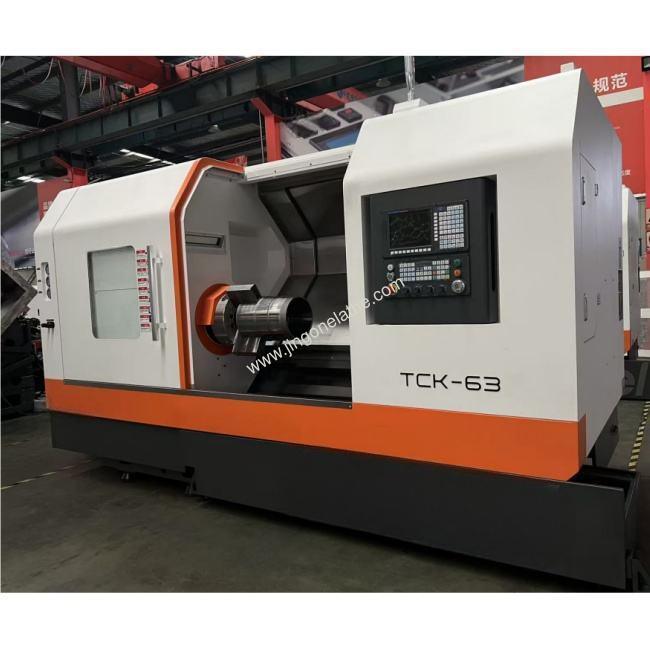

Q: Why should I invest in a Y-axis live tooling lathe like the TCK63Y rather than a standard 2-axis CNC lathe paired with a separate milling machine?

A: Standard 2-axis lathes restrict your tooling to the spindle centerline, meaning any component requiring off-center keyways, flat faces, or cross-drilled oil holes must be transferred to a vertical machining center. This secondary handling introduces part repositioning errors and increases labor cycle times. Selecting a live tooling lathe configured with a true ±65 mm Y-axis allows your shop to finish turning and multi-axis milling sequences in a single setup. This single-process approach eliminates stacking tolerances, frees up your vertical mills, and reduces total floor-to-floor processing time on complex components. It will be more favorable in the long run for investment returns.

Q: For demanding high-speed, heavy-duty machining cycles on tough materials, why should I choose the Box Way CNC Turning Center TCK63Y over linear-guide alternatives?

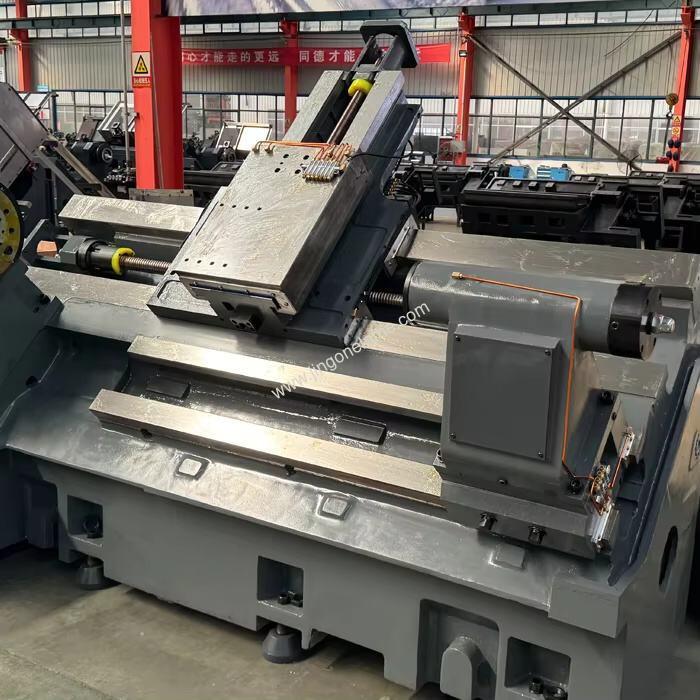

A: Heavy-duty roughing on high-tensile alloys or tough materials generates severe radial impact forces and low-frequency resonance. Standard linear-guide lathes often suffer from bearing deflection and tool chatter under these deep depths of cut, leading to rapid tool chipping. Choosing a box way CNC lathe with an HRC55 hardened guideway design provides broad surface-to-surface contact to absorb cutting vibration and protect tool tips. To pull the tool through tough materials without stalling, the built-in 3-speed mechanical gearbox multiplies low-RPM spindle torque from the 18.5 kW motor, while an oversized $phi55$ mm Z-axis ball screw stabilizes the cutting force to maintain strict machining repeatability.

Q: When turning long shafts on the TCK63Y, why should I configure it with an optional Hydraulic Steady Rest instead of a standard manual steady rest?

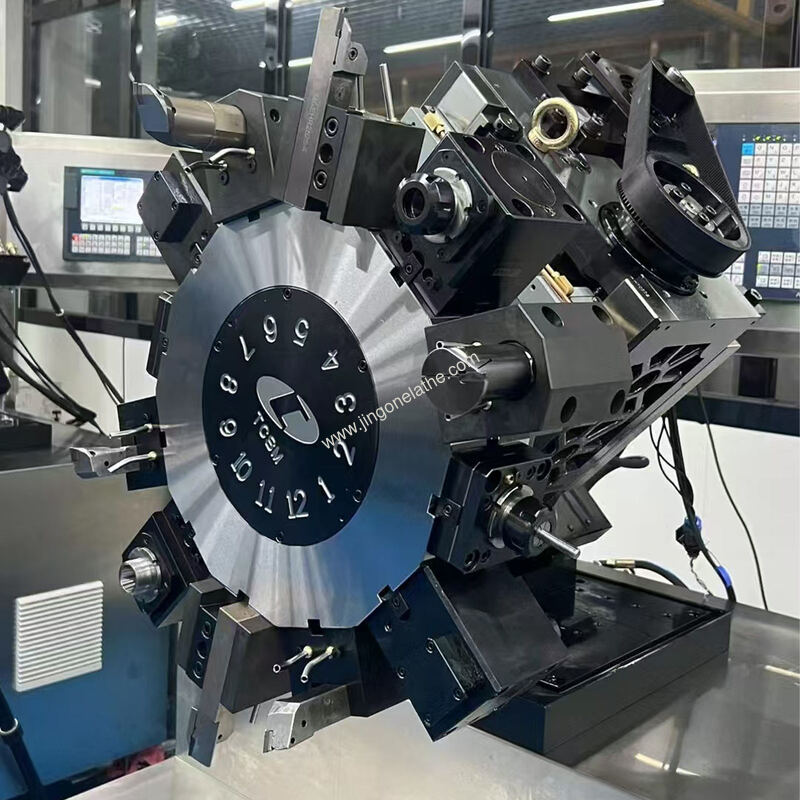

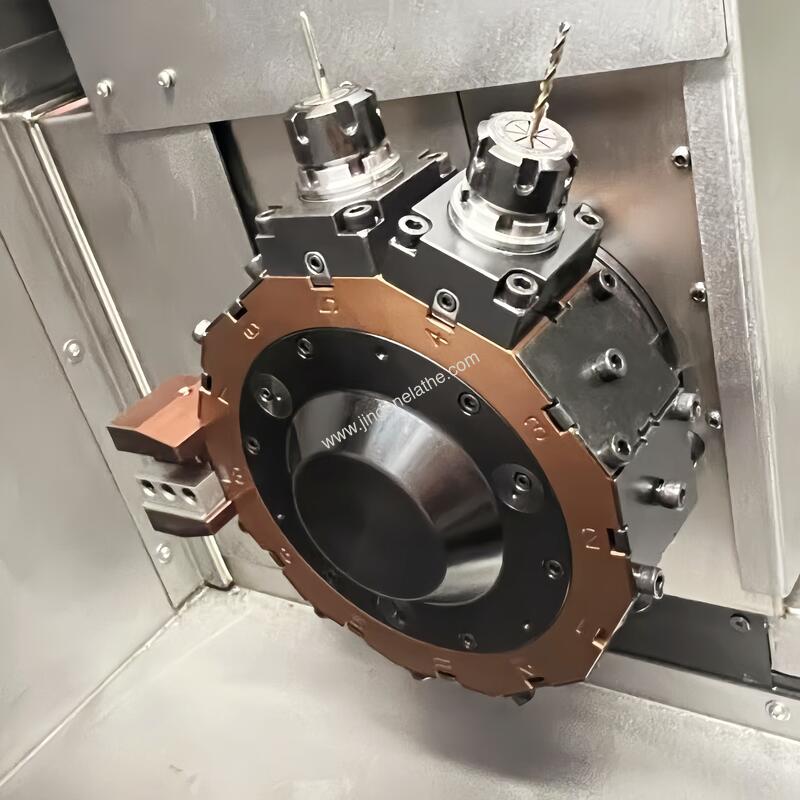

A: Turning and off-center BMT65 live milling on long, heavy shafts introduces severe centrifugal whipping, center-sag, and structural deflection at high RPMs. Manual steady rests require tedious hand-adjustments and cannot adapt when the workpiece diameter changes between roughing and finishing cycles. Upgrading to a hydraulic steady rest delivers programmable, self-centering clamping via CNC M-codes, ensuring perfect coaxial alignment with the spindle center throughout the entire cycle. This automated setup eliminates operator adjustment errors, prevents material deformation under heavy cutting loads, and ensures safe, high-velocity process security.
