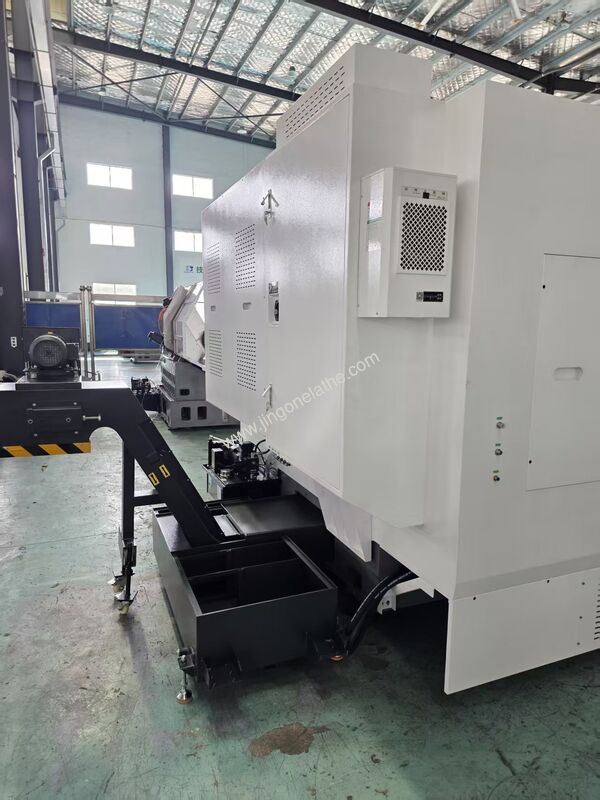

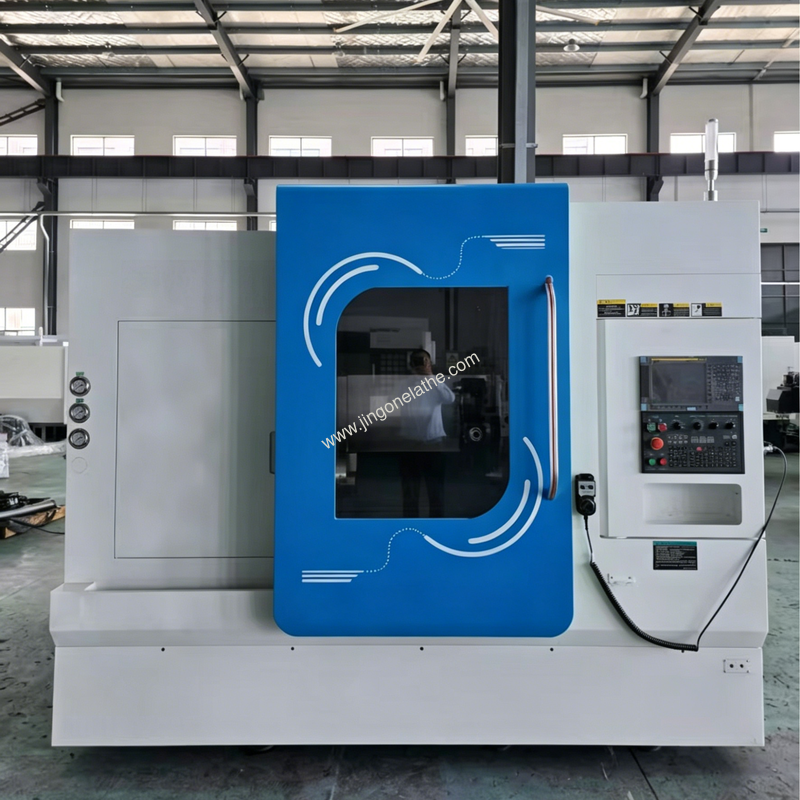

The TCK65Y-550 CNC Turn Mill Machine Delivers Precision With 315mm Turning Diameter And 4500rpm Spindle
The TCK65Y-550 CNC Turn Mill Machine Delivers Precision With 315mm Turning Diameter And 4500rpm Spindle
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK65Y-550
Contact Us
Request A Quote
Product Details
Max Turning Diameter:
315 Mm
Spindle Speed:
4500 Rpm
Spindle Motor Power:
15/18.5 KW
Spindle Max Torque:
210 N*m
Tool Stations:
12 T
Max Live Tool Speed:
5000 Rpm
X-axis Rapid Feed:
30 M/min
Z-axis Rapid Feed:
30 M/min
Y-axis Rapid Feed:
15 M/min
Positioning Accuracy:
0.008 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
45000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
video
High Precision Y-Axis Turning Center TCK50Y-500: 0.005mm Repeatability For Critical Component Machining
Get Best Price
video
Y-Axis CNC Turn-Mill Center TCK50Y-800: 700mm Workpiece Length For Complex Automotive Component Machining
Get Best Price
Contact Us
Product Description
The TCK65Y-550 CNC Turn Mill Machine Delivers Precision with 315mm Turning Diameter and 4500rpm Spindle
Model: TCK65Y-550 | Keywords: CNC TURN MILL MACHINEs, 4 axis CNC lathe, CNC turning lathe machine
CNC Turn Mill Machines Overview
The TCK65Y-550 CNC turn mill machines integrate a Fanuc 0i-Tf control system and a 12-station BMT55 power turret, achieving 315mm max turning diameter and 4500rpm spindle speed. This 4 axis CNC lathe is engineered for complex multi-process machining in a single setup, reducing cycle times and improving accuracy. As a versatile CNC turning lathe machine, it excels in producing precision shafts, flanges, and gear blanks with C3-class ball screws and linear guideways ensuring repeatability within 0.004mm.
TCK65Y-550 Key Features
- 4-Axis Simultaneous Control: The 4 axis CNC lathe configuration with Y-axis (±50mm) and C-axis enables off-center milling and drilling, eliminating secondary operations.
- High-Speed Spindle: Built-in A2-6 motorized spindle delivers 4500rpm and 210N·m torque, ideal for both roughing and finishing on a CNC turning lathe machine.

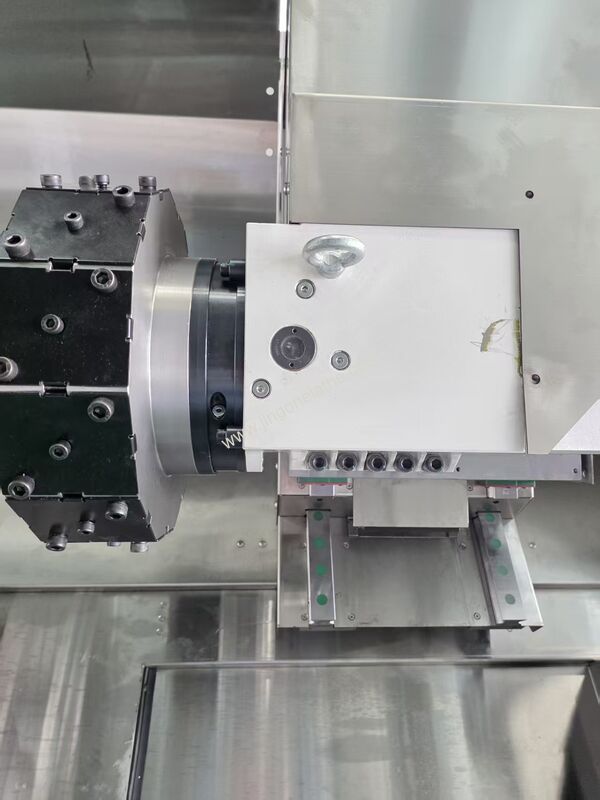

- BMT55 Power Turret: 12-station turret with live tool speed up to 5000rpm and 0.5s adjacent tool change time maximizes productivity.
- Rigid 30° Slant Bed: HT300 cast iron structure with integral bed ensures thermal stability and vibration damping for heavy cuts.
- High-Precision Guideways: C3-class ball screws and linear guideways achieve positioning accuracy of 0.008mm and repeatability of 0.004mm.
- Rapid Feed Rates: X/Z rapid at 30m/min and Y at 15m/min reduce non-cutting time, boosting overall throughput.
- CE & Schneider Electricals: Compliant with CE standards and equipped with Schneider components for reliable global operation.
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max. swing diameter | 650 | mm |
| Max. turning diameter | 315 | mm |
| Max. turning diameter over cross slide | 350 | mm |
| Max. turning length | 550 | mm |
| Spindle nose type | A2-6 | - |
| Spindle bore diameter | 66 | mm |
| Bar capacity (with hollow hydraulic cylinder) | 50 | mm |
| Spindle speed | 4500 | rpm |
| Spindle motor power (continuous/30min) | 15/18.5 | kW |
| Spindle max. torque | 210 | N·m |
| Chuck size | 8 | inch |
| Chuck type | Hollow Hydraulic | - |
| Turret type | BMT55 Power Turret | - |
| Tool stations | 12 | T |
| Tool size (square shank) | 25x25 | mm |
| Tool size (round shank) | 40 | mm |
| Max. live tool speed | 5000 | rpm |
| Tool change time (adjacent/opposite) | 0.5/0.7 | s |
| Turret motor power | 3.7/5.5 | kW |
| X-axis travel | 225 | mm |
| Z-axis travel | 590 | mm |
| Y-axis travel | ±50 (100) | mm |
| Tailstock travel | 640 | mm |
| X-axis rapid feed | 30 | m/min |
| Z-axis rapid feed | 30 | m/min |
| Y-axis rapid feed | 15 | m/min |
| Tailstock rapid feed | 30 | m/min |
| Machine bed tilt angle | 30 | ° |
| Guideway type | Linear guideway | - |
| Positioning accuracy | 0.008 | mm |
| Repeatability | 0.004 | mm |
| C-axis positioning | ±20 | '' |
| C-axis repeatability | ±5 | '' |
| Tank capacity | 180 | L |
| Power supply | 37 | KVA |
| Net weight | 5800 | kg |
| Dimensions (L × W × H) | 2900x2900x2350 | mm |
Standard Configurations
| Configuration | Details | Quantity |
|---|---|---|
| Control System | Fanuc 0i-Tf | 1 |
| Hydraulic Chuck | 8" Hollow Hydraulic | 1 |
| Power Turret | BMT55, 12-station | 1 |
| Chip Conveyor | Rear-mounted | 1 |
| Electrical Components | Schneider (CE standard) | 1 set |
Optional Accessories
| Optional Accessory | Details | Note |
|---|---|---|
| Programmable Tailstock | Hydraulic quill, 640mm travel | For extended shaft support |
| Bar Feeder | Automatic, up to 50mm bar capacity | Increases unattended operation |
| High-Pressure Coolant | 20 bar, through-tool | Improves chip evacuation and tool life |
| Tool Presetter | Renishaw or similar | Reduces setup time |
| Parts Catcher | Pneumatic, for small parts | Enhances automation |
FAQ
Q: What is the maximum turning diameter and length the TCK65Y-550 CNC turn mill machine can handle?
A: The TCK65Y-550 can turn workpieces up to 315mm in diameter and 550mm in length, with a swing diameter of 650mm over the bed. This makes it suitable for medium-sized flanges, shafts, and gear blanks, offering a compact footprint without sacrificing capacity.
Q: How does the 4-axis configuration improve machining efficiency on this CNC lathe?
A: The 4 axis CNC lathe design adds a Y-axis (±50mm) and C-axis positioning, enabling milling, drilling, and tapping in one setup. This eliminates multiple clamping errors and reduces cycle times by up to 30% compared to conventional 2-axis lathes.
Q: What after-sales support and warranty are available for the TCK65Y-550 turning lathe machine?
A: We provide a standard 12-month warranty, remote technical support, and on-site commissioning. Spare parts for the Fanuc control and BMT55 turret are globally available, ensuring minimal downtime. CE certification guarantees compliance with international safety standards.
