Slant Bed CNC Lathe With Driven Tools TCK50M-1500 Delivers Heavy-Duty Performance For 1400mm Long Part Machining
Slant Bed CNC Lathe With Driven Tools TCK50M-1500 Delivers Heavy-Duty Performance For 1400mm Long Part Machining
TCK50M-1500 turn mill centers
Slant Bed Lathe turn mill centers
TCK50M-1500 mill turn machining center
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK50M-1500
Contact Us
Request A Quote
Product Details
CNC System:
Fanuc, GSK, Siemens Optional
Max.turning Diameter:
370mm
Max.turning Length:
1400mm
Spindle Bore Diameter:
86mm
Guideway Type:
Linear Guide Rail
Tailstock Type:
Servo Tailstock
Main Motor Power:
15Kw
Live Tool Motor Torque:
10Nm
Highlight:
TCK50M-1500 turn mill centers
,Slant Bed Lathe turn mill centers
,TCK50M-1500 mill turn machining center
Payment & Shipping Terms
Minimum Order Quantity
1
Price
45000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
Slant Bed CNC Lathe With Driven Tools TCK50M-1500 Delivers Heavy-Duty Performance For 1400mm Long Part Machining
Get Best Price
Compact Y-axis CNC Lathe TCK25Y: High-Precision Compound Machining For Small Complex Parts
Get Best Price
Contact Us
Contact Now
Product Description
Slant Bed CNC Lathe with Driven Tools | TCK50M-1500 Delivers Heavy-Duty Performance for 1400mm Long Part Machining
Model: TCK50M-1500 | Core Keyword: Slant Bed CNC Lathe | Live Tooling Lathe | CNC Turning Center

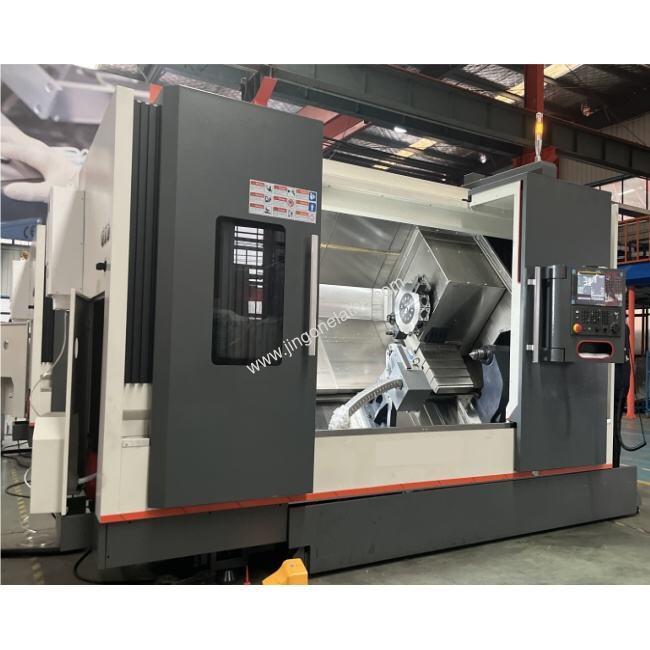

Live Tooling CNC Lathe
Slant Bed CNC Lathe with Driven Tools (TCK50M) is a heavy-duty, modular turning center with a 30° slant cast bed optimized for thermal stability and chip evacuation.
Powered by a 15Kw main motor, A2-8 spindle nose, and 3000 RPM spindle speed, this CNC turning center supports 74mm max bar capacity and 1400mm max workpiece length for consistent long-part machining.
Designed for heavy machinery manufacturers, agricultural equipment fabricators, and construction component producers needing reliable, high-tolerance large-part processing.
TCK50M Features
- 30° slant bed cast with high-grade ductile iron, treated for thermal stress relief to minimize machining drift during extended heavy-duty runs
- A2-8 spindle nose with 86mm bore, 15Kw main motor, and stepless 3000 RPM speed, delivering high torque for heavy cutting of 1400mm long workpieces
- 35mm linear guide rails (X/Z-axis) with 18m/min rapid feed, reducing cycle time while maintaining ±0.01mm positioning accuracy for large parts

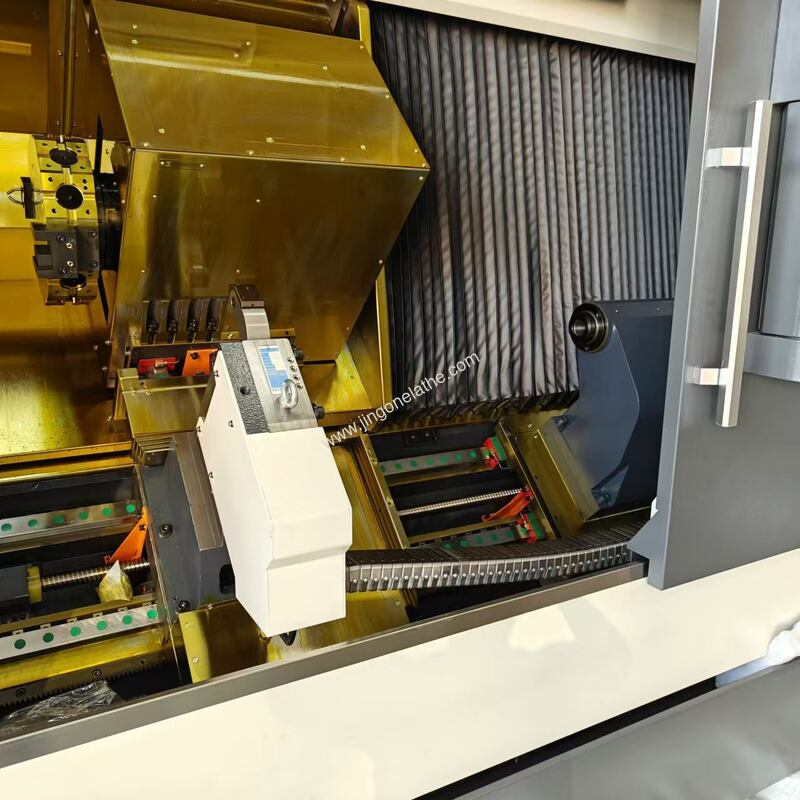

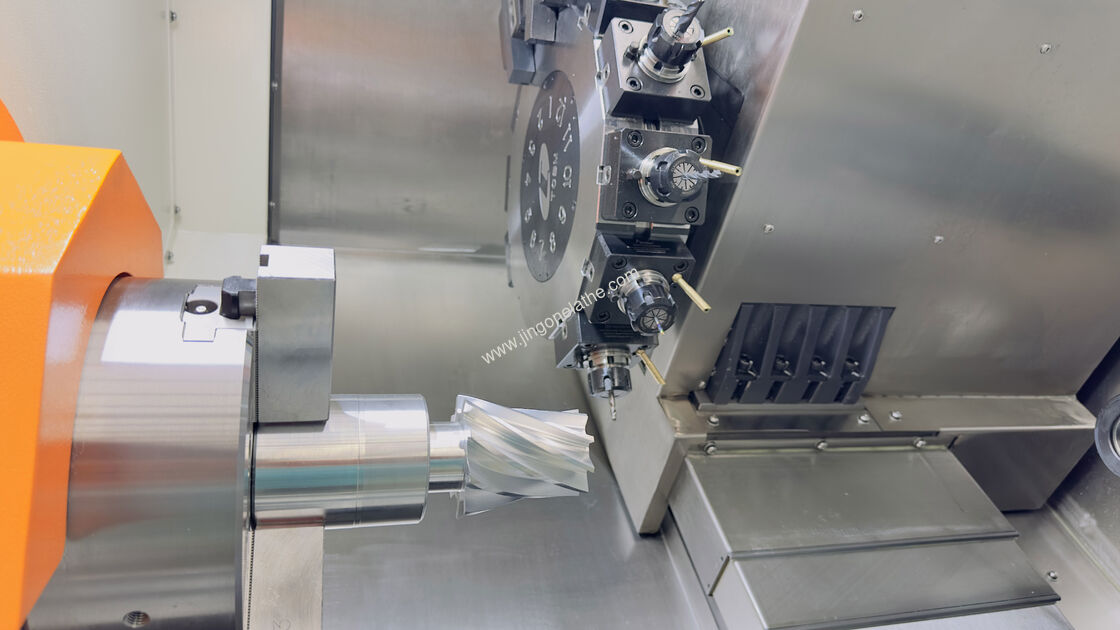

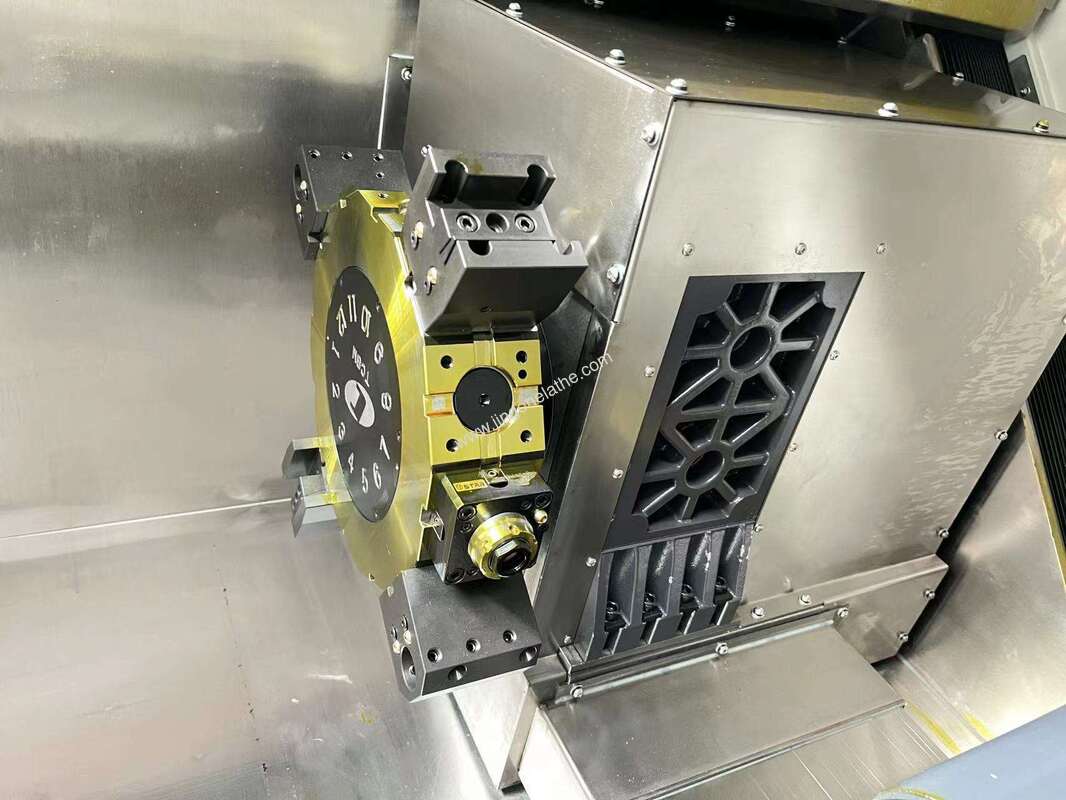

- 12-station BMT 45 driven tool turret with 3000 RPM live tool speed, enabling multi-operation machining (turning, drilling, milling) in a single setup
- Hydraulic tailstock with 70mm sleeve diameter, providing stable support for 1400mm max workpiece length to eliminate chatter and ensure surface finish consistency
TCK50M Technical Specifications
| Parameter | Specification | |
|---|---|---|
| Max.swing diameter over bed | mm | ¢560 |
| Max.swing diameter over cross slide | mm | ¢300 |
| Max.turning diameter | mm | ¢340 |
| Center distance | mm | 1500 |
| Max.turning length | mm | 1490 |
| Max.workpiece length | mm | 1400 |
| Max.processing diameter(plate) | mm | 400 |
| Spindle nose type | A2-8 | |
| Spindle bore diameter | mm | ¢86 |
| Max.bar capacity | mm | ¢74 |
| Spindle speed | rpm | 3000 |
| Spindle speed change | Stepless | |
| Spindle taper | M.T.6 | |

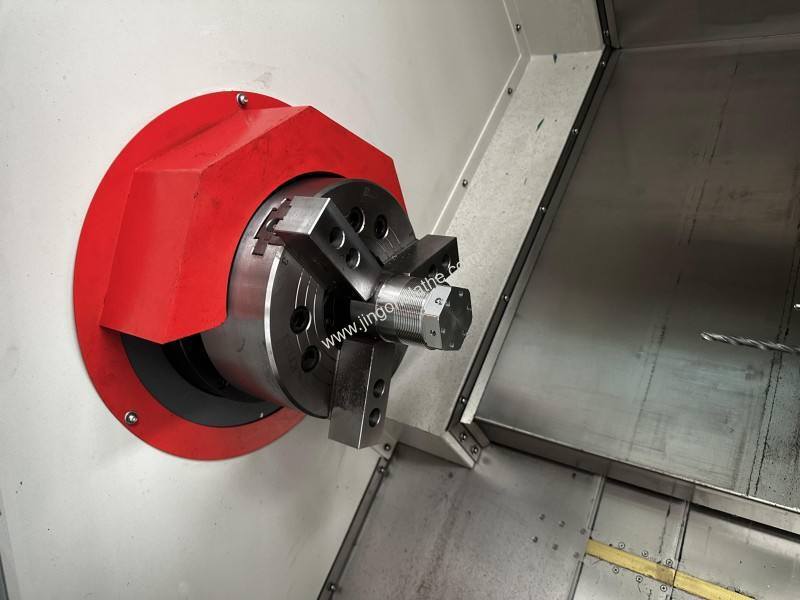

| Chuck size | inch | 10‘’ hydraulic chuck |
| Turret type | BMT 45 live tool turret | |
| Tool stations | T | 12-station |
| Turret disc diameter | mm | ¢330 |
| Tool size(square shank) | mm | 25x25 |
| Tool size(round shank) | mm | ¢32 |
| Cutting tools | 4 (2 square 2 round) | |
| Live tool speed | rpm | 3000 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 1500 |
| X-axis rapid feed | m/min | 18 |
| Z-axis rapid feed | m/min | 18 |
| Min. setting | mm | 0.001 |
| X-axis motor torque | N.m | 15 |
| Z-axis motor torque | N.m | 15 |
| Live tool motor torque | N.m | 10 |
| Main motor power | Kw | 15 |
| Machine bed tilt angle | 30° | |
| Guideway type | Linear guide rail | |
| X-axis rail | mm | 35 |
| Z-axis rail | mm | 35 |
| X-axis ball screw | mm | 3210 |
| Z-axis ball screw | mm | 4012 |
| Tailstock type | Hydraulic tailstock | |
| Movement | Manual | |
| Sleeve diameter | mm | 70 |
| Sleeve travel | mm | 95 |
| Sleeve taper | M.T.5 | |
| Positioning accuracy | mm | X: 0.01, Z: 0.01 |
| Repeatability | mm | X: 0.005, Z: 0.005 |
| Lubrication pump | L | 3ZK (3L) |
| Cooling pump | W | 450 |
| Power supply | KVA | 35 |
| Net weight | Kg | 5700 |
| Dimensions (L × W × H) | mm | 4000x2170x2200 |
Optional Configurations
| Accessory | Configuration |
|---|---|
| Optional Turret | 12-station servo turret (¢330 turret disc) |
| Chip Handling | Chip conveyor (side/rear discharge) |
| Tool Setting | Tool setter- folding arm tool setter |
| Safety Features |
Automatic door, Automatic door safety device |
| Air Quality | Oil mist collector |
| Fluid Management | Oil/coolant separator |
| Automation |
Robot interface, Bar material feeder |
| Auxiliary Tools |
Blowing device, Water gun |
| Chuck Accessories | Soft jaws for chuck |
| Live Tool Holders |
90°, 0°, Custom configurations |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with triple steel bands and wooden bracing for 5700kg extra-heavy unit
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: How does the TCK50M-1500 Slant Bed CNC Lathe prevent vibration and deflection when machining 1400mm long parts?
A:
The JingOne TCK50M-1500 employs a dual-stability engineering approach specifically designed to eliminate shaft whip and chatter during extended heavy-duty turning runs:
-
High-Grade Structural Base: The foundation is a 30° slant bed cast from high-grade ductile iron, which is thermally stress-relieved to maximize rigid stability and structural dampening.
-
Heavy-Duty Hydraulic Tailstock and steady rest: Equipped with a robust 70mm sleeve diameter hydraulic tailstock and hydraulic steady rest optional, it provides powerful, continuous axial support for workpieces up to 1400mm in length, preventing deflection and ensuring flawless surface finish consistency.
-
Premium Guide Rails: Widened 35mm X/Z-axis linear guide rails handle severe cutting forces without flexing, maintaining a tight ±0.01mm positioning accuracy.
Q: What are the multi-tasking capabilities of the TCK50M Live Tooling CNC Lathe?
A: The TCK50M transitions seamlessly from a heavy-duty lathe to a multi-tasking CNC turning center via its advanced live tooling module. It features a heavy-duty 12-station BMT45 driven tool turret with a maximum live tool speed of 3000 RPM. This configuration allows operators to perform turning, drilling, face milling, and tapping in a single setup. By eliminating secondary workholding transfers on separate milling machines, it significantly slashes cycle times for complex industrial components.
Q: What are the core spindle and bar capacity specifications of the TCK50M CNC Turning Center?
A: Engineered for raw torque and high material removal rates, the TCK50M CNC turning center includes the following standard powertrain specifications:
-
Spindle Power: Driven by a high-output 15 kW main motor delivering high torque at lower speeds.
-
Spindle Dimensions: Outfitted with an A2-8 spindle nose featuring a large 86mm spindle bore.
-
Bar Material Capacity: Accommodates a 74mm maximum bar capacity through the spindle, making it highly compatible with automated bar-feeding configurations for agricultural, construction, and heavy machinery component manufacturing.
