High Precision Y-Axis Turning Center TCK50Y-500: 0.005mm Repeatability for Critical Component Machining
High Precision Y-Axis Turning Center TCK50Y-500: 0.005mm Repeatability for Critical Component Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK50Y-500
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
640mm
Max.turning Diameter:
300mm
Max.turning Length:
470mm
Spindle Nose Type:
A2-6
Max.bar Capacity:
50mm
Turret Type:
330-12T-BMT45
Y-axis Travel:
±45mm
Machine Bed Tilt Angle:
30°
Payment & Shipping Terms
Minimum Order Quantity
1
Price
30000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

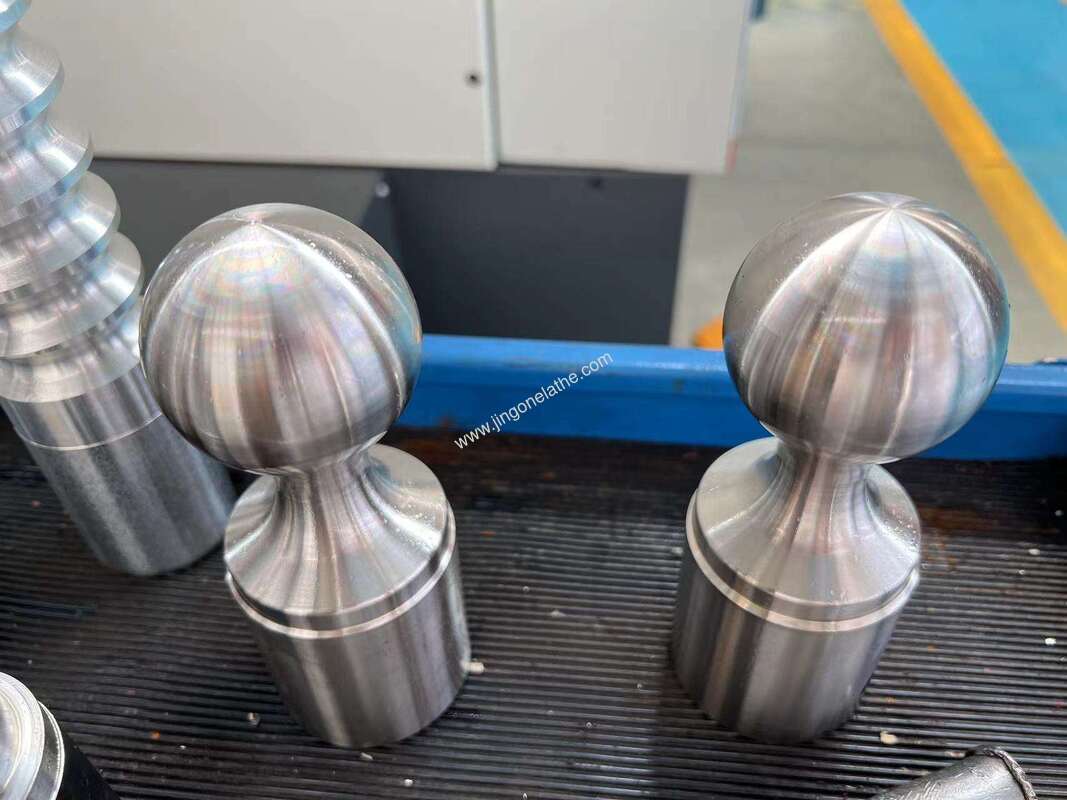

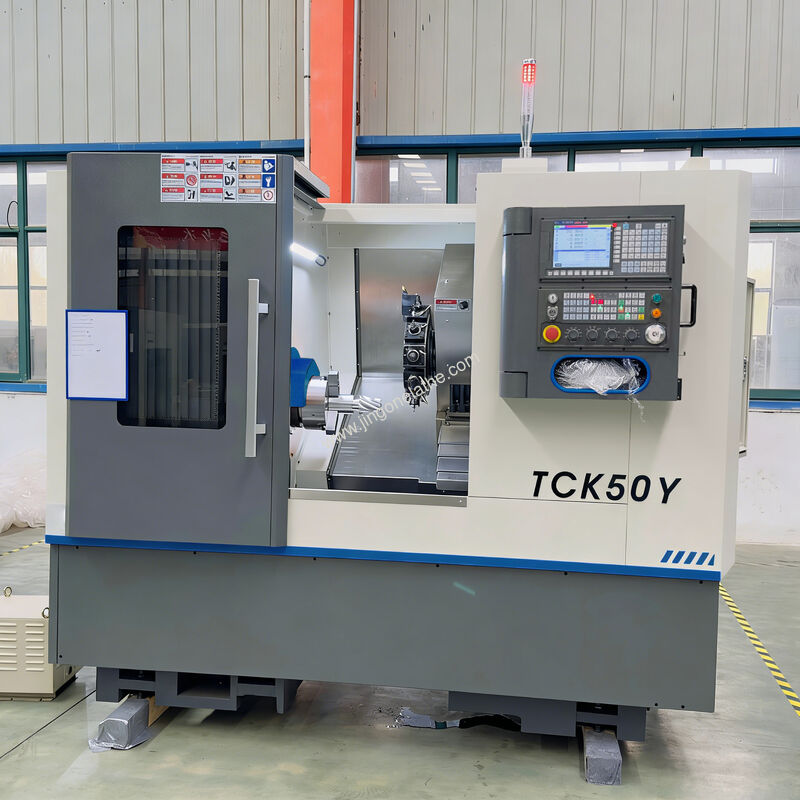

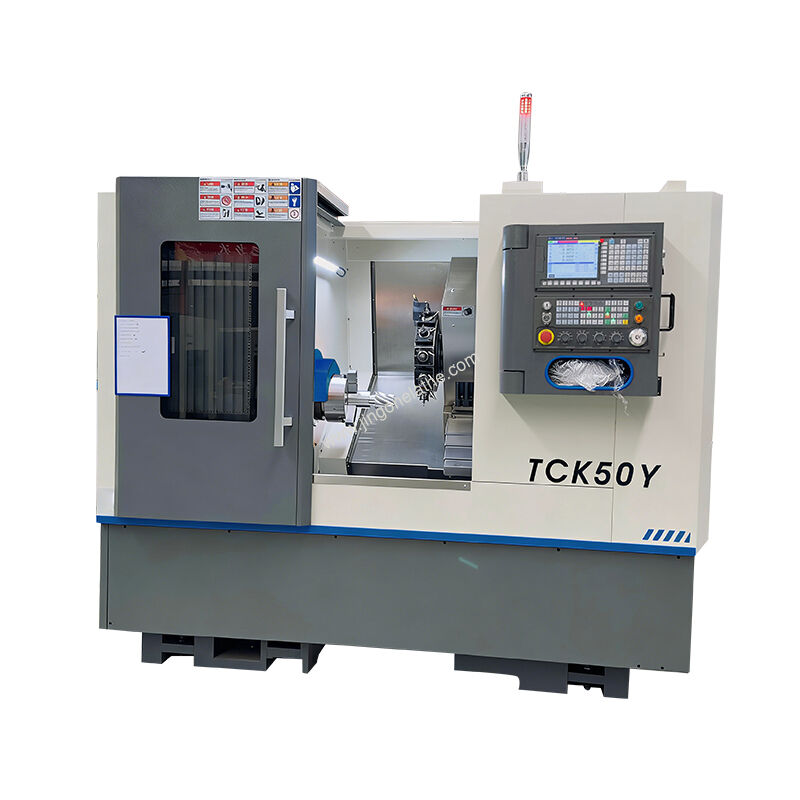

High Precision Y-Axis Turning Center TCK50Y-500: 0.005mm Repeatability for Critical Component Machining
Model: TCK50Y-500 | Core Keyword: High Precision Y-Axis Turning Center
Summary
High Precision Y-Axis Turning Center TCK50Y-500 is engineered for tight-tolerance aerospace and medical component production.
With a 3000 RPM stepless spindle, 500mm Z-axis travel, and linear guide rails, this unit supports 54mm max bar capacity and delivers 0.005mm repeatability, aligning with its rigid cast slant bed design for thermal shock resistance.

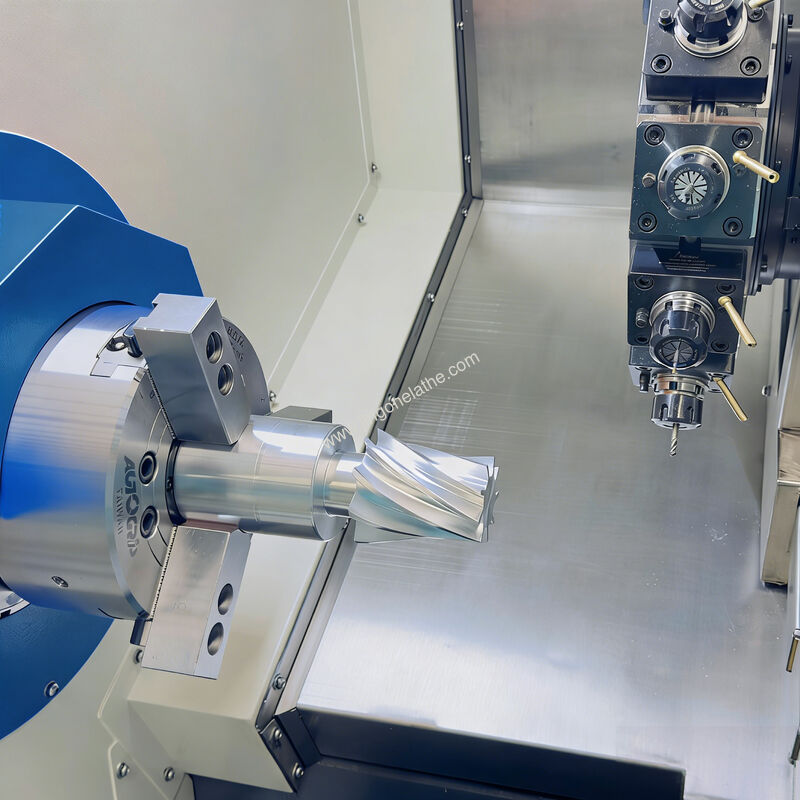

Its modular configuration includes BMT45 live tool turret and hydraulic chuck, ideal for high-volume, high-precision production runs requiring complex mill-drill operations.
Features
- 30° slant bed cast iron frame with rigid structure, resistant to thermal shock for consistent precision
- 300mm max turning diameter, 500mm center distance, supports 54mm max bar capacity for small to medium parts
- Linear guide rails on X/Z/Y axes enable 16m/min rapid feed and 0.005mm repeatability
- 3000 RPM stepless A2-6 spindle with 11Kw main motor for smooth, consistent cutting power
- Modular options: 12-station BMT45 live tool turret, hydraulic tailstock, and multiple CNC system choices
- Optional accessories include chip conveyor, tool setter, and robot interface for automated production
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter over bed | ¢640 mm |
| Max.swing diameter over cross slide | ¢380 mm |
| Max.turning diameter | ¢300 mm |
| Center distance | 500 mm |
| Max.turning length | 470 mm |
| Spindle nose type | A2-6 |
| Spindle bore diameter | ¢66 mm |
| Max.bar capacity | ¢54 mm |
| Spindle speed | 3000 rpm |
| Spindle speed change | Stepless |
| Spindle taper | M.T.6 |

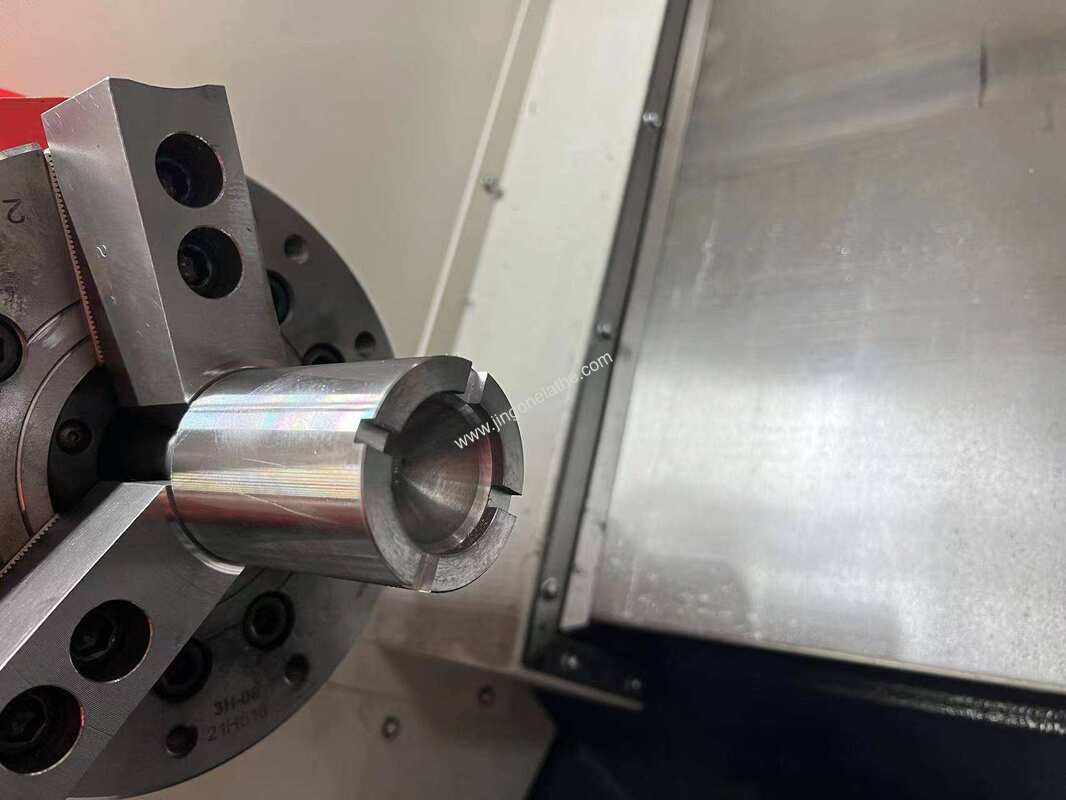

| Chuck size | 10'' hydraulic chuck |
| Turret type | BMT 45 live tool turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢330 mm |
| Tool size(square shank) | 25x25 mm |
| Tool size(round shank) | ¢32 mm |
| Tool chuck | ER25 |
| Cutting tools | 4 (2 square 2 round) |
| Live tool speed | 3000 rpm |
| X-axis travel | 240 mm |
| Z-axis travel | 500 mm |
| Y-axis travel | ±45 mm |
| X-axis rapid feed | 16 m/min |
| Z-axis rapid feed | 16 m/min |
| Y-axis rapid feed | 6 m/min |
| Min. setting | 0.0001 mm |
| X-axis motor torque | 15 N.m |
| Z-axis motor torque | 15 N.m |
| Y-axis motor torque | 6 N.m |
| Live tool motor torque | 10 N.m |
| Main motor power | 11 Kw |
| Machine bed tilt angle | 30° |

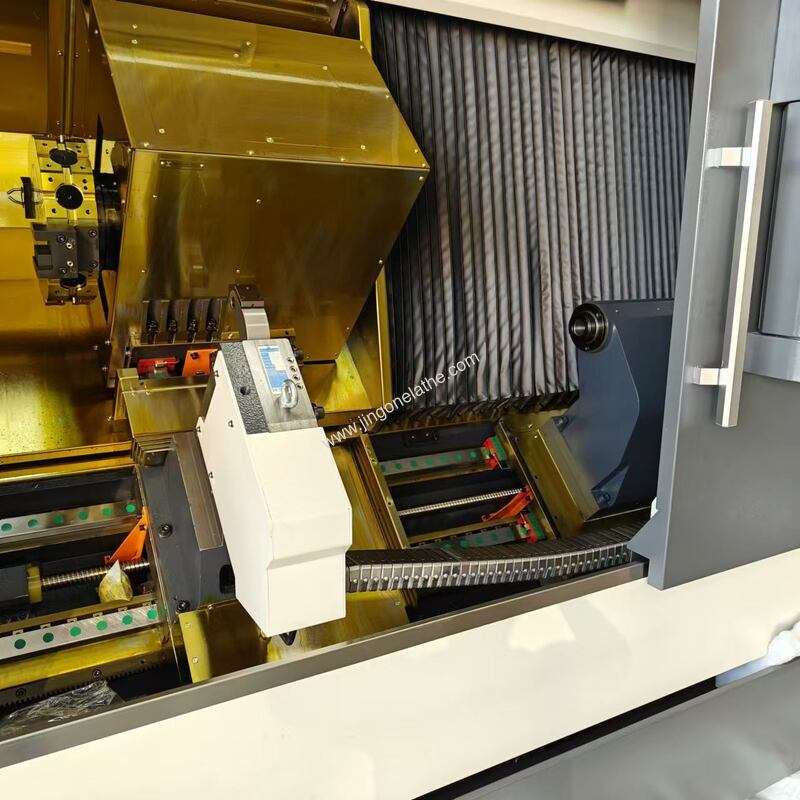

| Guideway type | Linear guide rail |
| X-axis rail | 35 mm |
| Z-axis rail | 35 mm |
| X-axis ball screw | 3210 mm |
| Z-axis ball screw | 4012 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 70 mm |
| Sleeve travel | 95 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.01 mm, Y: 0.008 mm |
| Repeatability | X: 0.005 mm, Z: 0.005 mm, Y: 0.005 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 450 W |
| Power supply | 27 KVA |
| Net weight | 3500 Kg |
| Dimensions (L × W × H) | 2700x2170x2200 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine frame | Slant bed |
| CNC system | Optional: Fanuc,Siemens,GSK,Syntec |
| X-axis motor | With brake |
| Y-axis motor | With brake |
| Ball screw |
X: ¢32x12-635; Z: 32x12-1542 |
| Linear guideway |
X: 35mm; Z: 35mm |
| Screw bearings |
X: 25x62x15; Z: 25x62x15 |
| Servo turret | Horizontal 12 station servo turret with Y-axis |
| Tool holders |
External turning tool clamping block 20x20, 4 sets; Facing tool holder 20x20, 1 set; Boring tool holder ¢25, 3 sets; Tool sleeve ¢20 |
| Optional Configurations |
Chip conveyor (side/rear discharge); Tool setter- folding arm tool setter; Automatic door; Automatic door safety device; Oil mist collector; Oil/coolant separator; Robot interface; Bar material feeder; Blowing device; Water gun; Soft jaws for chuck |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What tolerance levels can the TCK50Y-500 High Precision Y-Axis Turning Center achieve?
A: The TCK50Y-500 High Precision Y-Axis Turning Center delivers 0.005mm repeatability and 0.01mm positioning accuracy for tight-tolerance parts.
Q: Does the TCK50Y-500 support live tooling for complex machining operations?
A: Yes, the TCK50Y-500 High Precision Y-Axis Turning Center includes a BMT45 live tool turret for mill-drill and complex contouring tasks.
Q: What is the max bar capacity of the TCK50Y-500 turning center?
A: The TCK50Y-500 High Precision Y-Axis Turning Center supports a max bar capacity of 54mm for automated bar feeding production runs.
