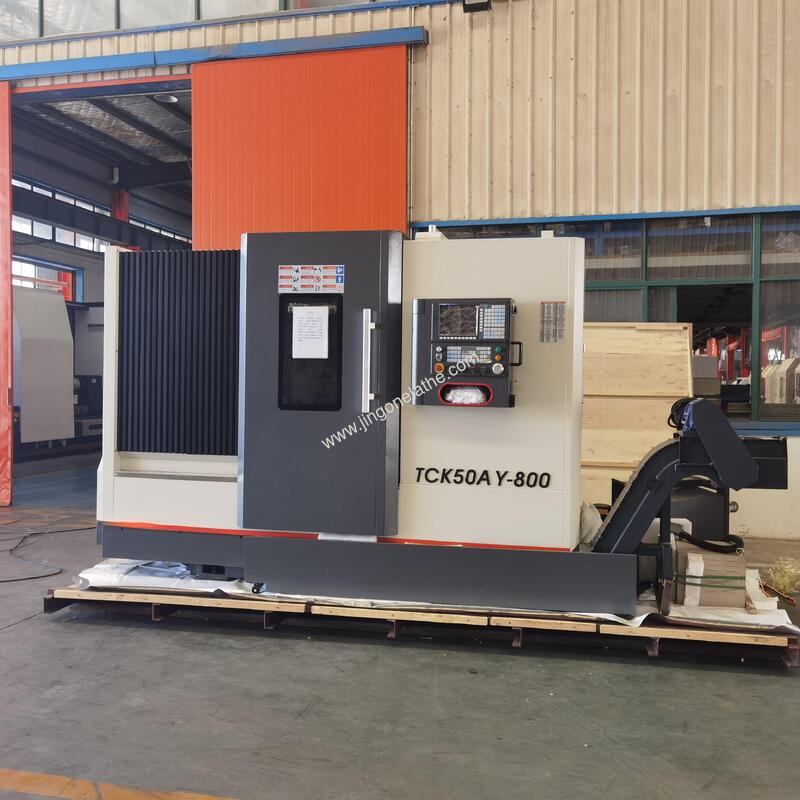

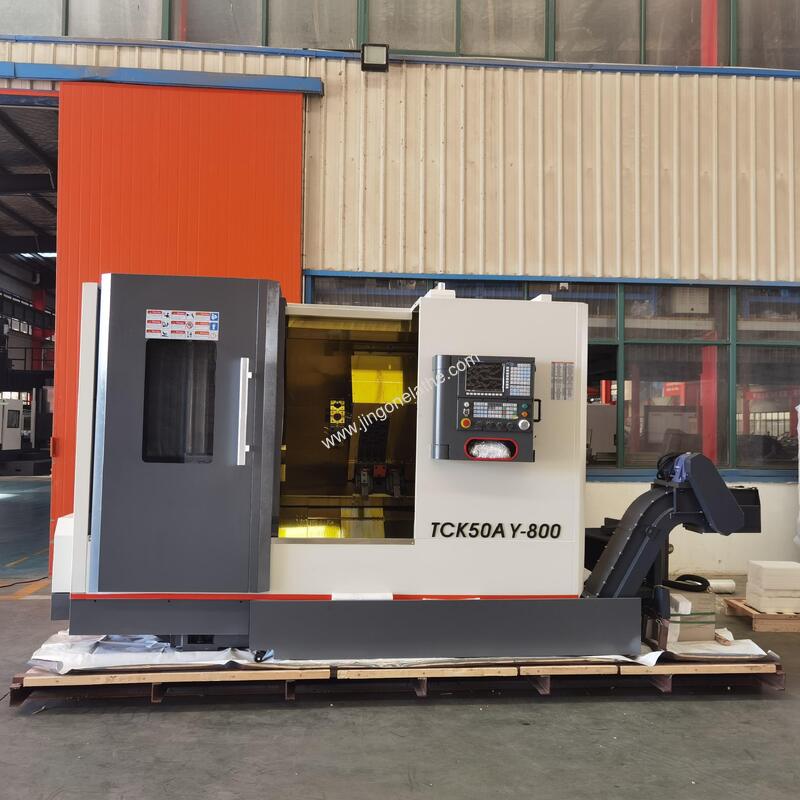

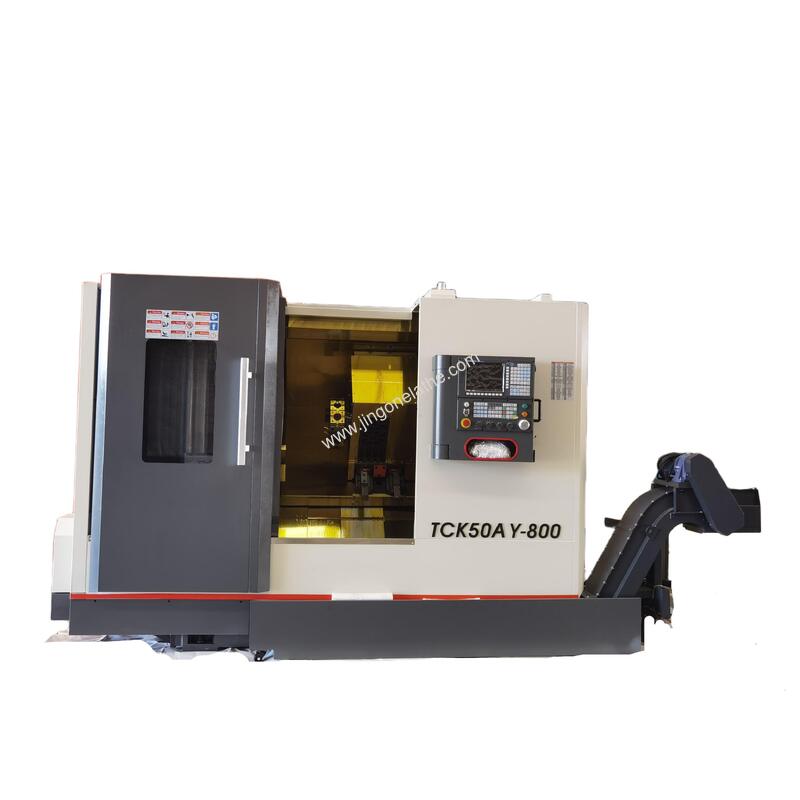

Y-Axis CNC Turn-Mill Center TCK50Y-800: 700mm Workpiece Length For Complex Automotive Component Machining
Y-Axis CNC Turn-Mill Center TCK50Y-800: 700mm Workpiece Length For Complex Automotive Component Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK50Y-800
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
640mm
Center Distance:
800
Max.turning Length:
700
Spindle Nose Type:
A2-8
Chuck:
10 Inch Hydraulic Chuck
Turret:
330-12T-BMT45
Y-axis Travel:
±45mm
Main Motor Power:
15Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
40000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Y-Axis CNC Turn-Mill Center TCK50Y-800: 700mm Workpiece Length for Complex Automotive Component Machining
Model: TCK50Y-800 | Core Keyword: Y-Axis CNC Turn-Mill Center
Summary
Y-Axis CNC Turn-Mill Center TCK50Y-800 is built for medium-duty complex machining of automotive and heavy equipment components.
With a 15Kw spindle, 700mm center distance, and linear guide rails, this unit supports 74mm max bar capacity and delivers 0.005mm repeatability, leveraging its rigid slant bed design for thermal shock resistance and long-term precision.
Its modular configuration includes 12-station servo turret and hydraulic tailstock, ideal for producing parts requiring combined turning, milling, and drilling operations in single setups.
Features

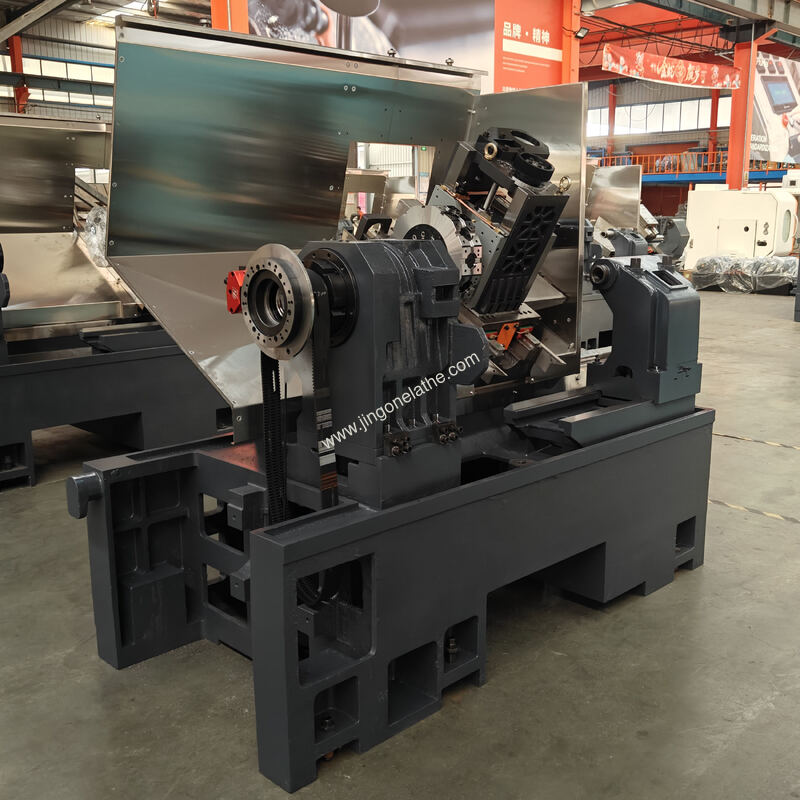

- 30° slant bed cast iron frame with reinforced structure, resistant to thermal shock for consistent long-term precision
- 450mm max turning diameter, 700mm center distance, supports 74mm max bar capacity for medium-sized parts
- Linear guide rails on X/Z/Y axes enable 16m/min rapid feed and 0.005mm repeatability for tight tolerances
- 3000 RPM stepless A2-8 spindle with 15Kw main motor for high-torque cutting of tough materials
- Modular options: 12-station servo turret with Y-axis, hydraulic tailstock, and multiple CNC system choices
- Optional accessories include chip conveyor, tool setter, and bar feeder for semi-automated production
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter over bed | ¢640 mm |
| Max.swing diameter over cross slide | ¢380 mm |
| Max.turning diameter | ¢450 mm |
| Center distance | 800 mm |
| Max.turning length | 700 mm |
| Spindle nose type | A2-8 |
| Spindle bore diameter | ¢86 mm |
| Max.bar capacity | ¢74 mm |
| Spindle speed | 3000 rpm |
| Spindle speed change | Stepless |
| Spindle taper | M.T.6 |
| Chuck size | 10'' hydraulic chuck |
| Turret type | BMT 45 live tool turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢330 mm |
| Tool size(square shank) | 25x25 mm |
| Tool size(round shank) | ¢32 mm |
| Tool chuck | ER25 |
| Cutting tools | 4 (2 square 2 round) |
| Live tool speed | 3000 rpm |
| X-axis travel | 260 mm |
| Z-axis travel | 800 mm |
| Y-axis travel | ±45 mm |
| X-axis rapid feed | 16 m/min |
| Z-axis rapid feed | 16 m/min |
| Y-axis rapid feed | 6 m/min |
| Min. setting | 0.0001 mm |
| X-axis motor torque | 15 N.m |
| Z-axis motor torque | 15 N.m |
| Y-axis motor torque | 6 N.m |
| Live tool motor torque | 10 N.m |
| Main motor power | 15 Kw |
| Machine bed tilt angle | 30° |
| Guideway type | Linear guide rail |
| X-axis rail | 35 mm |
| Z-axis rail | 35 mm |
| X-axis ball screw | 3210 mm |
| Z-axis ball screw | 4012 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 70 mm |
| Sleeve travel | 95 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.01 mm, Y: 0.008 mm |
| Repeatability | X: 0.005 mm, Z: 0.005 mm, Y: 0.005 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 450 W |
| Power supply | 30 KVA |
| Net weight | 4200 Kg |
| Dimensions (L × W × H) | 3300x2170x2200 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine frame | Slant bed |
| CNC system | Optional: Fanuc,Siemens,GSK,Syntec |
| X-axis motor | With brake |
| Y-axis motor | With brake |
| Ball screw | X: ¢32x12-635; Z: 32x12-1542 |
| Linear guideway | X: 35mm; Z: 35mm |
| Screw bearings | X: 25x62x15; Z: 25x62x15 |

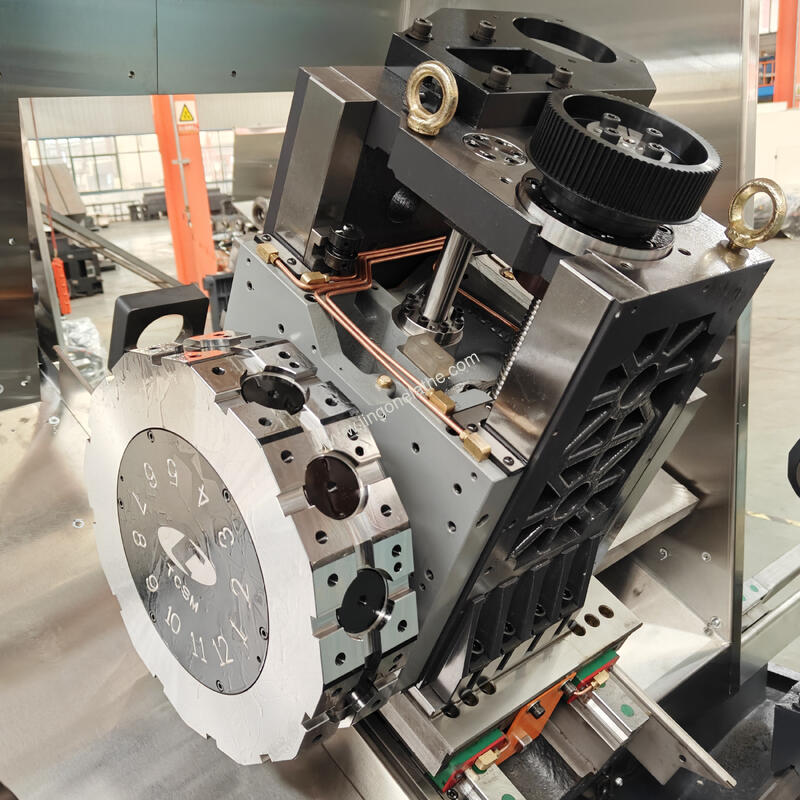

| Servo turret | Horizontal 12 station servo turret with Y-axis |
| Tool holders |
External turning tool clamping block 20x20, 4 sets; Facing tool holder 20x20, 1 set; Boring tool holder ¢25, 3 sets; Tool sleeve ¢20 |
| Optional Configurations |
Chip conveyor (side/rear discharge); Tool setter- folding arm tool setter; Automatic door; Automatic door safety device; Oil mist collector; Oil/coolant separator; Robot interface; Bar material feeder; Blowing device; Water gun; Soft jaws for chuck |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands and wooden bracing for medium-weight unit shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the max workpiece length the TCK50Y-800 Y-Axis CNC Turn-Mill Center can handle?
A: The TCK50Y-800 Y-Axis CNC Turn-Mill Center supports a max workpiece length of 700mm for medium-duty automotive and equipment components.
Q: Can the TCK50Y-800 be configured with a specific CNC system for my existing production line?
A: Yes, the TCK50Y-800 Y-Axis CNC Turn-Mill Center offers optional Fanuc, Siemens, GSK, or Syntec CNC systems to match your production requirements.
Q: What is the power requirement for the TCK50Y-800 turn-mill center?
A: The TCK50Y-800 Y-Axis CNC Turn-Mill Center requires a 30 KVA power supply to support its 15Kw spindle and auxiliary systems.
