The TCK46A Small CNC Turning Center Delivers High-Precision Turn-Mill Machining
The TCK46A Small CNC Turning Center Delivers High-Precision Turn-Mill Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK46M
Contact Us
Request A Quote
Product Details
Max Swing Diameter Over Bed:
¢460mm
Max Turning Length:
490mm
Spindle Speed:
3500rpm (Stepless)
Turret Type:
BMT45 Live Tool Turret, 12-Station
Guideway Type:
Taiwan HIWIN Linear Guide Rail
Main Motor Power:
7.5Kw
Positioning Accuracy:
±0.004mm
Standard Chuck:
8'' Hydraulic Chuck
Payment & Shipping Terms
Minimum Order Quantity
1
Price
25000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
Dual Spindle Turn Mill Machine TCK700S with One-Setup Turn-Mill-Drill Processing, 15Kw Dual Spindles, and 48mm Max Bar Capacity
Get Best Price
CNC Lathe with Y-Axis and Live Tooling TCK50Y-1500: 1400mm Workpiece Length for Heavy-Duty Large Component Machining
Get Best Price
Contact Us
Product Description
The TCK46A Small CNC Turning Center Delivers High-Precision Turn-Mill Machining
Model: TCK46A | Core Keyword: Small CNC turning center
Overview

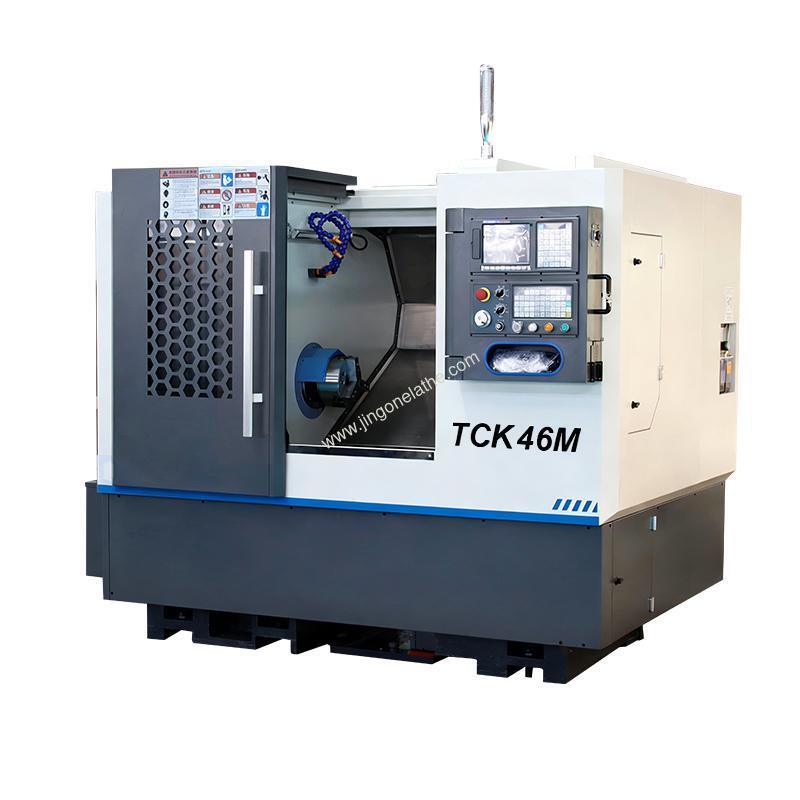

The TCK46A is a compact CNC turn-mill center and high-precision small CNC turning center built for efficient, multi-step machining. This industrial-grade turning machine features a 30° slant bed, HIWIN linear guide rails, and a BMT45 live tool turret to handle complex parts in one setup.
Ideal for mechanical manufacturing, mold making, and small-batch production, this compact turning center balances speed and accuracy. Its integrated design reduces setup time and minimizes part transfer errors, making it a reliable solution for precision component shops.
Technical Insight

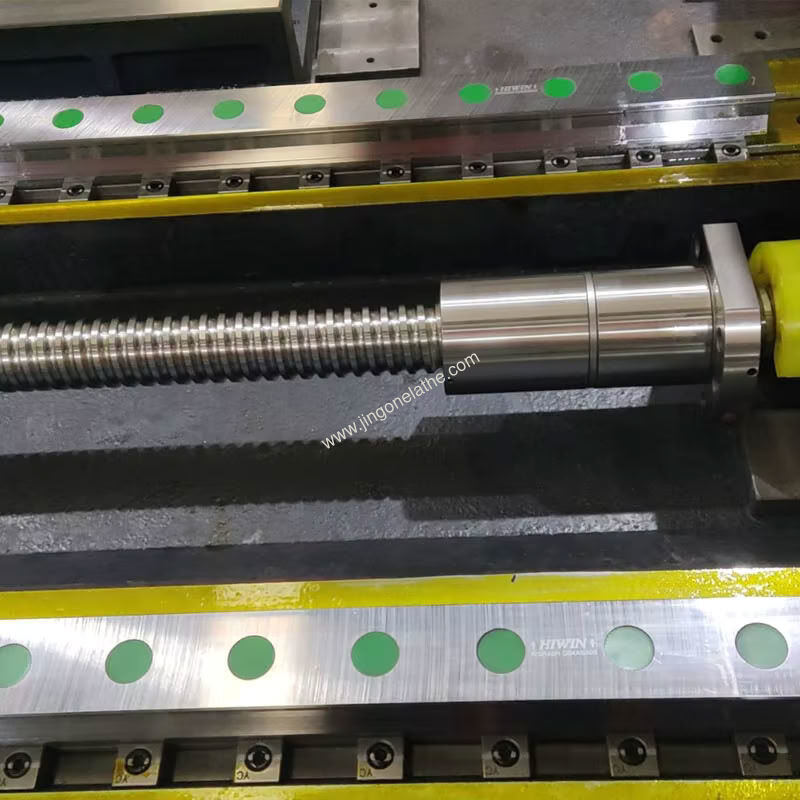

- Taiwan-Made Linear Guide Rails: Equipped with HIWIN RGH35CA rails, delivers 18 m/min rapid feed rates for smooth, precise axis movement.
- High-Speed Spindle Unit: 7.5 kW main motor with 3500 rpm stepless speed range, ensures consistent cutting for small to medium components.

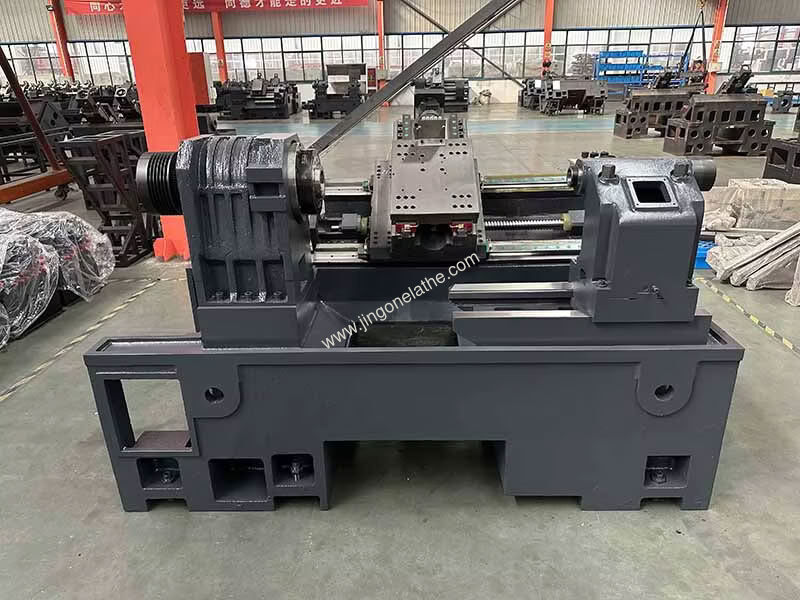

- High-Strength Cast Iron Bed: 30° slant bed design provides superior rigidity and excellent chip evacuation for continuous operation.
- BMT45 Live Tool Turret: 12-station turret supports turn-mill operations, enabling multi-process machining in a single setup.
- Automatic Centralized Lubrication: Maintains guide rails and ball screws, reduces wear and extends machine service life.
- Hydraulic Tailstock: Provides stable workpiece support with 80 mm sleeve travel, ideal for long shaft machining.
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max.swing diameter over bed | ¢460 | mm |
| Max.swing diameter over cross slide | ¢260 | mm |
| Max.turning diameter | ¢350 | mm |
| Center distance | 500 | mm |
| Max.turning length | 490 | mm |
| Spindle nose type | A2-5 | - |
| Spindle bore diameter | ¢56 | mm |
| Max.bar capacity | ¢45 | mm |
| Spindle speed | 3500 | rpm |
| Spindle speed change | Stepless | - |
| Spindle taper | M.T.6 | - |
| Chuck size | 8‘’ hydraulic chuck | inch |
| Turret type | BMT 45 live tool turret | - |
| Tool stations | 12-station | T |
| Tool size(square shank) | 20x20 | mm |
| Tool size(round shank) | ¢25 | mm |
| X-axis travel | 240 | mm |
| Z-axis travel | 400 | mm |
| X-axis rapid feed | 18 | m/min |
| Z-axis rapid feed | 18 | m/min |
| Min. setting | 0.001 | mm |
| X-axis motor torque | 10 | N.m |
| Z-axis motor torque | 10 | N.m |
| Machine bed tilt angle | 30° | - |
| Guideway type | Linear guide rail | - |
| X-axis rail | RGH35CA2R680 | mm |
| Z-axis rail | RGH35CA2R1040 | mm |
| X-axis ball screw | 3210 | mm |
| Z-axis ball screw | 4010 | mm |
| Tailstock type | Hydraulic tailstock | - |
| Sleeve diameter | 70 | mm |
| Sleeve travel | 80 | mm |
| Sleeve taper | M.T.5 | - |
| Main motor power | 7.5 | Kw |
| Lubrication pump | 3ZK (3L) | L |
| Cooling pump | 450 | W |
| Power supply | 13 | KVA |
| Net weight | 3100 | Kg |
| Dimensions (L × W × H) | 2550x2000x2000 | mm |
Standard Configurations
| Configuration | Brand / Details |
|---|---|
| Machine frame | Integral 30° Slant Bed, High-Strength Cast Iron |
| CNC system | Optional: Fanuc, Siemens, GSK, Syntec |
| Spindle motor | 7.5Kw |
| Spindle unit | SQ High-Speed Spindle Unit |
| Spindle bearings | - |
| Linear guideway |
HIWIN/PMI Taiwan RGH35CA2R680 (X-axis), RGH35CA2R1040 (Z-axis) |
| Ball screw |
THK 3210 (X-axis) 4010 (Z-axis) |
| Screw bearings | KOYO Japan |

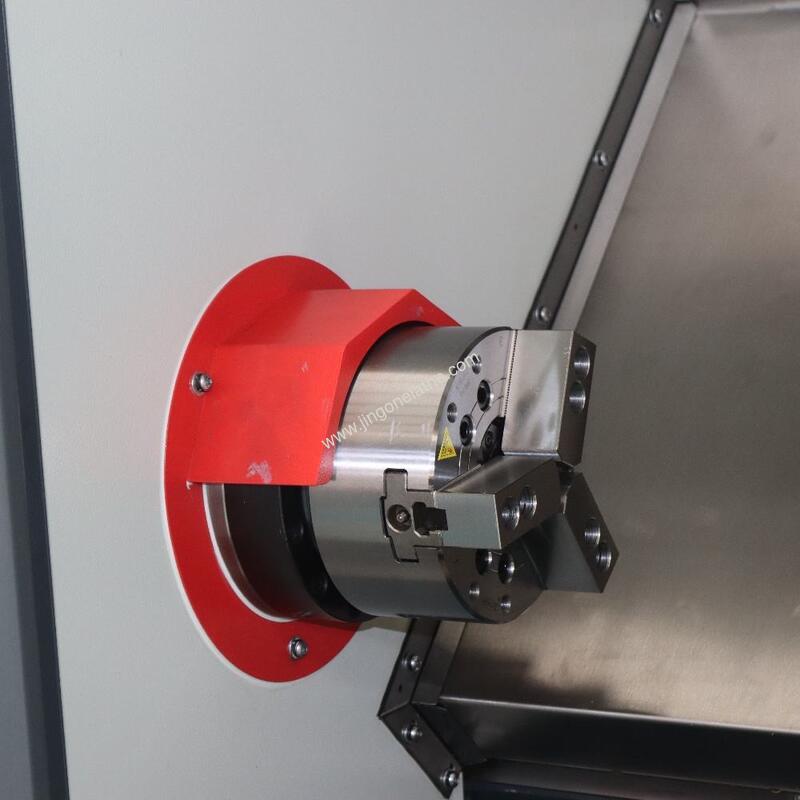

| Hydraulic chuck | 8 inch hollow hydraulic chuck |
| Hydraulic station | 1.5Kw |
| Servo turret | TCSM Taiwan |
| Lubrication pump | Hejin RBCLB-3ZK |
| Cooling pump | Ouruis/Jianyang, Automatic Centralized Lubrication |
| Heat exchanger | |
| Low-Voltage Apparatus | |
| Triple alarm light |
Optional Accessories
| Optional Accessory | Details |
|---|---|
| Servo Turret | 12-station servo turret (¢330 turret disc) |
| Chip Conveyor | Side/rear discharge |
| Tool Setter | Folding arm tool setter |
| Automatic Door | - |
| Door Safety Device | Automatic door safety device |
| Oil Mist Collector | - |
| Oil/Coolant Separator | - |
| Robot Interface | - |
| Bar Material Feeder | - |
| Blowing Device | - |
| Water Gun | - |
| Chuck Soft Jaws | - |
FAQ
Q: What CNC control systems are compatible with the TCK46A small CNC turning center?
A: The TCK46A small CNC turning center supports global-standard control systems including Fanuc, Siemens, GSK, and Syntec. These systems offer intuitive programming and reliable performance, with global service networks for quick maintenance. You can select the control that best matches your shop's existing workflow.
