Slant Bed Lathe with Driven Tools TCK50M-1500 Delivers Heavy-Duty Performance for 1400mm Long Part Machining
Slant Bed Lathe with Driven Tools TCK50M-1500 Delivers Heavy-Duty Performance for 1400mm Long Part Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK50M-1500
Contact Us
Request A Quote
Product Details
CNC System:
Fanuc, GSK, Siemens Optional
Max.turning Diameter:
370mm
Max.turning Length:
1400mm
Spindle Bore Diameter:
86mm
Guideway Type:
Linear Guide Rail
Tailstock Type:
Servo Tailstock
Main Motor Power:
15Kw
Live Tool Motor Torque:
10Nm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
45000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

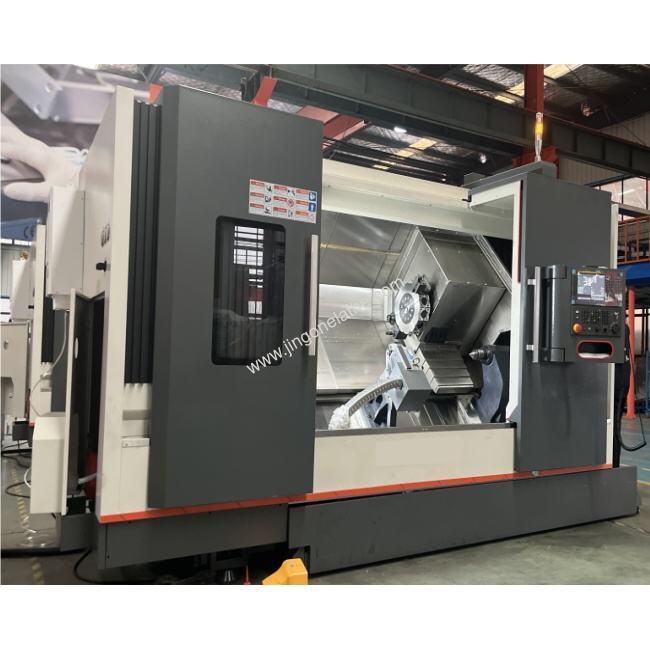

Slant Bed Lathe with Driven Tools | TCK50M-1500 Delivers Heavy-Duty Performance for 1400mm Long Part Machining
Model: TCK50M-1500 | Core Keyword: Slant Bed Lathe with Driven Tools
Summary
Slant Bed Lathe with Driven Tools (TCK50M-1500) is a heavy-duty, modular turning center with a 30° slant cast bed optimized for thermal stability and chip evacuation.
Powered by a 15Kw main motor, A2-8 spindle nose, and 3000 RPM spindle speed, this lathe supports 74mm max bar capacity and 1400mm max workpiece length, with ±0.005mm repeatability for consistent long-part machining.
Designed for heavy machinery manufacturers, agricultural equipment fabricators, and construction component producers needing reliable, high-tolerance large-part processing.
Features
- 30° slant bed cast with high-grade ductile iron, treated for thermal stress relief to minimize machining drift during extended heavy-duty runs
- A2-8 spindle nose with 86mm bore, 15Kw main motor, and stepless 3000 RPM speed, delivering high torque for heavy cutting of 1400mm long workpieces
- 35mm linear guide rails (X/Z-axis) with 18m/min rapid feed, reducing cycle time while maintaining ±0.01mm positioning accuracy for large parts
- 12-station BMT 45 driven tool turret with 3000 RPM live tool speed, enabling multi-operation machining (turning, drilling, milling) in a single setup
- Hydraulic tailstock with 70mm sleeve diameter, providing stable support for 1400mm max workpiece length to eliminate chatter and ensure surface finish consistency
Technical Specifications
| Parameter | Specification | |
|---|---|---|
| Max.swing diameter over bed | mm | ¢560 |
| Max.swing diameter over cross slide | mm | ¢300 |
| Max.turning diameter | mm | ¢340 |
| Center distance | mm | 1500 |
| Max.turning length | mm | 1490 |
| Max.workpiece length | mm | 1400 |
| Max.processing diameter(plate) | mm | 400 |
| Spindle nose type | A2-8 | |

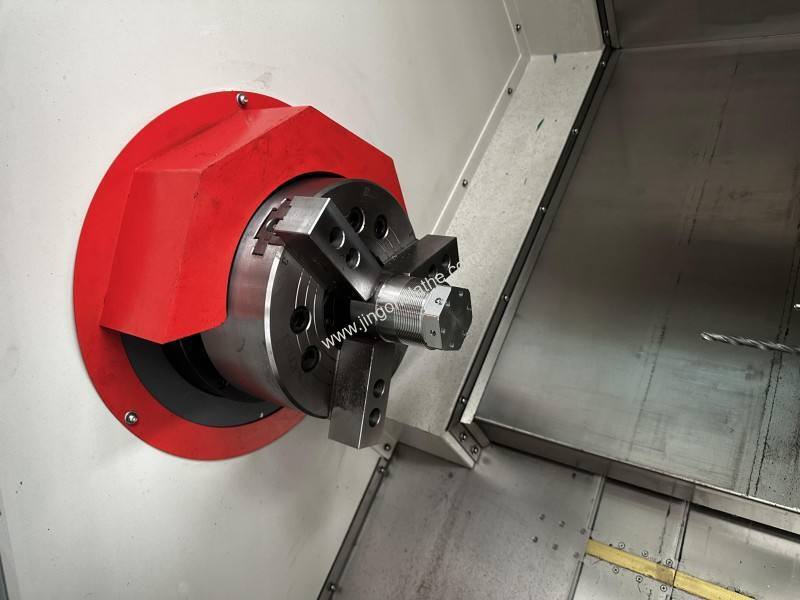

| Spindle bore diameter | mm | ¢86 |
| Max.bar capacity | mm | ¢74 |
| Spindle speed | rpm | 3000 |
| Spindle speed change | Stepless | |
| Spindle taper | M.T.6 | |
| Chuck size | inch | 10‘’ hydraulic chuck |
| Turret type | BMT 45 live tool turret | |
| Tool stations | T | 12-station |
| Turret disc diameter | mm | ¢330 |
| Tool size(square shank) | mm | 25x25 |
| Tool size(round shank) | mm | ¢32 |
| Cutting tools | 4 (2 square 2 round) | |
| Live tool speed | rpm | 3000 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 1500 |
| X-axis rapid feed | m/min | 18 |
| Z-axis rapid feed | m/min | 18 |
| Min. setting | mm | 0.001 |
| X-axis motor torque | N.m | 15 |
| Z-axis motor torque | N.m | 15 |
| Live tool motor torque | N.m | 10 |
| Main motor power | Kw | 15 |
| Machine bed tilt angle | 30° | |
| Guideway type | Linear guide rail | |
| X-axis rail | mm | 35 |
| Z-axis rail | mm | 35 |
| X-axis ball screw | mm | 3210 |
| Z-axis ball screw | mm | 4012 |
| Tailstock type | Hydraulic tailstock | |
| Movement | Manual | |
| Sleeve diameter | mm | 70 |
| Sleeve travel | mm | 95 |
| Sleeve taper | M.T.5 | |
| Positioning accuracy | mm | X: 0.01, Z: 0.01 |
| Repeatability | mm | X: 0.005, Z: 0.005 |
| Lubrication pump | L | 3ZK (3L) |
| Cooling pump | W | 450 |
| Power supply | KVA | 35 |
| Net weight | Kg | 5700 |
| Dimensions (L × W × H) | mm | 4000x2170x2200 |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Optional Turret | 12-station servo turret (¢330 turret disc) |
| Chip Handling | Chip conveyor (side/rear discharge) |
| Tool Setting | Tool setter- folding arm tool setter |
| Safety Features | Automatic door, Automatic door safety device |
| Air Quality | Oil mist collector |
| Fluid Management | Oil/coolant separator |
| Automation | Robot interface, Bar material feeder |
| Auxiliary Tools | Blowing device, Water gun |
| Chuck Accessories | Soft jaws for chuck |
| Live Tool Holders | 90°, 0°, Custom configurations |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with triple steel bands and wooden bracing for 5700kg extra-heavy unit
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the max workpiece length of the TCK50M-1500 Slant Bed Lathe with Driven Tools?
A: The TCK50M-1500 Slant Bed Lathe with Driven Tools supports a 1400mm max workpiece length, ideal for long structural and heavy machinery component machining.
Q: How does the 30° slant bed design benefit the TCK50M-1500?
A: The TCK50M-1500 Slant Bed Lathe with Driven Tools features a 30° slant bed that improves chip evacuation, reduces thermal drift, and enhances operator access for setup and maintenance.
Q: What is the net weight of the TCK50M-1500 Slant Bed Lathe with Driven Tools?
A: The TCK50M-1500 Slant Bed Lathe with Driven Tools has a 5700kg net weight, providing a stable base for heavy-duty cutting and minimizing vibration during long-part machining.
