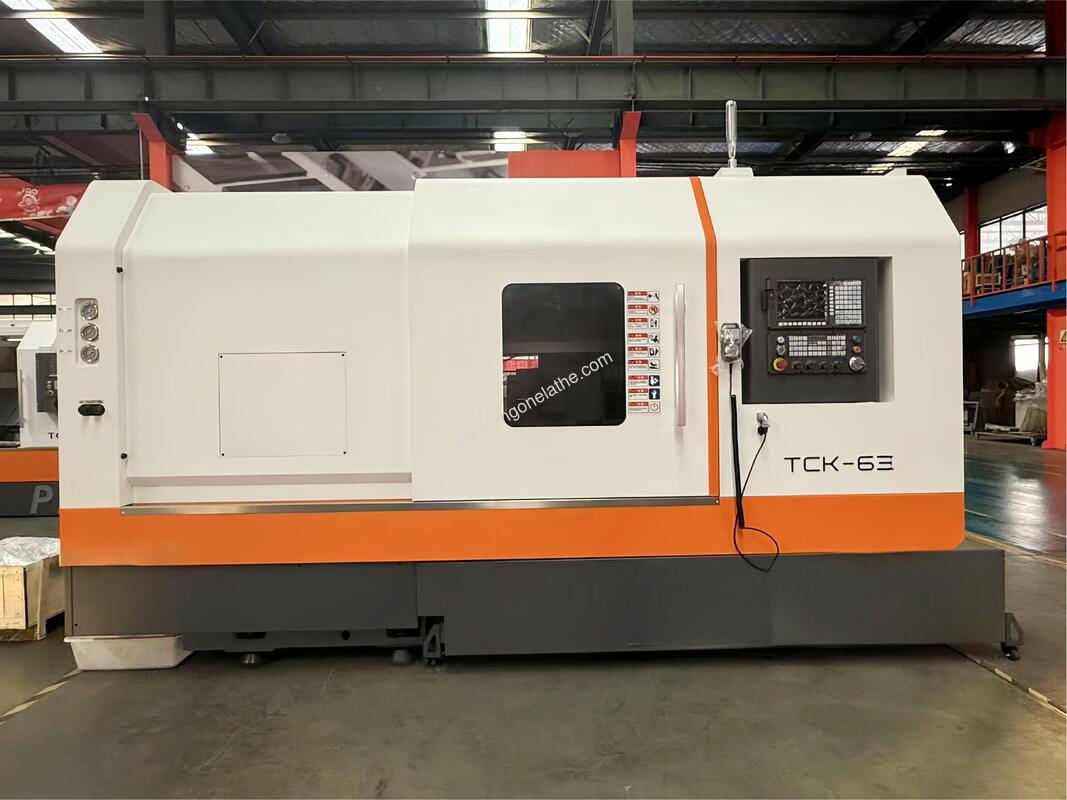

Y-Axis Turn-Mill Center TCK63Y-1000 | Heavy-Duty Turning Milling Machine
Y-Axis Turn-Mill Center TCK63Y-1000 | Heavy-Duty Turning Milling Machine
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK63Y-1000
Contact Us
Request A Quote
Product Details
Turret Type:
BMT65 Live Turret
Tool Stations:
12-station
Cutting Tools:
4 (2 Square 2 Round)
Live Tool Speed:
3000 Rpm
Y-axis Travel:
±65 Mm
Y-axis Motor Torque:
10 Nm
Live Tool Motor Torque:
30 Nm
Main Motor Power:
18.5 Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
62000 USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Y-Axis Turn-Mill Center TCK63Y-1000 | HRC55 Hardened Guideways for Long-Term Precision
Model: TCK63Y-1000 | Core Keyword: Y-Axis Turn-Mill Center with Box Guideways
Summary
Y-Axis Turn-Mill Center with Box Guideways (TCK63Y-1000) delivers heavy-duty cutting performance with HRC55 hardened guideways.
Equipped with BMT65 live turret and ±65mm Y-axis travel, it supports complex turning and milling operations, with 15-inch hollow hydraulic chuck for large bar capacity.
Perfect for aerospace, automotive, and energy sector manufacturers needing high-precision, multi-task machining of workpieces up to 1000mm in length.
Features
- 30° slant bed cast from high-strength iron, minimizing Z-axis ballscrew to tool tip distance for enhanced rigidity
- BMT65 live turret with 12 tool stations, enabling simultaneous turning and milling with ±65mm Y-axis travel
- HRC55 hardened box guideways support heavy-duty cutting, reducing wear and maintaining long-term precision
- A2-11 spindle nose with 103mm bore and 1800rpm stepless speed, handling bar capacity up to 90mm
- 15-inch hollow hydraulic chuck ensures secure clamping of large workpieces, reducing setup time
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Max.swing diameter | mm | 780 |
| Max.turning diameter | mm | 530 |
| Max.turning length | mm | 950 |
| Spindle nose type | - | A2-11 |
| Spindle bore diameter | mm | 103 |
| Bar capacity | mm | 90 |
| Spindle speed | rpm | 1800 |
| Spindle speed change | - | Stepless |
| Main motor power | Kw | 18.5 |
| Chuck size | inch | 15'' |
| Chuck type | - | Hollow Hydraulic |
| Turret type | - | BMT65 Live Turret |
| Tool stations | T | 12-station |
| Turret disc diameter | mm | ¢420 |
| Tool size(square shank) | mm | 25x25/32x32 |
| Tool size(round shank) | mm | ¢40 |
| Cutting tools | - | 4 (2 square 2 round) |
| Live tool speed | rpm | 3000 |
| X-axis travel | mm | 350 |
| Z-axis travel | mm | 1500 |
| Y-axis travel | mm | ±65 |
| X-axis rapid feed | m/min | 16 |
| Z-axis rapid feed | m/min | 16 |
| Y-axis rapid feed | m/min | 6 |
| X-axis motor torque | N.m | 22 |
| Z-axis motor torque | N.m | 22 |
| Y-axis motor torque | N.m | 10 |
| Live tool motor torque | N.m | 30 |
| Main motor power | Kw | 18.5 |
| Machine bed tilt angle | - | 30° |
| Guideway type | - | Box guideway |
| X-axis ball screw | mm | 4010 |
| Z-axis ball screw | mm | 5512 |
| Tailstock type | - | Hydraulic tailstock |
| Movement | - | Manual |
| Sleeve diameter | mm | 140 |
| Sleeve travel | mm | 140 |
| Sleeve taper | - | M.T.5 |
| Positioning accuracy | mm | X: 0.012, Z: 0.02, Y: 0.01 |
| Repeatability | mm | X: 0.008, Z: 0.012, Y: 0.006 |
| Lubrication pump | L | 3ZK (3L) |
| Cooling pump | W | 450 |
| Power supply | KVA | 45 |
| Net weight | Kg | 8800 |
| Dimensions (L × W × H) | mm | 3700x2400x2300 |
Accessory Configurations
| ### Standard Configurations | |
|---|---|
| Machine frame | Integral Slant Bed High-Strength Cast Iron |
| CNC system | Fanuc, GSK, Syntec, Siemens optional |
| Spindle motor | Included |
| Spindle | With hydraulic brake |
| Ball screw | HIWIN/PMI, Taiwan |
| Screw bearings | KOYO, Japan |
| Hydraulic chuck | 10/15 inch hollow hydraulic chuck |
| Hydraulic station | Included |
| Servo turret | BMT65-12-420 |
| Lubrication pump | Included |
| Cooling pump | Included |
| Heat exchanger | Included |
| Low-Voltage Apparatus | Included |
| Triple alarm light | Included |
| ### Optional Configurations | |
| Chip conveyor |
|
| Tool setter: Folding arm tool setter |
|
| Automatic door |
|
| Automatic door safety device | |
| Oil mist collector |
|
| Oil/coolant separator |
|
| Robot interface | Included |
| Bar material feeder |
|
| Blowing device | Included |
| Water gun | Included |
| Soft jaws for chuck | Included |
| Live tool holders: 90°, 0°, others |
|
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What factors should I consider when selecting TCK63Y-1000 for my workshop?
A: Prioritize its ±65mm Y-axis travel and BMT65 live turret, ideal for multi-task machining. This Y-axis turn-mill center handles heavy-duty cutting with HRC55 guideways.
Q: How does the hardened guideway design affect maintenance costs of this turn-mill center?
A: HRC55 hardened box guideways reduce wear and tear, cutting long-term maintenance expenses for this Y-axis turn-mill center with box guideways.
Q: Can the TCK63Y-1000 improve my complex part machining efficiency?
A: Yes, the 12-station BMT65 live turret and ±65mm Y-axis enable one-setup turning and milling, boosting efficiency for this turn-mill center.
