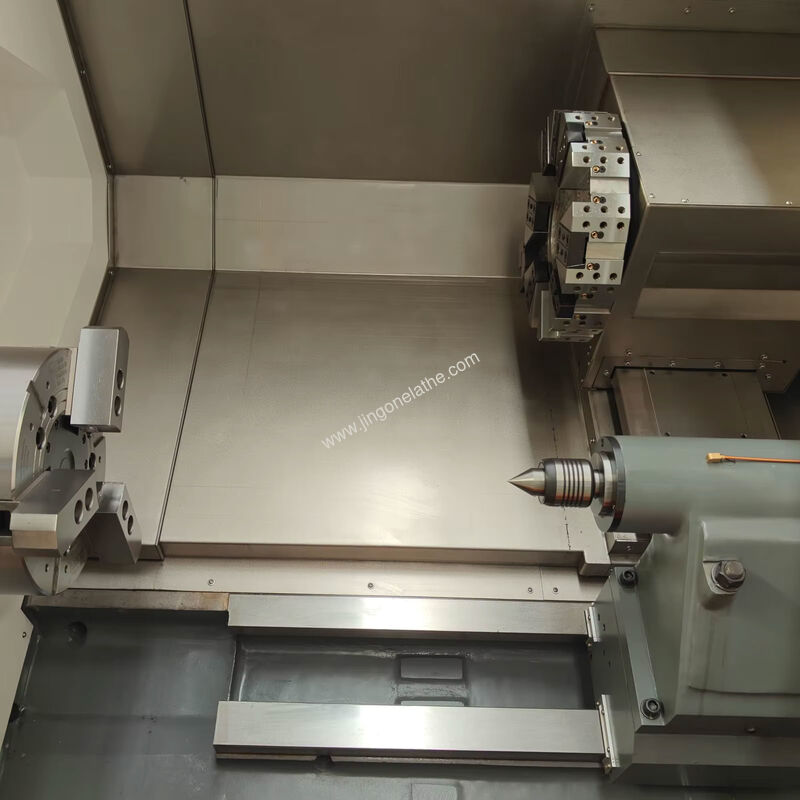

TCK CNC Lathe | TCK63E | Heavy-Duty Metal Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK63E
Contact Us
Request A Quote
Product Details
Max.swing Diameter:
650mm
Max.turning Length:
1000mm
Spindle Nose Type:
A2-8 A2-11
Chuck Type:
Hydraulic
Turret Type:
Servo Turret
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 14800 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
TCK63E CNC Lathe: HRC55 Hardened Box Guideway for Long-Term Precision & Heavy-Duty Cutting
Model: TCK63E | Core Keyword: TCK CNC Lathe
Summary
TCK63E CNC Lathe is a heavy-duty turning machine engineered for thick-walled workpieces and tough material processing. Its 45° integral cast iron slant bed and HRC55 hardened box guideway deliver exceptional structural rigidity and vibration resistance, eliminating chatter during high-torque cuts.
TCK63E CNC Lathe offers dual spindle options (A2-8/A2-11) with 85/105mm spindle bore and 72/88mm bar capacity, paired with up to 1900Nm max torque for efficient processing of alloy steel, stainless steel, and cast iron. The 12-station servo turret supports 32x32mm square and φ40mm round shank tools, enabling versatile turning, facing, and boring operations.
TCK63E CNC Lathe is ideal for precision manufacturing shops, aerospace component producers, and oil and gas part fabricators needing reliable, high-rigidity turning solutions for long shaft and heavy workpiece applications.
Features
- 45° integral slant bed cast from high-strength iron for superior structural rigidity and vibration damping
- HRC55 hardened box guideway minimizes wear and maintains long-term precision during heavy-duty cutting
- Dual spindle options (A2-8/A2-11) with 85/105mm bore and 72/88mm bar capacity, delivering up to 1900Nm torque for tough materials
- 12-station servo turret (420mm disc diameter) supports 32x32mm square and φ40mm round shank tools, with 6 pre-configured cutting tools for versatile scenarios
- Stepless or 3-speed gear spindle speed change to match material hardness and cutting requirements
- Hydraulic chuck and tailstock provide secure workpiece clamping and support for 1000mm maximum turning length
Technical Specifications
| Category | Parameter | Unit | TCK63E-1000 (A2-8) | TCK63E-1000 (A2-11) |
|---|---|---|---|---|
| Capacity | Max. swing diameter | mm | 650 | 650 |
| Capacity | Max. turning diameter | mm | 630 | 630 |
| Capacity | Max. turning length | mm | 1000 | 1000 |
| Spindle | Spindle nose type | - | A2-8 | A2-11 |
| Spindle | Spindle bore diameter | mm | 85 | 105 |
| Spindle | Bar capacity | mm | 72 | 88 |
| Spindle | Spindle speed | rpm | 2600 | 1200 |
| Spindle | Spindle speed change | - | Stepless | 3-Speed Gear |
| Spindle | Main motor power | Kw | 15 | 18.5 |
| Chuck | Chuck size | inch | 10’’ | 15’’ |
| Chuck | Chuck type | - | Hydraulic | Hydraulic |
| Turret | Turret type | - | Servo turret | Servo turret |
| Turret | Tool stations | T | 12-station | 12-station |
| Turret | Turret disc diameter | mm | ¢420 | ¢420 |
| Turret | Tool size (square shank) | mm | 32x32 | 32x32 |
| Turret | Tool size (round shank) | mm | ¢40 | ¢40 |
| Turret | Cutting tools | - | 6 (3 square 3 round) | 6 (3 square 3 round) |
| Travel&Feed | X-axis travel | mm | 350 | 350 |
| Travel&Feed | Z-axis travel | mm | 1100 | 1100 |
| Travel&Feed | X-axis rapid feed | m/min | 12 | 12 |
| Travel&Feed | Z-axis rapid feed | m/min | 10 | 10 |
| Servo system | X-axis motor torque | N.m | 18 | 18 |
| Servo system | Z-axis motor torque | N.m | 18 | 18 |
| Structure&Guideways | Machine bed tilt angle | - | 45° | 45° |
| Structure&Guideways | Guideway type | - | Box guideway | Box guideway |
| Transmission | X-axis ball screw | mm | 4005 | 4005 |
| Transmission | Z-axis ball screw | mm | 5010 | 5010 |
| Tailstock | Tailstock type | - | Hydraulic tailstock | Hydraulic tailstock |
| Tailstock | Movement | - | Manual | Manual |
| Tailstock | Sleeve diameter | mm | 140 | 140 |
| Tailstock | Sleeve travel | mm | 140 | 140 |
| Tailstock | Sleeve taper | - | M.T.5 | M.T.5 |
| Accuracy | Positioning accuracy (X) | mm | 0.01 | 0.01 |
| Accuracy | Positioning accuracy (Z) | mm | 0.015 | 0.015 |
| Accuracy | Repeatability (X) | mm | 0.008 | 0.008 |
| Accuracy | Repeatability (Z) | mm | 0.012 | 0.012 |
| Others | Lubrication pump | L | 3ZK (3L) | 3ZK (3L) |
| Others | Cooling pump | W | 750 | 750 |
| Others | Power supply | KVA | 32 | 32 |
| Others | Net weight | Kg | 7800 | 7800 |
| Others | Dimensions (L × W × H) | mm | 3700x2100x2400 | 3700x2100x2400 |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine frame | Included as standard |
| CNC system | Included as standard |
| Spindle motor | Included as standard |
| Spindle | Included as standard |
| Ball screw | Included as standard |
| Screw bearings | Included as standard |
| Hydraulic chuck | Included as standard |
| Hydraulic station | Included as standard |
| Servo turret | Included as standard |
| Lubrication pump | Included as standard |
| Cooling pump | Included as standard |
| Heat exchanger | Included as standard |
| Low-Voltage Apparatus | Included as standard |
| Triple alarm light | Included as standard |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What spindle options are offered for the TCK63E CNC Lathe?
A: TCK63E CNC Lathe provides two spindle options: A2-8 (85mm bore, 2600rpm stepless) and A2-11 (105mm bore, 1200rpm 3-speed gear) for diverse cutting needs.
Q: How does the TCK63E maintain precision during heavy-duty cuts?
A: The TCK63E CNC Lathe uses an HRC55 hardened box guideway and 45° cast iron slant bed to reduce vibration and preserve long-term precision for heavy-duty operations.
Q: What workpieces is the TCK63E CNC Lathe designed to process?
A: TCK63E CNC Lathe is optimized for thick-walled workpieces and tough materials like alloy steel, ideal for aerospace, oil and gas, and heavy machinery component production.
