Product Description

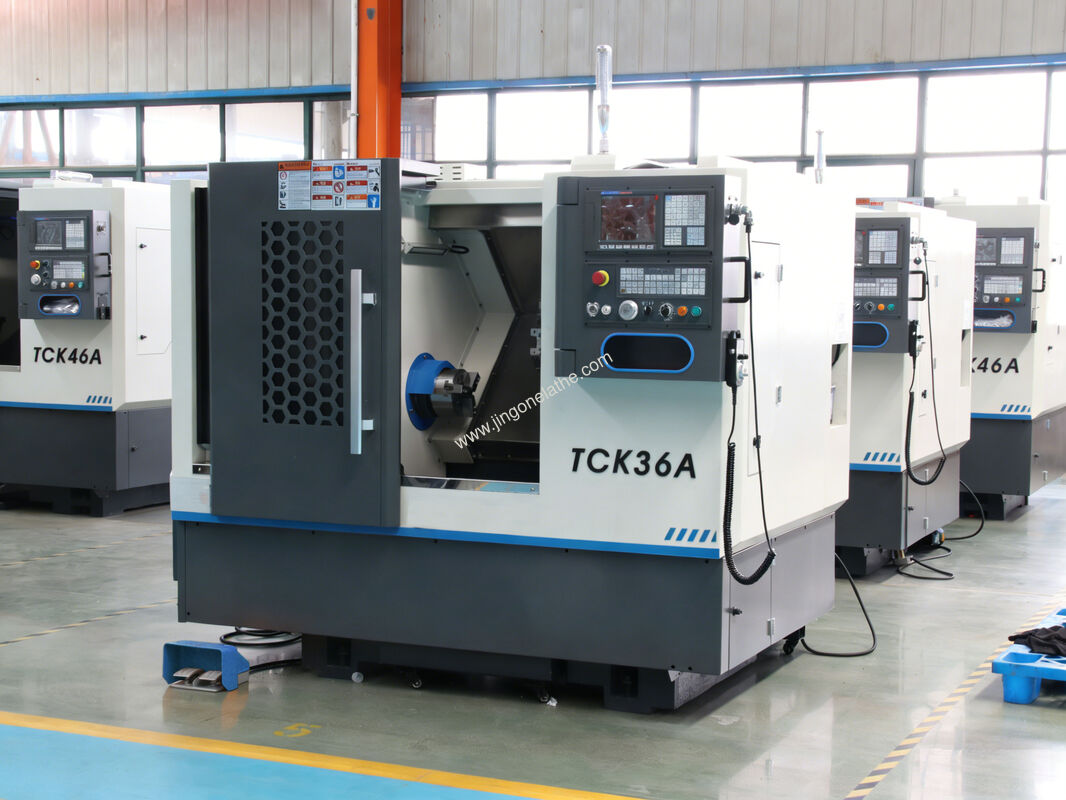

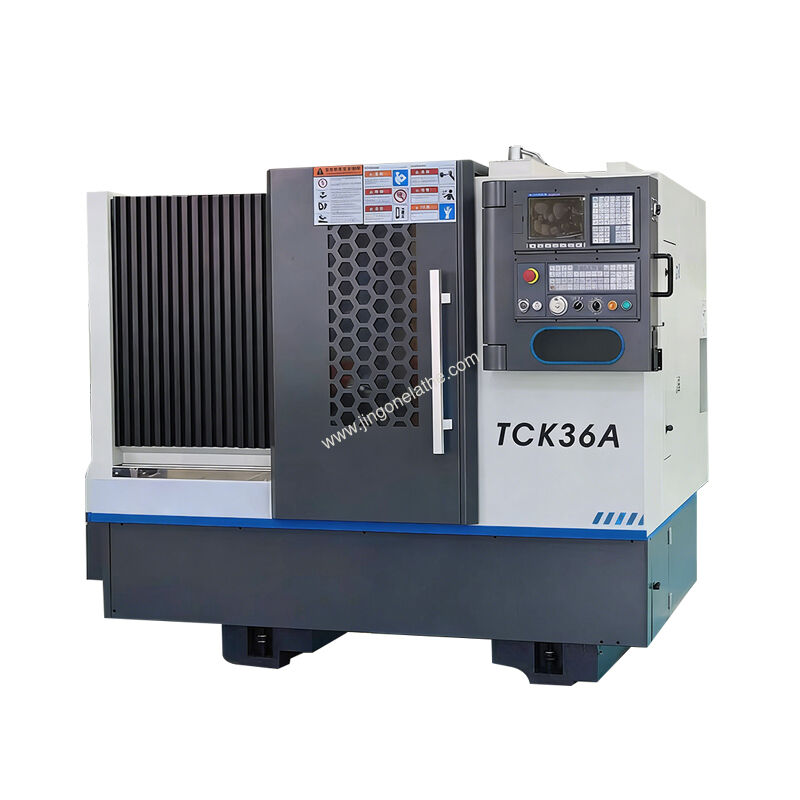

Compact CNC Slant Bed Lathe TCK36A: Space-Saving Precision for High-Efficiency Mold Making
Model: TCK36A | Core Keyword: Compact CNC slant bed lathe
Summary
Compact CNC slant bed lathe TCK36A is a space-saving solution for high-precision mold making and mechanical part production.
Boasting a 360mm swing over bed, 45° slant bed, and Taiwan linear guide rail, this unit delivers 0.01mm positioning accuracy with stepless spindle speed up to 3500 rpm.
Designed for small-batch and high-precision jobs, this compact CNC slant bed lathe reduces floor space while maintaining reliable cutting performance for automotive and aerospace components.
Features

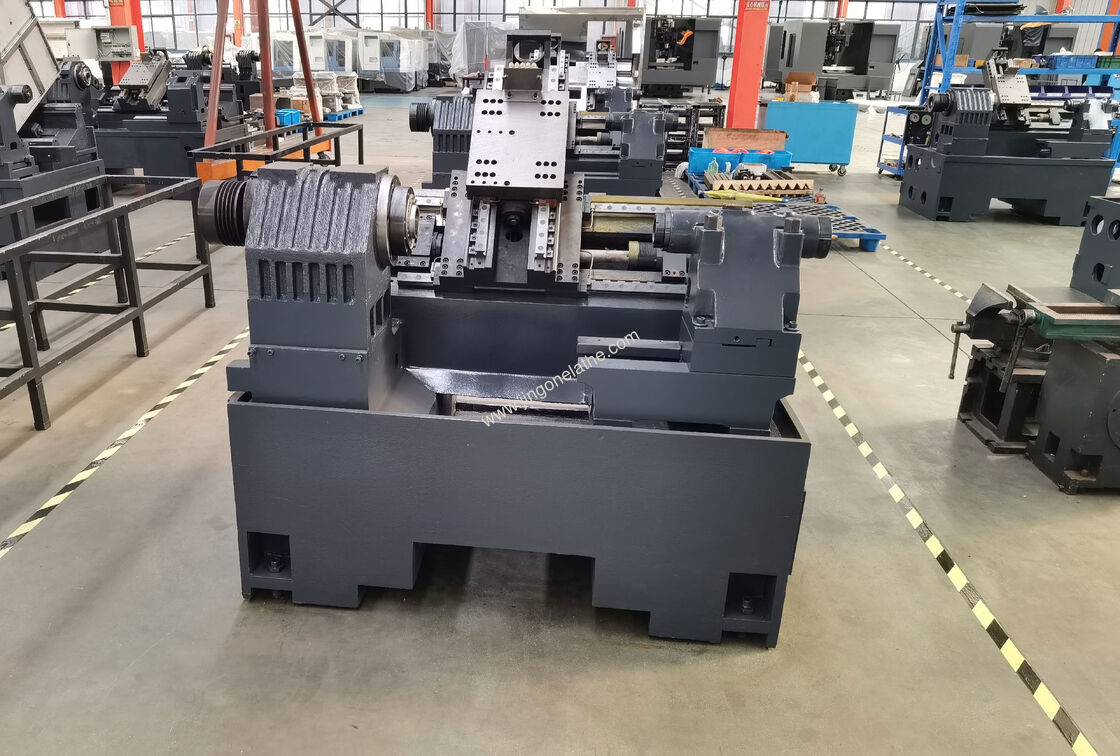

- High-strength cast iron integrated 45° slant bed for enhanced stability and vibration dampening
- 360mm max swing over bed and 300mm max turning length for versatile small-part processing
- Taiwan linear guide rail with 20m/min rapid feed for smooth, precise axis movement
- 3500 rpm stepless spindle unit with A2-5 nose type for consistent cutting performance
- 8-station servo turret with 20mm square tool shank capacity for quick tool changes
- Automatic centralized lubrication system to reduce wear and extend component lifespan

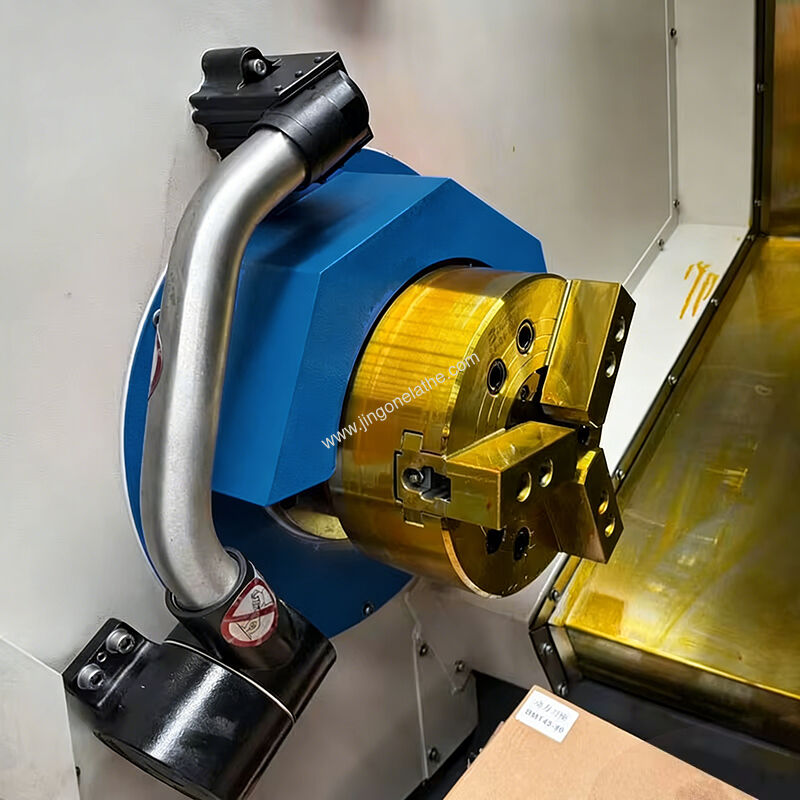

- 6-inch chuck with 45mm max bar capacity for efficient bar feeding operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. swing diameter | 360 mm |
| Max. turning diameter | 360 mm |
| Max. turning length | 300 mm |
| Chuck size | 6'' |
| Spindle speed | 3500 rpm |
| Spindle speed change | Stepless |
| Spindle nose type | A2-5 |
| Spindle bore diameter | 56 mm |
| Max. bar capacity | 45 mm |
| Turret type | Servo turret |
| Tool stations | 8-station |
| Tool size (square shank) | 20 mm |
| Tool size (round shank) | 25 mm |
| Cutting tools | 4 (2 square 2 round) |
| X-axis travel | 195 mm |
| Z-axis travel | 350 mm |
| X-axis rapid feed | 20 m/min |
| Z-axis rapid feed | 20 m/min |
| X-axis motor torque | 6 N.m |
| Z-axis motor torque | 6 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Linear guide rail |
| X-axis rail width | 30 mm |
| Z-axis rail width | 30 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 65 mm |
| Sleeve travel | 60 mm |
| Sleeve taper | M.T.4 |
| Positioning accuracy | X: 0.01 mm; Z: 0.01 mm |
| Repeatability | X: 0.005 mm; Z: 0.005 mm |
| Main motor power | 5.5 Kw |
| Lubrication pump | 2 L |
| Cooling pump | 450 W |
| Power supply | 11 KVA |
| Net weight | 2500 Kg |
| Dimensions (L × W × H) | 2200x1636x1850 mm |
Accessory Configurations
| Accessory | Optional Configuration |
|---|---|
| Turret Upgrade | 12-station servo turret (φ330 turret disc) |
| Chip Management | Chip conveyor (side/rear discharge) |
| Tool Setting | Tool setter - folding arm tool setter |
| Safety & Convenience | Automatic door, Automatic door safety device |
| Environmental Control | Oil mist collector, Oil/coolant separator |
| Automation | Robot interface, Bar material feeder |
| Maintenance Tools | Blowing device, Water gun |
| Chuck Accessories | Soft jaws for chuck |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What makes the compact CNC slant bed lathe TCK36A suitable for small workshops?
A: This compact CNC slant bed lathe has a 2200x1636x1850mm footprint, ideal for small workshops needing high-precision mold and mechanical part processing.
Q: How does the TCK36A maintain long-term cutting precision?
A: Equipped with Taiwan linear guide rail and automatic centralized lubrication, this compact CNC slant bed lathe reduces wear and preserves positioning accuracy over time.
Q: What materials can the TCK36A process efficiently?
A: This compact CNC slant bed lathe handles steel, aluminum, and plastic with its 5.5kw spindle, suitable for mold making and mechanical manufacturing.
