Product Description
Automated CNC Lathe Production Line TCK36A: 0.005mm Repeatability for Uninterrupted Small Parts Processing
Model: TCK36A | Core Keyword: Automated CNC Lathe Production Line
Summary

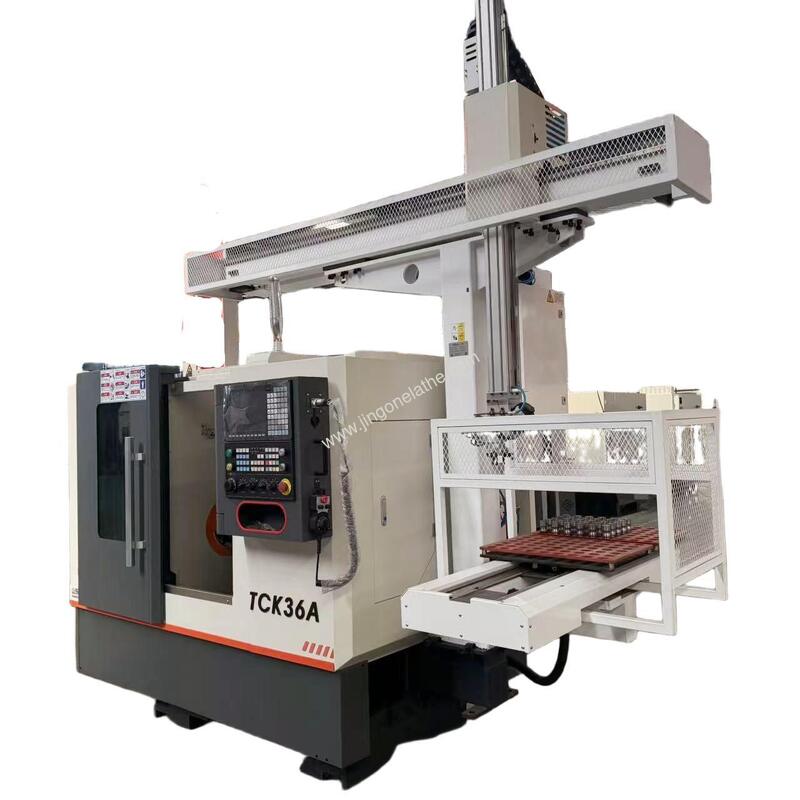

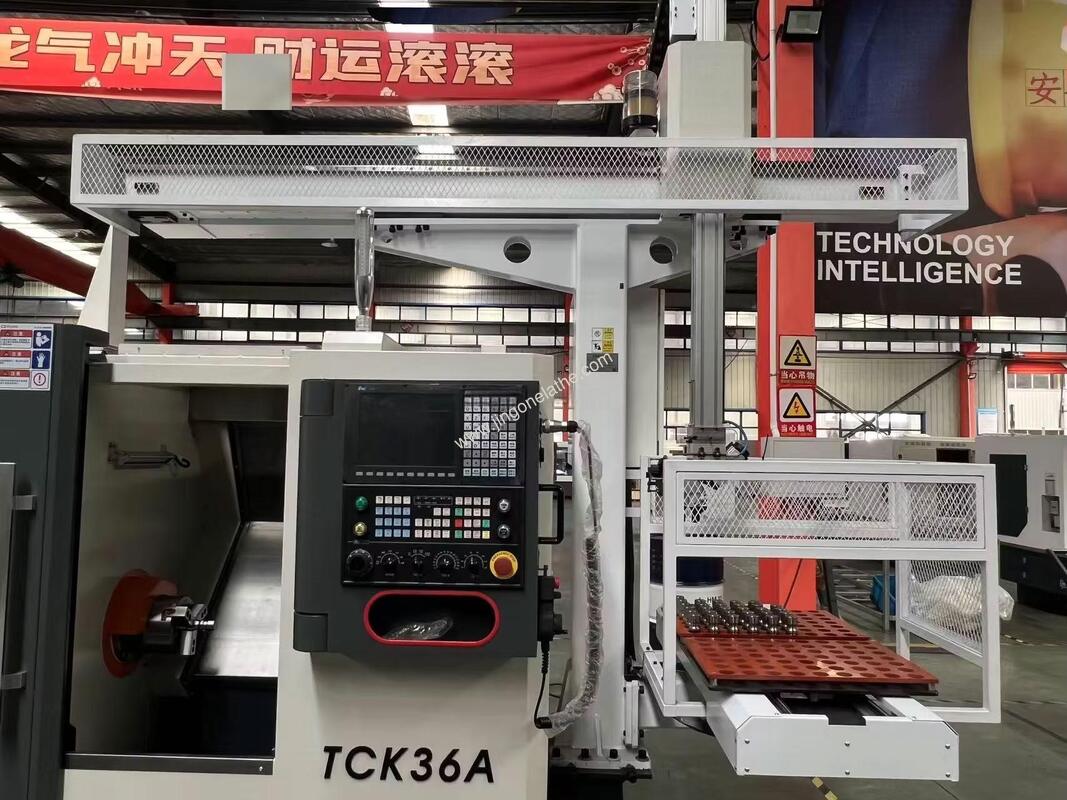

Automated CNC Lathe Production Line TCK36A integrates a gantry robot for 24/7 small parts processing with minimal operator intervention.
Featuring 45° slant bed, linear guide rails, and 0.005mm repeatability, this system meets tight tolerance requirements for auto components, electronics parts, and precision hardware.
Ideal for contract manufacturers and automotive suppliers seeking to cut labor costs while maintaining consistent machining accuracy.
Features
- 45° slant machine bed with linear guide rails ensures stable machining and reduced chip accumulation
- Servo turret with 8 tool stations enables fast indexing and consistent tool positioning
- 3500rpm stepless spindle speed handles aluminum, steel, and hardened alloys with equal precision

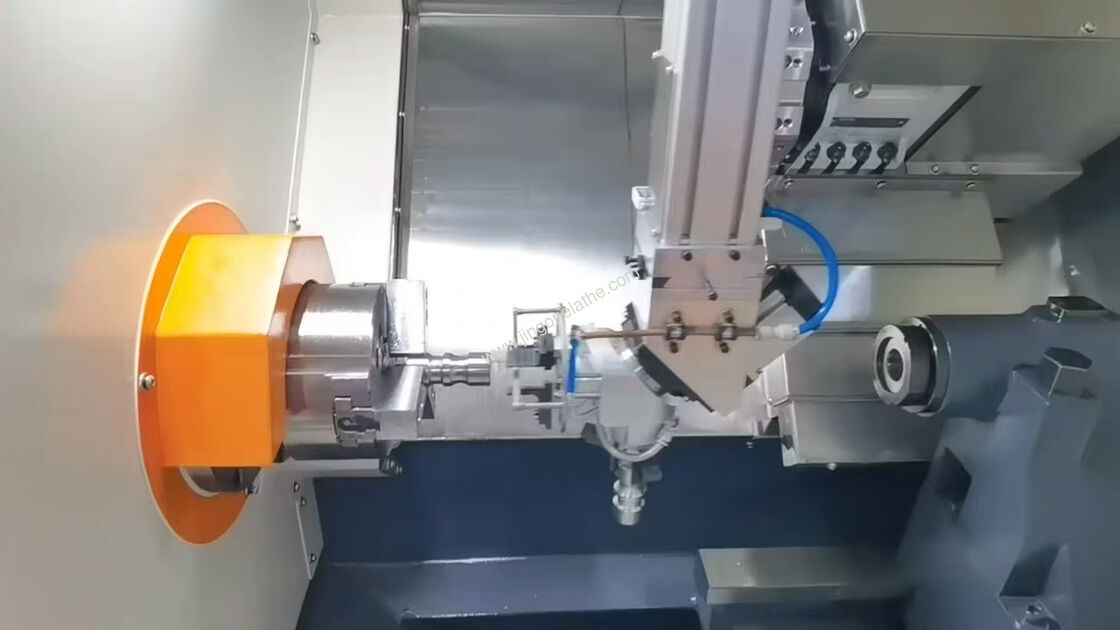

- Integrated gantry robot enables automated workpiece load/unload for unmanned production runs
- Hydraulic tailstock provides steady support for long workpieces during turning operations
- 0.005mm repeatability maintains tight tolerances across high-volume production batches
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter | 360 mm |
| Max.turning diameter | 360 mm |
| Max.turning length | 300 mm |
| Chuck size | 6'' |
| Spindle speed | 3500 rpm |
| Spindle speed change | Stepless |
| Spindle nose type | A2-5 |
| Spindle bore diameter | 56 mm |
| Max.bar capacity | 45 mm |
| Turret type | Servo turret |
| Tool stations | 8-station |
| Tool size(square shank) | 20 mm |
| Tool size(round shank) | 25 mm |
| Cutting tools | 4 (2 square 2 round) |
| X-axis travel | 195 mm |
| Z-axis travel | 350 mm |
| X-axis rapid feed | 20 m/min |
| Z-axis rapid feed | 20 m/min |
| X-axis motor torque | 6 N.m |
| Z-axis motor torque | 6 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Linear guide rail |
| X-axis rail width | 30 mm |
| Z-axis rail width | 30 mm |
| X-axis ball screw | 2810 mm |
| Z-axis ball screw | 3210 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 65 mm |
| Sleeve travel | 60 mm |
| Sleeve taper | M.T.4 |
| Positioning accuracy | X: 0.01; Z: 0.01 |
| Repeatability | X: 0.005; Z: 0.005 |
| Main motor power | 5.5 Kw |
| Lubrication pump | 2ZK (2L) |
| Cooling pump | 450 W |
Accessory Configurations

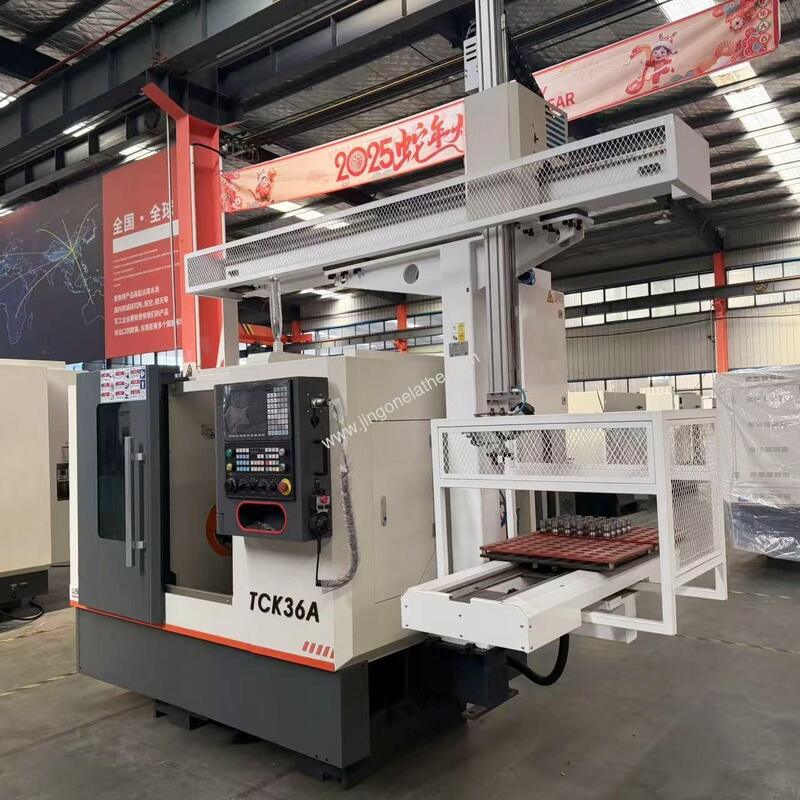

| Accessory | Configuration |
|---|---|
| Gantry Robot | Integrated with TCK36A for automated workpiece load/unload, enabling unmanned production runs of up to 24 hours |
FAQ
Q: How does the TCK36A reduce labor costs for small parts production?
A: The TCK36A Automated CNC Lathe Production Line uses an integrated gantry robot to handle load/unload, cutting operator needs by up to 80% for high-volume runs.
Q: What tolerance levels can the TCK36A automated lathe line achieve?
A: The TCK36A Automated CNC Lathe Production Line delivers 0.01mm positioning accuracy and 0.005mm repeatability for tight-tolerance precision parts.
Q: What industries benefit most from the TCK36A system?
A: The TCK36A Automated CNC Lathe Production Line is ideal for automotive, electronics, and contract manufacturing sectors producing high-volume small precision parts.
