Product Description

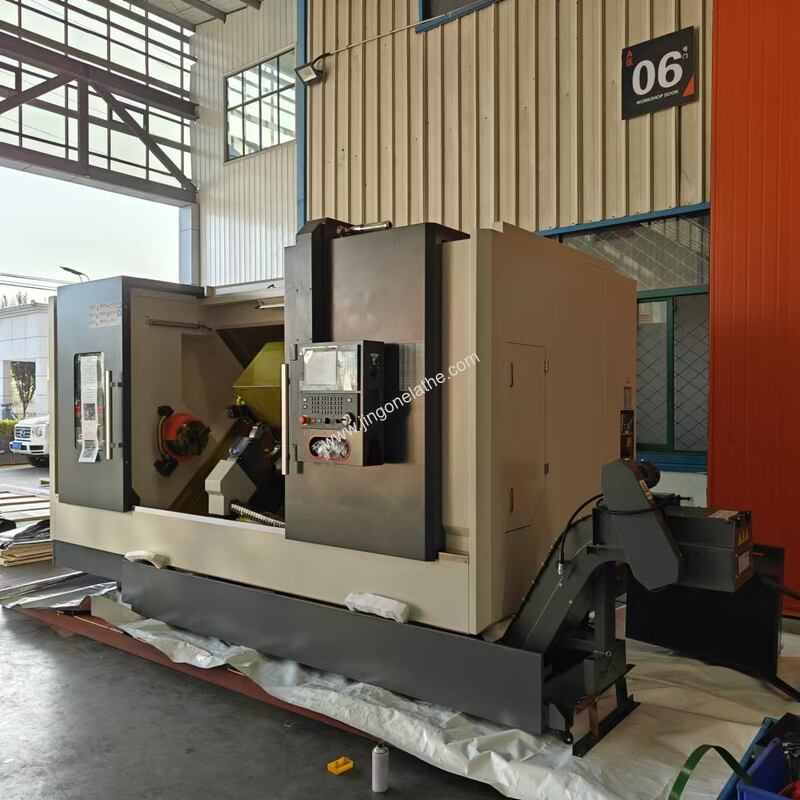

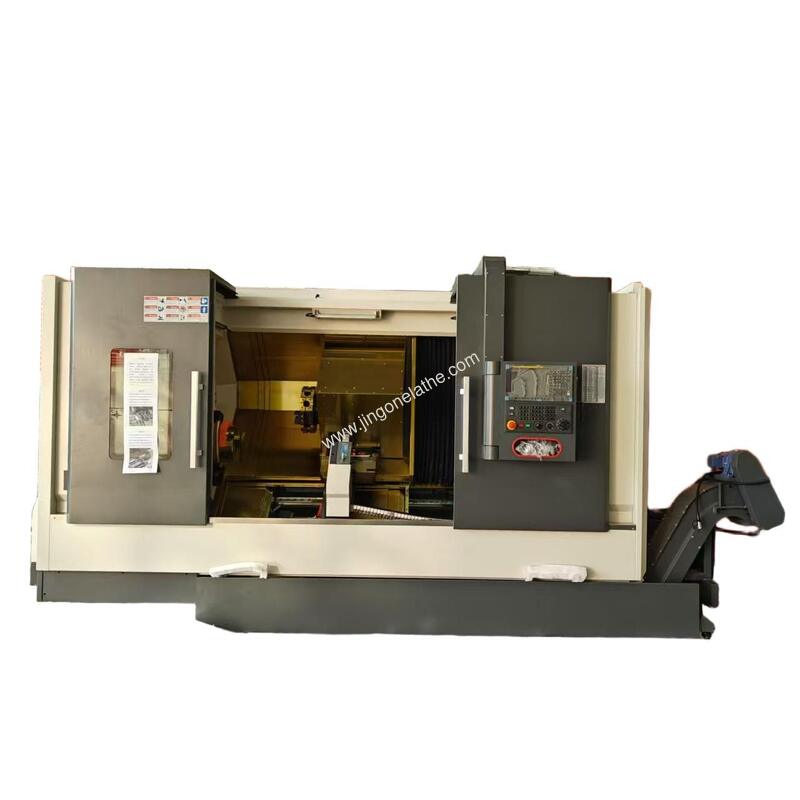

CNC Slant Bed Turning Center TCK50A-1500 with Superior Chip Evacuation for Long Workpiece Machining
Model: TCK50A-1500 | Core Keyword: CNC Slant Bed Turning Center
Summary
CNC Slant Bed Turning Center TCK50A-1500 is engineered for high-capacity long workpiece machining.
It features a 45° integrated slant bed for superior chip evacuation, 1500mm Z-axis travel, and a 74mm max bar capacity, supporting long shafts and heavy-duty parts in mechanical manufacturing.
The high-strength cast iron bed with automatic centralized lubrication ensures long-term stability, reducing downtime for continuous large-scale production.
Features
- 45° integrated slant bed design with superior chip evacuation, reducing chip accumulation and machining downtime
- 3000 RPM stepless spindle with A2-8 spindle nose, supporting 74mm max bar capacity for long workpieces
- Hardened linear guideways with 0.005mm repeatability, ensuring precision during long turning operations
- 8-station servo turret and automatic centralized lubrication for high-efficiency long shaft manufacturing
- 1500mm Z-axis travel, accommodating extra-long workpieces for heavy-duty mechanical production
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter | 560 mm |
| Max. turning diameter | 420 mm |
| Max. turning length | 1500 mm |
| Chuck size | 10'' |
| **Spindle** | |
| Spindle speed | 3000 rpm |
| Spindle speed change | Stepless |
| Spindle nose type | A2-8 |
| Spindle bore diameter | 86 mm |
| Max. bar capacity | 74 mm |
| **Turret** | |

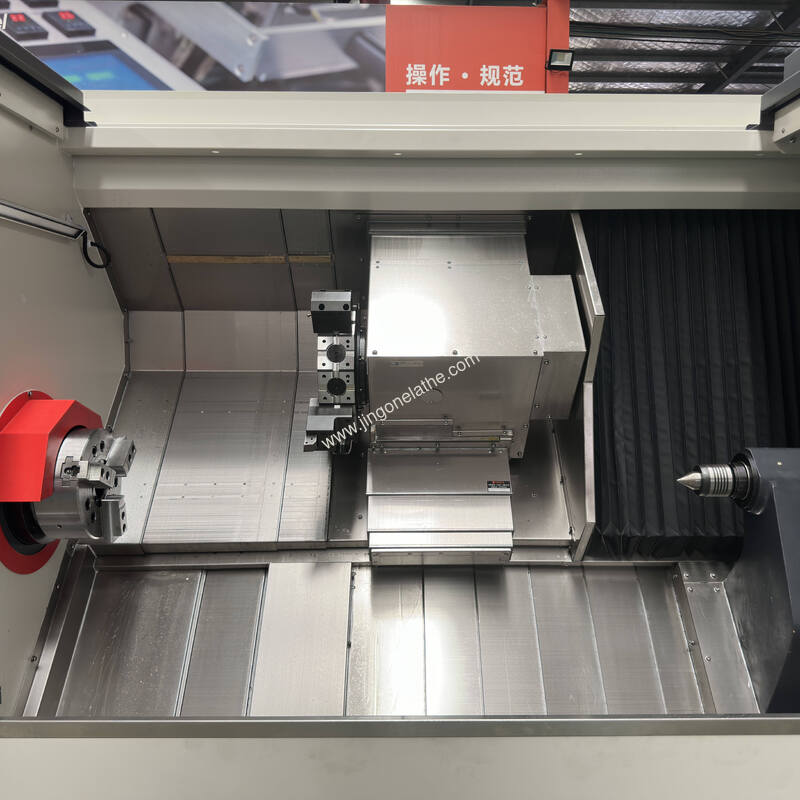

| Turret type | Servo turret |
| Tool stations | 8-station |
| Turret disc diameter | ¢330 mm |
| Tool size (square shank) | 25 mm |
| Tool size (round shank) | 32 mm |
| Cutting tools | 4 (2 square 2 round) |
| **Travel&Feed** | |
| X-axis travel | 230 mm |
| Z-axis travel | 1500 mm |
| X-axis rapid feed | 18 m/min |
| Z-axis rapid feed | 18 m/min |
| **Servo system** | |
| X-axis motor torque | 15 N.m |
| Z-axis motor torque | 15 N.m |
| **Structure&Guideways** | |
| Machine bed tilt angle | 45° |
| Guideway type | Linear guide rail |
| X-axis rail width | 35 mm |
| Z-axis rail width | 35 mm |
| **Transmission** | |
| X-axis ball screw | 3210 mm |
| Z-axis ball screw | 4012 mm |
| **Tailstock** | |

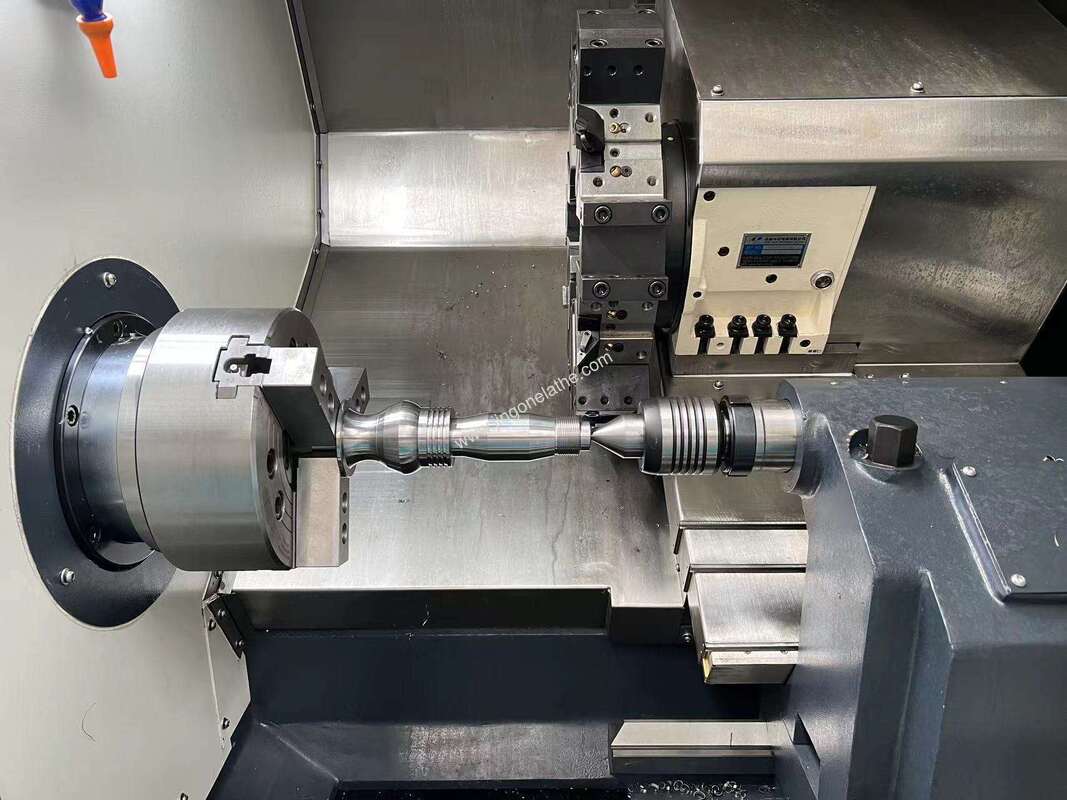

| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 90 mm |
| Sleeve travel | 95 mm |
| Sleeve taper | M.T.5 |
| **Accuracy** | |
| Positioning accuracy (X/Z) | 0.01 mm / 0.01 mm |
| Repeatability (X/Z) | 0.005 mm / 0.005 mm |
| **Motor** | |
| Main motor power | 15 Kw |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 450 W |
| Power supply | 20 KVA |
| **Others** | |
| Net weight | 5500 Kg |
| Dimensions (L × W × H) | 4000x2170x2200 mm |
Accessory Configurations
| Accessory | Optional Configuration |
|---|---|
| Servo Turret Upgrade | 12-station servo turret (¢330 turret disc) |
| Chip Conveyor | Chip conveyor (side/rear discharge) |
| Tool Setter | Folding arm tool setter |
| Safety System | Automatic door + automatic door safety device |
| Air Management | Oil mist collector |
| Fluid Management | Oil/coolant separator |
| Automation | Robot interface, bar material feeder |
| Machining Tools | Blowing device, water gun, soft jaws for chuck |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping, customized for 5500kg heavy-duty equipment
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: How does the slant bed design benefit TCK50A-1500?
A: This CNC slant bed turning center’s 45° slant bed ensures superior chip evacuation, reducing chip buildup and downtime during long shaft machining operations.
Q: What’s the maximum turning length of TCK50A-1500?
A: The TCK50A-1500 CNC slant bed turning center supports a 1500mm max turning length for extra-long workpieces in heavy-duty mechanical manufacturing.
Q: What spindle configuration does TCK50A-1500 use?
A: This CNC slant bed turning center features an A2-8 spindle nose and 86mm spindle bore, supporting a 74mm max bar capacity for large-diameter long shafts.
