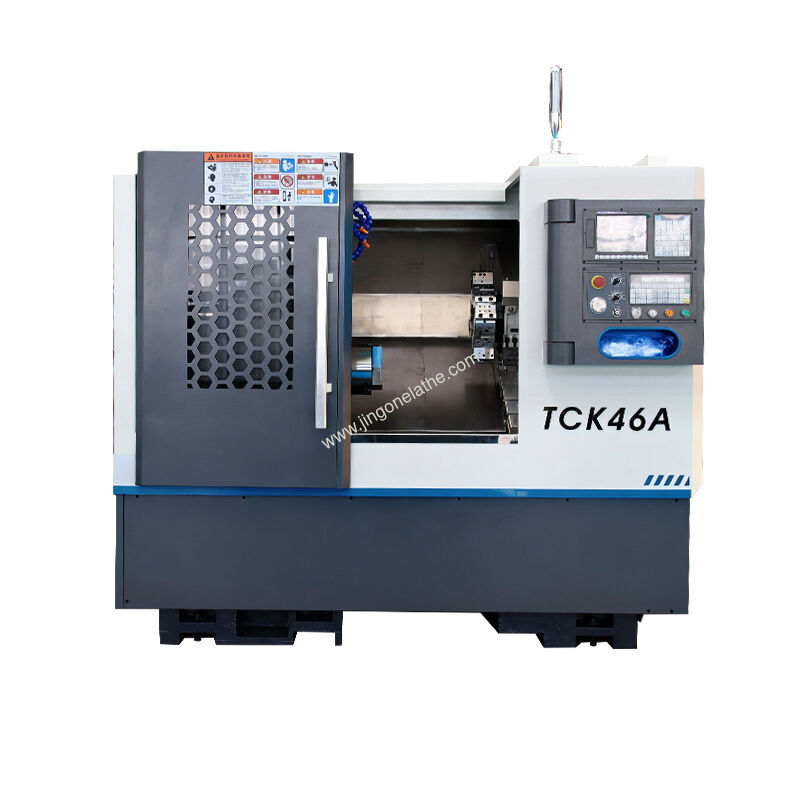

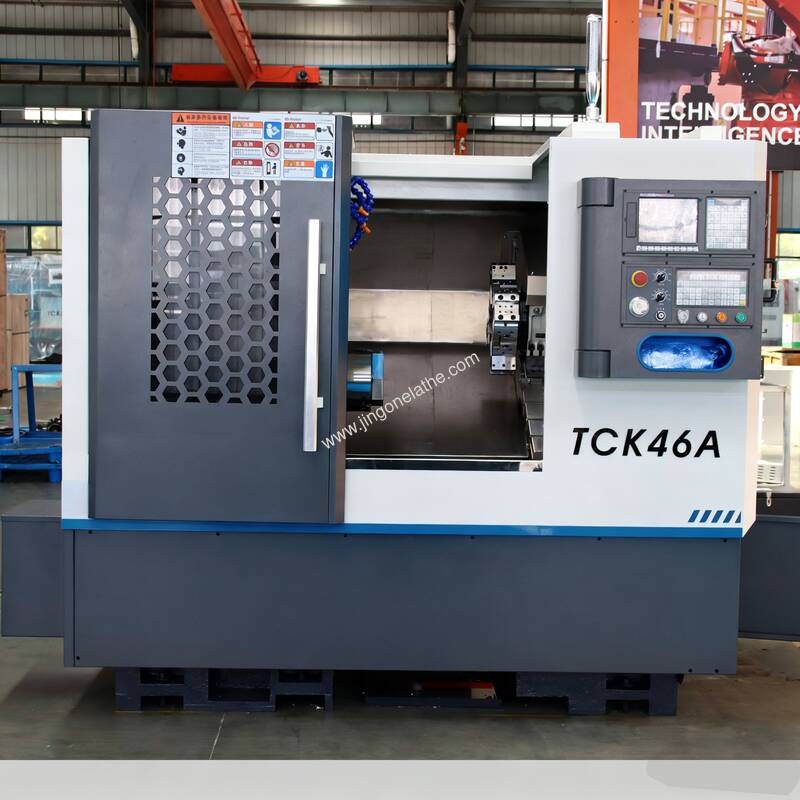

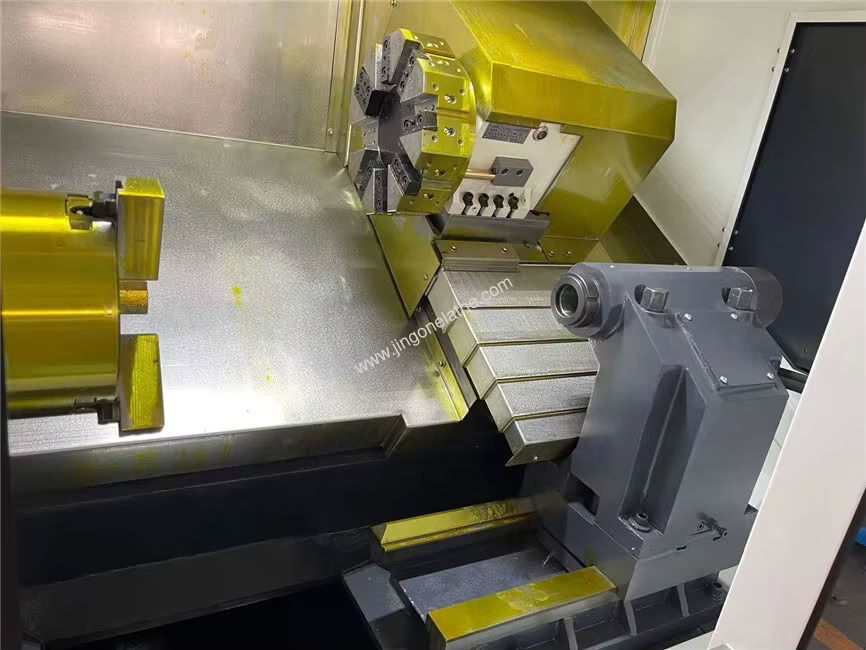

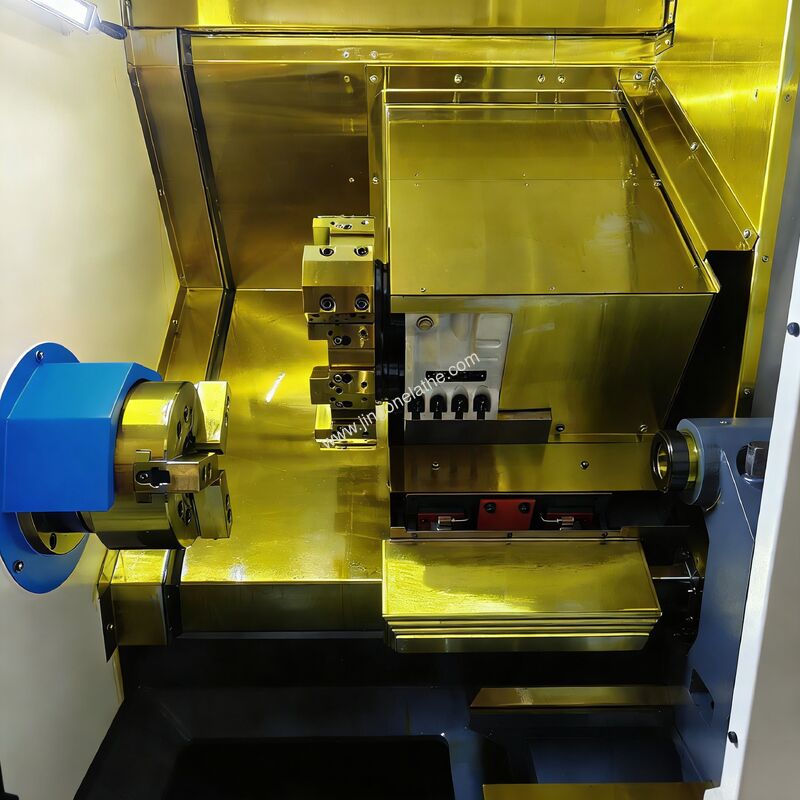

Small Powerful CNC Slant Bed Lathe TCK46A: 460mm Swing For Heavy-Duty Mechanical Cutting
Small Powerful CNC Slant Bed Lathe TCK46A: 460mm Swing For Heavy-Duty Mechanical Cutting
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK46A
Contact Us
Request A Quote
Product Details
Max.swing Diameter:
460mm
Max.turning Length:
500mm
Chuck Size:
8 Inch
Spindle Speed:
3500rpm
Spindle Nose Type:
A2-5
Turret Type:
8-station Servo Turret
Guideway Type:
Taiwan Linear Guide Rail
Screw:
Taiwan Ball Screw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 18000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Small Powerful CNC Slant Bed Lathe TCK46A: 460mm Swing for Heavy-Duty Mechanical Cutting
Model: TCK46A | Core Keyword: Small CNC slant bed lathe
Summary
Small CNC slant bed lathe TCK46A delivers powerful cutting performance for mechanical manufacturing and heavy-duty mold making.
Featuring a 460mm swing over bed, 7.5kw main motor, and Taiwan linear guide rail, this unit offers 0.01mm positioning accuracy with 3500 rpm stepless spindle speed.
Ideal for medium-batch production, this small powerful CNC slant bed lathe handles heavy cutting jobs while minimizing floor space for automotive and machinery components.
Features
- High-strength cast iron integrated 30° slant bed for optimal chip flow and stable heavy cutting
- 460mm max swing over bed and 500mm max turning length for larger part processing

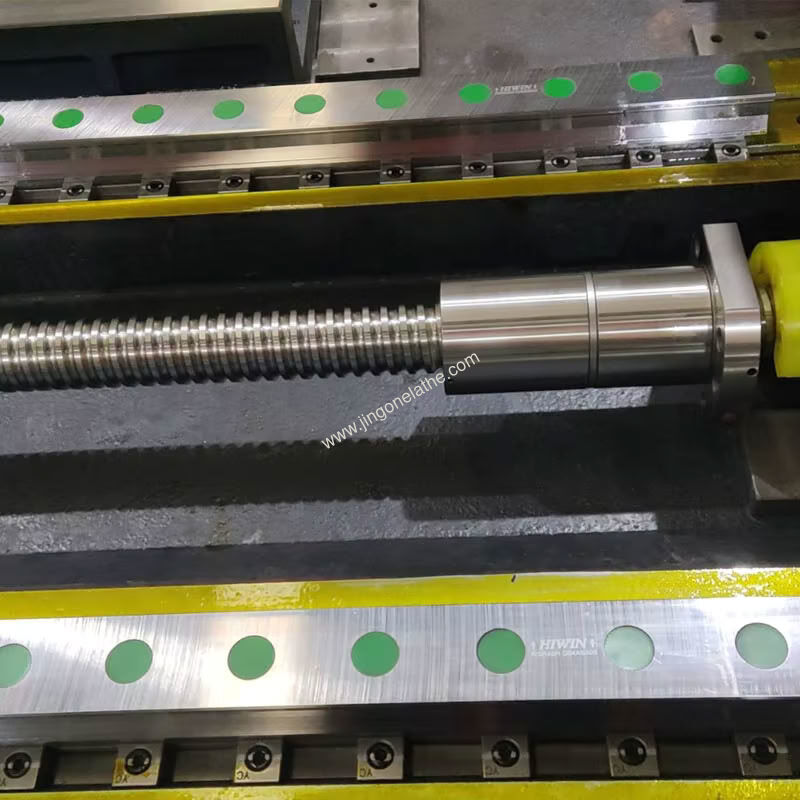

- Taiwan linear guide rail with 20m/min rapid feed for precise, fast axis movement
- 3500 rpm stepless spindle unit with 7.5kw main motor for powerful cutting performance
- 8-station servo turret with 25mm square tool shank capacity for versatile tooling options
- Automatic centralized lubrication system to reduce component wear and extend service life
- 8-inch chuck with 45mm max bar capacity for efficient large-bar feeding operations
- Hydraulic tailstock with 70mm sleeve diameter for secure workpiece clamping
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. swing diameter | 460 mm |
| Max. turning diameter | 420 mm |
| Max. turning length | 500 mm |
| Chuck size | 8'' |
| Spindle speed | 3500 rpm |
| Spindle speed change | Stepless |
| Spindle nose type | A2-5 |
| Spindle bore diameter | 56 mm |
| Max. bar capacity | 45 mm |
| Turret type | Servo turret |
| Tool stations | 8-station |
| Tool size (square shank) | 25 mm |
| Tool size (round shank) | 32 mm |
| Cutting tools | 4 (2 square 2 round) |
| X-axis travel | 240 mm |
| Z-axis travel | 540 mm |
| X-axis rapid feed | 20 m/min |
| Z-axis rapid feed | 20 m/min |
| X-axis motor torque | 7.5 N.m |
| Z-axis motor torque | 7.5 N.m |
| Machine bed tilt angle | 30° |
| Guideway type | Linear guide rail |
| X-axis rail width | 35 mm |
| Z-axis rail width | 35 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 70 mm |
| Sleeve travel | 80 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm; Z: 0.01 mm |
| Repeatability | X: 0.005 mm; Z: 0.005 mm |
| Main motor power | 7.5 Kw |
| Lubrication pump | 3 L |
| Cooling pump | 450 W |
| Power supply | 14 KVA |
| Net weight | 3100 Kg |
| Dimensions (L × W × H) | 2700x2170x2000 mm |
Accessory Configurations
| Accessory | Optional Configuration |
|---|---|
| Turret Upgrade | 12-station servo turret (φ330 turret disc) |
| Chip Management | Chip conveyor (side/rear discharge) |
| Tool Setting | Tool setter - folding arm tool setter |
| Safety & Convenience | Automatic door, Automatic door safety device |
| Environmental Control | Oil mist collector, Oil/coolant separator |
| Automation | Robot interface, Bar material feeder |
| Maintenance Tools | Blowing device, Water gun |
| Chuck Accessories | Soft jaws for chuck |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with double steel bands and wooden bracing for heavy-duty long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What makes the small CNC slant bed lathe TCK46A suitable for heavy cutting?
A: This small CNC slant bed lathe features a 7.5kw main motor and 460mm swing over bed, delivering powerful cutting performance for steel and aluminum components.
Q: How does the TCK46A ensure consistent long-term precision?
A: Equipped with Taiwan linear guide rail and automatic centralized lubrication, this small CNC slant bed lathe reduces wear and maintains positioning accuracy over service life.
Q: What production volumes is the TCK46A designed for?
A: This small powerful CNC slant bed lathe handles medium-batch production runs for mechanical parts and molds, balancing speed and precision for industrial applications.
