Heavy Duty Box Way CNC Lathe TCK63E-1000: 18Nm Motor Torque For Stable Heavy Cutting
Heavy Duty Box Way CNC Lathe TCK63E-1000: 18Nm Motor Torque For Stable Heavy Cutting
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK63E-1000
Contact Us
Request A Quote
Product Details
Spindle Nose:
A2-8
Spindle Bore:
85mm
Spindle Speed:
2600rpm
Spindle Motor:
15Kw
Chuck:
10 /15 Inch Hydraulic Chuck
Turret:
12 Station Servo Turret
Tailstock:
Hydraulic
Tool Size:
32x32/40 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 43000 USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

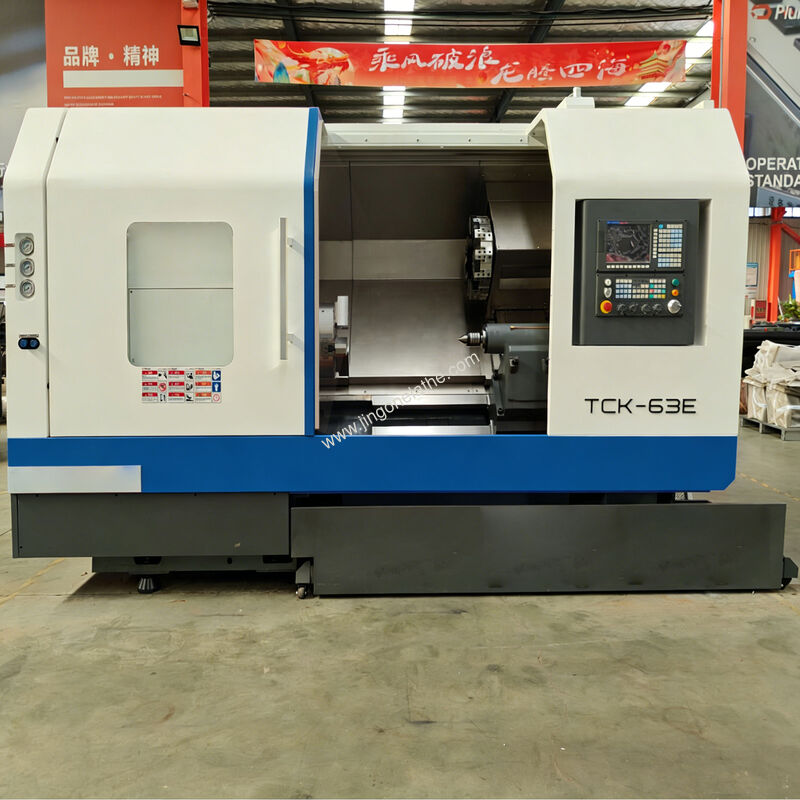

Box Way CNC Lathe TCK63E-1000: 18Nm Motor Torque for Stable Heavy Cutting
Model: TCK63E-1000 | Core Keyword: Box Way CNC Lathe
Summary
Box Way CNC Lathe TCK63E-1000 delivers reliable heavy cutting performance for metal fabrication tasks.
Equipped with HRC55 hardened box guideway, 1000mm maximum turning length, and 18Nm X/Z axis motor torque, this 45° slant bed lathe minimizes vibration during high-load operations.
It is ideal for medium-batch machining of steel, cast iron, and alloy components in automotive, energy, and general engineering sectors.
Features
- One-piece cast 45° slant bed for enhanced structural rigidity and efficient chip evacuation
- HRC55 hardened box guideway to reduce wear and maintain precision during prolonged heavy cutting
- 18Nm X/Z axis motor torque for consistent low-speed cutting force on tough materials
- 1000mm maximum turning length for machining medium-length workpieces
- 3-step gearbox to further boost low-speed cutting torque for deep machining

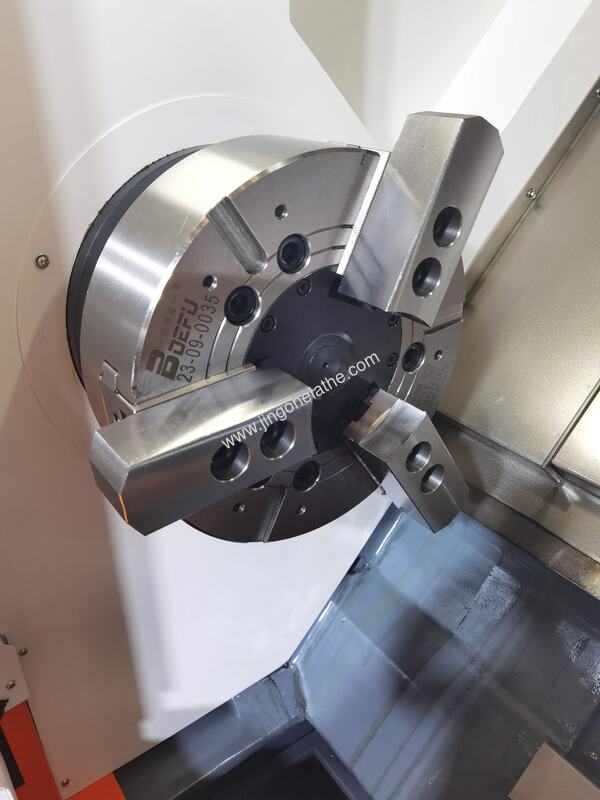

- 15-inch hydraulic chuck for secure, repeatable workpiece clamping
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter | 650 mm |
| Max.turning diameter | 630 mm |
| Max.turning length | 1000 mm |
| Spindle nose type | A2-8 |
| Spindle bore diameter | 85 mm |
| Bar capacity | 72 mm |
| Spindle speed | 2600 rpm |
| Spindle speed change | Stepless |
| Main motor power | 15 Kw |
| Chuck size | 10’’ |
| Chuck type | Hydraulic |

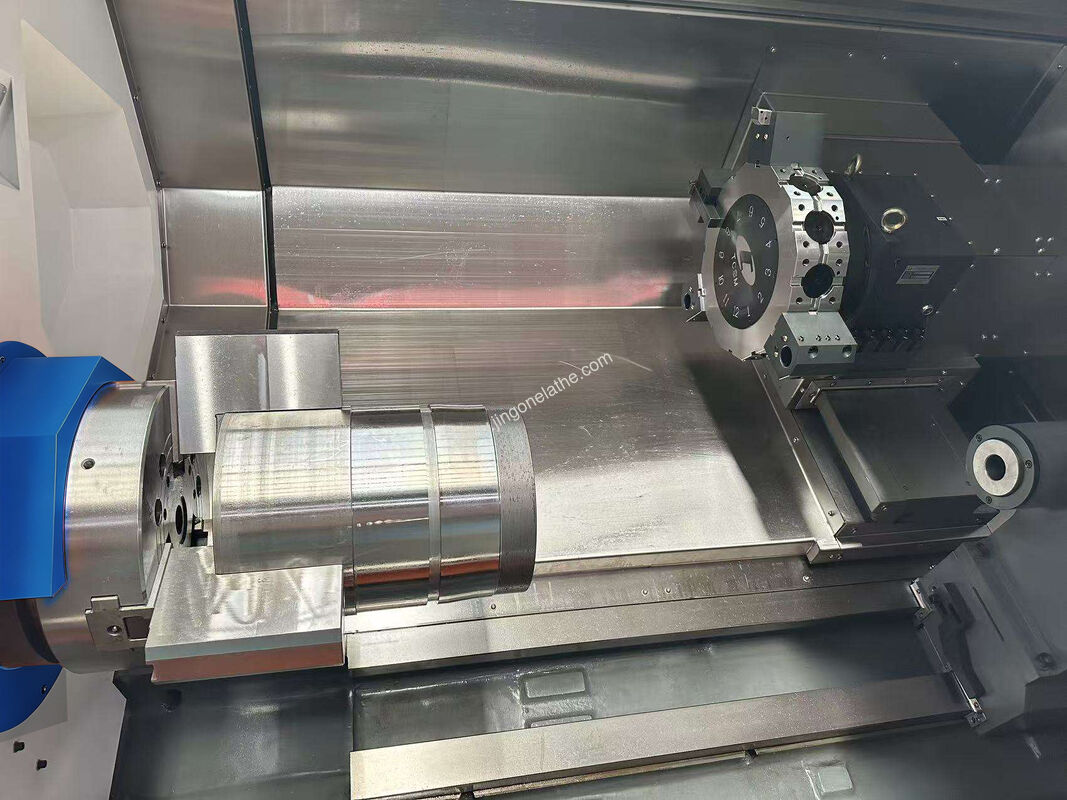

| Turret type | Servo turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢420 mm |
| Tool size(square shank) | 32x32 mm |
| Tool size(round shank) | ¢40 mm |
| Cutting tools | 6 (3 square 3 round) |
| X-axis travel | 350 mm |
| Z-axis travel | 1100 mm |
| X-axis rapid feed | 12 m/min |
| Z-axis rapid feed | 10 m/min |
| X-axis motor torque | 18 N.m |
| Z-axis motor torque | 18 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Box guideway |
| X-axis ball screw | 4005 |
| Z-axis ball screw | 5010 |

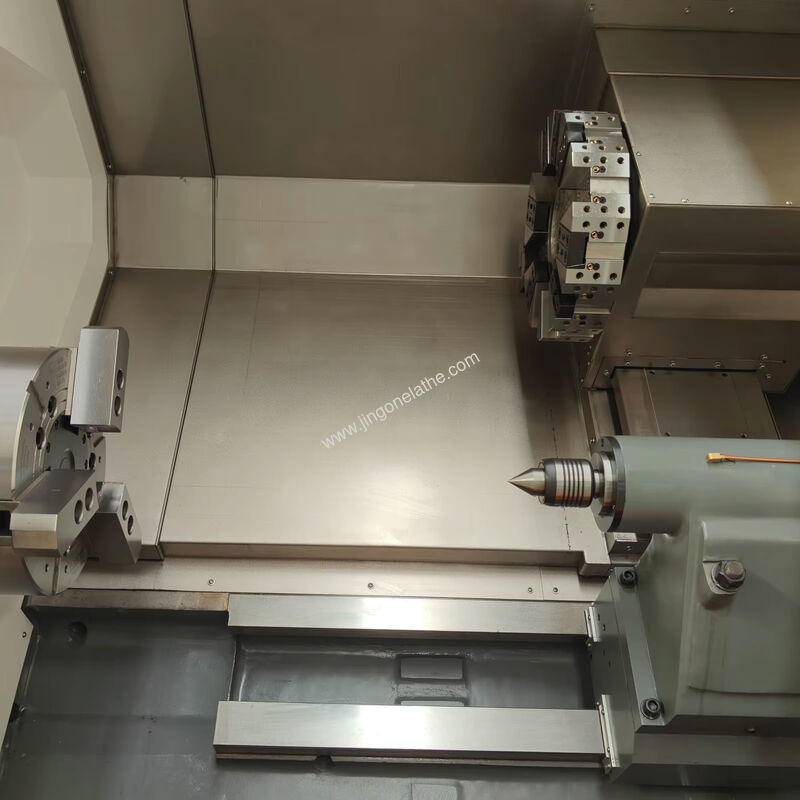

| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 140 mm |
| Sleeve travel | 140 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.015 mm |
| Repeatability | X: 0.008 mm, Z: 0.012 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 750 W |
| Power supply | 32 KVA |
| Net weight | 7800 Kg |
| Dimensions (L × W × H) | 3700x2100x2400 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine frame |
Integral Slant Bed High-Strength Cast Iron |
| CNC system |
Optional:
|
| Spindle motor | |
| Spindle | Gearbox spindle |
| Ball screw | THK/PMI,Taiwan |
| Screw bearings | KOYO,Japan |
| Hydraulic chuck | 8 inch hollow hydraulic chuck |
| Hydraulic station | |
| Servo turret | TCSM,Taiwan |
| Lubrication pump | RBCLB-3ZK |
| Cooling pump | Automatic Centralized Lubrication |
| Heat exchanger | |
| Low-Voltage Apparatus | |
| Triple alarm light | |
| Chip conveyor (side discharge) | Optional |
| Tool setter- folding arm tool setter | Optional |
| Automatic door | Optional |
| Automatic door safety device | Optional |
| Oil mist collector | Optional |
| Oil/coolant separator | Optional |
| Robot interface | Optional |
| Bar material feeder | Optional |
| Blowing device | Optional |
| Water gun | Optional |
| Soft jaws for chuck | Optional |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What materials can the TCK63E-1000 box way CNC lathe machine?
A: The Box Way CNC Lathe TCK63E-1000 handles steel, cast iron, and alloy components with heavy cutting requirements for automotive and energy sectors.
Q: How does the HRC55 hard rail improve lathe performance?
A: The HRC55 hardened guideway on this Box Way CNC Lathe reduces wear during continuous heavy cutting, maintaining precision over long operational hours.
Q: What’s the advantage of the 3-step gearbox on this lathe?
A: The 3-step gearbox on the TCK63E-1000 Box Way CNC Lathe boosts low-speed cutting torque, ideal for deep heavy machining operations.
