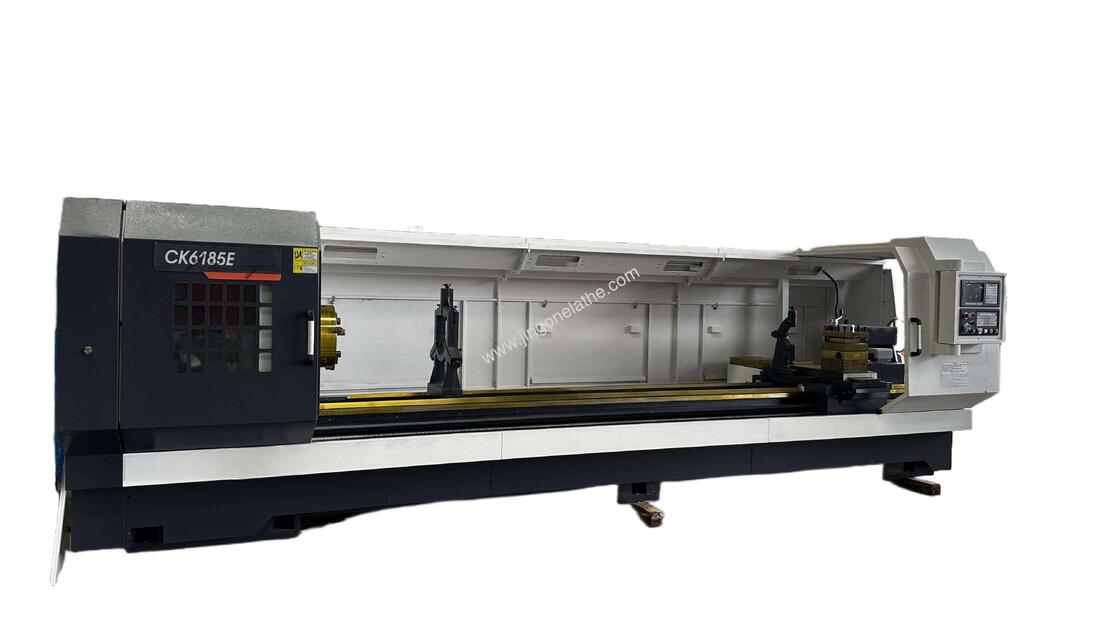

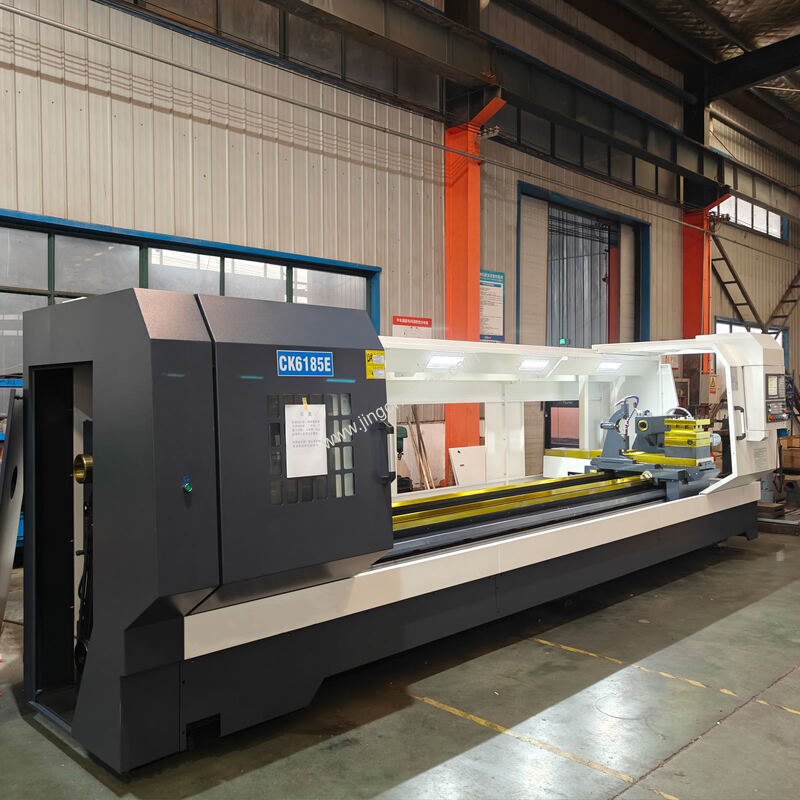

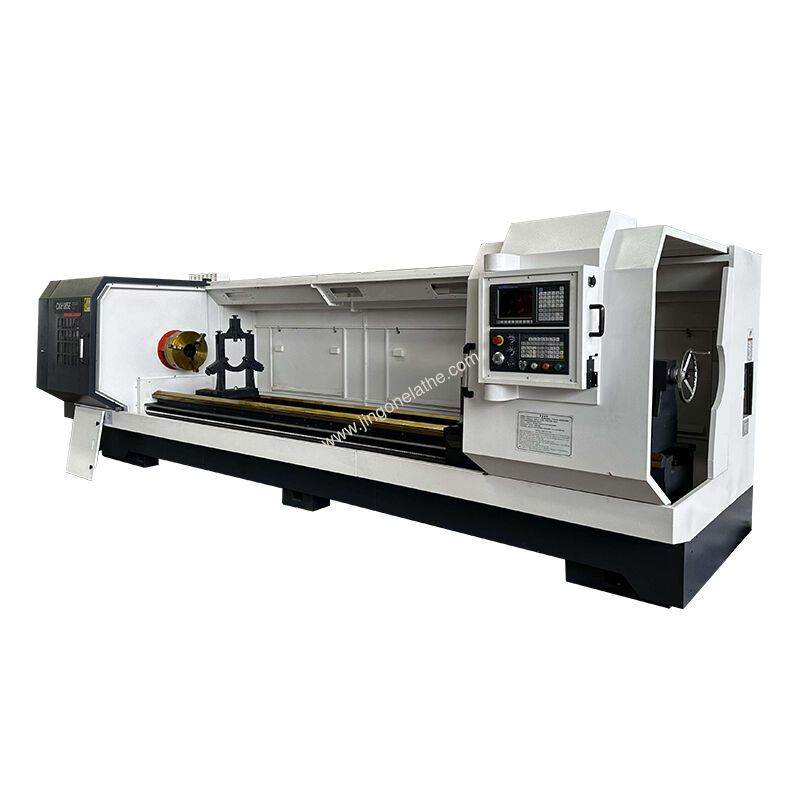

Large Swing Flat Bed CNC Lathe CK6185Ex3000: High-Stability for 3000mm Long Shaft Machining
Large Swing Flat Bed CNC Lathe CK6185Ex3000: High-Stability for 3000mm Long Shaft Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6185E
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
850mm
Distance Between Centers:
3000mm
Spindle Nose Type:
C11
Spindle Through-hole Diameter:
105mm
Spindle Speed Range:
10-850rpm
Main Motor Power:
11Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 30000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Large Swing Flat Bed CNC Lathe CK6185Ex3000: High-Stability for 3000mm Long Shaft Machining
Model: CK6185Ex3000 | Core Keyword: Large Swing Flat Bed CNC Lathe
Summary
Large Swing Flat Bed CNC Lathe CK6185Ex3000 delivers consistent precision for heavy-duty long-part machining. Equipped with a high-stability integrated cast bed and widened slide carriage, it maintains low spindle runout during extended operations.
With a 3000mm center distance, 850mm swing over bed, and 3-stage spindle gear shift with stepless variable speed, this lathe handles shafts, sleeves, and bar workpieces up to 2900mm turning length.
Designed for automotive, energy, and heavy machinery industries, it meets turning, drilling, and threading requirements for large-scale components, reducing setup time with optional hydraulic tailstock and multi-station turrets.
Features
- Integrated cast bed with high-strength base for minimal vibration and long-term precision retention
- 3-stage manual gear shifting spindle with stepless variable speed in each range (10-85, 40-350, 100-850 rpm)
- Box way guideways for heavy load capacity and low wear during continuous operation
- Widened slide carriage for enhanced stability when machining large workpieces
- Automatic centralized lubrication system to reduce guideway and component wear
- Standard 4-station tool turret; optional 6/8-station turret, hydraulic chuck, or tailstock available
- GSK 988TA standard control; optional FANUC Oi-TF or SIEMENS systems for customized operation
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter over bed | ¢850 mm |
| Max. swing diameter over cross slide | ¢500 mm |
| Max. diameter for machining disc parts | ¢850 mm |
| Distance between centers | 3000 mm |
| Max. turning length | 2900 mm |
| **Spindle** | |
| Spindle nose type | C11 |
| Spindle through-hole diameter | ¢105 mm |
| Spindle taper | Metric 120 1:20 |
| Spindle speed change | 3 step speed with manual gear shifting, stepless in step |
| Spindle speed range | 10-85 rpm, 40-350 rpm, 100-850 rpm |
| **Chuck** | |
| Chuck type | Manual chuck |
| Chuck size | 400 mm |
| **Feed & Travel** | |
| X/Z-axis rapid traverse | 4 / 5 m/min |
| X/Z-axis servo motor torque | X:10 N.m, Z:22 N.m |
| X/Z-axis travel | X:450 mm, Z:3100 mm |
| Guideway type | Box way |
| Minimum setting unit | 0.001 mm |
| **Tailstock** | |
| Tailstock quill diameter | ¢100 mm |
| Tailstock quill bore taper | MT.6 |
| Tailstock quill travel | 250 mm |
| Tailstock type | Manual |
| **Tool station** | |
| Tool stations | 4 |
| Tool shank size | 32x32 mm |
| **Power** | |
| Main motor power | 11 Kw |
| Total rated power | 18/20 Kw |
| Total rated current | 38/42 A |
| **Others** | |
| Net weight | 6600 Kg |
| Dimensions (L × W × H) | 5500x2000x2000 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| 1 | 6-station/8-station turret tool |
| 2 | Hydraulic chuck |
| 3 | Automatic door |
| 4 | Safety device for automatic door |
| 5 | Oil-water separator |
| 6 | Oil mist collection |
| 7 | Tool setter |
| 8 | Workpiece measurement |
| 9 | Blowling device (Air gun) |
| 10 | Water Gun |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum turning length of the CK6185Ex3000 lathe?
A: The Large Swing Flat Bed CNC Lathe CK6185Ex3000 offers a 2900mm maximum turning length for long shaft and bar workpieces.
Q: Does this model support heavy-duty continuous machining operations?
A: Yes, the Large Swing Flat Bed CNC Lathe CK6185Ex3000 features an integrated cast bed and widened slide carriage for stable heavy-duty cuts.
Q: Can I upgrade the control system on the CK6185Ex3000?
A: The Large Swing Flat Bed CNC Lathe CK6185Ex3000 comes with GSK 988TA standard; FANUC Oi-TF or SIEMENS systems are optional.
