Product Description

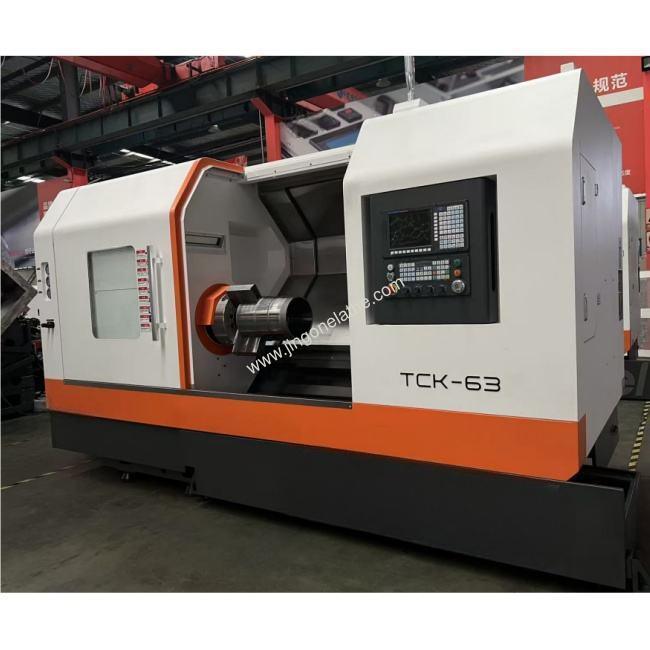

3-Axis Box Way CNC Lathe TCK63Y-1500 | Live Tooling for High-Efficiency Multi-Task Machining
Model: TCK63Y-1500 | Core Keyword: 3-Axis Box Way CNC Lathe with Live Tooling
Summary
3-Axis Box Way CNC Lathe with Live Tooling (TCK63Y-1500) delivers high-efficiency multi-task machining with an 18.5Kw main motor and stepless spindle speed.
Boasting a 30° slant bed design and HRC55 hardened guideways, it minimizes tool tip distance to Z-axis ballscrew, ensuring precise cutting with its 15-inch hollow hydraulic chuck.
Ideal for automotive, heavy equipment, and machinery manufacturers needing to process workpieces up to 1500mm in length with minimal setup time.
Features
- Thermal Stability: Integral 30° high-strength cast iron slant bed minimizes heat deformation and maximizes machining steadiness.
-
One-Setup Efficiency: Full 3-axis configuration with live tooling for seamless turning, milling, and drilling in a single operation.
-
Heavy-Duty Power: 18.5kW motor driving an A2-11 spindle (103mm bore) at 1800rpm, engineered for aggressive, heavy-duty cutting.
-
Built to Last: HRC55 hardened box guideways provide superior rigidity and wear resistance for long-term accuracy.
-
Rapid Tooling: 12-station BMT65 live turret delivers high-speed indexing to slash cycle times and boost daily output.
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Max.swing diameter | mm | 780 |
| Max.turning diameter | mm | 530 |
| Max.turning length | mm | 1450 |
| Spindle nose type | - | A2-11 |
| Spindle bore diameter | mm | 103 |
| Bar capacity | mm | 90 |
| Spindle speed | rpm | 1800 |
| Spindle speed change | - | Stepless |
| Main motor power | Kw | 18.5 |
| Chuck size | inch | 15'' |
| Chuck type | - | Hollow Hydraulic |
| Turret type | - | BMT65 Live Turret |
| Tool stations | T | 12-station |
| Turret disc diameter | mm | ¢420 |
| Tool size(square shank) | mm | 25x25/32x32 |
| Tool size(round shank) | mm | ¢40 |
| Cutting tools | - | 4 (2 square 2 round) |
| Live tool speed | rpm | 3000 |
| X-axis travel | mm | 350 |
| Z-axis travel | mm | 1500 |
| Y-axis travel | mm | ±65 |
| X-axis rapid feed | m/min | 16 |
| Z-axis rapid feed | m/min | 16 |
| Y-axis rapid feed | m/min | 6 |
| X-axis motor torque | N.m | 22 |
| Z-axis motor torque | N.m | 22 |
| Y-axis motor torque | N.m | 10 |
| Live tool motor torque | N.m | 30 |
| Main motor power | Kw | 18.5 |
| Machine bed tilt angle | - | 30° |
| Guideway type | - | Box guideway |
| X-axis ball screw | mm | 4010 |
| Z-axis ball screw | mm | 5512 |
| Tailstock type | - | Hydraulic tailstock |
| Movement | - | Manual |
| Sleeve diameter | mm | 140 |
| Sleeve travel | mm | 140 |
| Sleeve taper | - | M.T.5 |
| Positioning accuracy | mm | X: 0.012, Z: 0.02, Y: 0.01 |
| Repeatability | mm | X: 0.008, Z: 0.012, Y: 0.006 |
| Lubrication pump | L | 3ZK (3L) |
| Cooling pump | W | 450 |
| Power supply | KVA | 45 |
| Net weight | Kg | 8800 |
| Dimensions (L × W × H) | mm | 4400x2400x2300 |
Accessory Configurations
| ### Standard Configurations | |
|---|---|
| Machine frame | Integral Slant Bed High-Strength Cast Iron |
| CNC system | Fanuc, GSK, Syntec, Siemens optional |
| Spindle motor | Included |
| Spindle | With hydraulic brake |
| Ball screw | HIWIN/PMI, Taiwan |
| Screw bearings | KOYO, Japan |
| Hydraulic chuck | 10/15 inch hollow hydraulic chuck |
| Hydraulic station | Included |
| Servo turret | BMT65-12-420 |
| Lubrication pump | Included |
| Cooling pump | Included |
| Heat exchanger | Included |
| Low-Voltage Apparatus | Included |
| Triple alarm light | Included |
| ### Optional Configurations | |
| Chip conveyor: Side discharge |
|
| Tool setter: Folding arm tool setter |  |
| Automatic door |
|
| Automatic door safety device | |
| Oil mist collector |
|
| Oil/coolant separator |
|
| Robot interface | Included |
| Bar material feeder |
|
| Blowing device | Included |
| Water gun | Included |
| Soft jaws for chuck | Included |
| Live tool holders: 90°, 0°, others |
|
| Hydraulic rest |
|
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
