Product Description
Box Way CNC Lathe with 12-Station Live Turret: 1000mm Length for Consistent Heavy-Duty Turning and Milling
Model: TCK63M-1000 | Core Keyword: Box Way CNC Lathe with 12-Station Live Turret
Summary
Box Way CNC Lathe with 12-Station Live Turret delivers reliable heavy-duty cutting performance for medium-sized metal components. Its 45° slant bed design minimizes tool tip distance to the Z-axis ballscrew, reducing spindle runout errors during precision turning.
Equipped with HRC55 hardened box guideways and an 18.5kW main motor, this TCK63M-1000 handles high-torque low-rpm cutting tasks efficiently. The 15-inch solid hydraulic chuck ensures secure workpiece clamping for long production runs, minimizing downtime from rework.
Ideal for auto parts, machinery components, and metal fabrication shops requiring repeatable precision in 1000mm length turning operations.
Features

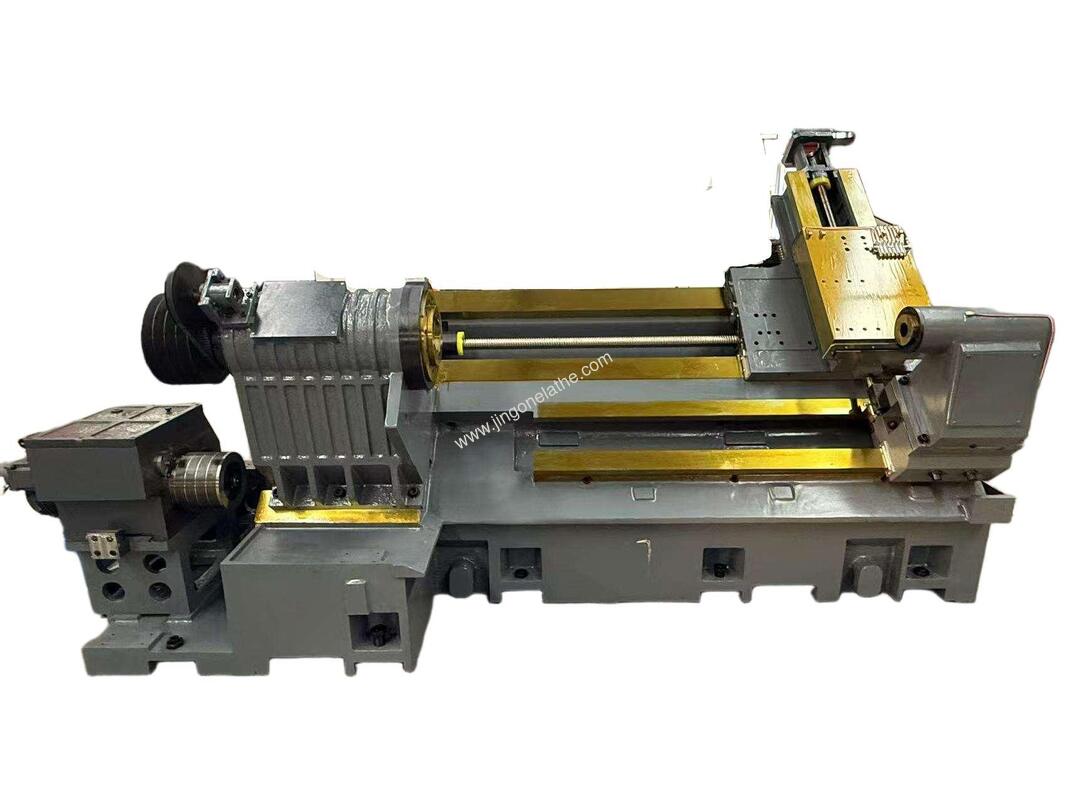

- Integral 45° slant bed cast from high-strength iron, precision-machined on a German-imported gantry mill
- HRC55 hardened box guideways for exceptional wear resistance and long-term dimensional stability

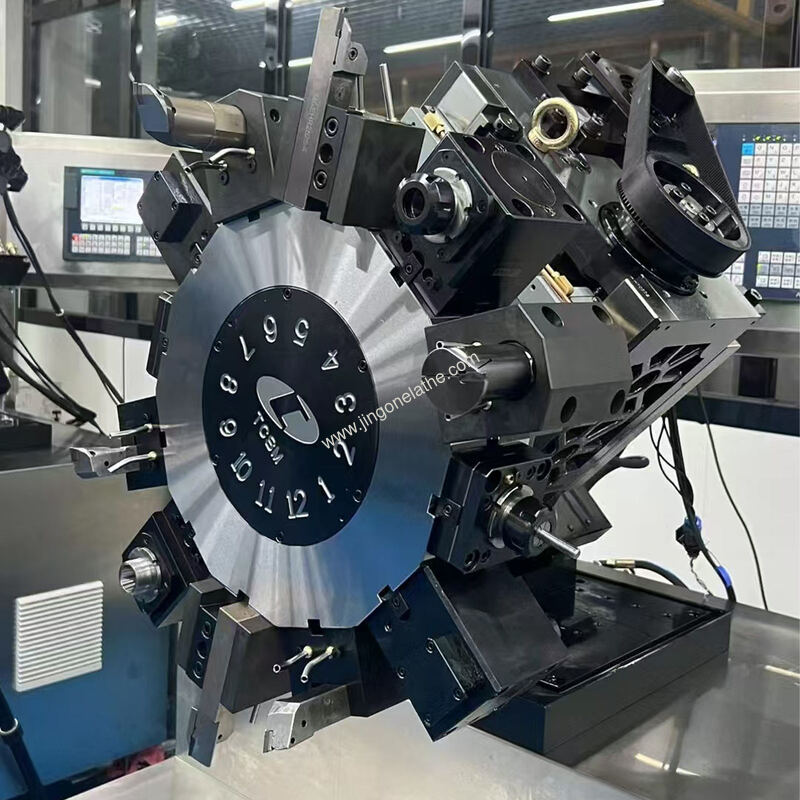

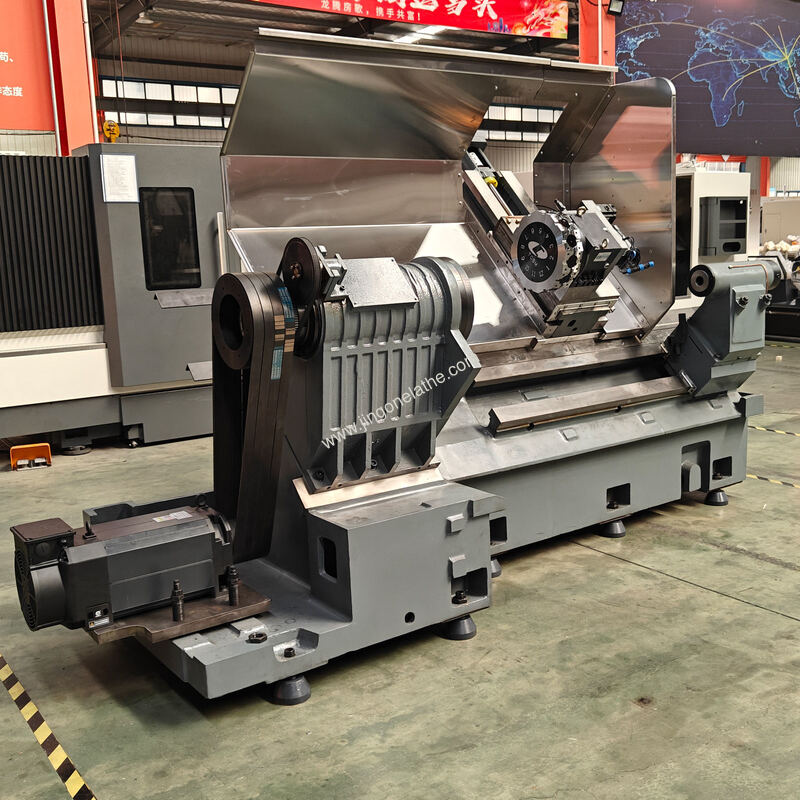

- 12-station BMT65 live turret with 420mm disc diameter, reducing tool change time for medium batch runs
- 15-inch solid hydraulic chuck with A2-11 spindle nose and 103mm spindle bore for large bar stock
- 50mm diameter Z-axis ballscrew provides stable high-load movement with minimal deflection
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter | 650 mm |
| Max.turning diameter | 610 mm |
| Max.turning length | 1000 mm |
| Spindle nose type | A2-11 |
| Spindle bore diameter | 103 mm |
| Spindle speed | 1200 rpm |
| Spindle speed change | Stepless |
| Main motor power | 18.5 Kw |
| Chuck size | 15’’ |
| Chuck type | Solid Hydraulic |
| Turret type | BMT65 Live Turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢420 mm |
| Tool size(square shank) | 32x32 mm |
| Tool size(round shank) | ¢40 mm |
| Cutting tools | 6 (3 square 3 round) |
| X-axis travel | 350 mm |
| Z-axis travel | 1100 mm |
| X-axis rapid feed | 12 m/min |
| Z-axis rapid feed | 10 m/min |
| X-axis motor torque | 18 N.m |
| Z-axis motor torque | 18 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Box guideway |
| X-axis ball screw | 4005 mm |
| Z-axis ball screw | 5010 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 140 mm |
| Sleeve travel | 140 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.015 mm |
| Repeatability | X: 0.008 mm, Z: 0.012 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 750 W |
| Power supply | 32 KVA |
| Net weight | 7800 Kg |
| Dimensions (L × W × H) | 3700x2100x2400 mm |
Accessory Configurations
| Standard Configurations | |
|---|---|
| Machine frame | Integral Slant Bed High-Strength Cast Iron |
| CNC system | Fanuc, GSK, Syntec, Siemens optional |
| Spindle motor | Included |
| Spindle | With hydraulic brake |
| Ball screw | HIWIN/PMI, Taiwan |
| Screw bearings | KOYO, Japan |
| Hydraulic chuck | 10/15 inch hollow hydraulic chuck |
| Hydraulic station | Included |
| Servo turret | BMT65-12-420 |
| Lubrication pump | Included |
| Cooling pump | Included |
| Heat exchanger | Included |
| Low-Voltage Apparatus | Included |
| Triple alarm light | Included |
| Optional Configurations | |
| Chip conveyor | Side discharge type |
| Tool setter | Folding arm tool setter |
| Automatic door | Available |
| Automatic door safety device | Available |
| Oil mist collector | Available |
| Oil/coolant separator | Available |
| Robot interface | Available |
| Bar material feeder | Available |
| Blowing device | Available |
| Water gun | Available |
| Soft jaws for chuck | Available |
| Live tool holders | 90°, 0°, and other custom angles |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: How does the 12-station turret improve production efficiency?
A: The 12-station BMT65 live turret on this Box Way CNC Lathe reduces tool change time, cutting non-productive downtime for medium batch machining.
Q: What is the maximum workpiece weight this lathe can handle?
A: This TCK63M-1000 Box Way CNC Lathe supports heavy workpieces up to 1200kg via its solid hydraulic chuck and hardened guideways.
Q: Can this lathe handle hardened steel cutting tasks?
A: Yes, with its 18.5kW main motor and HRC55 hardened guideways, this Box Way CNC Lathe handles high-torque cutting of hardened steels and cast iron.
