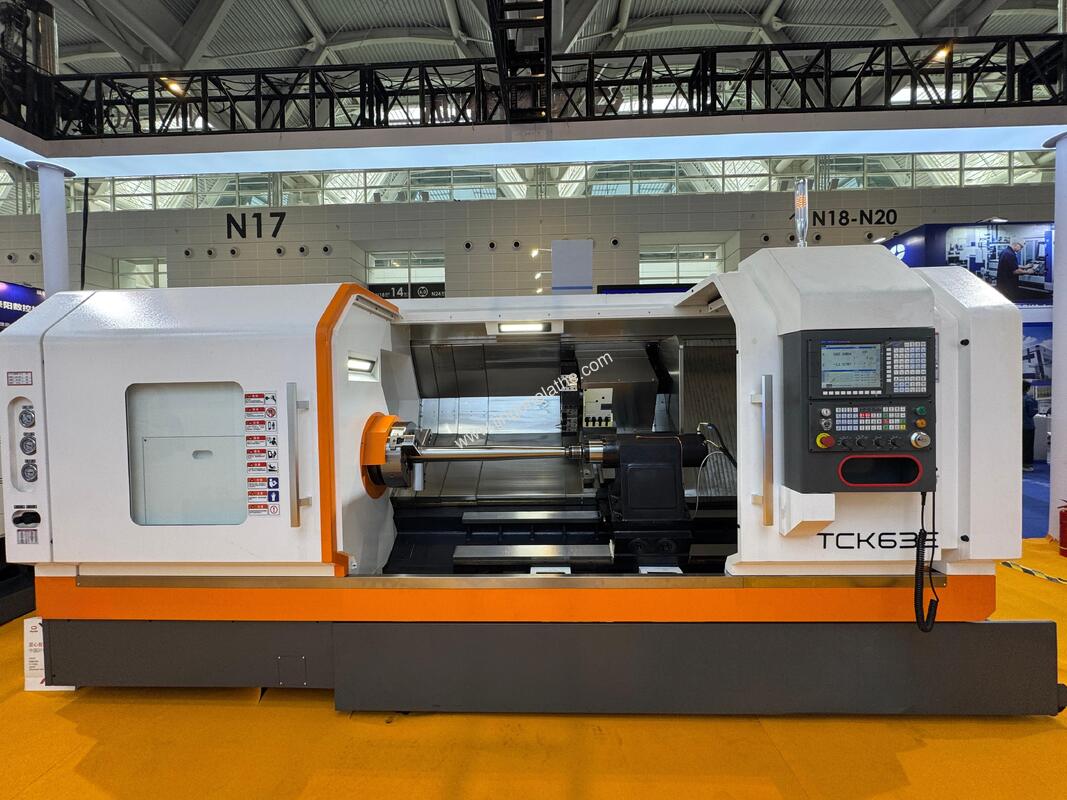

Large Bore Spindle Box Way CNC Lathe TCK63E | 105mm Bore
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK63E (A2-11)
Contact Us
Request A Quote
Product Details
Spindle Nose:
A2-11 (GS59001)
Spindle Hole:
105 Mm
Spindle Speed:
1200 Rpm
Spindle Speed Shifting:
3 Gear Speed Transmission
Spindle Motor:
22 Kw
Chuck:
15 Inch Hydraulic Chuck
Payment & Shipping Terms
Minimum Order Quantity
1
Price
49000 USD/ set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Large Bore Spindle Box Way CNC Lathe TCK63E: 105mm Bore for High-Torque Heavy Cutting
Model: TCK63E(A2-11) | Core Keyword: Large Bore Spindle Box Way CNC Lathe
Summary
Large Bore Spindle Box Way CNC Lathe TCK63E delivers high-torque heavy cutting performance for large-bore workpieces.
Featuring an A2-11 spindle nose, 105mm spindle bore, 1200rpm maximum spindle speed, and 22Kw spindle motor, this lathe provides exceptional low-speed torque for deep cutting.
It is ideal for machining pipes, flanges, and heavy components in oil and gas, power generation, and heavy equipment industries.
Features
- A2-11 spindle nose design for secure clamping of large-diameter workpieces and heavy fixtures
- 105mm extra-large spindle bore to accommodate large-diameter bar stock and pipe workpieces
- 22Kw high-power spindle motor with 3-speed gearbox to maximize low-speed cutting torque
- 1900Nm spindle torque for deep heavy cutting of thick-walled pipes and cast components
- One-piece cast 45° slant bed for enhanced structural rigidity and efficient chip evacuation
- HRC55 hardened box guideway to maintain precision during prolonged heavy cutting cycles
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter | 650 mm |
| Max.turning diameter | 630 mm |
| Max.turning length | 1000 mm |
| Spindle nose type | A2-11 |
| Spindle bore diameter | 105 mm |
| Bar capacity | 88 mm |
| Spindle speed | 1200 rpm |
| Spindle speed change | 3-Speed Gear |
| Main motor power | 22 Kw |
| Chuck size | 15’’ |
| Chuck type | Hydraulic |
| Turret type | Servo turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢420 mm |
| Tool size(square shank) | 32x32 mm |
| Tool size(round shank) | ¢40 mm |
| Cutting tools | 6 (3 square 3 round) |
| X-axis travel | 350 mm |
| Z-axis travel | 1100 mm |
| X-axis rapid feed | 12 m/min |
| Z-axis rapid feed | 10 m/min |
| X-axis motor torque | 18 N.m |
| Z-axis motor torque | 18 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Box guideway |
| X-axis ball screw | 4005 mm |
| Z-axis ball screw | 5010 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 140 mm |
| Sleeve travel | 140 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.015 mm |
| Repeatability | X: 0.008 mm, Z: 0.012 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 750 W |
| Power supply | 40 KVA |
| Net weight | 8400 Kg |
| Dimensions (L × W × H) | 3700x2200x2500 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine frame | Standard |
| CNC system | Standard |
| Spindle motor | Standard |
| Spindle | Standard |
| Ball screw | Standard |
| Screw bearings | Standard |
| Hydraulic chuck | Standard |
| Hydraulic station | Standard |
| Servo turret | Standard |
| Lubrication pump | Standard |
| Cooling pump | Standard |
| Heat exchanger | Standard |
| Low-Voltage Apparatus | Standard |
| Triple alarm light | Standard |
| Chip conveyor (side discharge) | Optional |
| Tool setter- folding arm tool setter | Optional |
| Automatic door | Optional |
| Automatic door safety device | Optional |
| Oil mist collector | Optional |
| Oil/coolant separator | Optional |
| Robot interface | Optional |
| Bar material feeder | Optional |
| Blowing device | Optional |
| Water gun | Optional |
| Soft jaws for chuck | Optional |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum spindle bore size of the TCK63E(A2-11) lathe?
A: The Large Bore Spindle Box Way CNC Lathe TCK63E has a 105mm spindle bore, ideal for machining large pipes and flanges in oil and gas sectors.
Q: What spindle torque does the TCK63E(A2-11) provide for heavy cutting?
A: The Large Bore Spindle Box Way CNC Lathe TCK63E delivers 1900Nm spindle torque, enhanced by a 3-speed gearbox for deep low-speed cutting.
Q: What motor power does the TCK63E(A2-11) have for heavy-duty machining?
A: The Large Bore Spindle Box Way CNC Lathe TCK63E is equipped with a 22Kw spindle motor for high-torque heavy cutting of thick-walled components.
