Heavy Duty Slant Bed CNC Lathe TCK63E-2000 | Long Workpiece Machining
Heavy Duty Slant Bed CNC Lathe TCK63E-2000 | Long Workpiece Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK63E-2000
Contact Us
Request A Quote
Product Details
Recommended Processing Diameter:
350mm
Recommended Processing Length:
2000mm
Max. Processing Diameter:
630mm
Max.bar Diameter Through Spindle:
72mm
Spindle Nose:
A2-8
Spindle Speed:
2600 Rpm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 56000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Heavy Duty Slant Bed CNC Lathe TCK63E-2000: 21Nm Torque for Long Workpiece Machining
Model: TCK63E-2000 | Core Keyword: Heavy Duty Slant Bed CNC Lathe
Summary

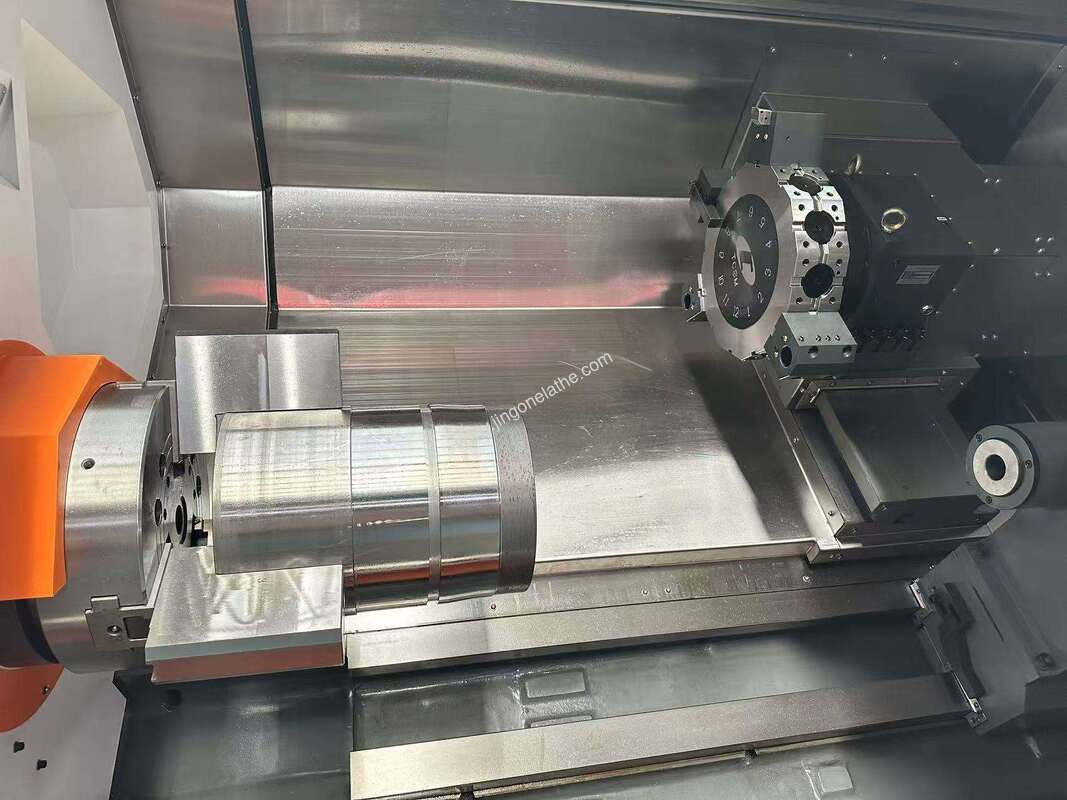

Heavy Duty Slant Bed CNC Lathe TCK63E-2000 provides robust performance for machining long, heavy workpieces.
Featuring a one-piece cast 45° slant bed, 2000mm maximum turning length, and 21Nm X/Z axis motor torque, this lathe maintains rigidity during extended heavy cutting cycles.
It is optimized for machining shaft-type components in energy, aerospace, and heavy equipment manufacturing industries.
Features
- Rock-Solid Stability Built on a one-piece 45° slant bed, this design significantly boosts structural rigidity while making chip disposal effortless during heavy operations.
-
Precision-Hardened Ways The HRC55 hardened box guideways feature a wide 270mm/455mm span, providing the stable, chatter-free support needed for extra-long workpieces.
-
High-Torque Performance Equipped with 21Nm X/Z axis motors, the machine delivers the consistent "bite" and low-speed cutting force required for tough, heavy components.
-
Extended Turning Capacity With a massive 2000mm maximum turning length, it’s the ideal workhorse for machining long-shaft cylinders and oversized industrial parts.
-
Heavy-Duty Workholding A powerful 10-inch hydraulic chuck comes standard, ensuring a secure, vibration-resistant grip on large-diameter stock.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter | 650 mm |
| Max.turning diameter | 630 mm |
| Max.turning length | 2000 mm |
| Spindle nose type | A2-8 |
| Spindle bore diameter | 85 mm |
| Bar capacity | 72 mm |
| Spindle speed | 2600 rpm |
| Spindle speed change | Stepless |
| Main motor power | 15 Kw |
| Chuck size | 10’’ |
| Chuck type | Hydraulic |
| Turret type | Servo turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢420 mm |
| Tool size(square shank) | 32x32 mm |
| Tool size(round shank) | ¢40 mm |
| Cutting tools | 6 (3 square 3 round) |
| X-axis travel | 350 mm |
| Z-axis travel | 2120 mm |
| X-axis rapid feed | 12 m/min |
| Z-axis rapid feed | 10 m/min |
| X-axis motor torque | 21 N.m |
| Z-axis motor torque | 21 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Box guideway |
| X-axis ball screw | 4005 |
| Z-axis ball screw | 5010 |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 140 mm |
| Sleeve travel | 140 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.015 mm |
| Repeatability | X: 0.008 mm, Z: 0.012 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 750 W |
| Power supply | 32 KVA |
| Net weight | 8600 Kg |
| Dimensions (L × W × H) | 4700x2100x2400 mm |
Accessory Configurations
Standard Configurations
| Accessory | Configuration |
|---|---|
| Machine frame |
Integral Slant Bed High-Strength Cast Iron |
| CNC system | Standard: Fanuc Oi-TF, Optional: GSK, Syntec, Siemens |
| Spindle motor | System configured |
| Spindle | Stepless |
| Ball screw |
THK/PMI |
| Screw bearings | Japan brand |
| Hydraulic chuck | 8 inch hollow hydraulic chuck |
| Hydraulic station | |
| Servo turret | Taiwan brand |
| Lubrication pump | |
| Cooling pump | |
| Heat exchanger | |
| Low-Voltage Apparatus | |
| Triple alarm light |
Optional Configurations
| Chip conveyor (side discharge) |
| Tool setter- folding arm tool setter |
| Automatic door |
| Automatic door safety device |
| Oil mist collector |
| Oil/coolant separator |
| Robot interface |
| Bar material feeder |
| Blowing device |
| Water gun |
| Soft jaws for chuck |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: Can the TCK63E-2000 machine 2000mm long shaft components?
A: The Heavy Duty Slant Bed CNC Lathe TCK63E-2000 supports 2000mm maximum turning length, ideal for machining long shaft components in energy sectors.
Q: How does the 21Nm motor torque benefit heavy cutting?
A: The 21Nm X/Z axis motor torque on this Heavy Duty Slant Bed CNC Lathe delivers consistent low-speed force for stable heavy cutting of large workpieces.
Q: What is the tailstock guide rail span on this lathe?
A: The Heavy Duty Slant Bed CNC Lathe TCK63E-2000 has a 270mm tailstock guide rail span for secure support of long heavy workpieces.
