CNC Flat Bed Lathe | CK6165E | Heavy-Duty Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6165E
Contact Us
Request A Quote
Product Details
Hydraulic Chuck ：:
320mm
Cnc Control System：:
Siemens SINUMERIK 828D
Spindle Through-out Diameter::
105mm
Distance Between Centers::
1500mm
Max. Swing Diameter::
650mm
Max. Swing Diameter Over Cross Slide:
375 Mm
X/Z-axis Rapid Traverse:
X: 4 M/min; Z:5 M/min
Guideway Type:
Box Way
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 20980 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

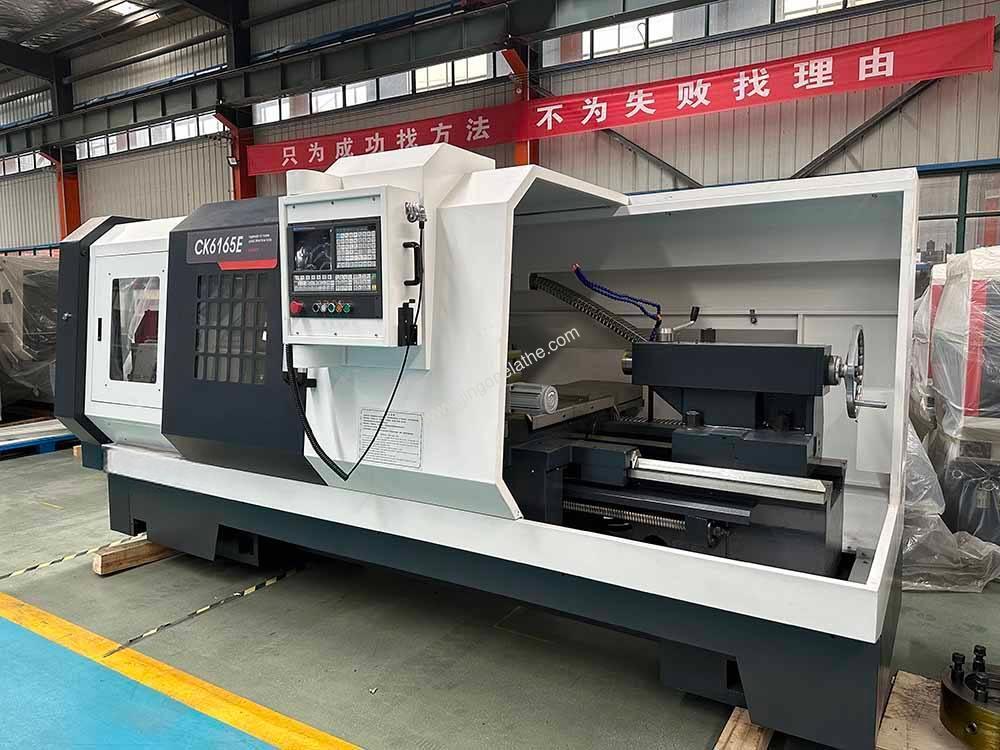

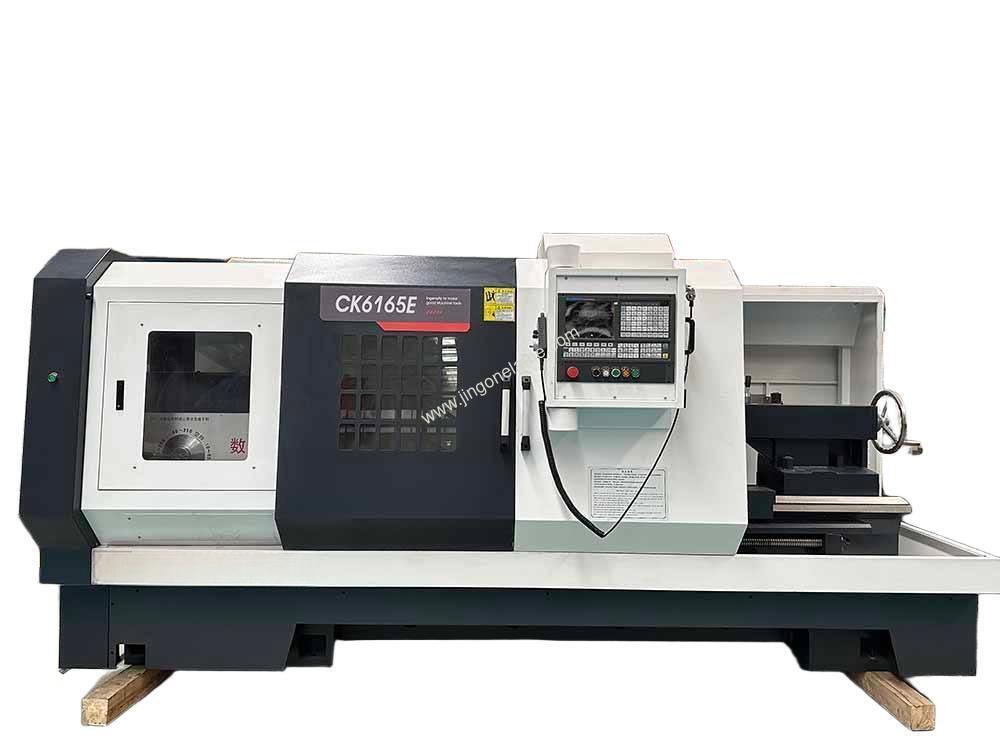

CK6165E CNC Flat Bed Lathe: High Rigidity for Heavy Roughing & Precision Finishing
Model: CK6165E | Core Keyword: cnc flat bed lathe machine
Summary
CNC Flat Bed Lathe Machine CK6165E delivers stable performance for heavy-duty machining tasks. Its solid one-piece casting construction eliminates assembly gap vibration, supporting aggressive cutting with minimal downtime.
Equipped with 3-step manual gear shifting plus stepless frequency control, this 3000mm center distance lathe offers a broad 10-1600 r/min speed range, ensuring precise speed adjustment for both roughing and precision finishing operations.
Ideal for manufacturers in automotive, aerospace, and heavy equipment sectors, this box way CNC flat bed lathe handles extreme cutting forces while maintaining long-term accuracy.
Features
- Solid one-piece cast bed construction eliminates assembly gaps, reducing vibration for consistent heavy-duty machining

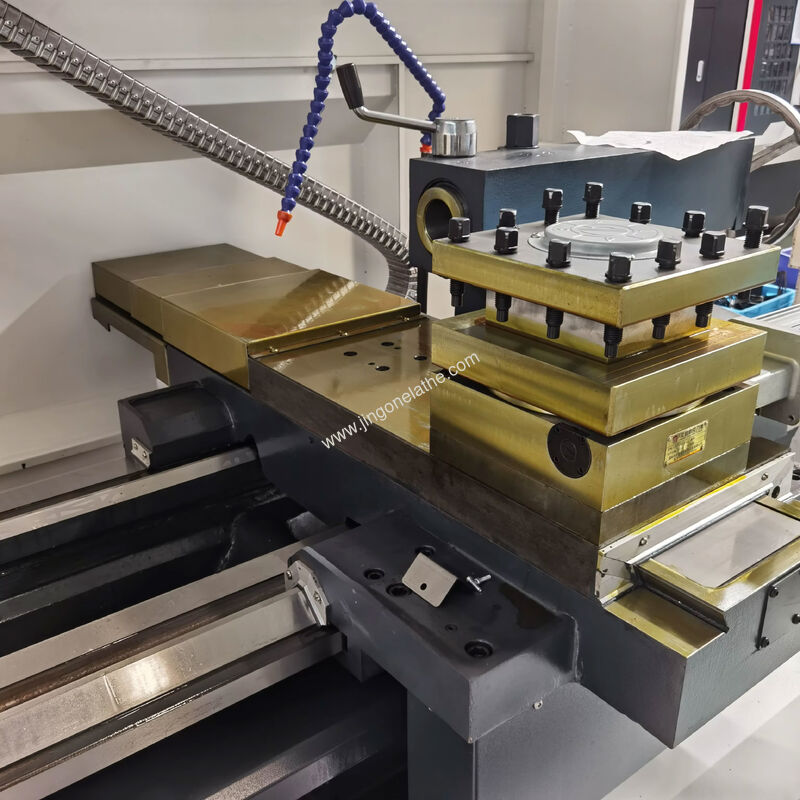

- Box way guideway with widened cross slide provides excellent vibration dampening to withstand extreme cutting forces
- 3-step manual gear shifting combined with stepless frequency control offers a 10-1600 r/min speed range for precise adjustment
- C11 spindle nose with 105mm through-hole diameter accommodates large workpieces and maintains high rotation accuracy
- 320mm hydraulic chuck ensures secure workpiece clamping during high-load turning operations
- Infinitely variable spindle speed settings optimize efficiency for roughing, semi-finishing, and precision finishing tasks
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter over Bed | 650 mm |
| Max. swing diameter over cross slide | 375 mm |
| Max. diameter for machining disc parts | 650 mm |
| Distance between centers | 3000 mm |
| Max. turning length | 2900 mm |
| **Spindle** | |
| Spindle nose type | C11 |
| Spindle through-hole diameter | 105 mm |
| Spindle taper | Metric 120 1:20 |
| Spindle speed change | 3-step manual gear change with infinitely variable speed |
| Spindle speed range | 10-85 rpm; 40-350 rpm; 100-850 rpm |
| **Chuck** | |
| Chuck type | Hydraulic chuck |
| Chuck size | 320 mm |
| **Feed & Travel** | |
| X/Z-axis rapid traverse | X: 4 m/min; Z:5 m/min |
| X/Z-axis servo motor torque | X:10 N.m; Z:30 N.m |
| X/Z-axis travel | X:400 mm; Z:3100 mm |
| Lead screw model | X:3205x740-P3; Z:6310x4028-P3 |
| Guideway type | Box way |
| Minimum setting unit | 0.0001 mm |
| **Tailstock** | |
| Tailstock quill diameter | 100 mm |
| Tailstock quill bore taper | MT.6 |
| Tailstock quill travel | 250 mm |
| Tailstock type | Manual |
| **Tool station** | |
| Tool stations | 4 T |
| Tool shank size | 32x32 mm |
| **Power** | |
| Main motor power | 11 Kw |
| Total rated power | 20 Kw |
| Total rated current | 40 A |
| **Others** | |
| Net weight | 6200 Kg |
| Dimensions (L × W × H) | 5500x1900x1900 mm (can be in container) |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| 4-Jaw chuck | Included |
| Lightning device | Included |
| Coolant device | Included |
| Support tool box | Included |
| Operation manual | Included |
| Qualified instructions | Included |
| Packing list | Included |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: Why is the CK6165E suitable for heavy roughing operations?
A: The CK6165E CNC flat bed lathe uses solid one-piece casting and box way guideways, providing high rigidity to handle aggressive heavy roughing with minimal vibration.
Q: How does the speed control system improve machining efficiency?
A: This CNC flat bed lathe machine combines 3-step manual gear shifting and stepless frequency control, offering a 10-1600 rpm range to match speed to cutting tasks.
Q: What after-sales support is provided for this lathe?
A: The CK6165E CNC flat bed lathe includes a 12-month core system warranty and lifetime free technical support via email, video call, or paid on-site visits.
