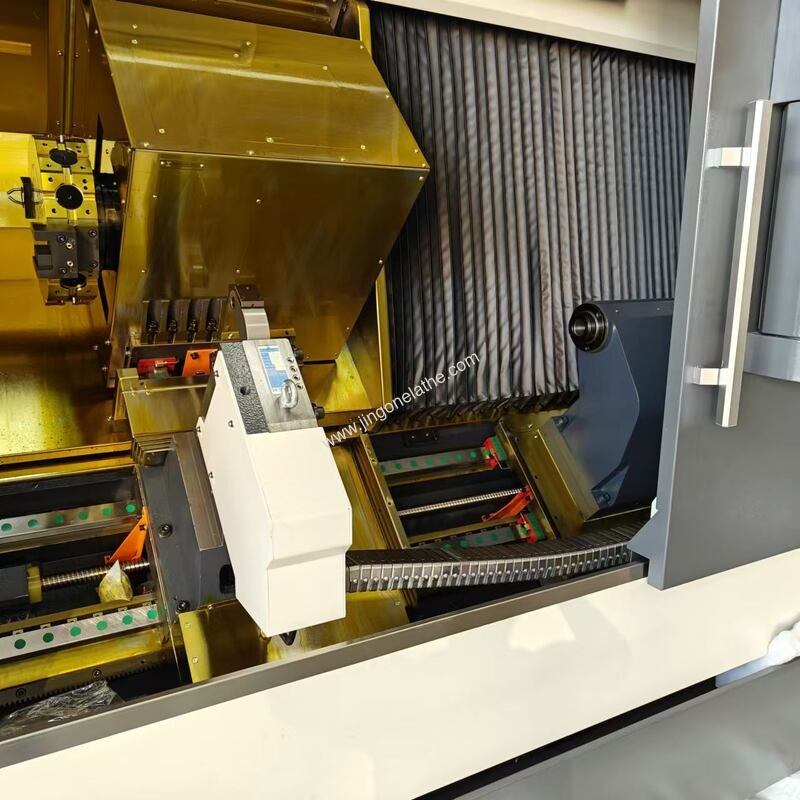

High Precision Linear Guideway Slant Bed Lathe TCK50A-500 For Tight-Tolerance Short Shaft Machining
High Precision Linear Guideway Slant Bed Lathe TCK50A-500 For Tight-Tolerance Short Shaft Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK50A-500
Contact Us
Request A Quote
Product Details
Max.swing Diameter:
560mm
Max.turning Length:
500mm
Chuck Size:
10 Inch
Spindle Nose Type:
A2-6
Spindle Speed:
50-3000rpm, Stepless
Guideway Type:
Taiwan Linear Guide Rail
Machine Bed Tilt Angle:
30°
Main Motor Power:
11Kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 20000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
High Precision Linear Guideway Slant Bed Lathe TCK50A-500 for Tight-Tolerance Short Shaft Machining
Model: TCK50A-500 | Core Keyword: Linear Guideway Slant Bed Lathe
Summary
Linear Guideway Slant Bed Lathe TCK50A-500 is engineered for ultra-high precision short shaft machining.
It features a hardened linear guideway, 3000 RPM stepless spindle, and 0.005mm repeatability, meeting strict tolerance requirements for mechanical and mold manufacturing applications.
This high-strength cast iron bed lathe integrates automatic centralized lubrication to reduce downtime, making it ideal for small to medium batch short shaft production.
Features
- Hardened linear guideway with 0.005mm repeatability for ultra-high precision short shaft machining
- 3000 RPM stepless spindle unit with A2-6 spindle nose, supporting 54mm max bar capacity
- High-strength cast iron slant bed with automatic centralized lubrication to minimize maintenance downtime
- 8-station servo turret with 25mm square shank tool capacity for fast, accurate tool changes
- Optimized for tight-tolerance short parts production in mechanical and mold industries
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter | 560 mm |
| Max. turning diameter | 420 mm |
| Max. turning length | 500 mm |
| Chuck size | 10'' |
| **Spindle** | |
| Spindle speed | 3000 rpm |
| Spindle speed change | Stepless |
| Spindle nose type | A2-6 |
| Spindle bore diameter | 66 mm |
| Max. bar capacity | 54 mm |
| **Turret** | |
| Turret type | Servo turret |
| Tool stations | 8-station |
| Turret disc diameter | ¢330 mm |
| Tool size (square shank) | 25 mm |
| Tool size (round shank) | 32 mm |
| Cutting tools | 4 (2 square 2 round) |
| **Travel&Feed** | |
| X-axis travel | 230 mm |
| Z-axis travel | 530 mm |
| X-axis rapid feed | 18 m/min |
| Z-axis rapid feed | 18 m/min |
| **Servo system** | |
| X-axis motor torque | 10 N.m |
| Z-axis motor torque | 10 N.m |
| **Structure&Guideways** | |
| Machine bed tilt angle | 30° |
| Guideway type | Linear guide rail |
| X-axis rail width | 35 mm |
| Z-axis rail width | 35 mm |
| **Transmission** | |
| X-axis ball screw | 3210 mm |
| Z-axis ball screw | 4012 mm |
| **Tailstock** | |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 70 mm |
| Sleeve travel | 95 mm |
| Sleeve taper | M.T.5 |
| **Accuracy** | |
| Positioning accuracy (X/Z) | 0.01 mm / 0.01 mm |
| Repeatability (X/Z) | 0.005 mm / 0.005 mm |
| **Motor** | |
| Main motor power | 11 Kw |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 450 W |
| Power supply | 20 KVA |
| **Others** | |
| Net weight | 3300 Kg |
| Dimensions (L × W × H) | 2700x2170x2200 mm |
Accessory Configurations
| Accessory | Optional Configuration |
|---|---|
| Servo Turret Upgrade | 12-station servo turret (¢330 turret disc) |
| Chip Conveyor | Chip conveyor (side/rear discharge) |
| Tool Setter | Folding arm tool setter |
| Safety System | Automatic door + automatic door safety device |
| Air Management | Oil mist collector |
| Fluid Management | Oil/coolant separator |
| Automation | Robot interface, bar material feeder |
| Machining Tools | Blowing device, water gun, soft jaws for chuck |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping, customized for 3300kg heavy-duty equipment
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What machining tasks is TCK50A-500 optimized for?
A: This high precision linear guideway slant bed lathe is optimized for short shaft machining, delivering 0.005mm repeatability for tight-tolerance parts.
Q: How does the linear guideway improve TCK50A-500’s performance?
A: The hardened linear guideway reduces spindle runout, ensuring consistent precision during high-speed (3000 RPM) short shaft turning operations.
Q: What’s the maximum bar capacity of TCK50A-500?
A: The TCK50A-500 linear guideway slant bed lathe supports a 54mm max bar capacity for automated short shaft manufacturing.
