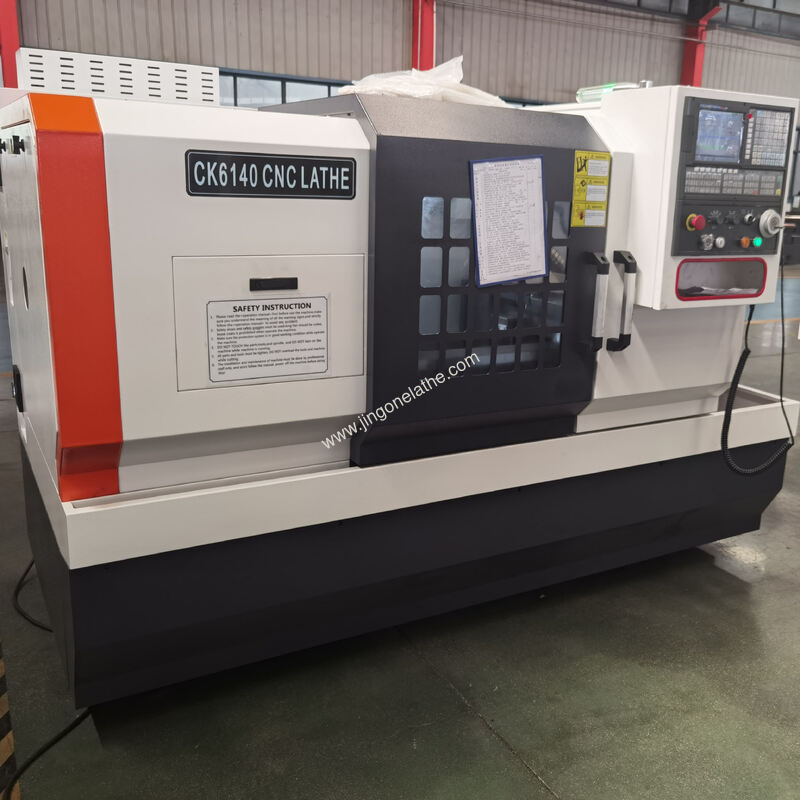

Economical CNC Flat Bed Lathe CK6140x1500: 150-2000RPM Stepless Spindle for Cost-Effective Long Shaft Machining
Economical CNC Flat Bed Lathe CK6140x1500: 150-2000RPM Stepless Spindle for Cost-Effective Long Shaft Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6140x1500
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
400mm
Distance Between Centers:
1500mm
Spindle Through-hole Diameter:
65mm
Bar Stock Passage Diameter:
63mm
Spindle Nose Type:
A2-6
Spindle Speed Range:
150-2000rpm, Stepless
Min. Setting Unit:
0.001mm

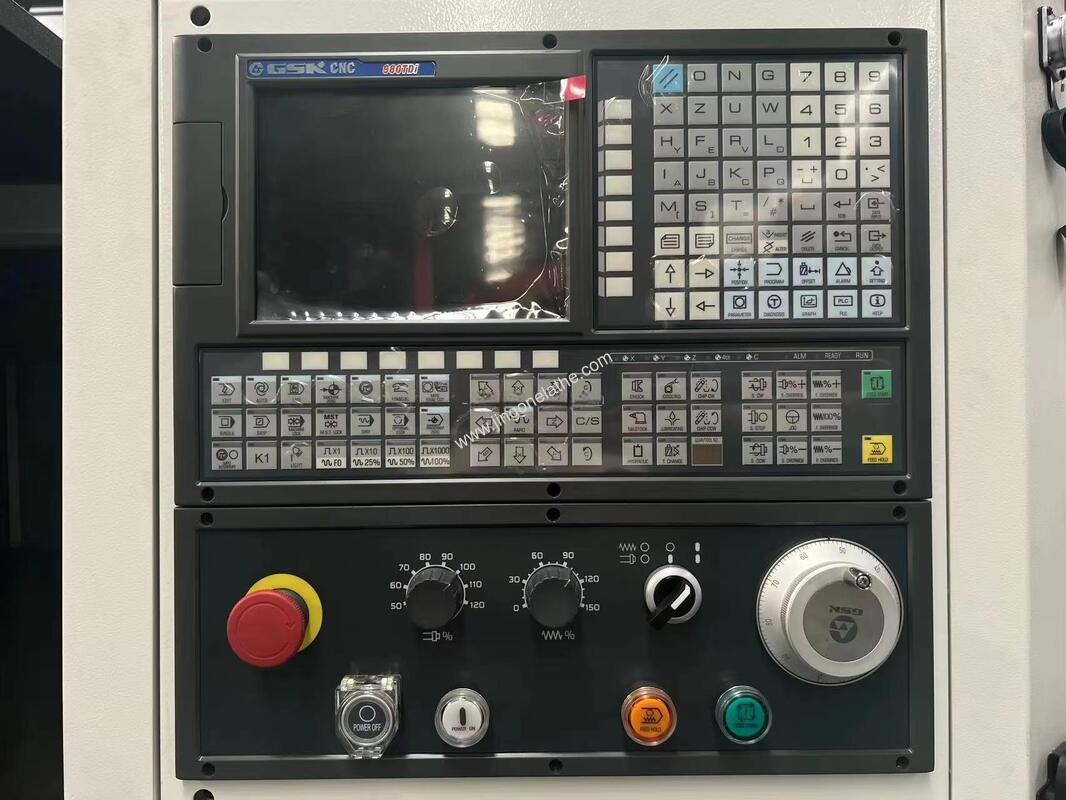

CNC System:
GSK Standard, Fanuc, Siemens Optional
Payment & Shipping Terms
Minimum Order Quantity
1
Price
9000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Economical CNC Flat Bed Lathe CK6140x1500: 150-2000RPM Stepless Spindle for Cost-Effective Long Shaft Machining
Model: CK6140x1500 | Core Keyword: Economical CNC Flat Bed Lathe
Summary
Economical CNC Flat Bed Lathe CK6140x1500 provides cost-effective solutions for long shaft machining tasks.
With 1500mm center distance, 65mm spindle through-hole, and 150-2000RPM stepless speed change, it handles cylindrical, conical, and special-shaped parts, plus grooving, threading, boring, reaming, and drilling efficiently.
Ideal for heavy equipment component manufacturers, agricultural parts producers, and job shops requiring high-volume, low-cost long part machining.
Features
- 1500mm center distance and 1370mm max turning length to accommodate long shaft workpieces
- 65mm spindle through-hole and 63mm bar stock passage for large-diameter raw material processing
- 150-2000RPM stepless spindle speed change to optimize cutting parameters for diverse materials
- 8KW total power supply to handle heavy-duty machining of steel, aluminum, and cast iron parts

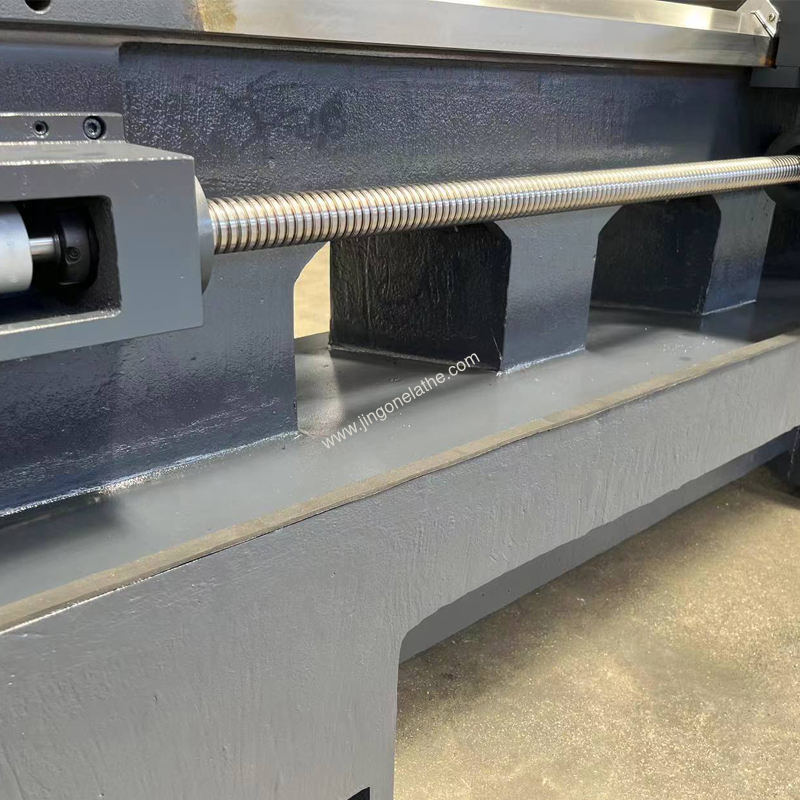

- Box way guide rails with high load capacity for stable long-term operation with minimal maintenance
- Optional oil-water separator and blowling device to reduce waste and extend component service life
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter over bed | Φ400mm |
| Max. swing diameter over the cross slide | Φ240mm |
| Distance between centers | 1500mm |
| Max.turning diameter for plate | 400mm |
| Max. turning length | 1370mm |
| X-axis guide rail span | 180mm |
| Z-axis guide rail span | 300mm |
| Guide type | Box way |
| Center height From the bed | 230mm |
| Center height From the ground | 1020mm |
| Spindle through-hole diameter | Φ65mm |
| Bar stock passage diameter | Φ63mm |

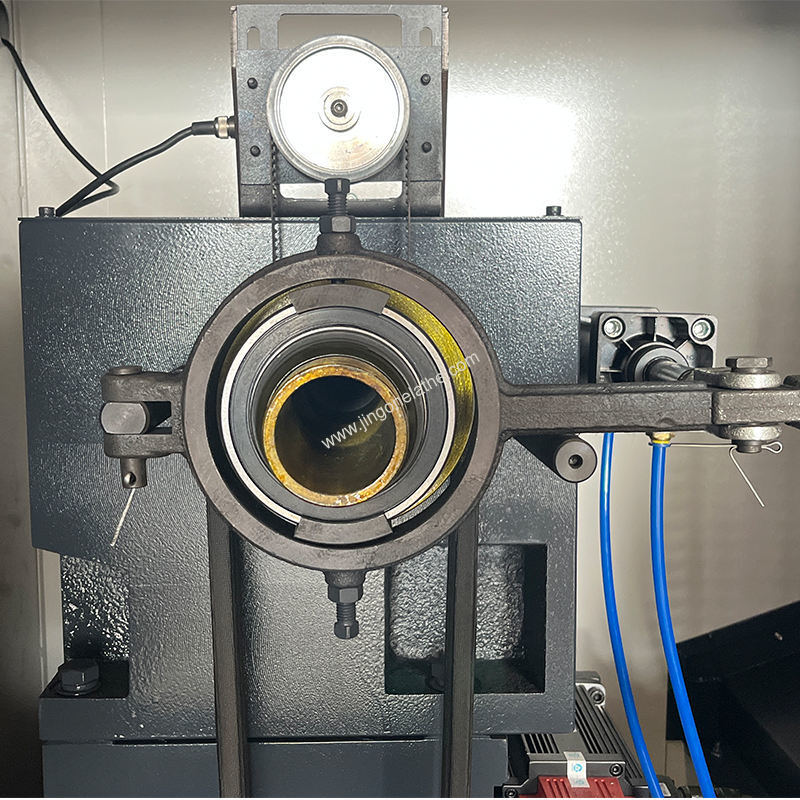

| Optional through-hole diameter of hollow chuck drawbar | Φ50mm |
| Spindle nose type | A2-6 |
| Chuck | Φ200mm |
| Taper of spindle taper hole | Metric 70 |
| Spindle speed change | Stepless |
| Spindle speed range | 150-2000rpm |
| Tailstock quill diameter | Φ60mm |
| Taper of tailstock quill bore | MT4# |
| Tailstock quill travel | 100mm |
| Tailstock type | Manual |

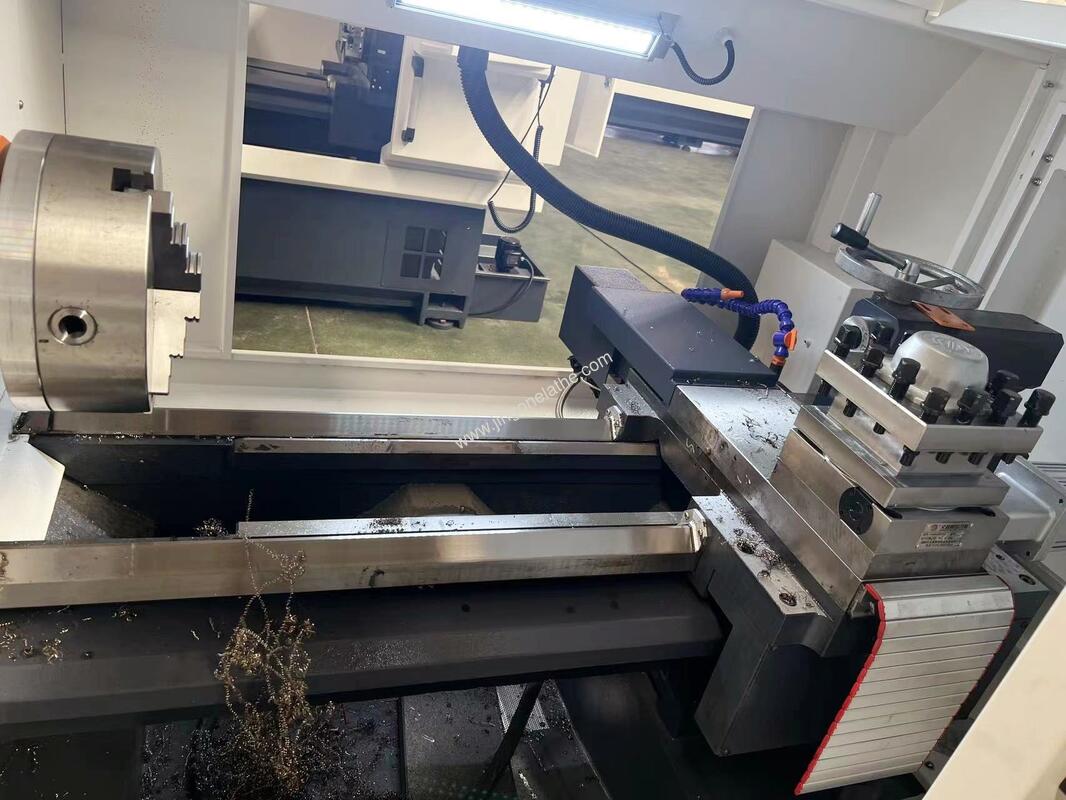

| Tool positions of electric tool turret | 4 |
| Tool shank size | 20×20mm |
| Rapid traverse speed of X/Z axis | 6 / 8m/min |
| Torque of X/Z-axis servo motors | 4 / 6N.m |
| X-axis travel | 220mm |
| Z-axis travel | 750mm |
| Min. setting unit | 0.001mm |
| Main motor power | 5.5KW |
| Total power supply | 8KW |
| Periodic axial movement of the spindle | 0.005mm |
| Radial runout of the positioning cone surface of the spindle chuck | 0.005mm |
| Repeatability positioning accuracy | X:±0.005mm；Z:±0.007mm |
| Diameter consistency | 0.01/150mm |
| Flatness | 0.025/φ300mm |
| Cumulative error of thread pitch | 0.025/50mm |
| Surface roughness | Ra1.6μm |
Accessory Configurations
| Accessory | Optional Configuration |
|---|---|
| 1 | 6-station/8-station turret tool |
| 2 | Hydraulic chuck |
| 3 | Automatic door |
| 4 | Safety device for automatic door |
| 5 | Oil-water separator |
| 6 | Oil mist collection |
| 7 | Tool setter |
| 8 | Workpiece measurement |
| 9 | Blowling device |
| 10 | Water Gun |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What makes CK6140x1500 an economical machining solution?
A: Economical CNC Flat Bed Lathe CK6140x1500 offers 150-2000RPM stepless spindle and low maintenance box way rails, reducing operational costs for long-term production.
Q: Can CK6140x1500 machine long shaft workpieces?
A: Economical CNC Flat Bed Lathe CK6140x1500 has 1500mm center distance and 1370mm max turning length, ideal for machining long shaft components efficiently.
Q: What is the total power supply of CK6140x1500?
A: Economical CNC Flat Bed Lathe CK6140x1500 features 8KW total power supply, providing sufficient torque for heavy-duty long shaft machining tasks.
