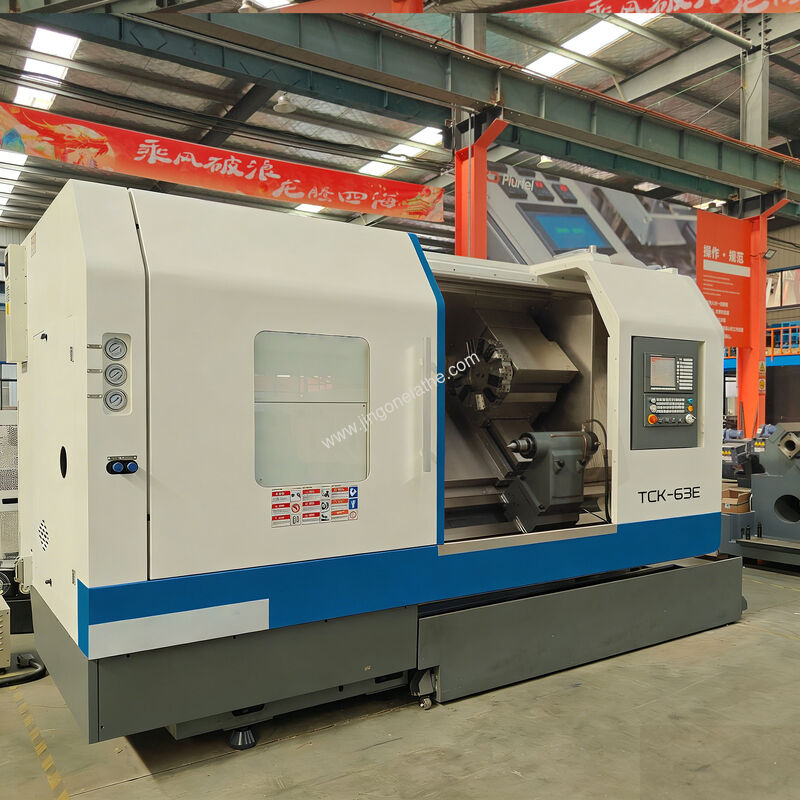

A2-8 Box Way CNC Lathe TCK63E | 85mm Spindle Bore
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK63E(A2-8)
Contact Us
Request A Quote
Product Details
Spindle Nose:
A2-8 (GB59001)
Spindle Hole:
85mm
Spindle Speed:
2600 Rpm
Bar Capacity:
73mm
Spindle Speed Shifting:
Stepless
Spindle Motor:
15Kw
Chuck:
10 Inch Hydraulic Chuck
CNC System:
Fanuc Standard
Payment & Shipping Terms
Minimum Order Quantity
1
Price
46000USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
A2-8 Box Way CNC Lathe TCK63E: 85mm Spindle Bore for High-Speed Heavy Cutting
Model: TCK63E(A2-8) | Core Keyword: A2-8 Box Way CNC Lathe
Summary
A2-8 Box Way CNC Lathe TCK63E delivers high-speed heavy cutting performance with consistent precision.
Featuring an A2-8 spindle nose, 85mm spindle bore, 2600rpm maximum spindle speed, and 15Kw spindle motor, this lathe balances speed and torque for versatile machining.
It is ideal for high-volume production of automotive, hydraulic, and general engineering components requiring medium-bore workpieces.
Features
- A2-8 spindle nose design for secure workpiece clamping and compatibility with standard fixtures
- 85mm large spindle bore to accommodate medium-diameter bar stock and reduce material waste
- 2600rpm maximum spindle speed for efficient high-speed finishing and roughing operations
- 15Kw spindle motor with stepless speed change for flexible torque and speed adjustment

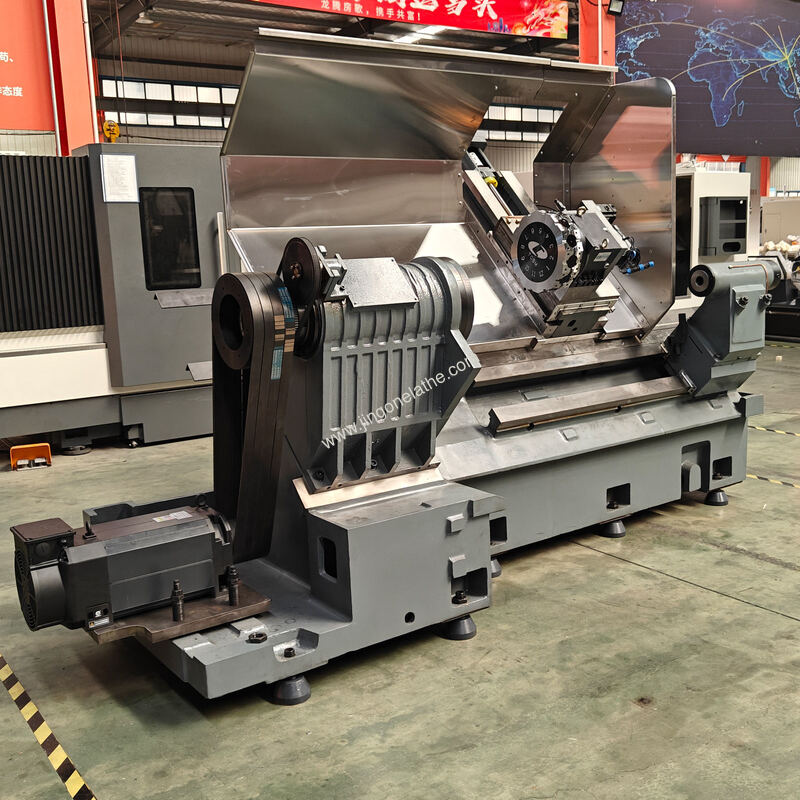

- One-piece cast 45° slant bed for enhanced rigidity and chip evacuation efficiency
- HRC55 hardened box guideway to maintain precision during prolonged heavy cutting cycles
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter | 650 mm |
| Max.turning diameter | 630 mm |
| Max.turning length | 1000 mm |
| Spindle nose type | A2-8 |
| Spindle bore diameter | 85 mm |
| Bar capacity | 72 mm |
| Spindle speed | 2600 rpm |
| Spindle speed change | Stepless |
| Main motor power | 15 Kw |
| Chuck size | 10’’ |
| Chuck type | Hydraulic |
| Turret type | Servo turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢420 mm |
| Tool size(square shank) | 32x32 mm |
| Tool size(round shank) | ¢40 mm |
| Cutting tools | 6 (3 square 3 round) |
| X-axis travel | 350 mm |
| Z-axis travel | 1100 mm |
| X-axis rapid feed | 12 m/min |
| Z-axis rapid feed | 10 m/min |
| X-axis motor torque | 18 N.m |
| Z-axis motor torque | 18 N.m |
| Machine bed tilt angle | 45° |
| Guideway type | Box guideway |
| X-axis ball screw | 4005 mm |
| Z-axis ball screw | 5010 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 140 mm |
| Sleeve travel | 140 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.015 mm |
| Repeatability | X: 0.008 mm, Z: 0.012 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 750 W |
| Power supply | 32 KVA |
| Net weight | 7800 Kg |
| Dimensions (L × W × H) | 3700x2100x2400 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine frame | Standard |
| CNC system | Standard |
| Spindle motor | Standard |
| Spindle | Standard |
| Ball screw | Standard |
| Screw bearings | Standard |
| Hydraulic chuck | Standard |
| Hydraulic station | Standard |
| Servo turret | Standard |
| Lubrication pump | Standard |
| Cooling pump | Standard |
| Heat exchanger | Standard |
| Low-Voltage Apparatus | Standard |
| Triple alarm light | Standard |
| Chip conveyor (side discharge) | Optional |
| Tool setter- folding arm tool setter | Optional |
| Automatic door | Optional |
| Automatic door safety device | Optional |
| Oil mist collector | Optional |
| Oil/coolant separator | Optional |
| Robot interface | Optional |
| Bar material feeder | Optional |
| Blowing device | Optional |
| Water gun | Optional |
| Soft jaws for chuck | Optional |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the spindle bore size of the TCK63E(A2-8) lathe?
A: The A2-8 Box Way CNC Lathe TCK63E has an 85mm spindle bore, suitable for medium-diameter bar stock machining in automotive component production.
Q: What spindle speed does the TCK63E(A2-8) offer?
A: The A2-8 Box Way CNC Lathe TCK63E delivers a maximum 2600rpm spindle speed for efficient high-speed finishing and roughing operations.
Q: What motor power does the TCK63E(A2-8) have for heavy cutting?
A: The A2-8 Box Way CNC Lathe TCK63E is equipped with a 15Kw spindle motor, providing sufficient torque for consistent heavy cutting tasks.
