CK6152E Horizontal CNC Lathe – High-Precision Multi-Process Machining For Heavy-Duty Workpieces
CK6152E Horizontal CNC Lathe – High-Precision Multi-Process Machining For Heavy-Duty Workpieces
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6152
Contact Us
Request A Quote
Product Details
Chuck Type：:
Manual Chuck
Spindle Nose Type：:
A2-8
Main Motor Power::
7.5kw
Spindle Through Hole::
90mm
Width Of The Bed Guide Rail：:
440mm
Max.swing Over Bed：:
530mm
Max. Turning Length:
1325 Mm
Center Height - From The Bed/ From The Ground:
265/1125 Mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 11390 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

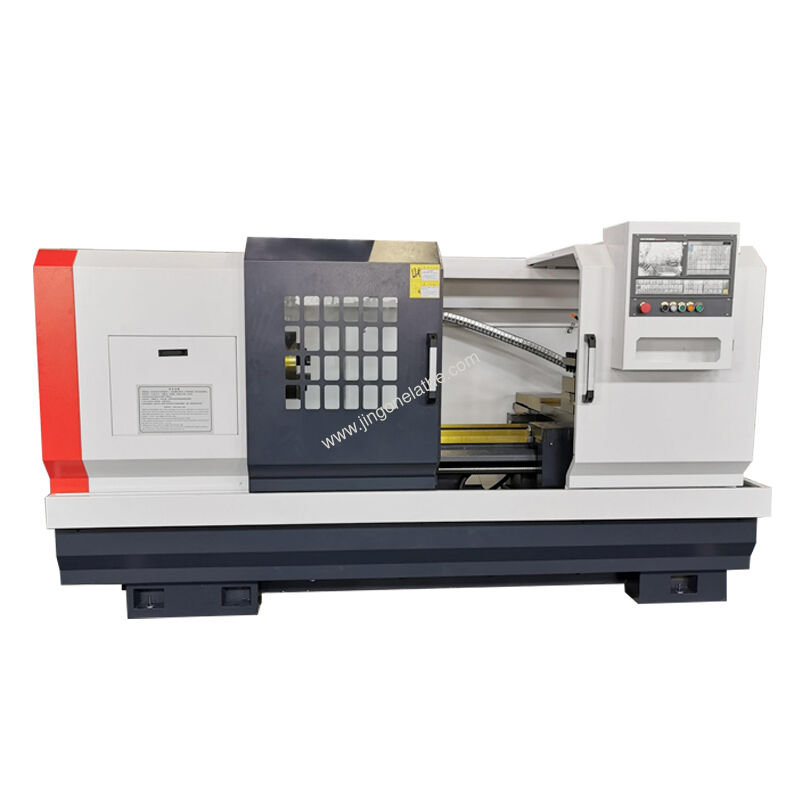

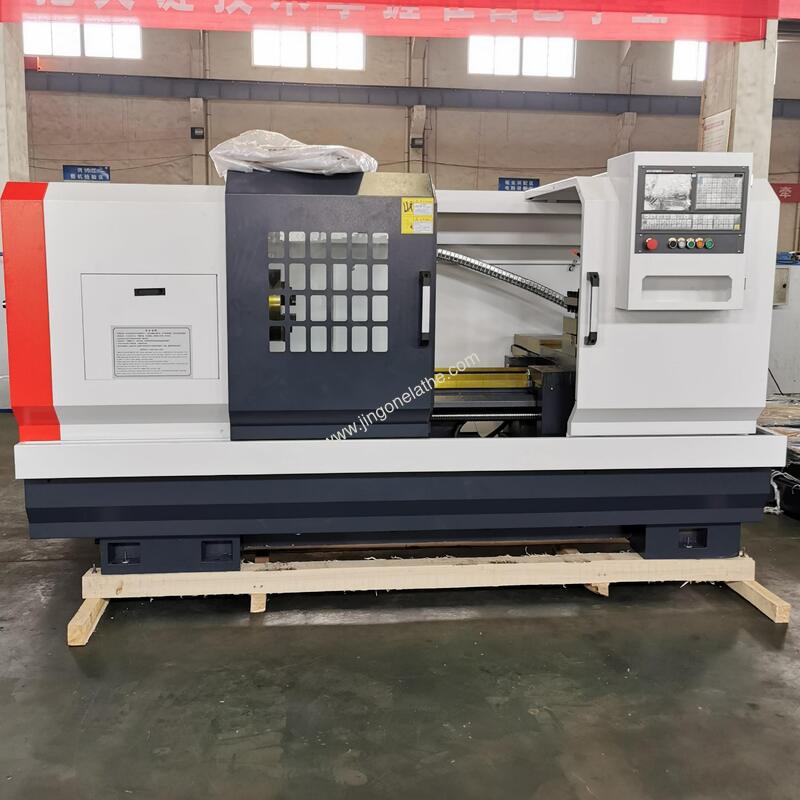

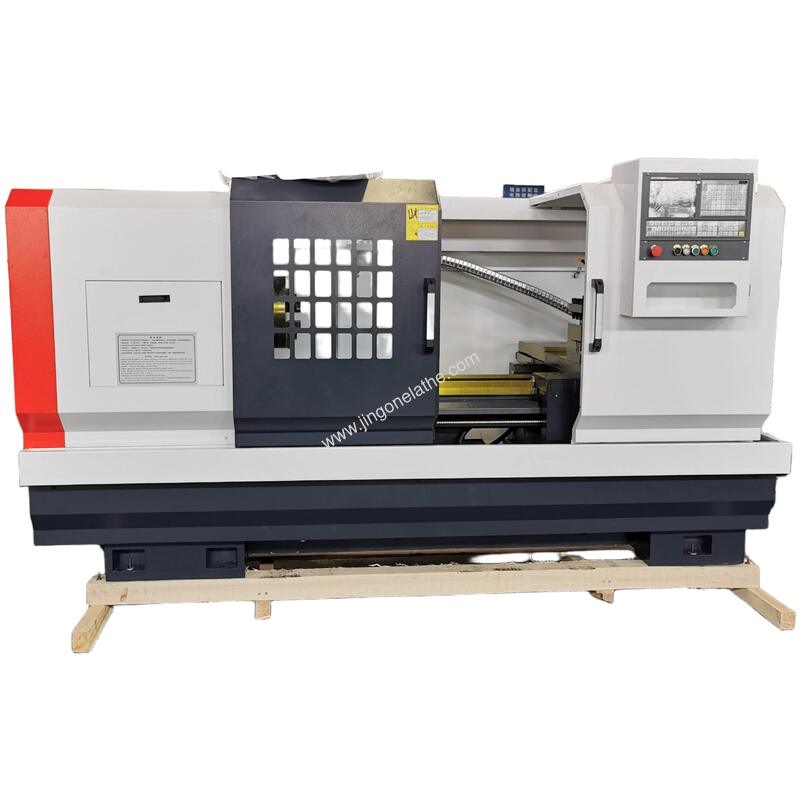

CK6152E Horizontal CNC Lathe – High-Precision Multi-Process Machining for Heavy-Duty Workpieces
Model: CK6152E | Core Keyword: horizontal cnc lathe machine
Summary
Horizontal CNC lathe machine CK6152E delivers consistent 0.005mm precision with hardened box way guideways and low spindle runout. Its 530mm swing over bed and 1000-3000mm center distance accommodate large, heavy workpieces for extended production runs.
Equipped with a 3-step manual gear-shifting spindle (30-1600 RPM) and 4-station tool post, this model supports turning, drilling, boring, and keyway cutting, eliminating the need for multiple machines to reduce setup time and production costs.
Compatible with GSK, SIEMENS, FANUC, and other global CNC systems, the CK6152E adapts to diverse operational habits and ensures global after-sales support, making it ideal for automotive, aerospace, and heavy equipment manufacturing facilities.
Features
- Box way guideways with 220mm X-axis span and 440mm Z-axis span for long-term precision retention and heavy-load capacity
- 3-step manual gear-shifting spindle with 30-1600 RPM range, providing high torque for heavy-duty cutting operations
- Multi-process machining capability: supports turning, drilling, boring, nesting, oil groove, and keyway cutting to cover diverse part manufacturing needs
- Compatible with GSK/SIEMENS/FANUC/FAGOR/MITSUBISHI/HNC CNC systems, adapting to different operator workflows and precision requirements

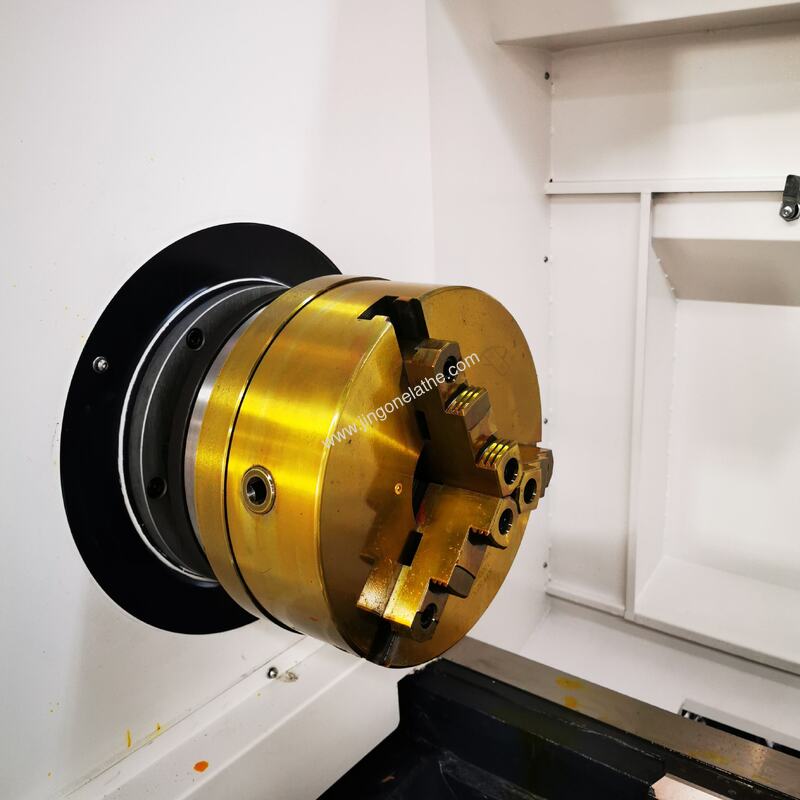

- Standard 3-jaw manual chuck with optional hydraulic chuck for automated workpiece clamping, reducing setup time and improving repeatability
- Automatic lubrication system for guideways and lead screws, minimizing wear and extending component service life
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter over Bed | 530 mm |
| Max. swing diameter over cross slide | 280 mm |
| Max. diameter for machining disc parts | 520 mm |
| Distance between centers | 1500 mm |
| Max. turning length | 1325 mm |
| **Structure** | |
| X-axis guideway span | 220 mm |
| Z-axis guideway span | 440 mm |
| Center height - From the bed/ From the ground | 265/1125 mm |
| **Spindle** | |
| Spindle through-hole diameter | 90 mm |
| Bar capacity | 79 mm |
| Spindle nose type | A2-8 |
| Spindle taper | Metric 100 1:20 |
| Spindle speed change | 3 step speed with manual gear shifting, stepless in step |
| Spindle speed range | 30-150 RPM; 90-450 RPM; 315-1600 RPM |
| **Chuck** | |
| Chuck type | Manual chuck (Optional: Hydraulic chuck) |
| Chuck size | 250 mm |
| **Feed & Travel** | |
| X/Z-axis rapid traverse | 6/8 m/min |
| X/Z-axis servo motor torque |
X:7.5 N.m; Z:10/15/22/22 N.m |
| X/Z-axis travel |
X:300 mm; Z:1500 mm |
| Guideway type | Box way |
| Minimum setting unit | 0.001 mm |
| **Tailstock** | |
| Tailstock quill diameter | 75 mm |
| Tailstock quill bore taper | MT.5 |
| Tailstock quill travel | 150 mm |
| Tailstock type | Manual |
| **Tool station** | |
| Tool stations | 4 |
| Tool shank size | 25x25 mm |
| **Power** | |
| Main motor power | 7.5 Kw |
| Total rated power | 12/12/13/13 Kw |
| Total rated current | 26/26/28/28 A |
| **Others** | |
| Net weight | 2150 Kg |
| Dimensions (L × W × H) | 3100x1600x1670 mm |
| **Accuracy** | |
| Periodic axial runout of the spindle | 0.005 mm |
| Radial runout of the positioning conical surface of the spindle chuck | 0.005 mm |
| Positioning accuracy |
X: ±0.005 mm; Z: ±0.02/1000 mm |
| Repeat positioning accuracy | ±0.005/1000 mm |
| Diameter consistency | 0.01/150 mm |
| Flatness | 0.025/φ300 mm |
| Cumulative error of thread pitch | 0.010/100 mm |
| Surface roughness | Ra1.6μm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine Frame | Standard |
| CNC system | GSK/SIEMENS/FANUC/FAGOR/MITSUBISHI/HNC optional |
| Spindle motor | Standard |
| Spindle structure | Standard |
| Spindle bearings | Standard |
| Guide rail | Standard |
| Ball Screw | Standard |
| Screw bearings | Standard |

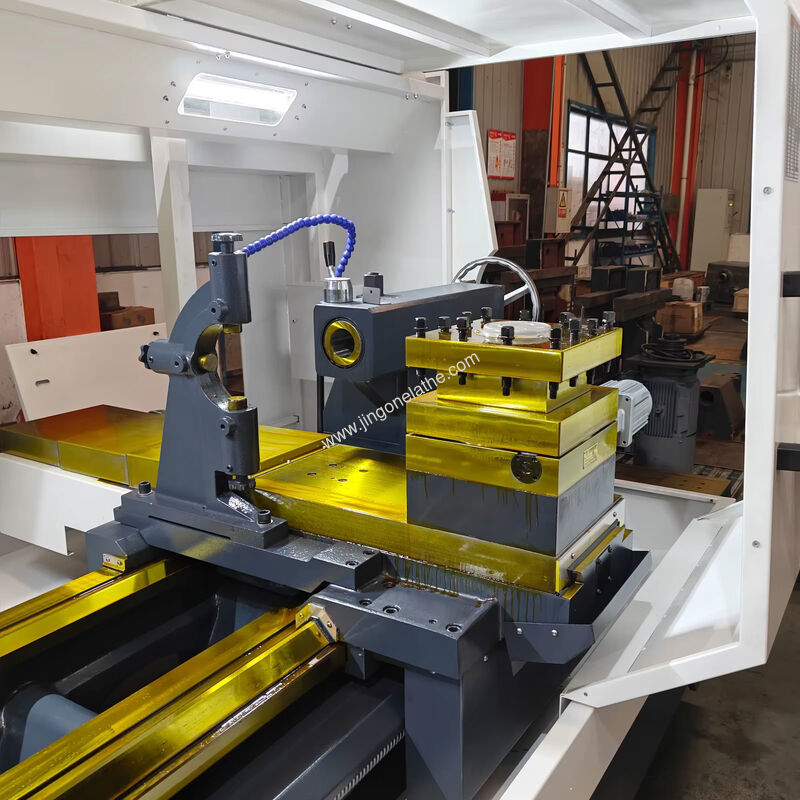

| 4-station Tool post | Standard |
| Automatic lubrication | Standard |
| 3-jaw manual chuck | Standard |
| Coolant pump | Standard |
| Tailstock | Standard |
| Hydraulic station | Optional |
| Hydraulic chuck | Optional |
| 6/8 station tool post | Optional |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: How do I choose the right center distance for my CK6152E horizontal CNC lathe?
A: Match the center distance to your longest workpiece length. The CK6152E horizontal CNC lathe offers 1000-3000mm options to suit different production needs.
Q: What maintenance steps are critical for retaining precision in the CK6152E?
