CK6152E CNC Flat Bed Lathe: High Rigidity for Aggressive Cutting & Precision Finishing
CK6152E CNC Flat Bed Lathe: High Rigidity for Aggressive Cutting & Precision Finishing
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6152
Contact Us
Request A Quote
Product Details
Max.swing Over Bed：:
530mm
Width Of The Bed Guide Rail：:
440mm
Spindle Through Hole::
90mm
Main Motor Power::
7.5kw
Lathe Length：:
1000mm
Bar Capacity:
¢79mm
Spindle Nose Type:
A2-8
Chuck Type:
Manual Chuck
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 11390 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

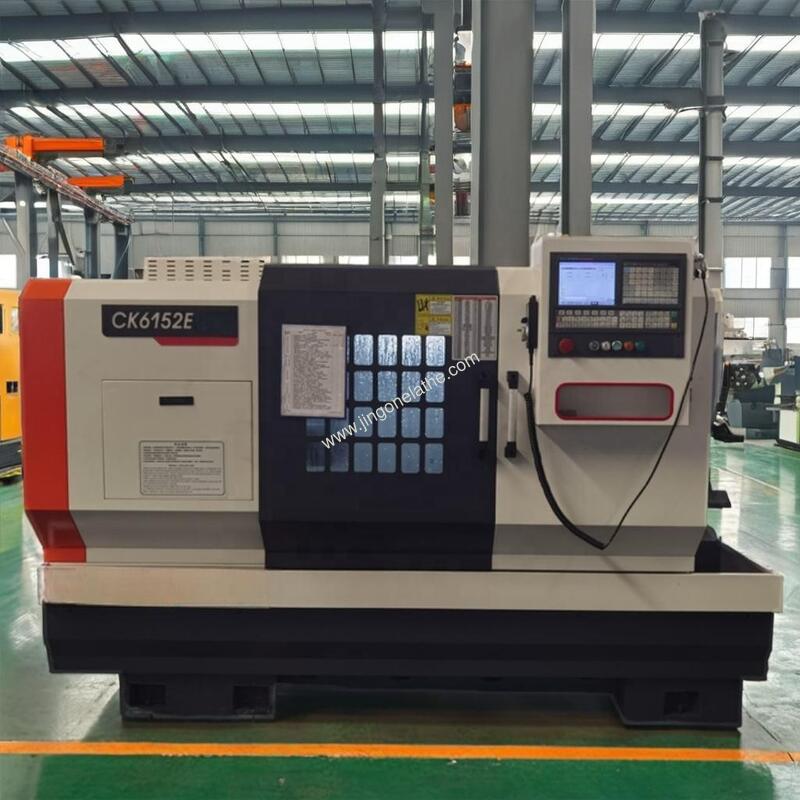

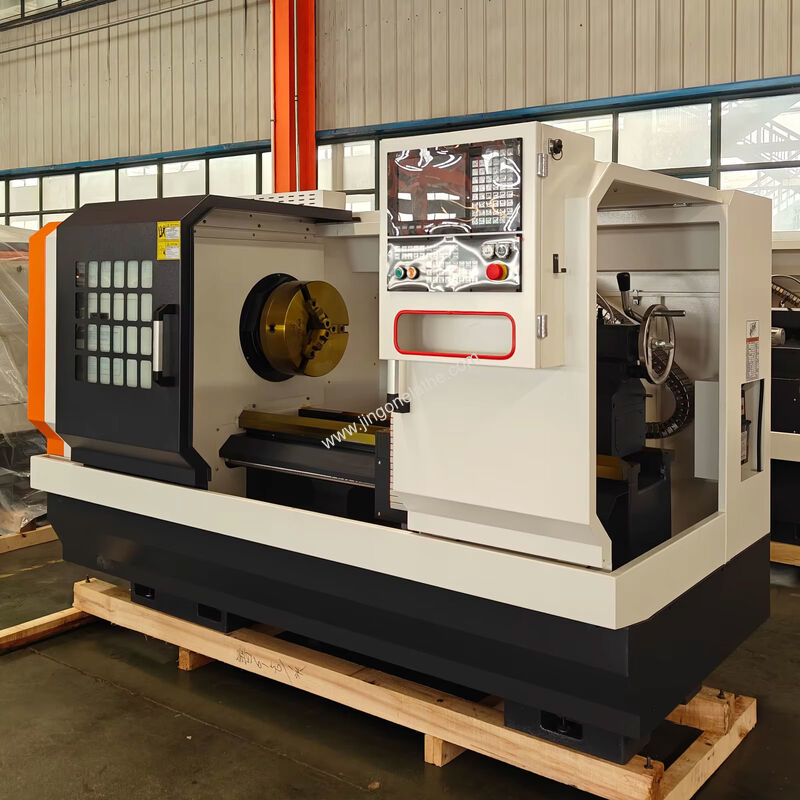

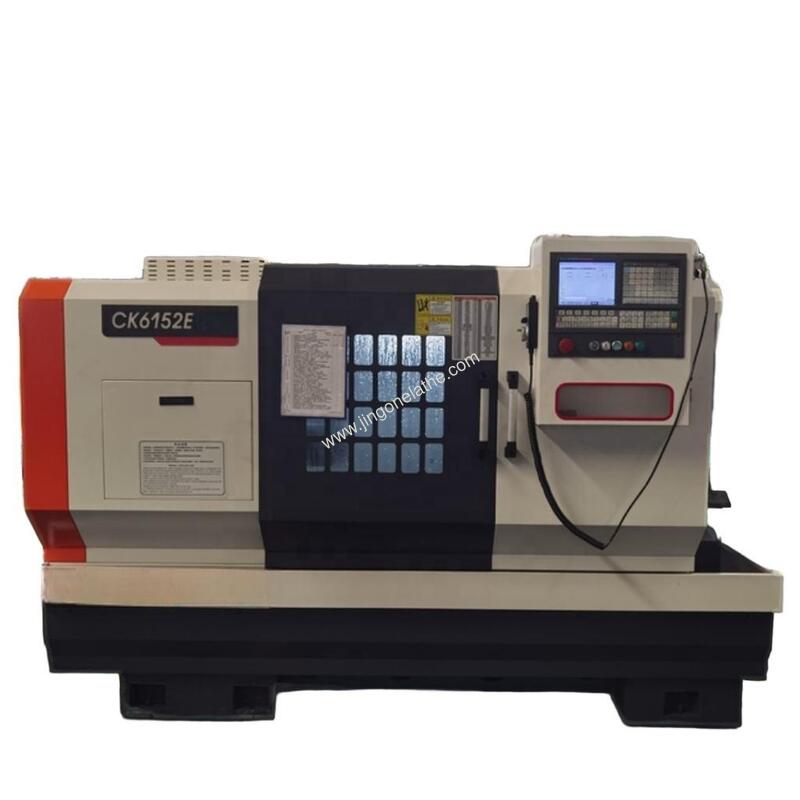

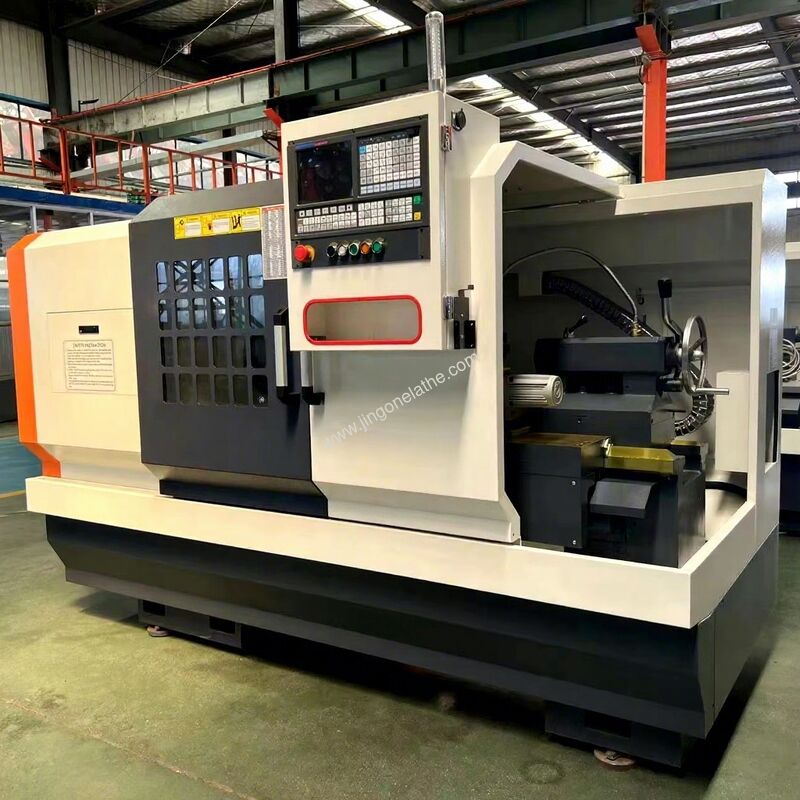

CK6152E CNC Flat Bed Lathe: High Rigidity for Aggressive Cutting & Precision Finishing
Model: CK6152E | Core Keyword: cnc flat bed lathe for sale
Summary
CNC flat bed lathe for sale, model CK6152E, integrates 3-step manual gear shifting and stepless frequency control to deliver precise speed adjustment across a 10-1600 rpm range. This configuration ensures high rotation accuracy and structural rigidity for consistent heavy roughing and precision finishing.
With a 530mm swing over bed and 90mm spindle through-hole diameter, this lathe supports turning, drilling, boring, nesting, oil groove, and keyway cutting—fulfilling diverse metalworking needs in a single machine. Its box way guideways minimize friction and maintain long-term positioning accuracy.
Engineered for metalworking shops, automotive component manufacturers, and precision engineering firms, the CK6152E CNC flat bed lathe reduces setup time and downtime through robust construction and reliable core components.
Features
- Robust machine frame construction with high rigidity to minimize vibration during aggressive cutting operations
- 3-step manual gear shifting paired with stepless frequency control, offering a broad 10-1600 rpm speed range for flexible machining
- Box way guideways for low friction, extended service life, and consistent positioning accuracy
- 90mm spindle through-hole diameter accommodates large bar stock, reducing material waste and setup time
- Supports multi-operation machining including turning, drilling, boring, nesting, oil groove, and keyway cutting
- Optional hydraulic chuck for automated clamping to improve workflow efficiency
- Automatic lubrication system ensures continuous maintenance of guideways and ball screws to preserve precision
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter over Bed | ¢530 mm |
| Max. swing diameter over cross slide | ¢280mm |
| Max. diameter for machining disc parts | ¢520mm |
| Distance between centers | 1000mm |
| Max. turning length | 825mm |
| **Structure** | |
| X-axis guideway span | 220mm |
| Z-axis guideway span | 440mm |
| Center height - From the bed/ From the ground | 265/1125mm |
| **Spindle** | |
| Spindle through-hole diameter | ¢90mm |
| Bar capacity | ¢79mm |
| Spindle nose type | A2-8 |
| Spindle taper | Metric 100 1:20 |
| Spindle speed change | 3 step speed with manual gear shifting, stepless in step |
| Spindle speed range | 30-150 rpm 90-450 rpm 315-1600 rpm |
| **Chuck** | |
| Chuck type | Manual chuck Optional:Hydraulic chuck |
| Chuck size | 250mm |
| **Feed & Travel** | |
| X/Z-axis rapid traverse | 6/8 m/min |
| X/Z-axis servo motor torque | X: 7.5 N.m Z: 10 N.m |
| X/Z-axis travel | X:300 mm Z: 1000mm |
| Guideway type | Box way |
| Minimum setting unit | 0.001 mm |
| **Tailstock** | |
| Tailstock quill diameter | ¢75 mm |
| Tailstock quill bore taper | MT.5 |
| Tailstock quill travel | 150mm |
| Tailstock type | Manual |
| **Tool station** | |
| Tool stations | 4 |
| Tool shank size | 5x25mm |
| **Power** | |
| Main motor power | 7.5 Kw |
| Total rated power | 12 Kw |
| **Others** | |
| Net weight | 2900 Kg |
| Dimensions (L × W × H) | 2600x1600x1670mm |
| **Accuracy** | |
| Periodic axial runout of the spindle | 0.005 mm |
| Radial runout of the positioning conical surface of the spindle chuck | 0.005 mm |
| Positioning accuracy | X: ±0.005 mm Z: ±0.02/1000 mm |
| Repeat positioning accuracy | ±0.005/1000 mm |
| Diameter consistency | 0.01/150 mm |
| Flatness | 0.025/φ300 mm |
| Cumulative error of thread pitch | 0.010/100 mm |
| Surface roughness | Ra1.6μm |
Accessory Configurations
| Accessory |
|---|
| Hydraulic station |
| 6 station tool post |
Logistics & Support
- Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
- Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
- Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
- Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
- Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: How does the CK6152E CNC flat bed lathe handle diverse machining tasks?
A: The CK6152E CNC flat bed lathe supports turning, drilling, boring, nesting, oil groove, and keyway cutting, eliminating the need for multiple machines to cover varied metalworking needs.
Q: What spindle features ensure precision in the CK6152E CNC flat bed lathe?
A: The CK6152E CNC flat bed lathe has 0.005mm spindle runout and a Metric 100 1:20 taper, delivering high rotation accuracy for consistent precision finishing of tight-tolerance parts.
Q: How does the 3-step gear shifting system benefit my machining operations?
A: The CK6152E CNC flat bed lathe’s 3-step manual gear shifting plus stepless frequency control offers a broad 10-1600 rpm range, optimizing speed for both heavy roughing and fine finishing tasks.
