Product Description

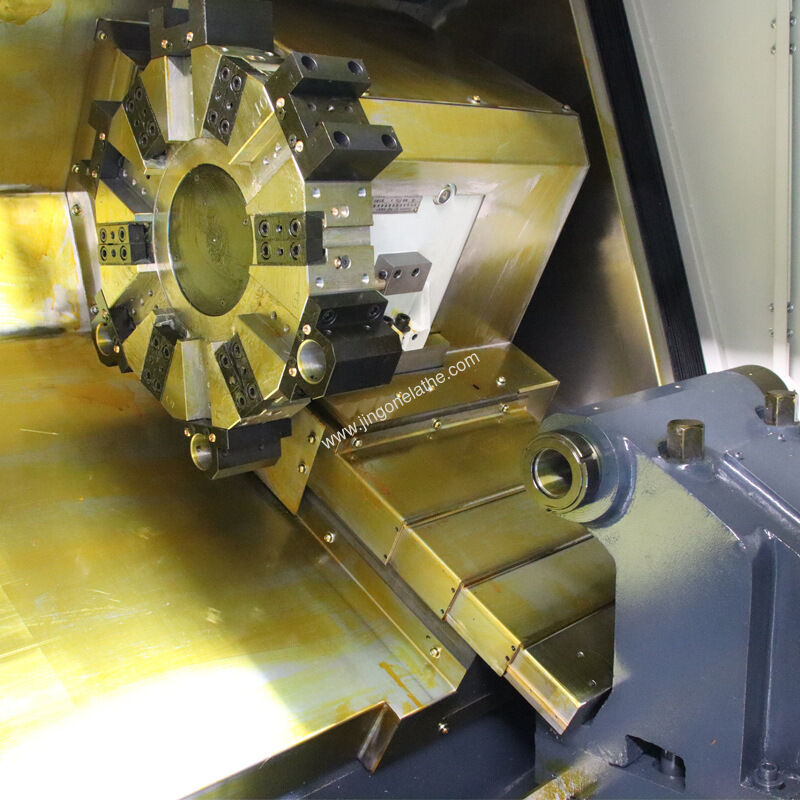

2-Axis Slant Bed CNC Lathe TCK50A-800 for Versatile Medium-Length Workpiece Machining
Model: TCK50A-800 | Core Keyword: 2-Axis Slant Bed CNC Lathe
Summary
2-Axis Slant Bed CNC Lathe TCK50A-800 is built for versatile medium-length workpiece machining across industrial sectors.
It features 2-axis servo control, 18m/min rapid feed in X and Z axes, and an 8-station servo turret, accommodating general mechanical parts, mold components, and automotive parts.
The high-strength cast iron slant bed with automatic centralized lubrication ensures long-term stability, reducing downtime for continuous batch production.
Features
- 2-axis servo control system with 18m/min rapid feed in X and Z axes for fast, versatile machining
- 3000 RPM stepless spindle and 8-station servo turret, supporting 25mm square and 32mm round shank tools
- High-strength cast iron slant bed with automatic centralized lubrication for consistent long-term performance
- 850mm Z-axis travel, supporting medium-length workpieces for general mechanical and automotive parts production
- Compatible with multiple optional accessories to expand machining capabilities for diverse applications
Technical Specifications
| Parameter | Specification |
|---|---|
| **Capacity** | |
| Max. swing diameter | 560 mm |
| Max. turning diameter | 420 mm |
| Max. turning length | 800 mm |
| Chuck size | 10'' |
| **Spindle** | |
| Spindle speed | 3000 rpm |
| Spindle speed change | Stepless |
| Spindle nose type | A2-6 |
| Spindle bore diameter | 66 mm |
| Max. bar capacity | 54 mm |
| **Turret** | |
| Turret type | Servo turret |
| Tool stations | 8-station |
| Turret disc diameter | ¢330 mm |
| Tool size (square shank) | 25 mm |
| Tool size (round shank) | 32 mm |
| Cutting tools | 4 (2 square 2 round) |
| **Travel&Feed** | |
| X-axis travel | 230 mm |
| Z-axis travel | 850 mm |
| X-axis rapid feed | 18 m/min |
| Z-axis rapid feed | 18 m/min |
| **Servo system** | |
| X-axis motor torque | 10 N.m |
| Z-axis motor torque | 10 N.m |
| **Structure&Guideways** | |
| Machine bed tilt angle | 45° |
| Guideway type | Linear guide rail |
| X-axis rail width | 35 mm |
| Z-axis rail width | 35 mm |
| **Transmission** | |
| X-axis ball screw | 3210 mm |
| Z-axis ball screw | 4012 mm |
| **Tailstock** | |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 70 mm |
| Sleeve travel | 95 mm |
| Sleeve taper | M.T.5 |
| **Accuracy** | |
| Positioning accuracy (X/Z) | 0.01 mm / 0.01 mm |
| Repeatability (X/Z) | 0.005 mm / 0.005 mm |
| **Motor** | |
| Main motor power | 11 Kw |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 450 W |
| Power supply | 20 KVA |
| **Others** | |
| Net weight | 4000 Kg |
| Dimensions (L × W × H) | 3300x2170x2200 mm |
Accessory Configurations
| Accessory | Optional Configuration |
|---|---|
| Servo Turret Upgrade | 12-station servo turret (¢330 turret disc) |
| Chip Conveyor | Chip conveyor (side/rear discharge) |
| Tool Setter | Folding arm tool setter |
| Safety System | Automatic door + automatic door safety device |
| Air Management | Oil mist collector |
| Fluid Management | Oil/coolant separator |
| Automation | Robot interface, bar material feeder |
| Machining Tools | Blowing device, water gun, soft jaws for chuck |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping, customized for 4000kg heavy-duty equipment
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What makes TCK50A-800 suitable for versatile machining?
A: This 2-axis slant bed CNC lathe offers 8-station servo turret and 850mm Z-axis travel, accommodating medium-length workpieces for general mechanical and automotive parts.
Q: What is the rapid feed rate of TCK50A-800?
A: The TCK50A-800 2-axis slant bed CNC lathe features 18m/min rapid feed in X and Z axes, reducing cycle time for batch processing.
Q: Can TCK50A-800 support automated machining?
A: Yes, this 2-axis slant bed CNC lathe is compatible with bar material feeders and robot interfaces for continuous, high-efficiency automated production.
