CNC Lathe with Y-Axis and Live Tooling TCK50Y-1500: 1400mm Workpiece Length for Heavy-Duty Large Component Machining
CNC Lathe with Y-Axis and Live Tooling TCK50Y-1500: 1400mm Workpiece Length for Heavy-Duty Large Component Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
TCK50Y-1500
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
640mm
Max.turning Diameter:
440mm
Max.turning Length:
1400mm
Max.bar Capacity:
75mm
Spindle Speed:
3000rpm
Turret Type:
330-12T-BMT45
Y-axis Travel:
±45mm
Y-axis Motor Torque:
6Nm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
50000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
CNC Lathe with Y-Axis and Live Tooling TCK50Y-1500: 1400mm Workpiece Length for Heavy-Duty Large Component Machining
Model: TCK50Y-1500 | Core Keyword: CNC Lathe with Y-Axis and Live Tooling
Summary
CNC Lathe with Y-Axis and Live Tooling TCK50Y-1500 is designed for heavy-duty machining of large industrial and construction components.
With a 15Kw spindle, 1400mm max workpiece length, and reinforced linear guide rails, this unit supports 74mm max bar capacity and delivers 0.005mm repeatability, utilizing its heavy-duty cast slant bed design for thermal shock resistance and long-term stability.
Its modular configuration includes 12-station live tool turret and hydraulic tailstock, ideal for producing large parts requiring combined turning, milling, and drilling operations in single setups to reduce downtime.
Features
- 30° slant bed heavy-duty cast iron frame with reinforced structure, resistant to thermal shock for consistent long-term precision in heavy cutting
- 450mm max turning diameter, 1500mm center distance, supports 74mm max bar capacity for large, heavy workpieces
- Reinforced linear guide rails on X/Z/Y axes enable 16m/min rapid feed and 0.005mm repeatability for tight tolerances
- 3000 RPM stepless A2-8 spindle with 15Kw main motor for high-torque cutting of thick, tough materials
- Modular options: 12-station BMT45 live tool turret, hydraulic tailstock, and multiple CNC system choices
- Optional accessories include chip conveyor, tool setter, and robot interface for automated large-part production
Technical Specifications
| Parameter | Specification |
|---|---|
| Max.swing diameter over bed | ¢640 mm |
| Max.swing diameter over cross slide | ¢380 mm |
| Max.turning diameter | ¢450 mm |
| Center distance | 1500 mm |
| Max.turning length | 1400 mm |
| Spindle nose type | A2-8 |
| Spindle bore diameter | ¢86 mm |
| Max.bar capacity | ¢74 mm |
| Spindle speed | 3000 rpm |
| Spindle speed change | Stepless |
| Spindle taper | M.T.6 |
| Chuck size | 10'' hydraulic chuck |
| Turret type | BMT 45 live tool turret |
| Tool stations | 12-station |
| Turret disc diameter | ¢330 mm |
| Tool size(square shank) | 25x25 mm |
| Tool size(round shank) | ¢32 mm |
| Tool chuck | ER25 |
| Cutting tools | 4 (2 square 2 round) |
| Live tool speed | 3000 rpm |
| X-axis travel | 260 mm |
| Z-axis travel | 1500 mm |
| Y-axis travel | ±45 mm |
| X-axis rapid feed | 16 m/min |
| Z-axis rapid feed | 16 m/min |
| Y-axis rapid feed | 6 m/min |
| Min. setting | 0.0001 mm |
| X-axis motor torque | 15 N.m |
| Z-axis motor torque | 15 N.m |
| Y-axis motor torque | 6 N.m |
| Live tool motor torque | 10 N.m |
| Main motor power | 15 Kw |
| Machine bed tilt angle | 30° |
| Guideway type | Linear guide rail |
| X-axis rail | 35 mm |
| Z-axis rail | 35 mm |
| X-axis ball screw | 3210 mm |
| Z-axis ball screw | 4012 mm |
| Tailstock type | Hydraulic tailstock |
| Movement | Manual |
| Sleeve diameter | 70 mm |
| Sleeve travel | 95 mm |
| Sleeve taper | M.T.5 |
| Positioning accuracy | X: 0.01 mm, Z: 0.01 mm, Y: 0.008 mm |
| Repeatability | X: 0.005 mm, Z: 0.005 mm, Y: 0.005 mm |
| Lubrication pump | 3ZK (3L) |
| Cooling pump | 450 W |
| Power supply | 35 KVA |
| Net weight | 5700 Kg |
| Dimensions (L × W × H) | 4000x2170x2200 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Machine frame | Slant bed |
| CNC system | Optional: Fanuc,Siemens,GSK,Syntec |
| X-axis motor | With brake |
| Y-axis motor | With brake |
| Ball screw |
X: ¢32x12-635; Z: 32x12-1542 |
| Linear guideway |
X: 35mm; Z: 35mm |
| Screw bearings |
X: 25x62x15; Z: 25x62x15 |

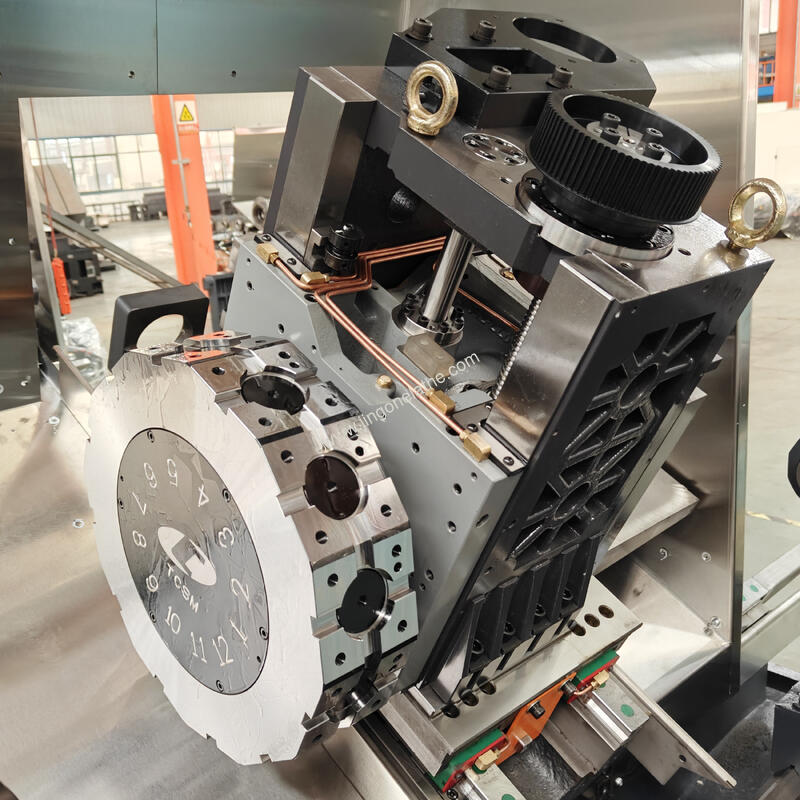

| Servo turret | Horizontal 12 station servo turret with Y-axis |
| Tool holders |
External turning tool clamping block 20x20, 4 sets; Facing tool holder 20x20, 1 set; Boring tool holder ¢25, 3 sets; Tool sleeve ¢20 |
| Optional Configurations |
Chip conveyor (side/rear discharge); Tool setter- folding arm tool setter; Automatic door; Automatic door safety device; Oil mist collector; Oil/coolant separator; Robot interface; Bar material feeder; Blowing device; Water gun; Soft jaws for chuck |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands and heavy-duty wooden bracing for large, heavy unit shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the max workpiece length the TCK50Y-1500 CNC Lathe with Y-Axis can handle?
A: The TCK50Y-1500 CNC Lathe with Y-Axis and Live Tooling supports a max workpiece length of 1400mm for heavy-duty industrial and construction components.
Q: Does the TCK50Y-1500 include live tooling for combined turning and milling operations?
A: Yes, the TCK50Y-1500 CNC Lathe with Y-Axis and Live Tooling comes with a BMT45 live tool turret for mill-drill and contouring tasks in single setups.
Q: What is the net weight of the TCK50Y-1500 CNC lathe for shipping planning?
A: The TCK50Y-1500 CNC Lathe with Y-Axis and Live Tooling has a net weight of 5700Kg, requiring heavy-duty shipping and handling arrangements.
