1500mm Length CK6150 CNC Lathe: Heavy-Duty Precision for Long Shaft Machining
1500mm Length CK6150 CNC Lathe: Heavy-Duty Precision for Long Shaft Machining
Place of Origin:
Tengzhou, Shandong
Brand Name:
JingOne Machine
Certification:
CE Certifications
Model Number:
CK6150x1500
Contact Us
Request A Quote
Product Details
Max.swing Diameter Over Bed:
500mm
Distance Between Centers:
1500mm
Spindle Nose Type:
A2-8
Spindle Through Hole:
82
Tailstock Quill Diameter:
75mm
Tailstock Type:
Manual
CNC System:
GSK
Payment & Shipping Terms
Minimum Order Quantity
1
Price
11000USD
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

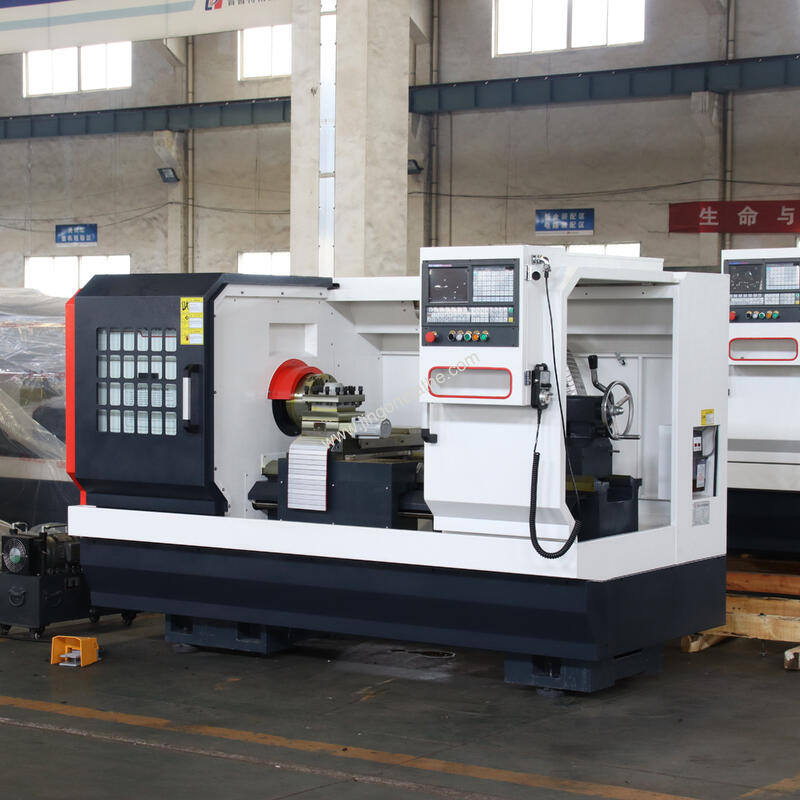

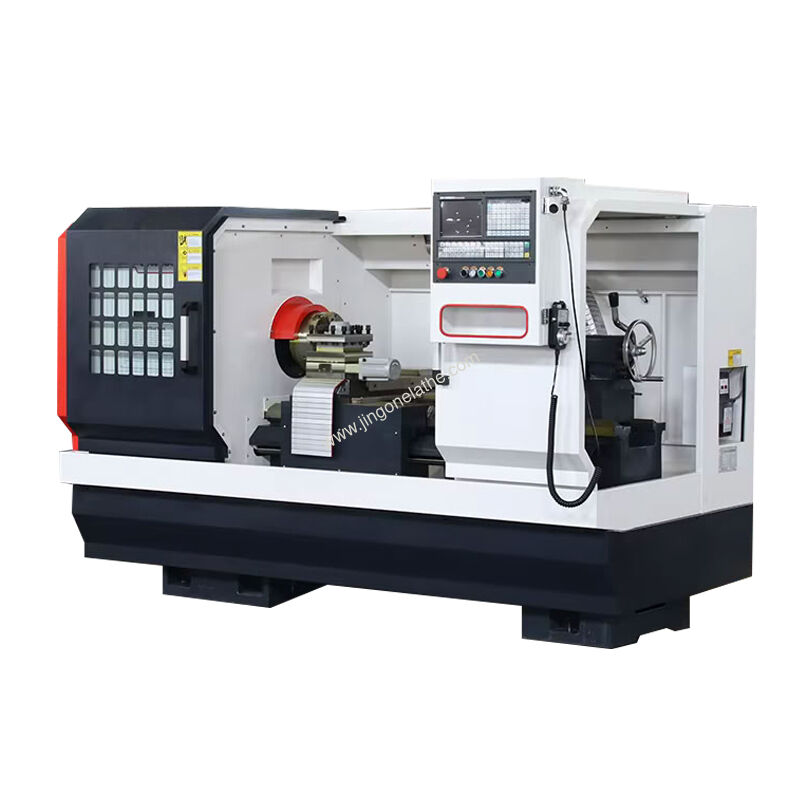

CK6150 CNC Lathe x1500: Heavy-Duty Precision for Long Shaft Machining
Model: CK6150x1500 | Core Keyword: CK6150 lathe CNC
Summary
CK6150 lathe CNC x1500 provides heavy-duty precision for long shaft and large disc parts. With a 1500mm center distance, 11KW main motor, and 5010 Z-axis ball screw, it handles complex shapes and tight tolerance requirements. This model is designed for heavy engineering, energy, and machinery manufacturing workshops.
Features

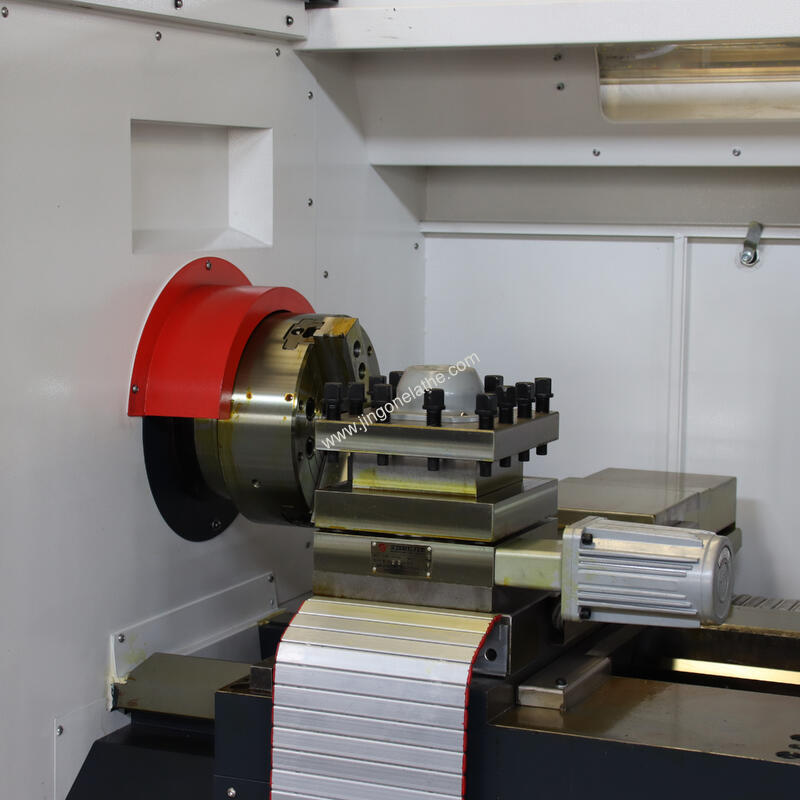

- Optimized headstock design for high-torque lathe cutting of long shaft parts
- Hardened box guideways with chip scraping device to prevent corrosion and reduce maintenance time
- High-precision spindle bearing sets with dynamic balance testing for low noise and stable heavy cutting
- Stepless spindle speed range 150-1800 rpm for flexible machining of large workpieces
- MT5 tailstock with 150mm quill travel for secure holding of long workpieces
- 11KW main motor for high torque and efficient machining of heavy components
- 5010 Z-axis ball screw for smooth, precise long-distance travel
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. swing diameter over bed | Φ500 mm |
| Distance between centers | 1500 mm |
| Max. turning diameter for plate | 500 mm |
| Max. turning length | 1350 mm |
| X-axis travel | 280 mm |
| Z-axis travel | 1500 mm |
| Rapid feed: X-axis | 6 m/min |
| Rapid feed: Z-axis | 8 m/min |
| Spindle nose type | A2-8 |
| Spindle through hole | 82 mm |
| Chuck | Φ250 mm |
| Hole through draw tube | 65 mm |
| Spindle speed change | Stepless |
| Spindle speed range | 150-1800 rpm |
| Tailstock quill diameter | Φ75 mm |
| Taper of tailstock quill bore | MT5# |
| Tailstock quill travel | 150 mm |
| Tailstock type | Manual |
| Tool positions of electric tool turret | 4 |
| Tool shank size | 25x25 mm |
| Guide rail type | Box guide way |
| X-axis rail width | 210 mm |
| Z-axis rail width | 400 mm |
| X-axis ball screw | 2506 mm |
| Z-axis ball screw | 5010 mm |
| Positioning accuracy (X-axis) | 0.01 mm |
| Positioning accuracy (Z-axis) | 0.015 mm |
| Repeatability (X-axis) | 0.009 mm |
| Repeatability (Z-axis) | 0.012 mm |
| X-axis motor torque | 7.5 N.m |
| Z-axis motor torque | 10 N.m |
| Main motor power | 11 KW |
| Cooling pump motor | 250 W |
| Lubrication pump | 2ZK(2L) |
| Net weight | 3500 Kg |
| Dimensions (LxWxH) | 3250x1700x1820 mm |
Accessory Configurations
| Accessory | Configuration |
|---|---|
| Tool Turret | 6-station/8-station optional |
| Chuck | Hydraulic chuck optional |
| Safety System | Automatic door + safety device optional |
| Fluid Management | Oil-water separator optional |
| Air Quality | Oil mist collection optional |
| Machining Precision | Tool setter optional |
| Workpiece Control | Workpiece measurement optional |
| Maintenance Tools | Blowling device (Air gun) optional |
| Cleaning | Water Gun optional |
Logistics & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
FAQ
Q: What is the maximum workpiece length the CK6150x1500 can handle?
A: The CK6150 lathe CNC x1500 supports workpieces up to 1350mm in turning length, perfect for long industrial shaft components.
Q: Does this model offer optional hydraulic chuck for high-volume production?
A: Yes, the CK6150 CNC Lathe x1500 has an optional hydraulic chuck to improve clamping efficiency for heavy long-shaft production runs.
Q: What is the Z-axis positioning accuracy of this heavy-duty lathe?
A: The CK6150 lathe CNC x1500 has a Z-axis positioning accuracy of 0.015mm, ensuring consistent precision for long shaft machining.
