VMC1160 CNC Vertical Milling Center | 1200x600 Table | Aerospace Parts Milling
VMC1160 CNC Vertical Milling Center | 1200x600 Table | Aerospace Parts Milling
VMC1160 cnc milling machines
1200x600 Table vertical machining center
Aerospace Parts cnc metal milling machine
Place of Origin:
Kunshan, Jiangsu
Brand Name:
Authorized JingYuan CNC
Certification:
CE Certifications
Model Number:
VMC1160
Contact Us
Request A Quote
Product Details
X/Y/Z-axis Travel:
1100/600/600mm

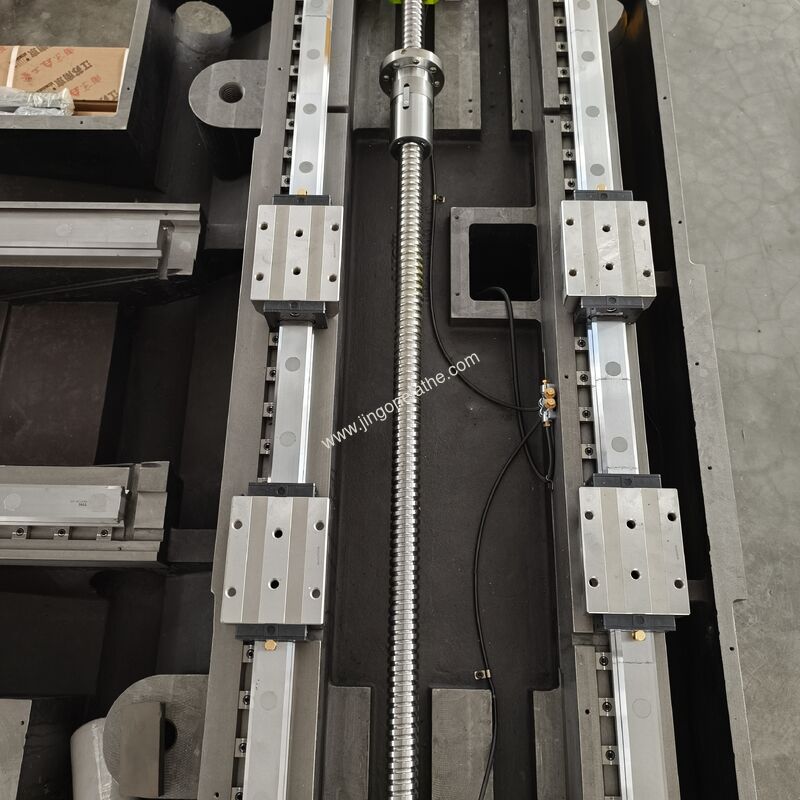

Guide Type:
Roller Linear Guide
Max. Worktable Load:
800kg
Spindle Taper:
BT 40
Spindle Speed:
8000rpm
ATC:
24T-BT40-Tool Magazine
Spindle Motor:
11/15Kw
Highlight:
VMC1160 cnc milling machines
,1200x600 Table vertical machining center
,Aerospace Parts cnc metal milling machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Start from 31122 USD/set
Packaging Details
Plywood Case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
50 sent/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
VMC1160 CNC Vertical Milling Center | 1200x600 Table | Precision Parts Milling
VMC1160 CNC Vertical Mill | 8000 RPM BT40 Spindle | ±0.006mm Repeat Positioning for Precision Parts

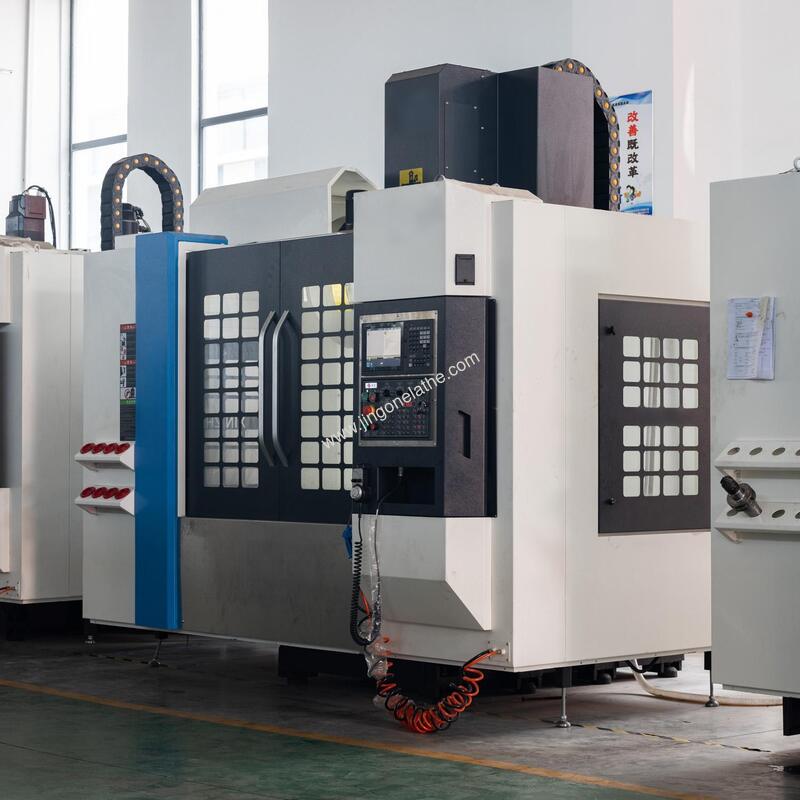

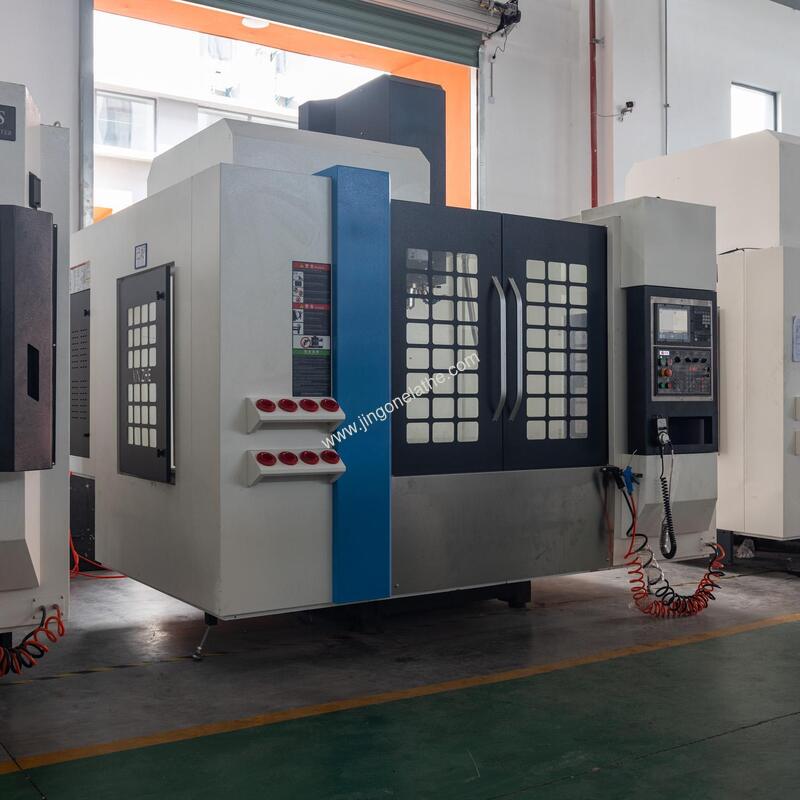

VMC1160 CNC Vertical Milling Machine
This VMC1160 CNC Vertical Milling Machine delivers consistent precision for high-demand applications like industrial mold machining. With a 1200x600mm worktable supporting up to 800kg, it handles heavy-duty components while maintaining ±0.006mm repeat positioning accuracy.
Equipped with an 11/15kW spindle (8000 RPM standard, 10000 RPM optional) and 24-arm type tool magazine, this machining center minimizes tool change downtime and adapts to diverse cutting tasks. Its 36m/min rapid feed rate across X/Y/Z axes reduces non-cutting time, boosting overall production efficiency for metal fabrication and tapping operations.
VMC1160 Core Features
- High-Precision Spindle System: BT40 taper spindle with 11/15kW continuous/30min power, standard 8000 RPM (10000 RPM optional) for versatile milling and tapping
- Heavy-Duty Worktable: 1200x600mm table with 5 T-slots, supporting up to 800kg load for large or dense components
- Efficient Tool Management: 24-arm type tool magazine, accommodating tools up to 150mm (non-adjacent) diameter and 300mm length for uninterrupted machining
- Fast Traverse Performance: 36m/min rapid feed rate on X/Y/Z axes, cutting feed range of 1-10000mm/min for optimized cycle times
- Consistent Accuracy: ±0.006mm repeat positioning and positioning accuracy for tight-tolerance aerospace and mold applications
- Flexible Chip Removal: Rear (220L) or front (250L) chip removal water tank options to match production environment needs
Technical Specifications
| Parameter | Details |
|---|---|
| Worktable size | 1200x600mm |
| Spindle power(continuous/30min) | 11/15kw |
| Max. load | 800kg |
| Spindle taper | BT 40 |
| Cutting feed range | 1000mm/min |
| Tool magazine capacity | 24sets |
| Tool magazine type | Arm type |
| Max.tool length | 300mm |
| Repeat positioning | ±0.006mm |
| Weight (approx) | 6500kg |
Accessory Configurations
Standard Accessories
| Item | Specification |
|---|---|
| Spacer block | 8 |
| Tool box | 1 |
| Adjusting bolt | 8 |
| Hexagonal nut | 8 |
| Cleaning air gun | 1 |
International Shipping & Support
Packing: Sea-worthy plywood case with waterproof lining, reinforced with steel bands for long-distance shipping
Warranty: Full 12 months warranty covering core mechanical systems (spindle, gearbox, bed guideways)
Technical Support: Lifetime free technical support via email, video call, or on-site service (extra charge applies for on-site visits)
Export Coverage: Exported to 30+ countries including Germany, Australia, Brazil, USA, and Southeast Asian markets
Customs Documentation: Complete export documentation provided, including CE certificate, commercial invoice, packing list, and bill of lading
Frequently Asked Questions
Q: What are the target industrial applications for the VMC1160 CNC Vertical Milling Center?
A: The JingOne VMC1160 is designed as a versatile, heavy-duty workhorse engineered to meet the stringent demands of diverse industrial metalworking sectors:
-
Industrial Mold & Die Machining: Its rock-solid casting handles extended, deep-cavity cutting with superior surface finishes.
-
Mold & Medical Components: Delivers a tight ±0.006mm repeat positioning accuracy required for tight-tolerance, safety-critical parts.
-
General Metal Fabrication & Tapping: Outfitted with an 11/15kW high-torque spindle and a 36m/min rapid feed rate across X/Y/Z axes, it drastically minimizes non-cutting cycle times for high-volume contract workshops.
Q: How does the VMC1160 optimize tool management and minimize production downtime?
A: To maximize workshop throughput and support uninterrupted batch processing, the VMC1160 incorporates an advanced automated tool system:
-
24-Arm Type Tool Magazine: Features a rapid-indexing 24-station arm-type (disc-type) tool changer that cuts down tool-to-tool transition times significantly.
-
Generous Tool Capacity: Accommodates substantial tooling profiles, accepting tools up to 150mm in diameter (when adjacent slots are empty) and up to 300mm in length, allowing workshops to combine roughing, fine milling, drilling, and tapping in a single automated program.
Q: What are the worktable load capacity and spindle configurations of the VMC1160 CNC Mill?
A: The VMC1160 is built for heavy-duty setups and high material removal rates through the following standard configurations:
-
Heavy-Duty Worktable: The 1200x600mm precision table features 5 standard T-slots and reliably supports heavy, dense workpieces weighing up to 800 kg.
-
Spindle Versatility: Equipped with a standard BT40 taper spindle operating at 8000 RPM (a high-speed 10000 RPM variant is optional). This system provides consistent 11/15kW power outputs to handle tough alloys and aluminum with equal efficiency.
